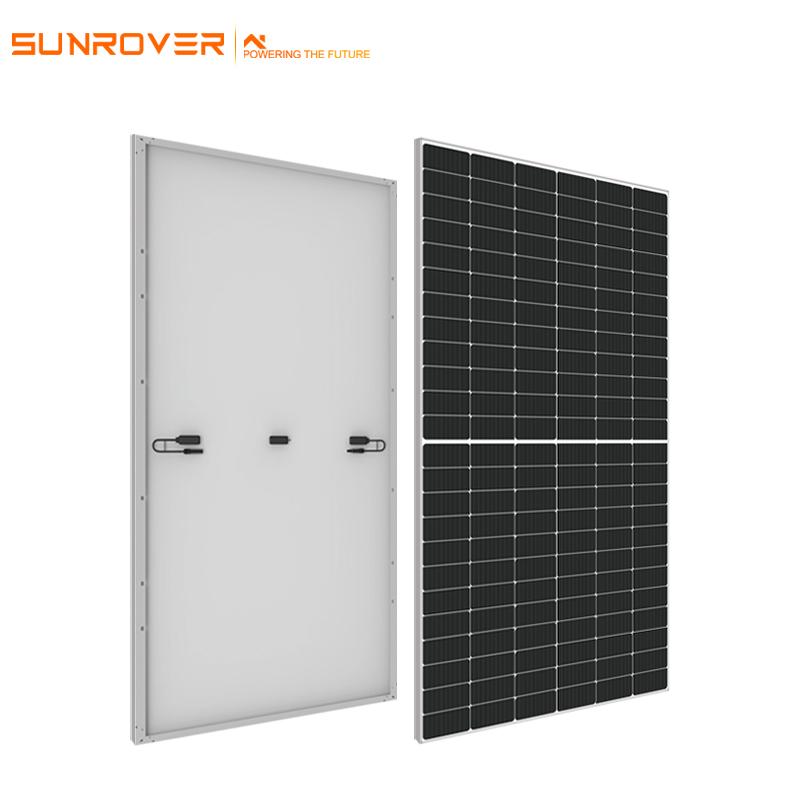

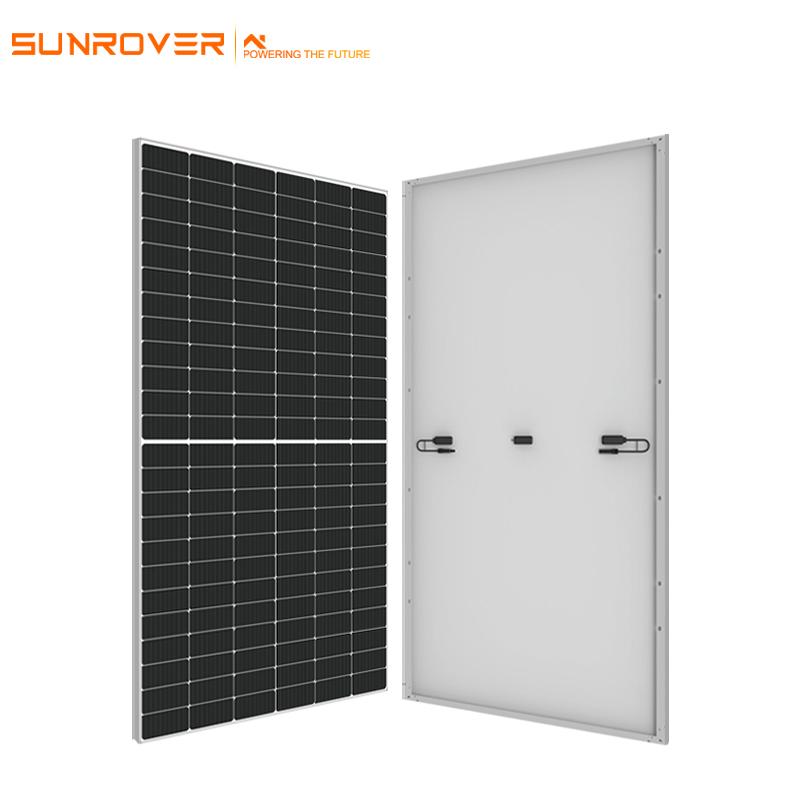

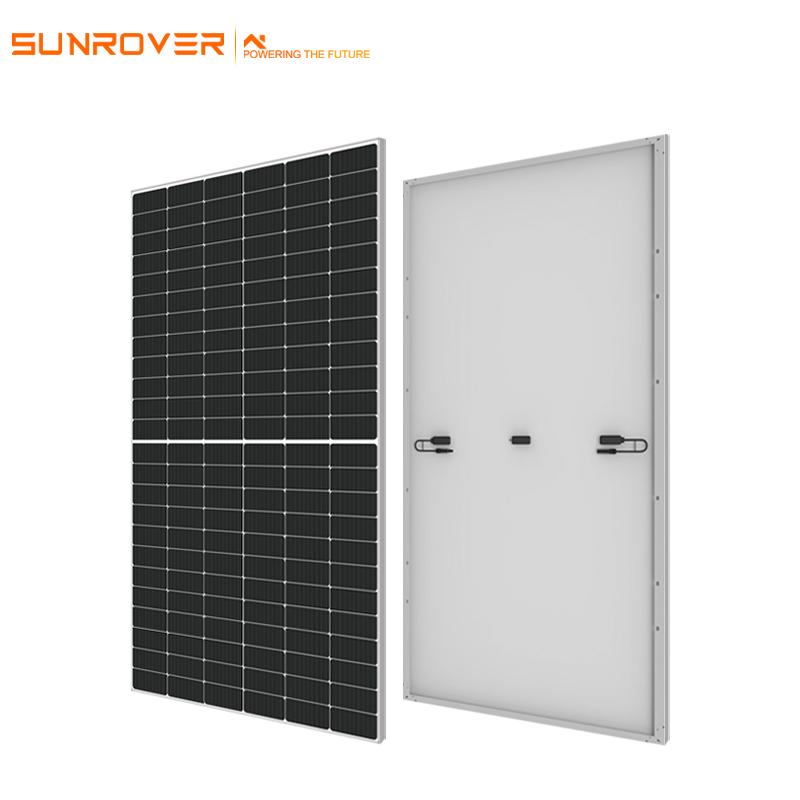

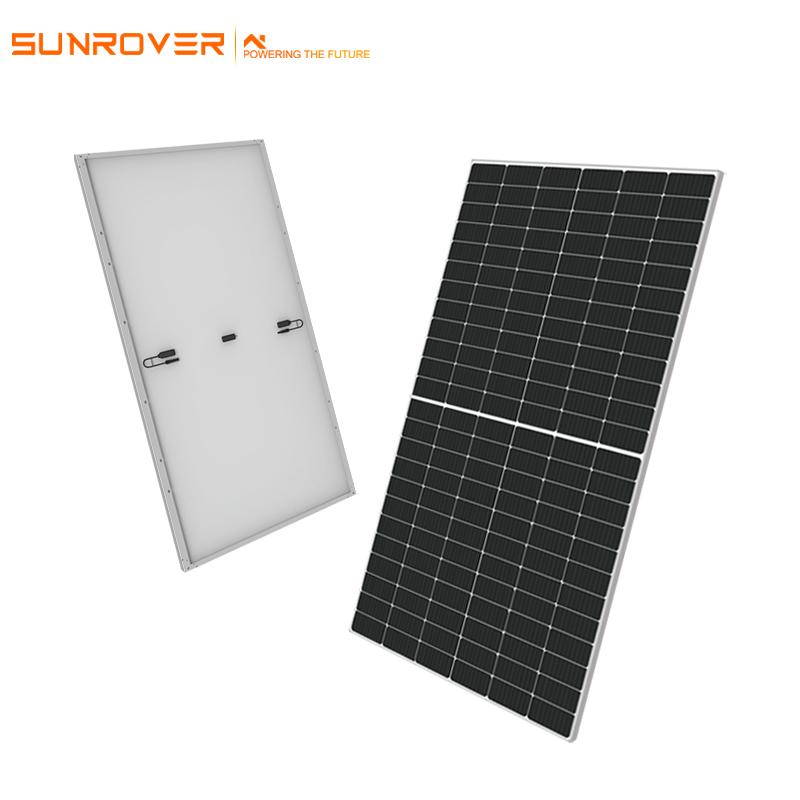

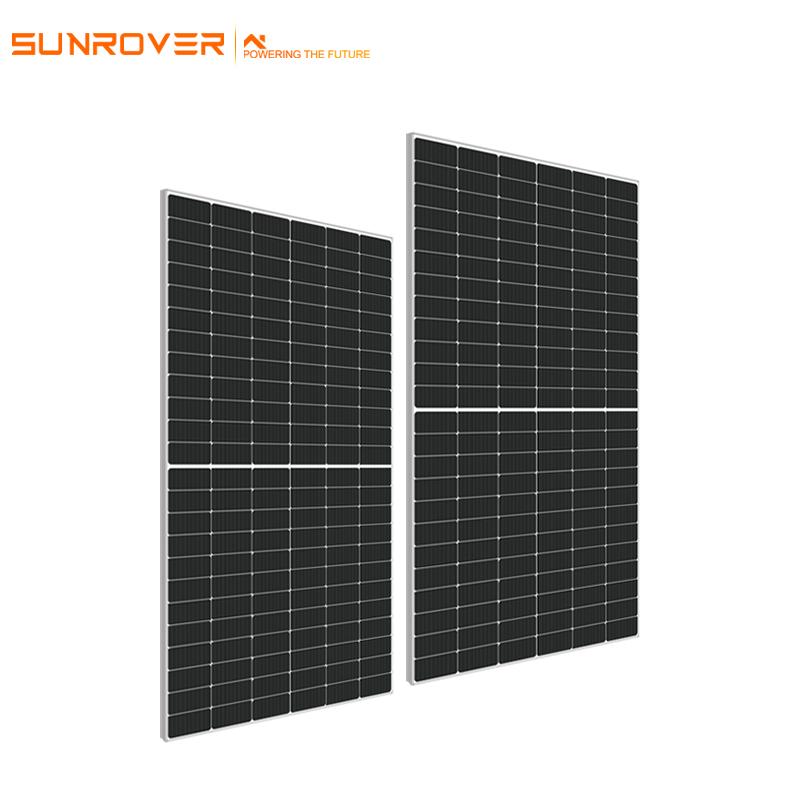

445w solar panel half cell

solar panel half cell in stock with TUV CE ISO

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    3days(1—100000w);5days(10001 —100000w);1
  • Weight:

    21.8kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    144 cells
  • Dimensions:

    410w-430w(1762×1134×30mm);445w-465w(2094×1038×35mm);485w-505w(2187×1102×35mm);
  • Weight:

    410w-430w(21.8kg);445w-465w(23.3kg);485w-505w(26.3kg);
  • Certificate:

    CE/TUV/ISO
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    10years

Double Glass Transparent mono solar panel half cell in stock with TUV/CE certification

    For half cell panels, they actually cut ordinary solar cells in half. Unlike the common PV modules, which have 60 or 72 cells, they become 120 or 144 half cells, while maintaining the same design and size as conventional modules.

    The half cell technology generally adopts the laser cutting method to cut the standard specification battery chip into two identical half cells in the direction perpendicular to the main grid line of the battery, and then weld them in series.

    Like conventional components, the half cell package is also packaged with tempered glass, EVA and backplane. Conventional solar panels usually contain 60 0.5-0.6V solar cells in series. The voltage is increased in series, so the working voltage of the 60 chip module is 30-35V. If half of the cells are connected together as in a standard assembly, they will produce half the current and twice the voltage without changing the resistance

Module SUN445-DE17S SUN450-DE17S SUN455-DE17S SUN460-DE17S SUN465-DE17S
Maximum Power(Pmax) 445W 450W 455W 460W 465W
Maximum Power Voltage(Vmp) 41.30V 41.50V 41.70V 41.90V 42.10V
Maximum Power Current(Imp) 10.78A 10.85A 10.92A 10.98A 11.05A
Open-circuit Voltage(Voc) 49.10V 49.30V 49.50V 49.70V 49.90V
Short-circuit Current(Isc) 11.53A 11.60A 11.66A 11.73A 11.80A
Module Efficiency STC(%) 20.50% 20.70% 20.90% 21.20% 21.39%
Operating Temperature() -40~+85
Maximum system voltage DC 1500V
Maximum series fuse rating 20A
Power tolerance 0-+5W
Temperature coefficients of Pmax -0.350%
Temperature coefficients of Voc -0.270%
Temperature coefficients of Isc 0.048%
Nominal operating cell temperature(NOCT) 45±2



Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover Solar
Model Number: SUN445-465 DE17S(15)
Type: PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel
Panel Efficiency: 19.50%, 19.70%, 19.90%, 20.20%, 20.40%
Certificate: ISO/CE/TUV/ETL
Warranty: 10YEARS
Glass: 3.2mm High Tranamission Low Iron
Frame: Anodized Aluminium Alloy
Junction Box: Split junction box (IP68, three diode)
Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: Support for solar panel 450 watt stock double glass
Supply Ability 10000 Piece/Pieces per Week solar panel 450 watt stock double glass
Packaging & delivery
Packaging Details Half cell Mono solar panel from 410w to 670w stock double glass
  1. Standard exporting Wooden and Carton Box
  2. Container: 40'HQ
  3. Pallets Per Container: 22
  4. Pieces Per Container: 660
  The packaging can be customized according to the needs of different customers
Port Shanghai , China
Quantity(watts) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Lead time (days) 3 5 10 To be negotiated
