S6-EH1P(3-8)K-L-PLUS

Models 80K Input DC   Max. input voltage 1100 V Rated voltage 600 V Start-up voltage 180 V MPPT voltage range 160-1000 V Max. input current 3*(40 A / 32 A) Max. short circuit current 6*50 A MPPT number/Max. input strings number 6/12 Output AC   Rated output power 80 kW Max. apparent output power 88 kVA Max. output power 88 kW Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid frequency 50 Hz / 60 Hz Rated grid output current 121.6 A / 115.5 A Max. output current 133.7 A Power factor >0.99 (0.8 leading - 0.8 lagging) THDi <3% Efficiency   Max. efficiency 98.5% EU efficiency 98.0% Protection   DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection DC Type II / AC Type II Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Strings monitoring Yes I/V Curve scanning Yes Integrated AFCI Yes Integrated PID recovery Optional Integrated DC switch Yes Integrated AC switch Optional General Data   Dimensions (W*H*D) 1065*585*363 mm (with or without AC switch)  Weight  78 kg Topology Transformerless Self-consumption (night)  <2 W Operating ambient temperature range -30 ~ +60°C Relative humidity 0-100% Ingress protection IP66 Cooling concept Intelligent redundant fan-cooling Max. operation altitude 4000 m Grid connection standard G99, IEC61727, EN50549-1/2 Safety/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4 Features   DC connection MC4 connector AC connection OT terminal (max. 240 mm²)  Display LCD Communication RS485, Optional: Wi-Fi, GPRS, PLC

Models 7K 8K Input DC     Recommended max. PV power 10.5 kW 12 kW Max. input voltage 550 V Rated voltage 330 V Start-up voltage 90 V MPPT voltage range 90 - 500 V Max. input current 18 A / 32 A Max. short circuit current 20 A / 40 A MPPT number / Max. input strings number 2 / 3 Output AC     Rated output power 7 kW 8 kW Max. apparent output power 7 kVA 8 kVA Max. output power 7 kW 8 kW Rated grid voltage 1/N/PE, 220 V / 230 V Rated grid frequency 50 Hz / 60 Hz Rated grid output current 31.8 A / 30.4 A 36.4 A / 34.8 A Max. output current 31.8 A 36.4 A Power factor > 0.99 (0.8 leading - 0.8 lagging) THDi < 3% Efficiency     Max. efficiency 97.7% EU efficiency 96.8% Protection   DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection Yes Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Multi peak scan Yes Integrated AFCI 2.0 Optional Integrated DC switch Yes General Data   Dimensions (W × H × D) 310 × 550 × 180 mm Weight 13.2 kg Topology Transformerless Self-consumption (night) < 1 W Operating ambient temperature range -25 ~ +60°C Relative humidity 0 - 100% Ingress protection IP66 Noise emission (typical) < 40 dB(A) Cooling concept Natural cooling with internal fan Max. operation altitude 4000 m Grid connection standard EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530 Safety / EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 Features   DC connection MC4 connector AC connection Quick connection plug Display Natural cooling with internal fan Communication RS485, Optional: Wi-Fi, GPRS

Models 5K 6K Input DC     Recommended max. PV power 7.5 kW 9 kW Max. input voltage 550 V Rated voltage 330 V Start-up voltage 100 V MPPT voltage range 90 - 550 V Max. input current 16 A / 16 A Max. short circuit current 22 A / 22 A MPPT number / Max. input strings number 2 / 2 Output AC     Rated output power 5 kW 6 kW Max. apparent output power 5 kVA 6 kVA Max. output power 5 kW 6 kW Rated grid voltage 1/N/PE, 220 V / 230 V Rated grid frequency 50 Hz / 60 Hz Rated grid output current 22.7 A / 21.7 A 27.3 A / 26.1 A Max. output current 22.7 A 27.3 A Power factor > 0.99 (0.8 leading - 0.8 lagging)  THDi < 3% Efficiency     Max. efficiency 97.7% EU efficiency 97.1% Protection   DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection Yes Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Multi peak scan Yes Integrated AFCI 2.0 Optional Integrated DC switch Yes General Data   Dimensions (W × H × D) 330 × 371 × 161 mm Weight 8.9 kg 9 kg Topology Transformerless Self-consumption (night) < 1 W Operating ambient temperature range -25 ~ +60°C Relative humidity 0 - 100% Ingress protection IP66 Noise emission (typical)  < 20 dB(A) Cooling concept Natural cooling with internal fan Max. operation altitude 4000 m Grid connection standard G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530, MEA, PEA Safety / EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3  Features   DC connection MC4 connector AC connection Quick connection plug Display LED digital display & Bluetooth + APP Communication RS485, USB, Optional: Wi-Fi, GPRS

Models 10K 12K 15K 17K 20K Input DC           Recommended max. PV power 15 kW 18 kW 22.5 kW 25.5 kW 30 kW Max. input voltage 1100 V  Rated voltage 600 V Start-up voltage 180 V MPPT voltage range 160-1000 V Max. input current 16 A / 16 A 32 A / 32 A Max. short circuit current 20 A / 20 A 40 A / 40 A MPPT number/Max. input strings number 2/2 2/4 Output AC           Rated output power 10 kW 12 kW 15 kW 17 kW 20 kW Max. apparent output power 11 kVA 13.2 kVA 16.5 kVA 18.7 kVA 22 kVA Max. output power 11 kW 13.2 kW 16.5 kW 18.7 kW 22 kW Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid frequency 50 Hz / 60 Hz Rated grid output current 15.2 A / 14.4 A 18.2 A / 17.3 A 22.8 A / 21.7 A 25.8 A / 24.6 A 30.4 A / 28.9 A Max. output current 15.9 A 19.1 A 23.8 A 27 A 31.8 A Power factor >0.99 (0.8 leading - 0.8 lagging) THDi  <2% Efficiency           Max. efficiency 98.5% 98.6% 98.7% EU efficiency 97.9% 98.0% 98.1% Protection           DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection Yes Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Integrated AFCI 2.0 Optional Integrated DC switch Yes General Data           Dimensions (W*H*D) 310*563*219 mm Weight 17.9 kg 19.6 kg 20.8 kg Topology Transformerless Self-consumption (night)  <1 W Operating ambient temperature range -25 ~ +60°C Relative humidity 0-100% Ingress protection IP66 Noise emission (typical) <30 dB(A) <60 dB(A)  Cooling concept Natural convection Intelligent redundant fan-cooling Max. operation altitude 4000 m Grid connection standard G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 Safety/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 Features   DC connection MC4 connector AC connection Quick connection plug Display LCD Communication RS485, Optional: Wi-Fi, GPRS

Models 9K 10K Input DC     Recommended max. PV power 13.5 kW 15 kW Max. input voltage 600 V Rated voltage 330 V Start-up voltage 120 V MPPT voltage range 100-500 V Max. input current 14 A / 14 A / 14 A Max. short circuit current 22 A / 22 A / 22 A MPPT number/Max. input strings number 3/3 Output AC     Rated output power 9 kW 10 kW Max. apparent output power 9.9 kVA 10 kVA Max. output power 9.9 kW 10 kW Rated grid voltage 1/N/PE, 220 V / 230 V  Rated grid frequency 50 Hz / 60 Hz Rated grid output current 40.9 A / 39.1 A 45.5 A / 43.5 A Max. output current 41.3 A 45.9 A Power factor >0.99 (0.8 leading - 0.8 lagging)  THDi <3% Efficiency   Max. efficiency  98.0% EU efficiency 97.1%  Protection   DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection Yes Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Integrated AFCI 2.0 Optional Integrated DC switch Yes General Data   Dimensions (W*H*D) 333*579*253 mm Weight 18.5 kg Topology Transformerless Self-consumption (night) <1 W Operating ambient temperature range -25 ~ +60°C Relative humidity 0-100% Ingress protection IP66 Noise emission (typical) <30 dB(A) Cooling concept Natural convection Max. operation altitude 4000 m Grid connection standard G99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530 Safety/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 Features   DC connection MC4 connector AC connection OT Terminal Display LCD Communication RS485, Optional: Wi-Fi, GPRS

Models 100K 110K 125K-HV Input DC       Max. input voltage 1100 V Rated voltage 600 V 720 V Start-up voltage 195 V MPPT voltage range 180-1000 V Max. input current 10*32 A Max. short circuit current 10*40 A MPPT number/Max. input strings number 10/20 Output AC       Rated output power 100 kW 110 kW 125 kW Max. apparent output power 110 kVA 121 kVA 137.5 kVA Max. output power 110 kW 121 kW 137.5 kW Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V 3/PE, 480 V Rated grid frequency 50 Hz / 60 Hz Rated grid output current 152.0 A / 144.3 A 167.1 A / 158.8 A 150.4 A Max. output current 167.1 A 183.8 A 165.4 A Power factor >0.99 (0.8 leading - 0.8 lagging) THDi <3% Efficiency   Max. efficiency 98.7% 99.0% EU efficiency 98.3% 98.6% Protection   DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection DC Type II / AC Type II (AC Type I optional)  Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Strings monitoring Yes I/V Curve scanning Yes Integrated AFCI 2.0 Optional Integrated PID recovery Optional Integrated DC switch Yes Integrated AC switch Optional General Data   Dimensions (W*H*D)  1065*567*344.5 mm Weight  91 kg Topology Transformerless Self-consumption (night) <2 W Operating ambient temperature range -30 ~ +60°C Relative humidity 0-100% Ingress protection IP66 Cooling concept Intelligent redundant fan-cooling Max. operation altitude 4000 m Grid connection standard VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, TOR, UNE 206006, UNE 206007-1, CEI 0-21, IEC61727, DEWA Safety/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 Features   DC connection MC4 connector AC connection OT terminal (max. 185 mm²) Display LCD Communication RS485, Optional: Wi-Fi, GPRS, PLC

25KW 30KW 33KW 36KW 40KW 50KW Inverter

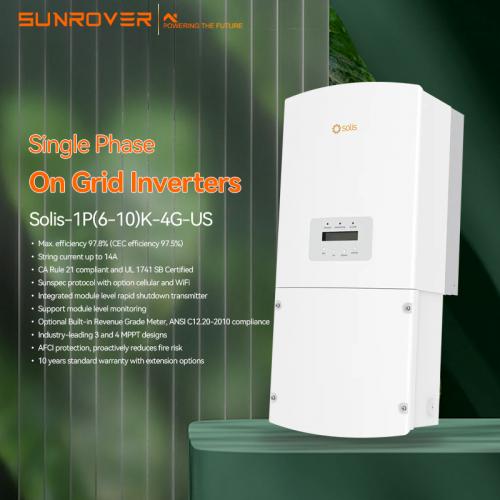

6KW 7.6KW 10KW US Market Solis Solar Inverter
