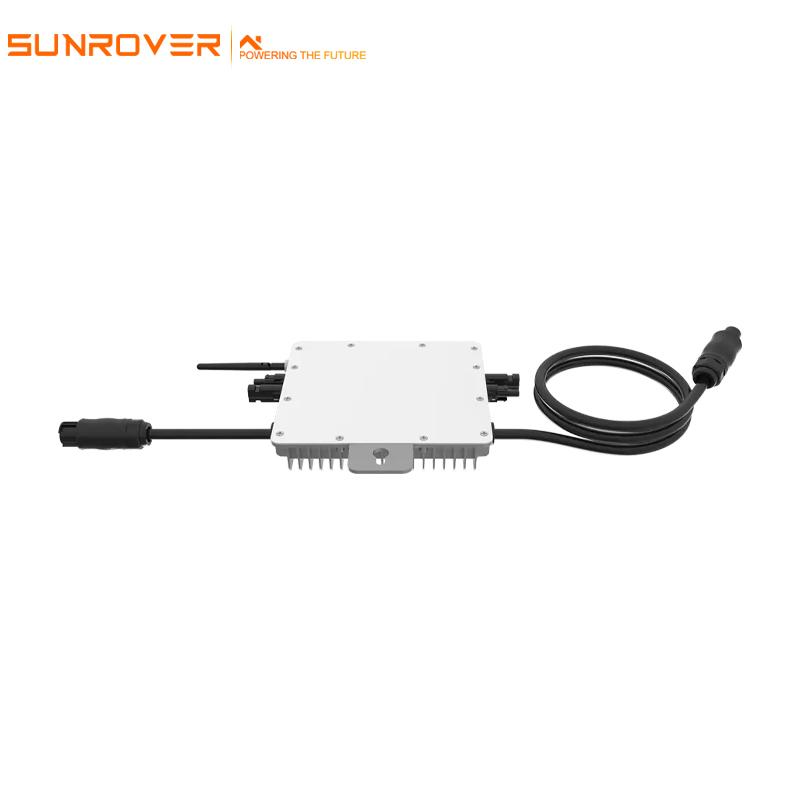

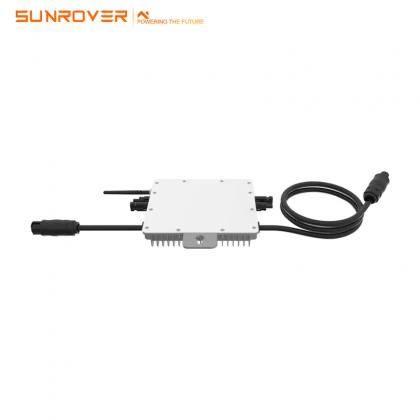

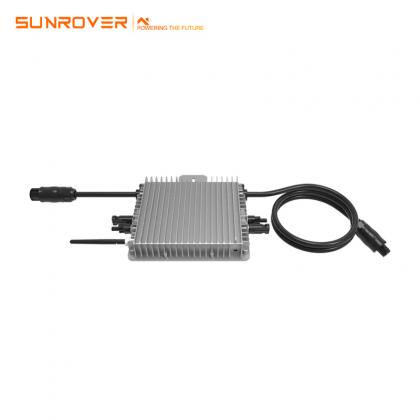

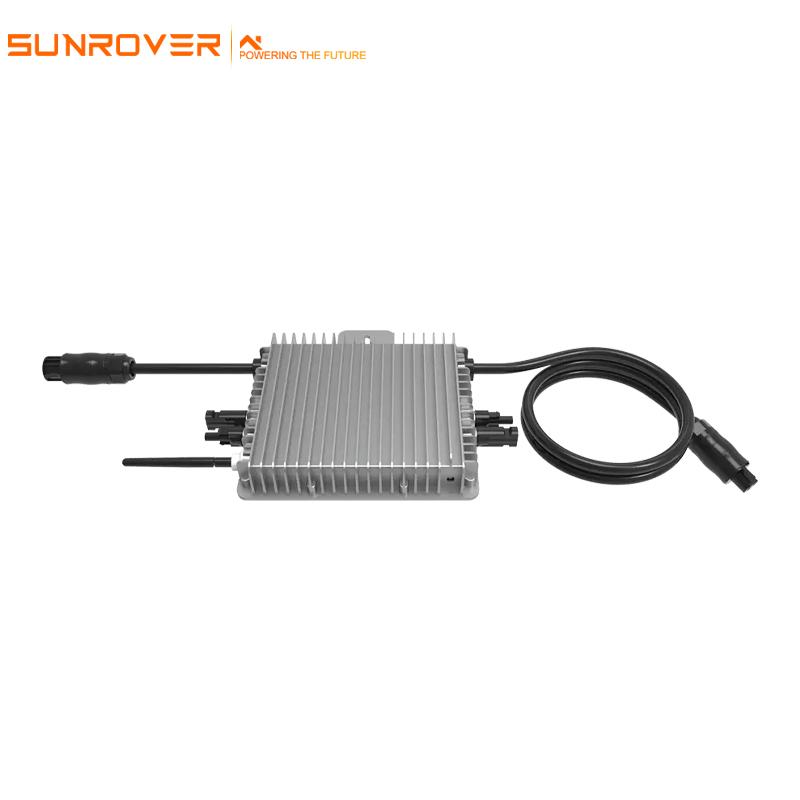

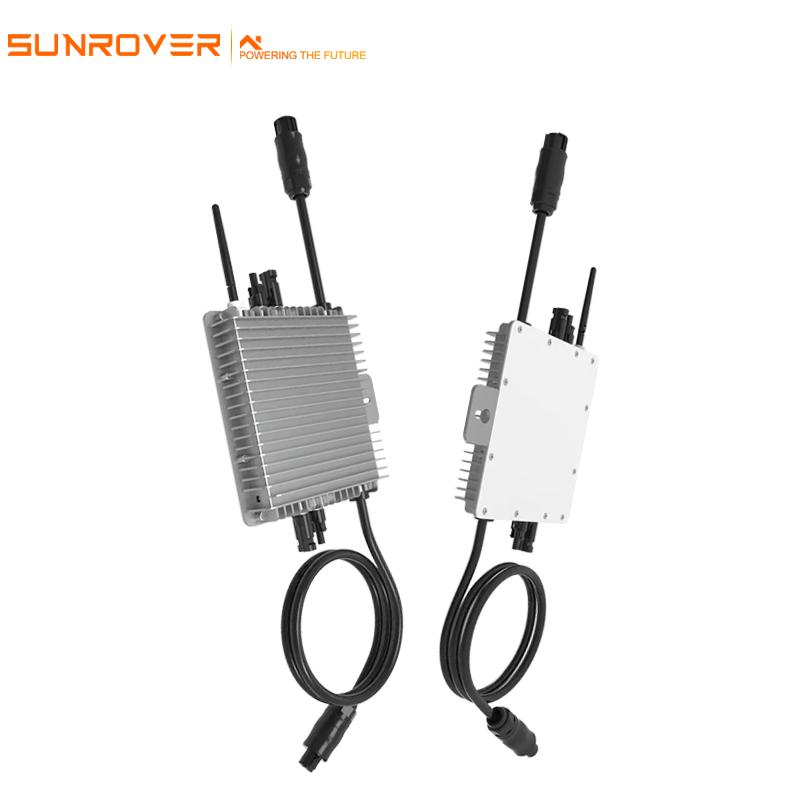

Deye 600w 800w 2000w micro inverter

Deye SUN600G3-EU-230 600w 800w 2000w micro inverter with 2 MPP Trackers

  • Item NO.:

    SUN600G3-EU-230
  • Order(MOQ):

    10
  • Shipping Port:

    Shanghai/Ningbo
  • Lead Time:

    30days
  • Weight:

    3.15kg
  • Output Voltage:

    600w/800w/2000w
  • Payment:

    TT/LC/Western union
  • Certificate:

    CE/TUV/ISO
  • Warranty:

    10years

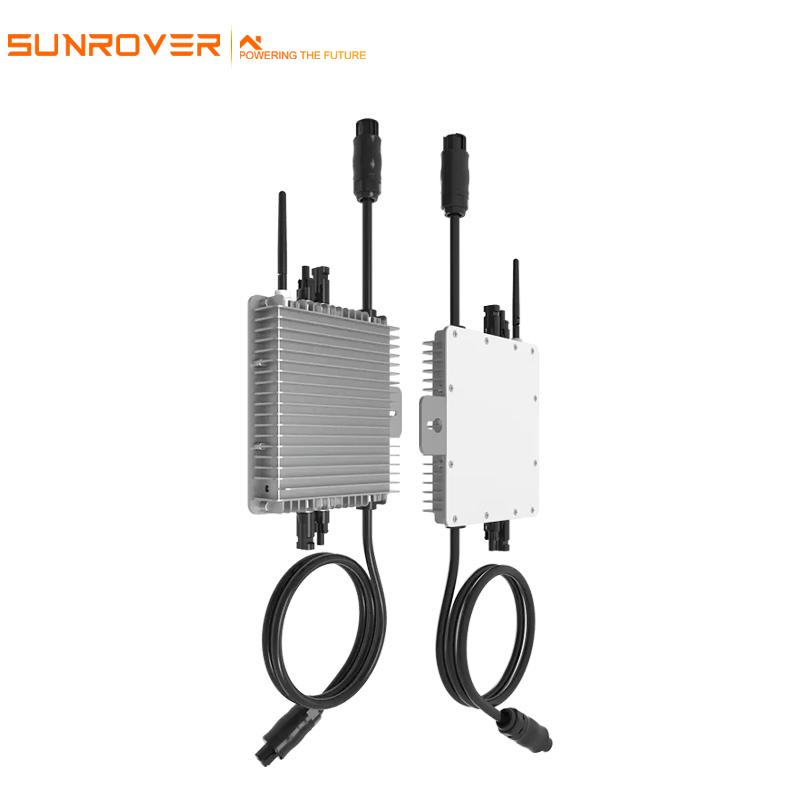

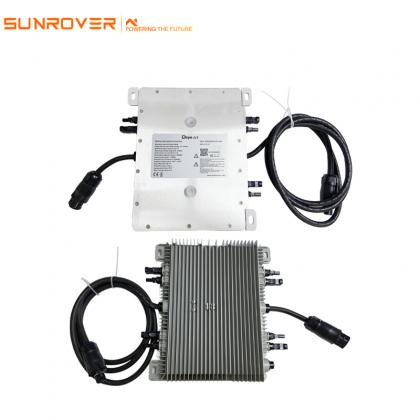

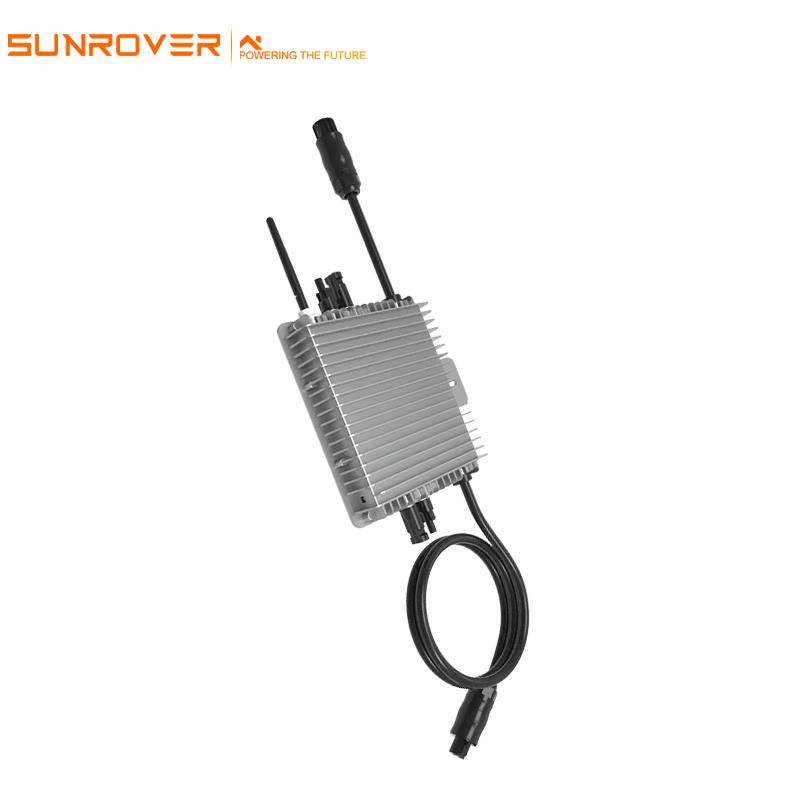

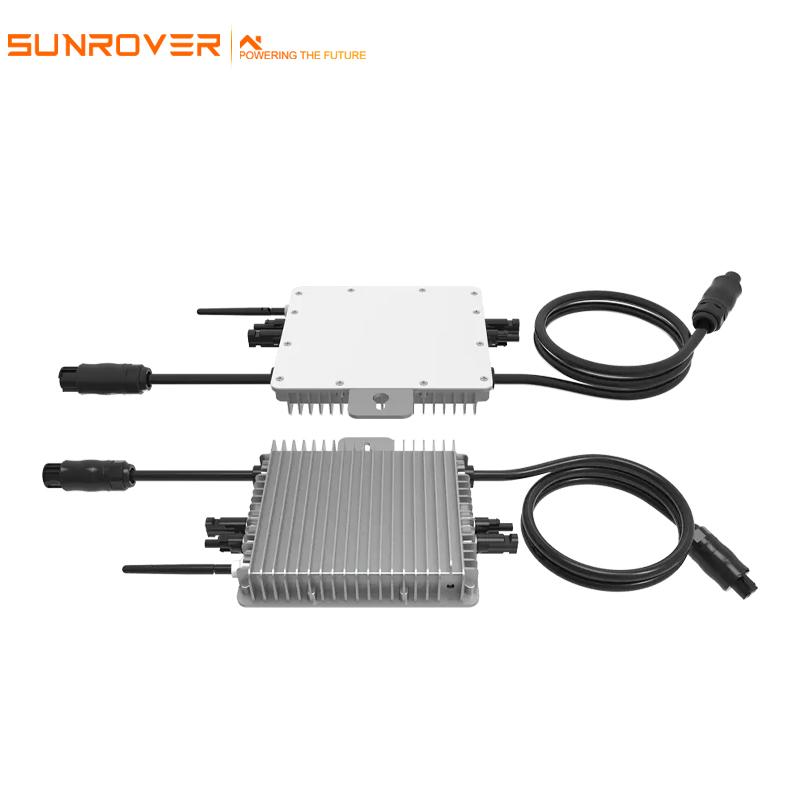

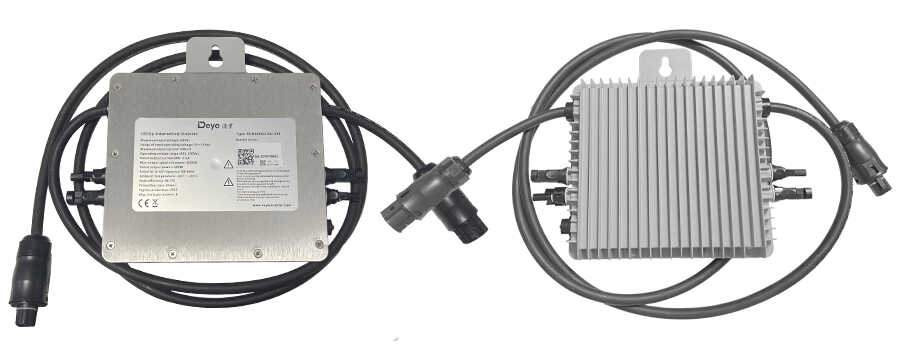

Deye SUN600G3-EU-230 600w 800w 2000w micro inverter with 2 MPP Trackers

Features of Deye micro inverter:

1. Support reactive compensation;

2. Component level monitoring: maximum 4-way MPPT design;

3. Adapt to 500w photovoltaic modules: the maximum DC input current is 12.5A, and adapt to 500w photovoltaic modules;

4. Remote fast shutdown: safe and reliable;

5. PLC, Zigbee, WIFI communication can be used.

Overview

Essential details
Place of Origin: Anhui, China
Brand Name: Deye
Model Number: SUN600G2-US-208/240
Input Voltage: 60V
Output Voltage: 208V/183-229V, 240V/211-264V
Output Current: 2.9A/2.5A
Output Frequency: 60.0/59.3-60.5Hz
Output Type: Single
Size: 185*161*29mm(Without mounting bracket and cable)
Type: DC/AC Inverters
Inverter Efficiency: 96.50%
Certificate: CE/TUV
Warranty: 10 Years
Weight: 2.4kg
Product name: Deye 2 MPP Trackers Micro Inverter 600W Solar Inverter
Application: Grid Tie Solar Power System
Inverter type: Micro Inverter
Cooling: Natural Cooling
Communication: Power line/Wifi/Zigbee
Compliance: UL1741, VDE0126,VDE4105,IEC62109,CE,INMETRO
Compatibility: 60-72 cell PV modules
Protection: IP67
Ambient Temperature: -40~65℃
Keyword: Inverter Solar
Supply Ability
Supply Ability 10000 Piece/Pieces per Week Solar Inverter
Packaging & delivery
Packaging Details Deye 2 MPP Trackers Micro Inverter 600W Solar Inverter
  1. Individual box packaging
  2. Large quantities can be packed in wooden pallets or cartons
  3. Packaging can be customized according to customer needs
Port Shanghai, China

Lead Time:

Quantity(pieces) 1 - 10 11 - 100 101 - 1000 >1000
Lead time (days) 10 15 20 To be negotiated

Deatils

Model SUN600G3-EU-230
Input Data(DC)
Recommended input power(STC) 210-400W(2 Pieces)
Maximum input DC voltage(V) 60V
MPPT voltage range(V) 25-55V
Full load DC voltage range(V) 24.5-55V
Max.DC short circuit current(A) 2x19.5A
Max.input current(A) 2x13A
No.of MPPT trackers 2
No.of Strings per MPP Tracker 1
Output Data(AC)
Rated output power 600W
Rated output current 2.6A
Nominal voltage/range(this may vary
with grid standards)
230V/0.85Un-1.1Un
Nominal frequency/range 50/60Hz
Extended frequency/range 45-55Hz/55-65Hz
Power factor 0.99
Maximum units per branch 8
Efficiency
CEC Weighted Efficiency 95.00%
Perk Inverter Efficiency 96.50%
Static MPPT Efficiency 99.00%
Night Time Power Consumption 50mW

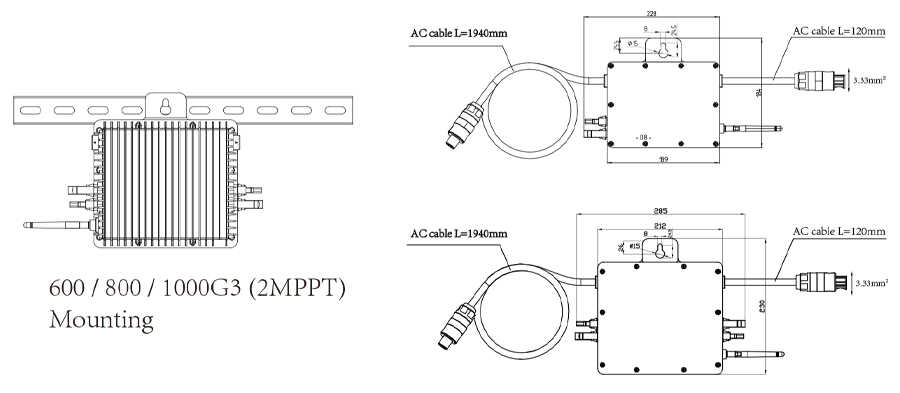

Mechanical Data
Ambient Temperature Range -40-65
Size(mm) 212Wx230Hx40D(Without mounting bracket and cable)
Weight(kg) 3.15kg
Cooling Natural cooling
Enclosure Environmental Rating IP67
Features
Compatibility Compatible with 60-72 cell PV modules
Communication Power line/WIFI/Zigbee
Grid Connection Standard EN50549-1,VDE0126-1-1,VDE4105,ABNT NBR 16149,ABNT NBR 16150,ABNT NBR 62116,RD 1699,UNE 206006 IN,UNE 206007-1 IN,IEEE1547
Safety EMC/Standard UL 1741,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-2,IEC61000-3-3
Warranty 10 years

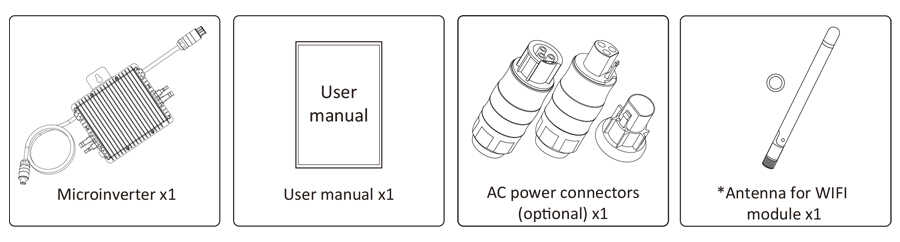

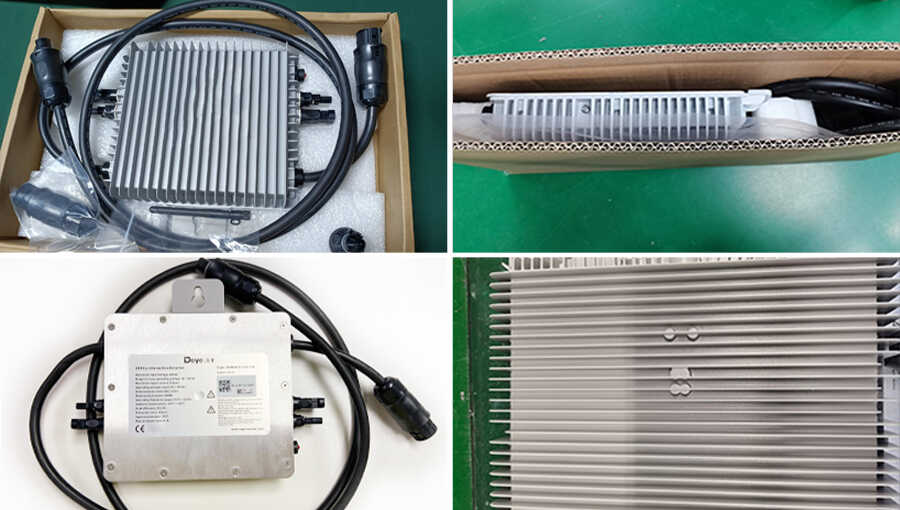

Packing

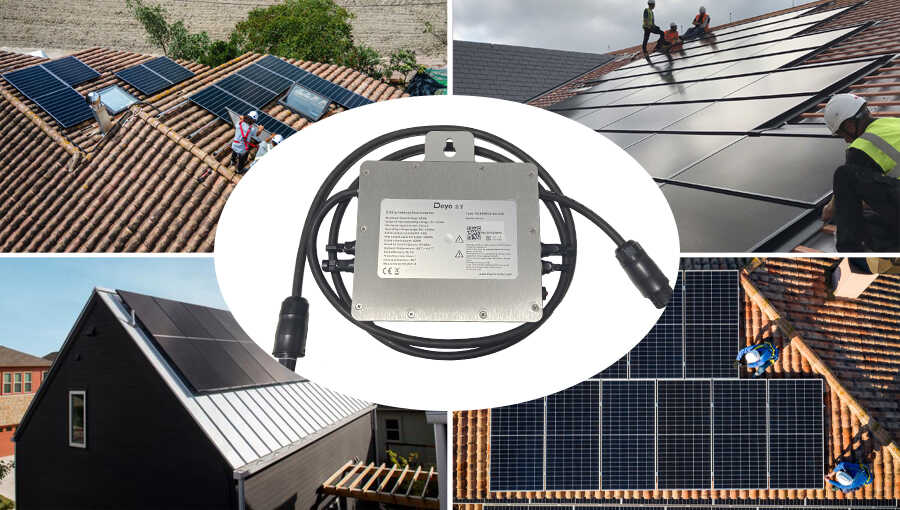

Project
