Item NO.:
SUN2000G3-EU-230Order(MOQ):
10Shipping Port:
Shanghai/NingboLead Time:
30daysWeight:
3.15kgOutput Voltage:
600w/800w/2000wPayment:
TT/LC/Western unionCertificate:
CE/TUV/ISOWarranty:

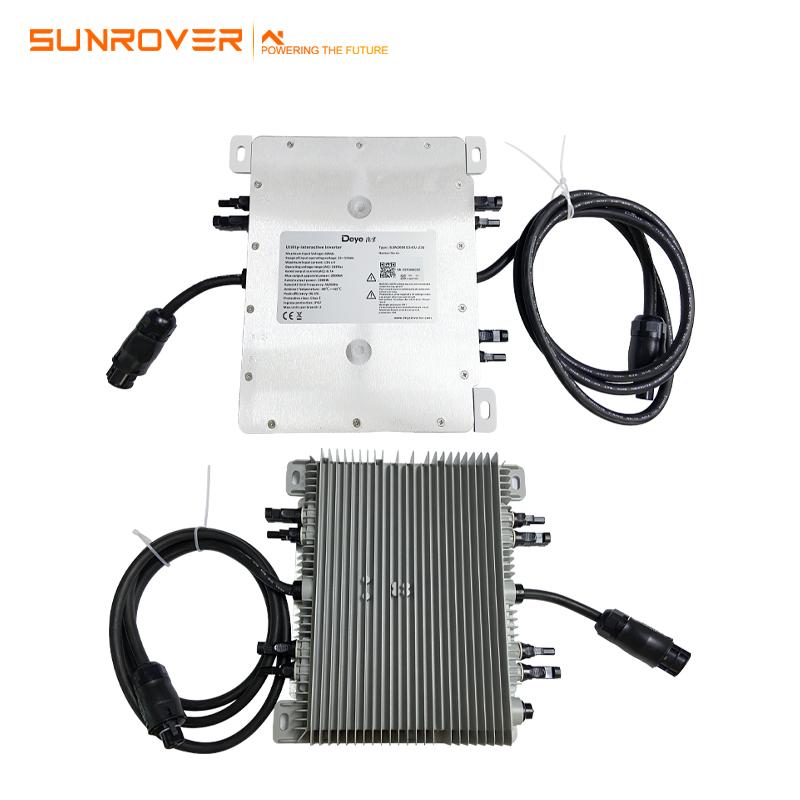

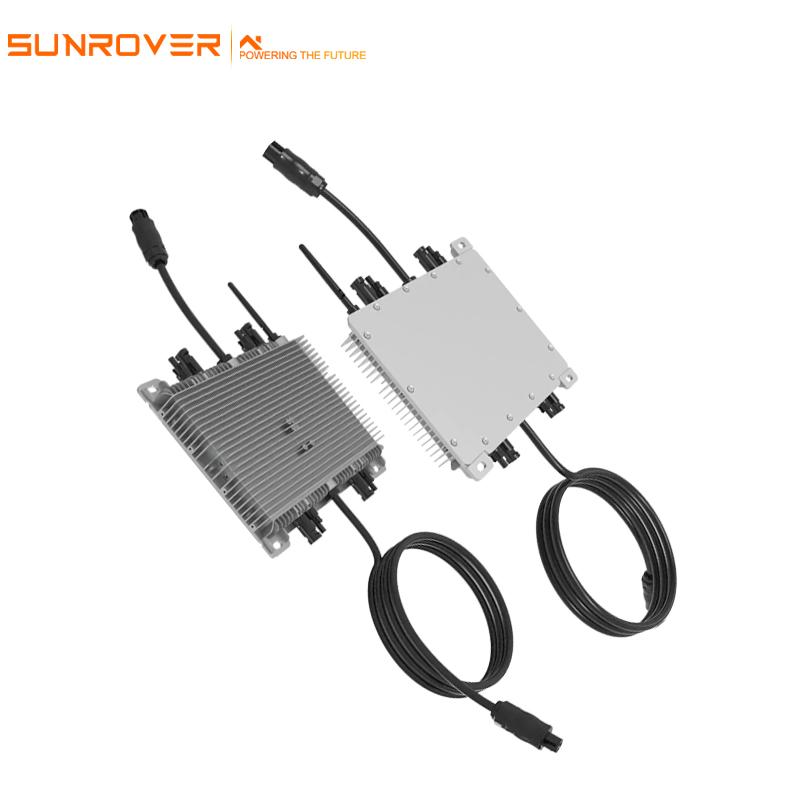

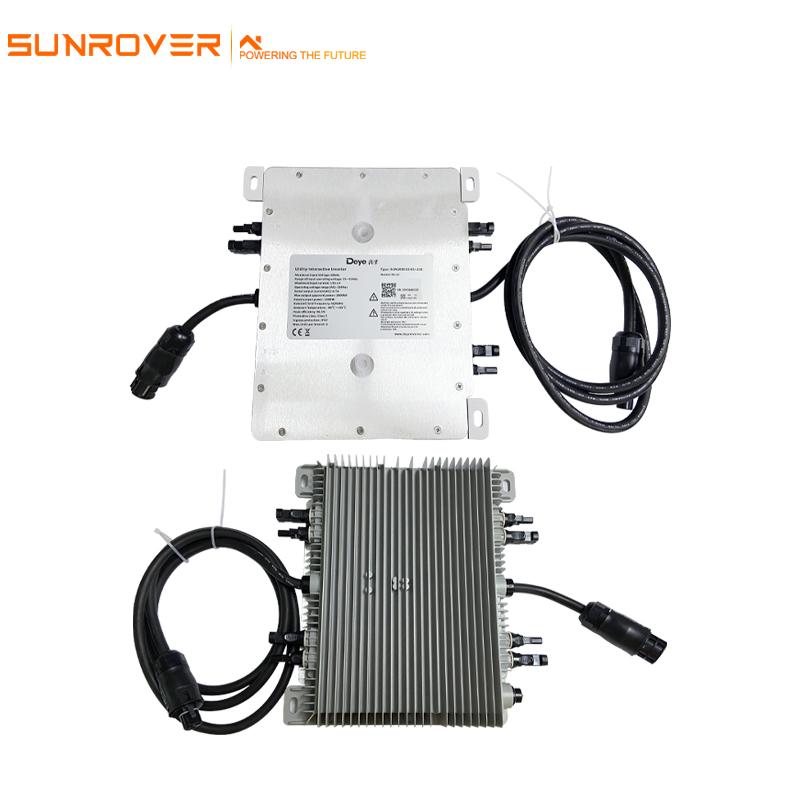

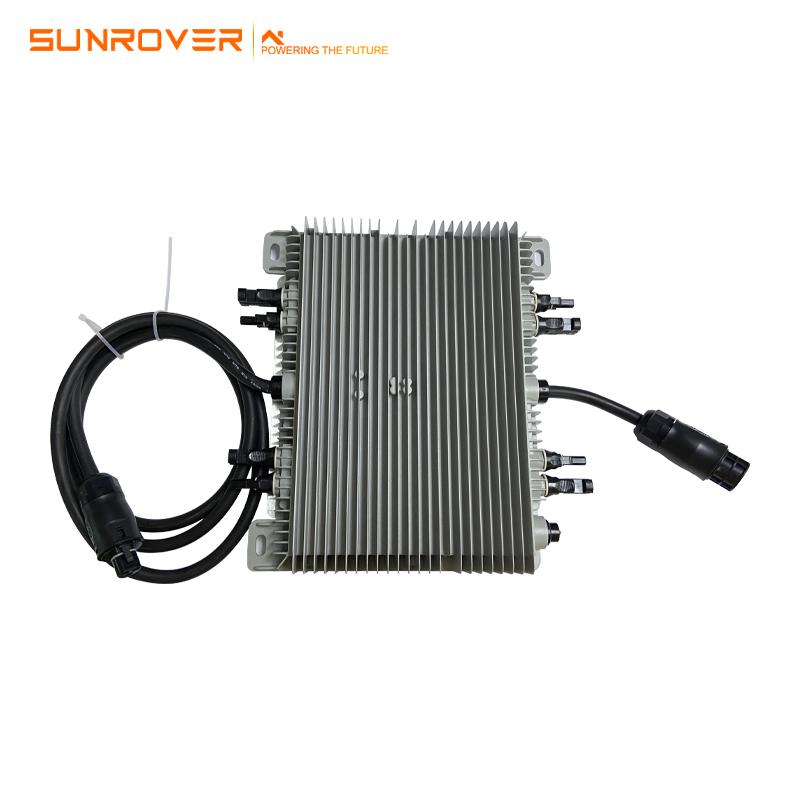

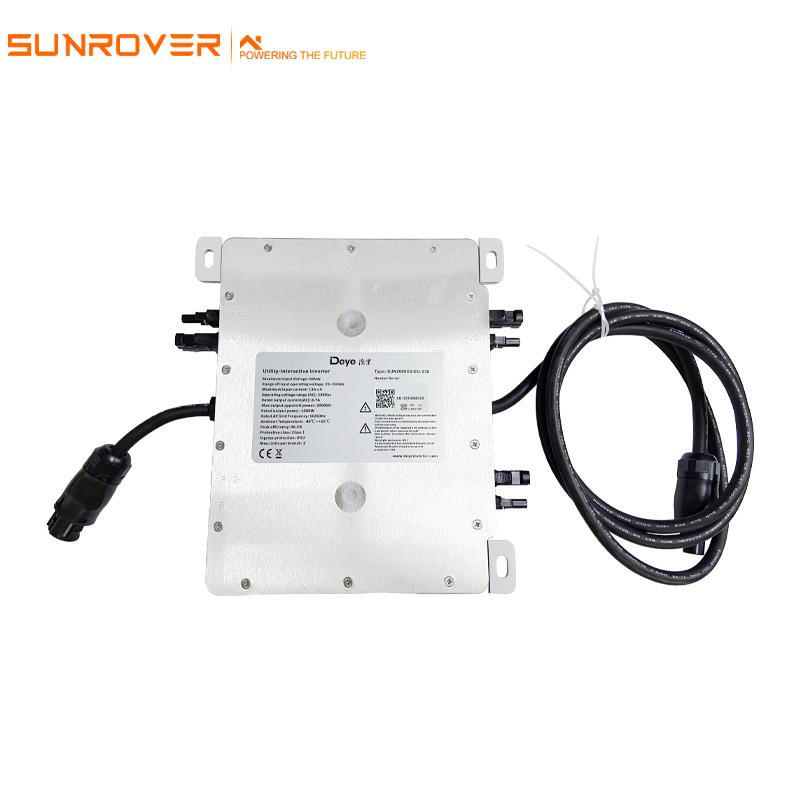

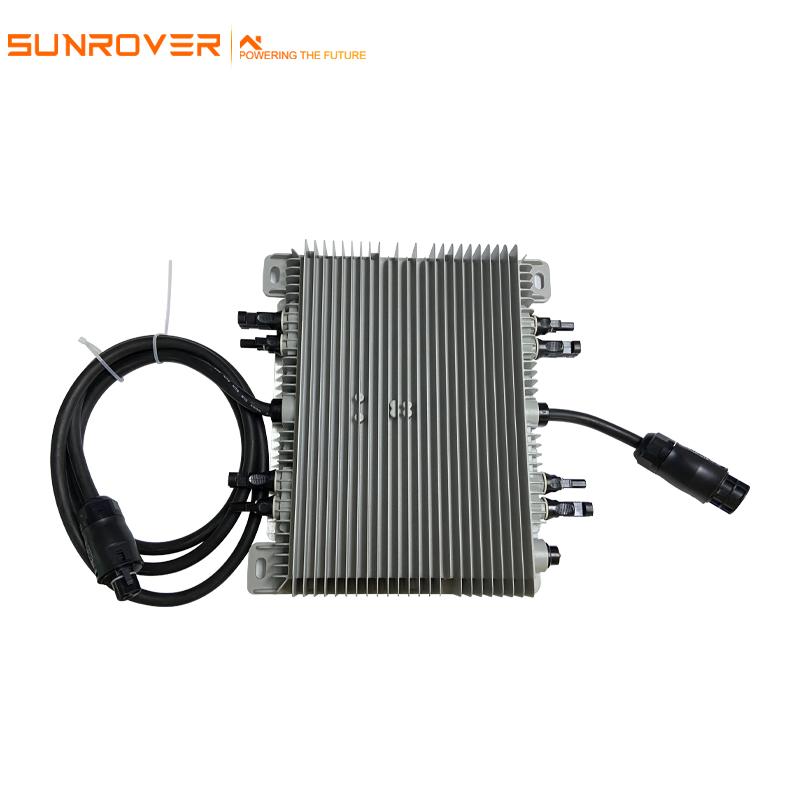

10yearsFeatures of Deye micro inverter:
1. Support reactive compensation;
2. Component level monitoring: maximum 4-way MPPT design;
3. Adapt to 500w photovoltaic modules: the maximum DC input current is 12.5A, and adapt to 500w photovoltaic modules;
4. Remote fast shutdown: safe and reliable;
5. PLC, Zigbee, WIFI communication can be used.
Overview
Essential details | |
Place of Origin: | Anhui, China |
Brand Name: | Deye |
Model Number: | SUN600G2-US-208/240 |
Input Voltage: | 60V |
Output Voltage: | 208V/183-229V, 240V/211-264V |
Output Current: | 2.9A/2.5A |
Output Frequency: | 60.0/59.3-60.5Hz |
Output Type: | Single |
Size: | 185*161*29mm(Without mounting bracket and cable) |
Type: | DC/AC Inverters |
Inverter Efficiency: | 96.50% |
Certificate: | CE/TUV |
Warranty: | 10 Years |
Weight: | 2.4kg |
Product name: | Deye 2 MPP Trackers Micro Inverter 600W Solar Inverter |
Application: | Grid Tie Solar Power System |
Inverter type: | Micro Inverter |
Cooling: | Natural Cooling |
Communication: | Power line/Wifi/Zigbee |
Compliance: | UL1741, VDE0126,VDE4105,IEC62109,CE,INMETRO |
Compatibility: | 60-72 cell PV modules |
Protection: | IP67 |
Ambient Temperature: | -40~65℃ |
Keyword: | Inverter Solar |
Supply Ability | |
Supply Ability | 10000 Piece/Pieces per Week Solar Inverter |
Packaging & delivery | |
Packaging Details | Deye 2 MPP Trackers Micro Inverter 600W Solar Inverter |
1. Individual box packaging | |
2. Large quantities can be packed in wooden pallets or cartons | |
3. Packaging can be customized according to customer needs | |
Port | Shanghai, China |
Lead Time:
Quantity(pieces) | 1 - 10 | 11 - 100 | 101 - 1000 | >1000 |
Lead time (days) | 10 | 15 | 20 | To be negotiated |
Deatils
Model | SUN600G3-EU-230 |
Input Data(DC) | |
Recommended input power(STC) | 210-400W(2 Pieces) |
Maximum input DC voltage(V) | 60V |
MPPT voltage range(V) | 25-55V |
Full load DC voltage range(V) | 24.5-55V |
Max.DC short circuit current(A) | 2x19.5A |
Max.input current(A) | 2x13A |
No.of MPPT trackers | 2 |
No.of Strings per MPP Tracker | 1 |
Output Data(AC) | |
Rated output power | 600W |
Rated output current | 2.6A |
Nominal voltage/range(this may vary with grid standards) |
230V/0.85Un-1.1Un |
Nominal frequency/range | 50/60Hz |
Extended frequency/range | 45-55Hz/55-65Hz |
Power factor | ﹥0.99 |
Maximum units per branch | 8 |
Efficiency | |
CEC Weighted Efficiency | 95.00% |
Perk Inverter Efficiency | 96.50% |
Static MPPT Efficiency | 99.00% |
Night Time Power Consumption | 50mW |
Mechanical Data | |
Ambient Temperature Range | -40℃-65℃ |
Size(mm) | 212Wx230Hx40D(Without mounting bracket and cable) |
Weight(kg) | 3.15kg |
Cooling | Natural cooling |
Enclosure Environmental Rating | IP67 |
Features | |
Compatibility | Compatible with 60-72 cell PV modules |
Communication | Power line/WIFI/Zigbee |
Grid Connection Standard | EN50549-1,VDE0126-1-1,VDE4105,ABNT NBR 16149,ABNT NBR 16150,ABNT NBR 62116,RD 1699,UNE 206006 IN,UNE 206007-1 IN,IEEE1547 |
Safety EMC/Standard | UL 1741,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-2,IEC61000-3-3 |
Warranty | 10 years |

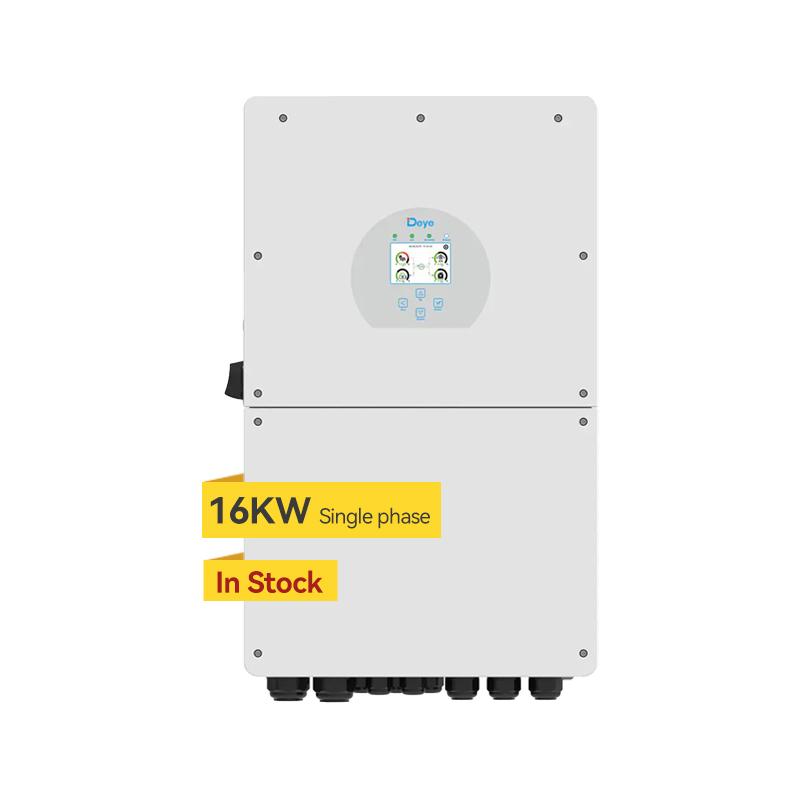

Model | SUN-16K-SG01LP1-EU |
Battery Input Data | |
Battery Type | Lead-acid or Li-Ion |
Battery Voltage Range(V) | 40-60V |
Max.Charging Current(A) | 290A |
Max.Discharging Current(A) | 290A |
External Temperature Sensor | Yes |
Charging Curve | 3 Stages/Equalization |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
PV String Input Data | |
Max.DC Input Power(W) | 20800W |
Rated PV Input Voltage(V) | 500V |
Start-up Voltage(V) | 125V |
MPPT Voltage Range(V) | 150V-425V |
Full Load DC Voltage Range(V) | 370V |
PV Input Current(A) | 26+26+26 |
Max.PV Isc(A) | 44+44+44 |
No.of MPPT Trackers | 3 |
No.of Strings per MPP Tracker | 2 |
AC Output Data | |
Rated AC Output and UPS Power(W) | 16000W |
AC Output Rated Current(A) | 72.7/69.6A |
Max.Continuous AC Passthrough(A) | 100A |
Peak Power(off grid) | 2 time of rated power,5 S |
Power Factor | 0.8 leading to 0.8 lagging |
Output Frequency and Voltage | 50/60Hz;L/N/PE 220/230Vac(Single phase) |
Grid Type | Single phase |
DC injection current(mA) | ﹤0.5%1n |
Backup Data | |
Backup Power(W) | 14000W |
Backup Rated Current(A) | 63.6/60.9A |
Backup UPS | 6ms Automatic switch over time |
Efficiency | |
Max.Efficiency | 97.60% |
Euro Efficiency | 96.50% |
MPPT Efficiency | 99.90% |
Protection | |
Integrated | PV Input Lighting Protection,Anti-islanding Protection,PV String Input Revers Polarity Protection,Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,Output Shorted Protection,Surge Protection |
Output Over Voltage Protection | DC Type II/AC Type III |
Certifications and Standards | |
Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 |
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 |
General Data | |
Operating Temperature Range(℃) | -40℃-60℃,﹥45℃ derating |
Cooling | Smart cooling |
Noise(dB) | ﹤30 dB |
Communication with BMS | RS485;CAN |
Weight(kg) | 48.5kg |
Size(mm) | 464Wx798.4Hx300D |
Protection Degree | IP65 |
Installation Style | Wall-mounted |
Warranty | 5 years |
Features | |
Max.Number of Parallel(PCS) | 16 |

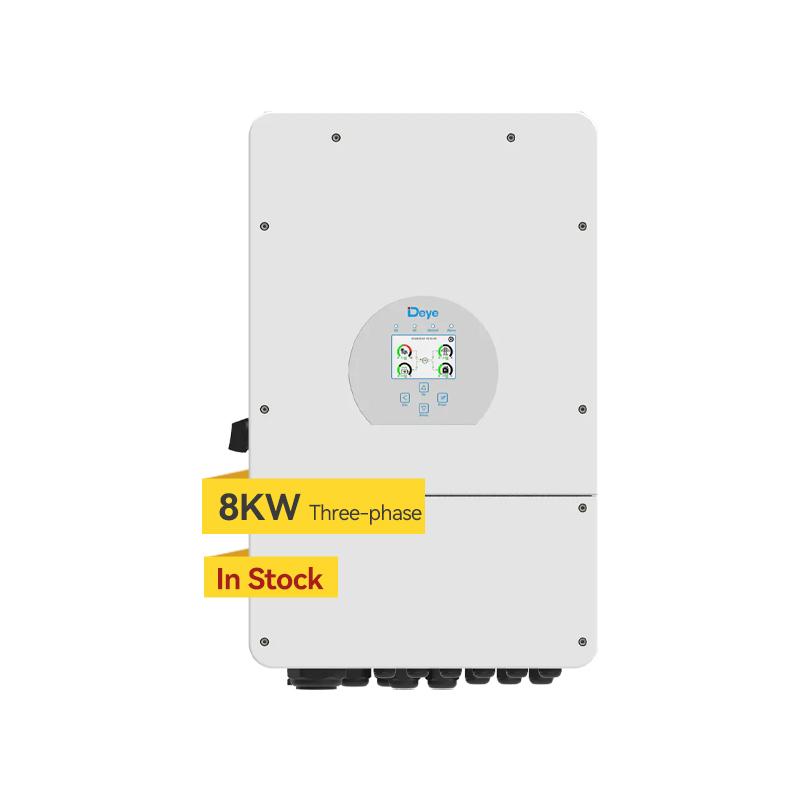

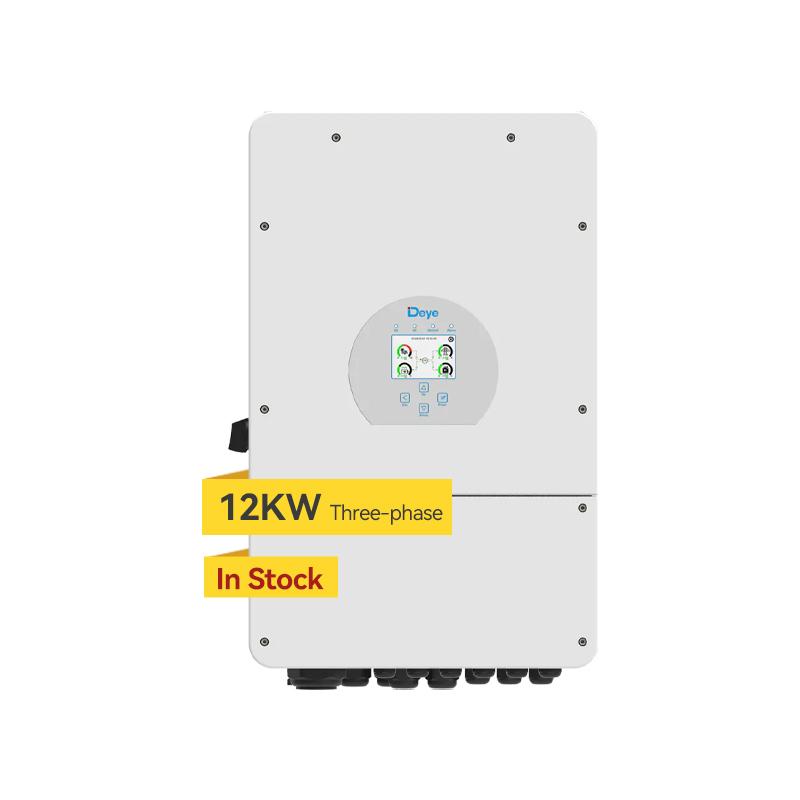

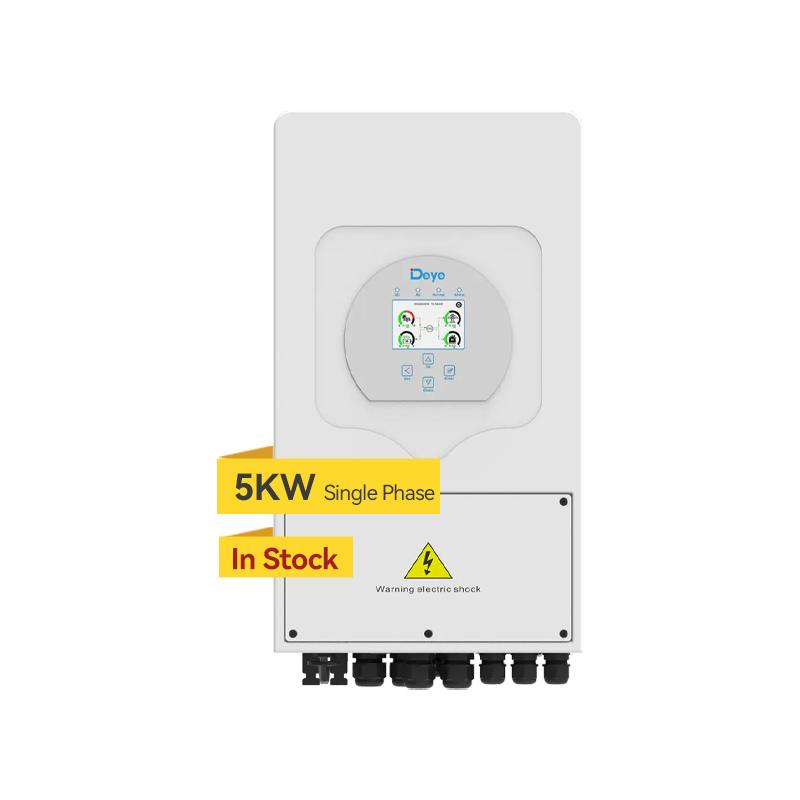

Model | SUN-8K-SG01LP1-EU | SUN-5K-SG03LP1-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
Battery Input Data | |||||
Battery Type | Lead-acid or Li-Ion | Lead-acid or Li-Ion | Lead-acid or Li-Ion | ||
Battery Voltage Range(V) | 40-60V | 40-60V | 40-60V | ||
Max.Charging Current(A) | 190A | 120A | 190A | 210A | 240A |
Max.Discharging Current(A) | 190A | 120A | 190A | 210A | 240A |
External Temperature Sensor | Yes | Yes | Yes | ||
Charging Curve | 3 Stages/Equalization | 3 Stages/Equalization | 3 Stages/Equalization | ||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | Self-adaption to BMS | Self-adaption to BMS | ||
PV String Input Data | |||||
Max.DC Input Power(W) | 10400W | 6500W | 10400W | 13000W | 15600W |
Rated PV Input Voltage(V) | 370V(125-500V) | 370V(125-500V) | 550V(160-800V) | ||
Start-up Voltage(V) | 125V | 125V | 160V | ||
MPPT Voltage Range(V) | 150V-425V | 150V-425V | 200-650V | ||
Full Load DC Voltage Range(V) | 200V-425V | 300V-425V | 350-650V | ||
PV Input Current(A) | 26+26 | 13+13 | 13+13 | 26+13 | |
Max.PV Isc(A) | 44+44 | 17+17 | 17+17 | 34+17 | |
No.of MPPT Trackers | 2 | 2 | 2 | ||
No.of Strings per MPP Tracker | 2 | 1 | 1 | 2+1 | |
AC Output Data | |||||
Rated AC Output and UPS Power(W) | 8000W | 5000W | 8000W | 10000W | 12000W |
Max.AC Output Power(W) | 8800W | 5500W | 8800W | 11000W | 13200W |
AC Output Rated Current(A) | 33.3/38.5A 36.4/34.8A | 22.7/21.7A | 12.1/11.6A | 15.2/14.5A | 18.2/17.4A |
Max.AC Current(A) | 36.7/42.3A 40/38.3A | 25/23.9A | 18.2/17.4A | 22.7/21.7A | 27.3/26.1A |
Max.Continuous AC Passthrough(A) | 50A | 35A | 45A | ||
Peak Power(off grid) | 2 time of rated power,10S | 2 time of rated power,10S | 2 time of rated power,10S | ||
Power Factor | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | ||
Output Frequency and Voltage | 50/60Hz;L1/L2/N(PE),L/N/PE 220/230Vac(single phase) | 50/60Hz;L/N/PE 220/230Vac(single phase) | 50/60Hz;3L/N/PE,220/380,230/400Vac | ||
Grid Type | Single Phase | Single Phase | Three Phase | ||
DC injection current(mA) | THD﹤3%(Linear load﹤1.5%) | THD﹤3%(Linear load﹤1.5%) | THD﹤3%(Linear load﹤1.5%) | ||
Efficiency | |||||
Max.Efficiency | 97.60% | 97.60% | 97.60% | ||
Euro Efficiency | 97.00% | 96.50% | 97.00% | ||
MPPT Efficiency | 99.90% | 99.90% | 99.90% | ||
Protection | |||||
Integrated | PV Input Lighting Protection,Anti-islanding Protection,PV String Input Revers Polarity Protection,Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,Output Shorted Protection,Surge Protection |
PV Input Lighting Protection,Anti-islanding Protection,PV String Input Revers Polarity Protection,Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,Output Shorted Protection,Surge Protection |
PV Input Lighting Protection,Anti-islanding Protection,PV String Input Revers Polarity Protection,Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,Output Shorted Protection,Surge Protection |
||
Output Over Voltage Protection | DC Type II/AC Type III | DC Type II/AC Type III | DC Type II/AC Type III | ||
Certifications and Standards | |||||
Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | ||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | ||
General Data | |||||
Operating Temperature Range(℃) | -40℃-60℃,﹥45℃ derating | -40℃-60℃,﹥45℃ derating | -40℃-60℃,﹥45℃ derating | ||
Cooling | Smart cooling | Natural cooling | Smart cooling | ||
Noise(dB) | ﹤30 dB | ﹤30 dB | ﹤45 dB | ||
Communication with BMS | RS485;CAN | RS485;CAN | RS485;CAN | ||
Weight(kg) | 32kg | 20.5kg | 33.6kg | ||
Size(mm) | 420Wx670Hx233D | 330Wx580Hx232D | 422Wx699.3Hx279D | ||
Protection Degree | IP65 | IP65 | IP65 | ||
Installation Style | Wall-mounted | Wall-mounted | Wall-mounted | ||
Warranty | 5 years | 5 years | 5 years |
