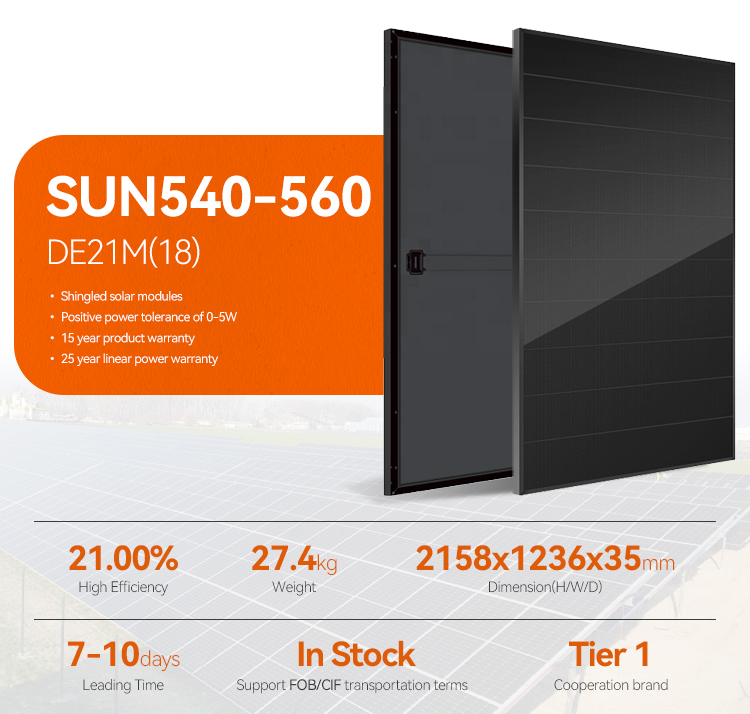

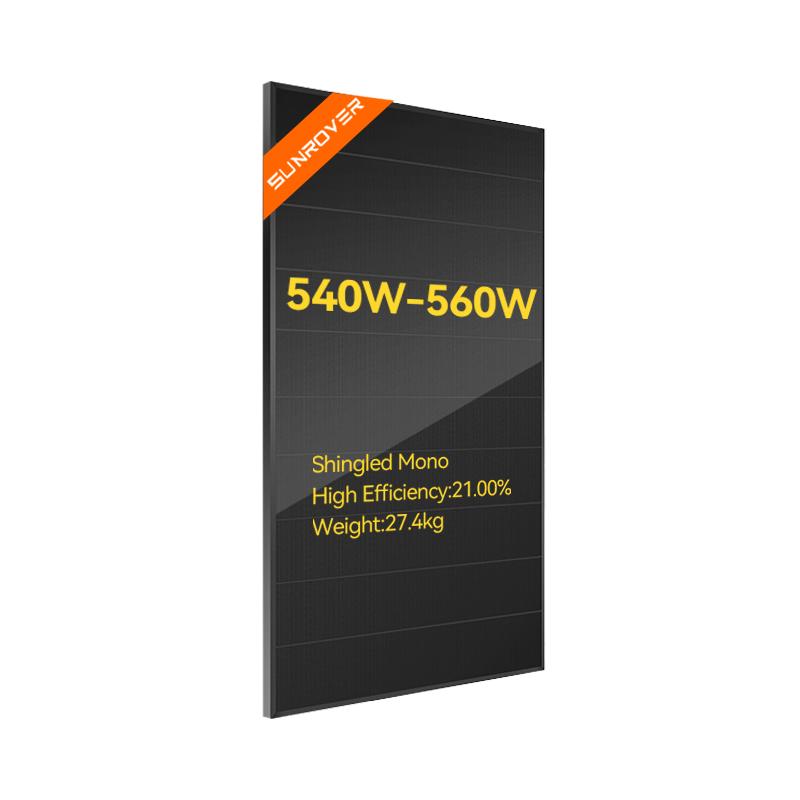

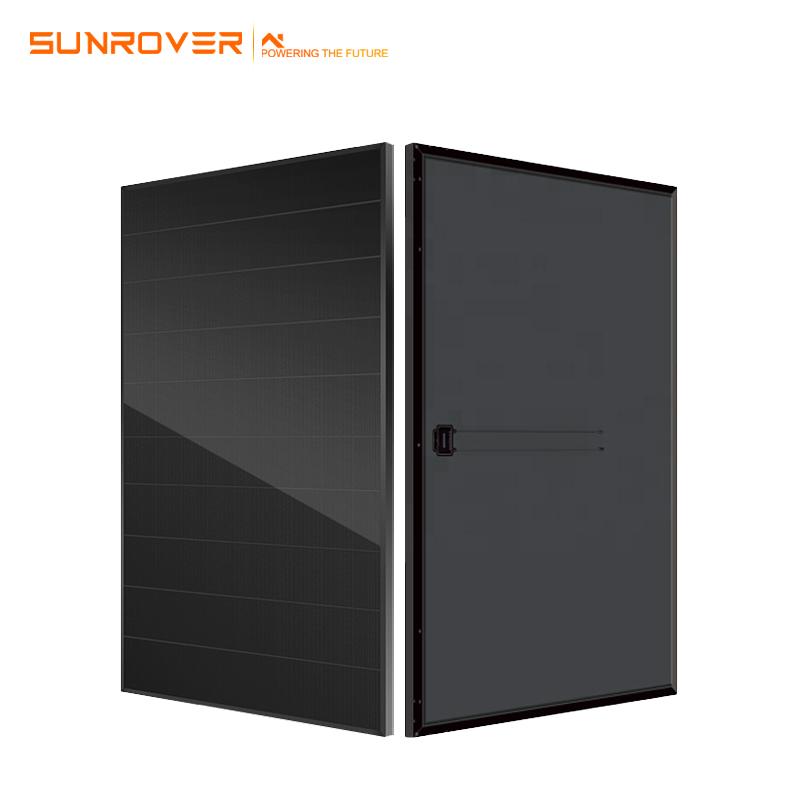

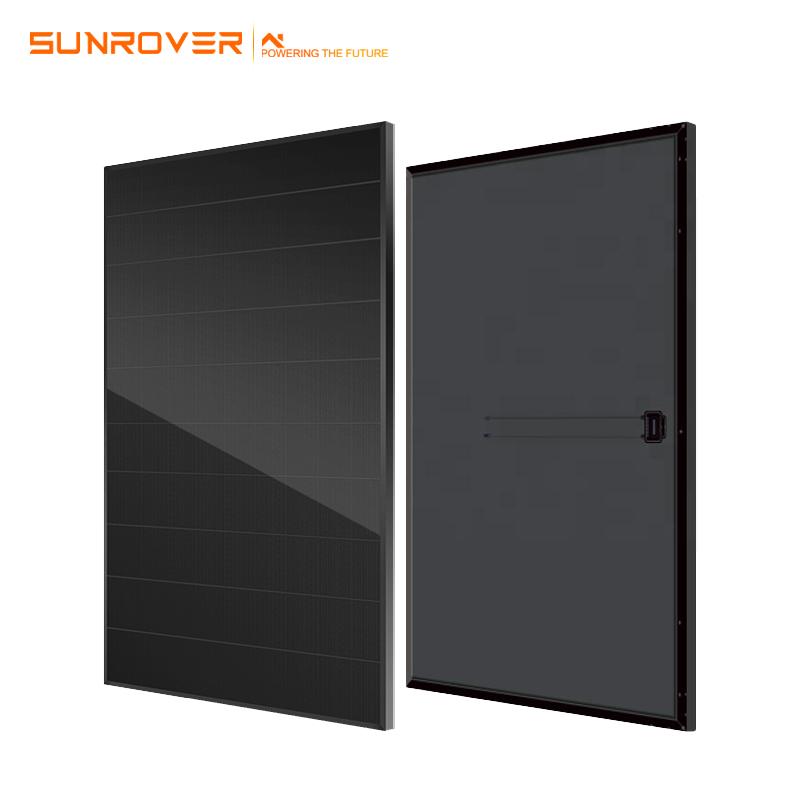

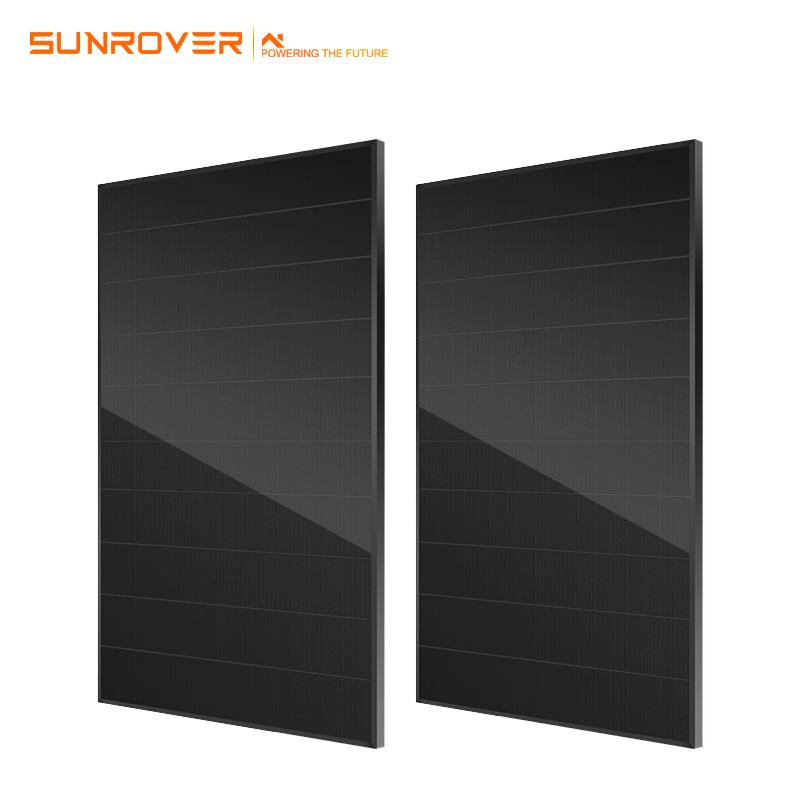

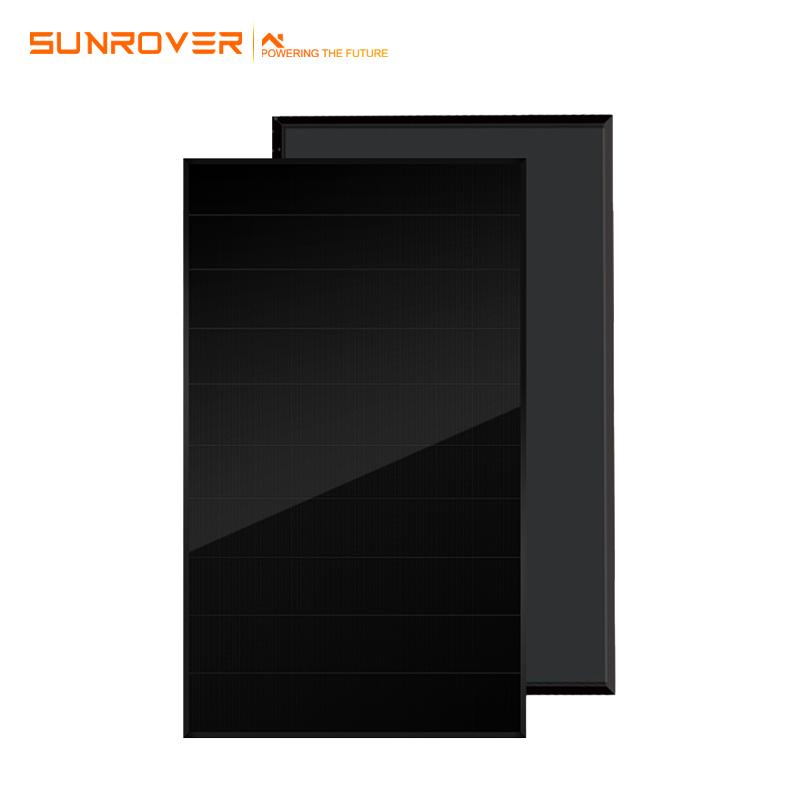

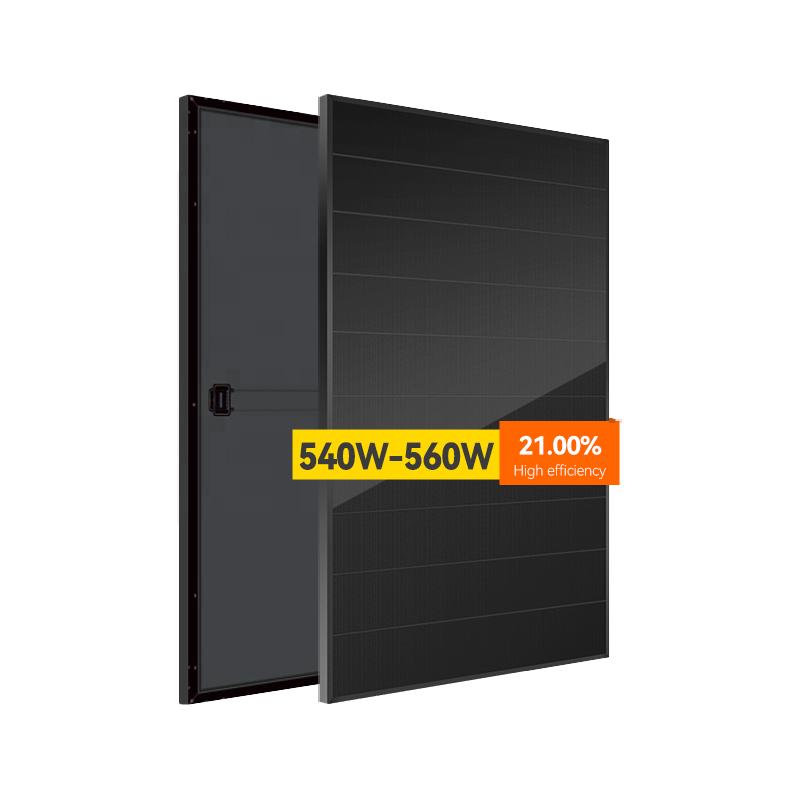

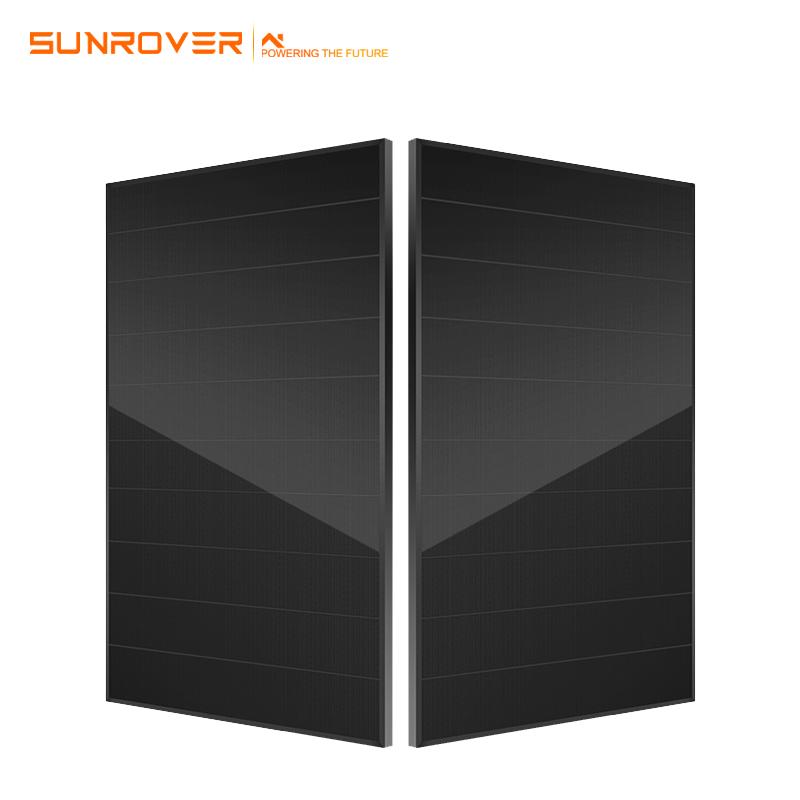

540w 545w 550w 555w 560w longi solar panel all black shingled popular in EU
540w 545w 550w 555w 560w longi solar panel all black shingled popular in EU
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
5days（1—100000w）；7days（100001 —10000000wWeight：
20kgCell Type:
Mono crystallineNo.of cells:
210mmDimensions:

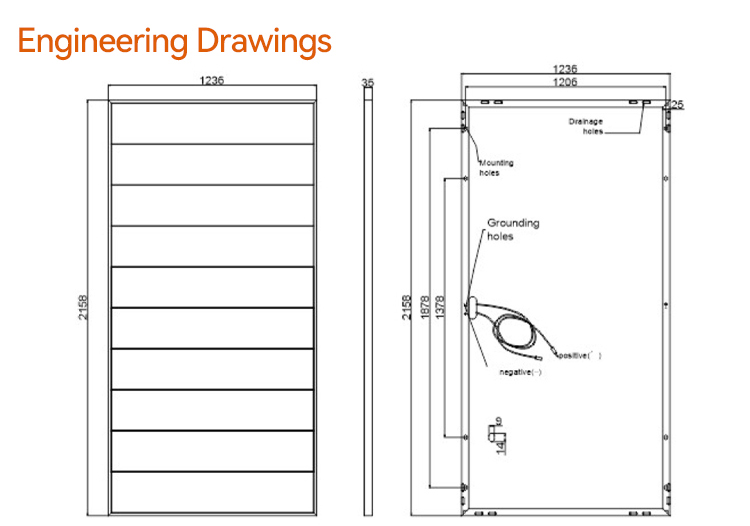

390w-410w(1723×1134×35mm)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Weight:
390w-410w(20.5kg)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Certificate:
CE/TUVPayment:
T/T / L/C / Paypal / Western UnionWarranty:
25yearsFactory direct and low price in stock.
11 years solar power system supplier focus on home and big power system design, solar panel system installation, roof mounting.

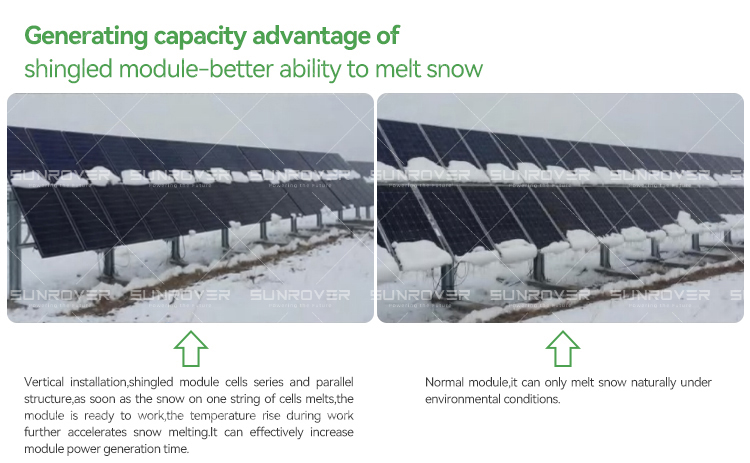

Comparative advantages of the laminated pad assembly:
1、According to the technical advantages claimed by the manufacturer, to sum up, the laminated tile components mainly have the following characteristics:
2. Strong compatibility with existing battery and component production lines;
3. The layout and size of components can be adjusted more flexibly as required;

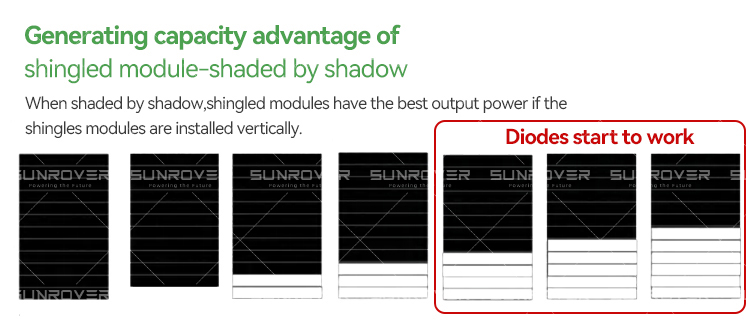

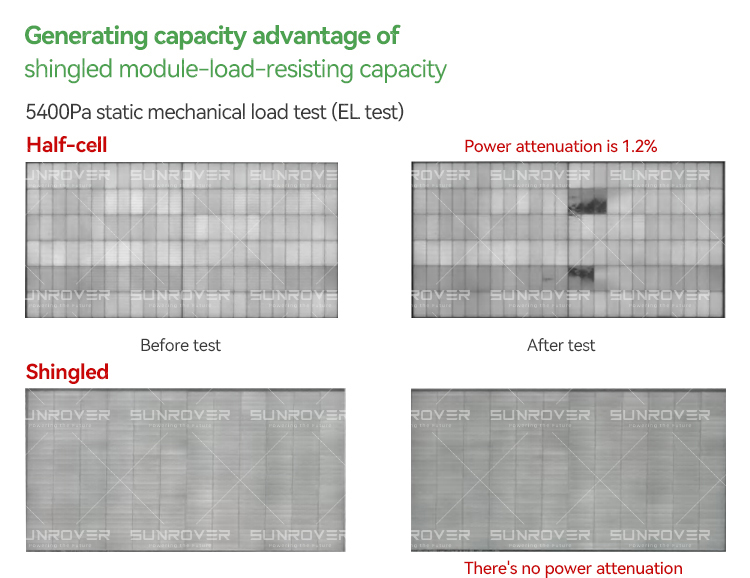

4. Effectively reduce the impact of occlusion and hidden crack on component performance.
| Module | SUN540-DE21M | SUN545-DE21M | SUN550-DE21M | SUN555-DE21M | SUN560-DE21M |
| Maximum Power(Pmax) | 540W | 545W | 550W | 555W | 560W |
| Maximum Power Voltage(Vmp) | 43.20V | 43.43V | 43.66V | 43.88V | 44.10V |
| Maximum Power Current(Imp) | 12.50A | 12.55A | 12.60A | 12.65A | 12.70A |
| Open-circuit Voltage(Voc) | 48.08V | 48.08V | 48.07V | 48.08V | 48.09V |
| Short-circuit Current(Isc) | 14.54A | 14.66A | 14.67A | 14.69A | 14.70A |
| Module Efficiency STC(%) | 20.25% | 20.43% | 20.62% | 20.80% | 21.00% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1500V DC | ||||
| Maximum series fuse rating | 25A | ||||
| Power tolerance | 0-5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.270%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 42.3±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover |
| Model Number: | SUN420-60FB 420W |
| Cell size: | 182mmx182mm |
| Type: | PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel |
| Panel Dimensions: | 1719*1140*35mm |
| Panel Efficiency: | 21.10% |
| Certificate: | TUV/ETL/CE, complete international certificates |
| Warranty: | 25years |
| Product name: | TUV certified 420watt solar panel 700w for electricity |
| Solar cell: | Mono crystalline 182x182mm |
| Number of Cells: | 120cells |
| Weight: | 21kg |
| Glass: | 3.2mm white toughened safety Glass |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | IP67,Rated Current: 18A |

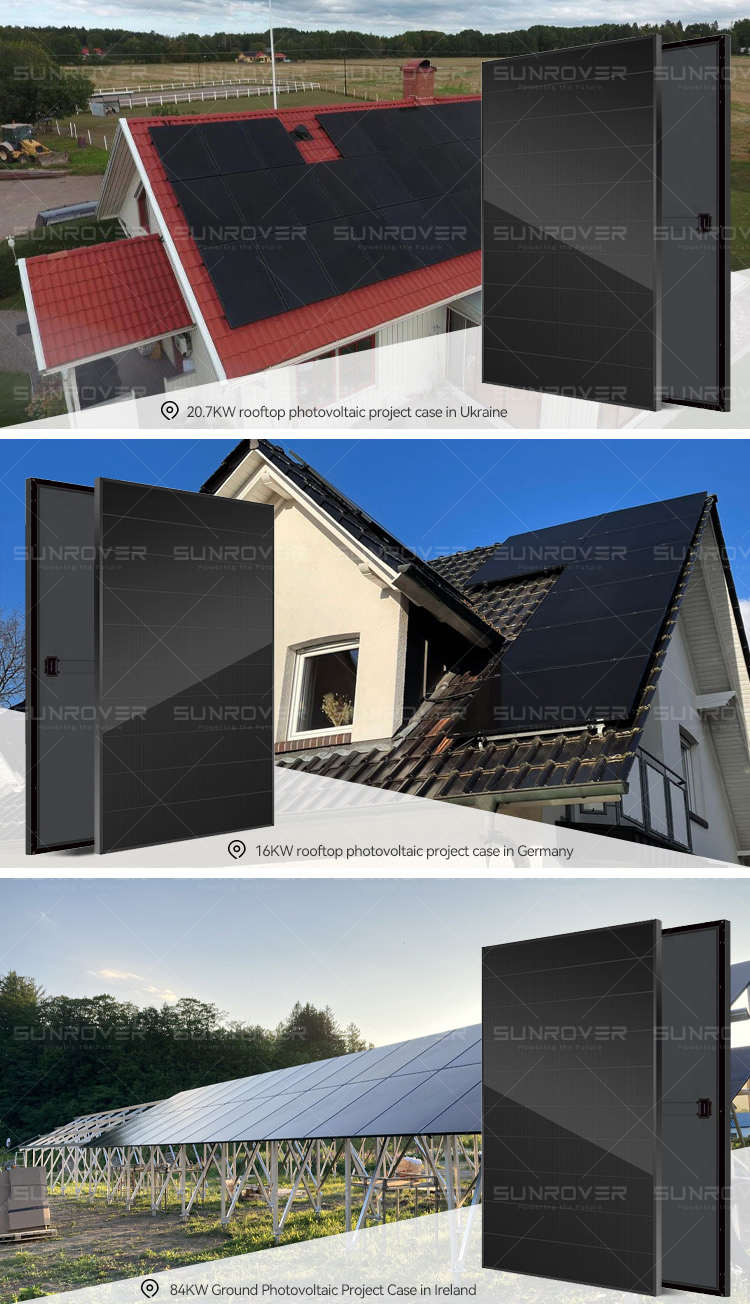

| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | yes |
| Supply Ability | |
| Supply Ability | 1000 Piece/Pieces per Week |

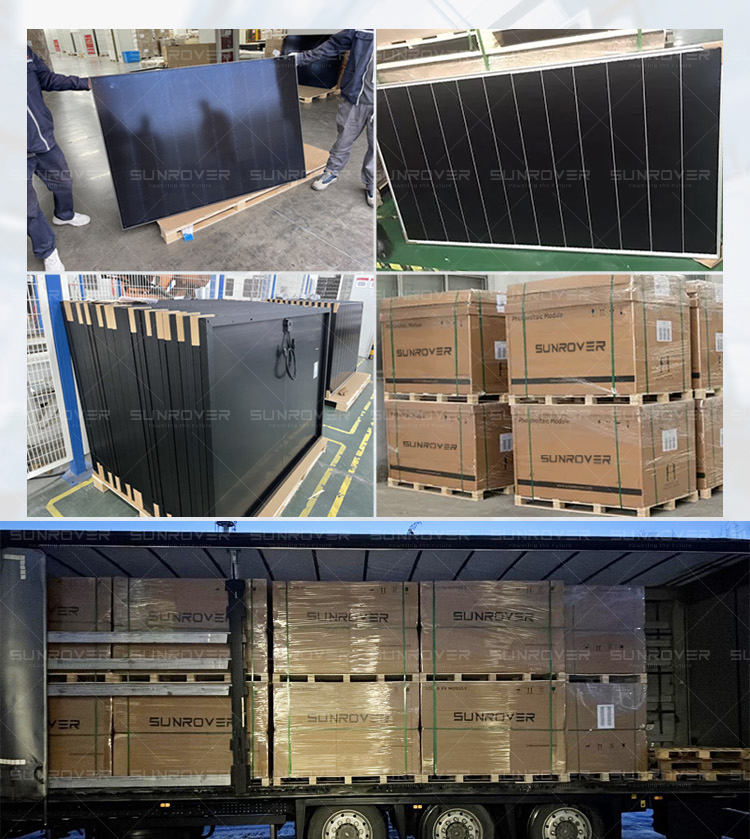

| Packaging & delivery | |
| Packaging Details | Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel |
| 1.Standard exporting Wooden and Carton Box | |
| 2.Container: 40'HQ | |
| 3. Pieces Per Container: 806 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai/Ningbo |
