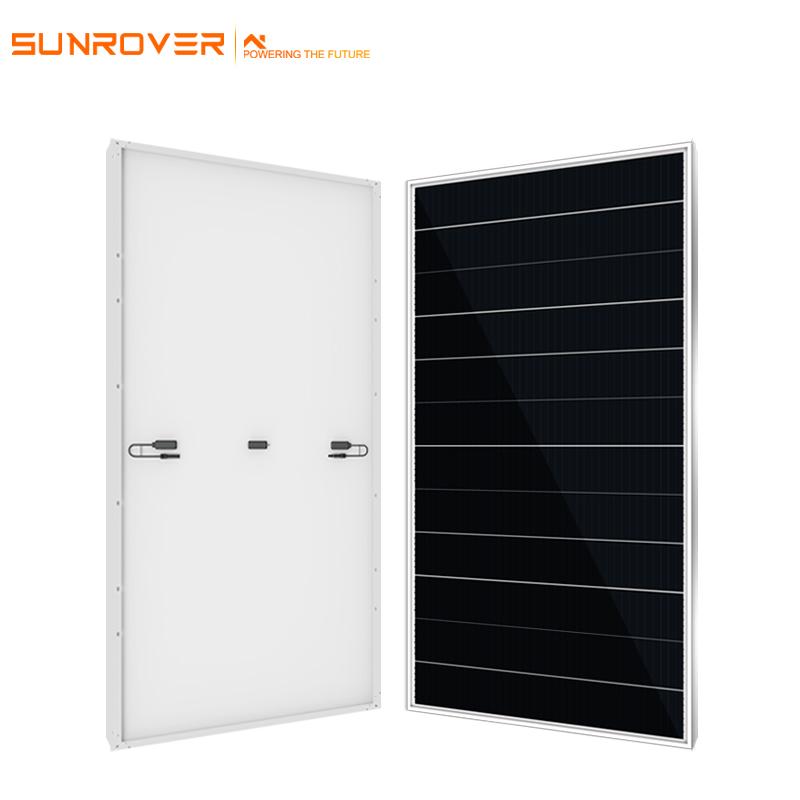

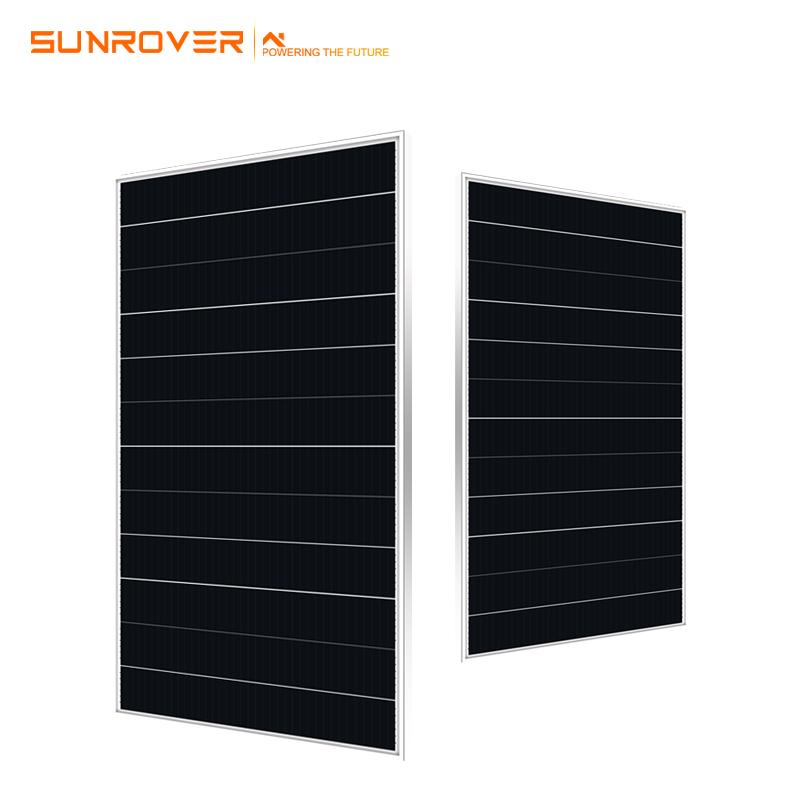

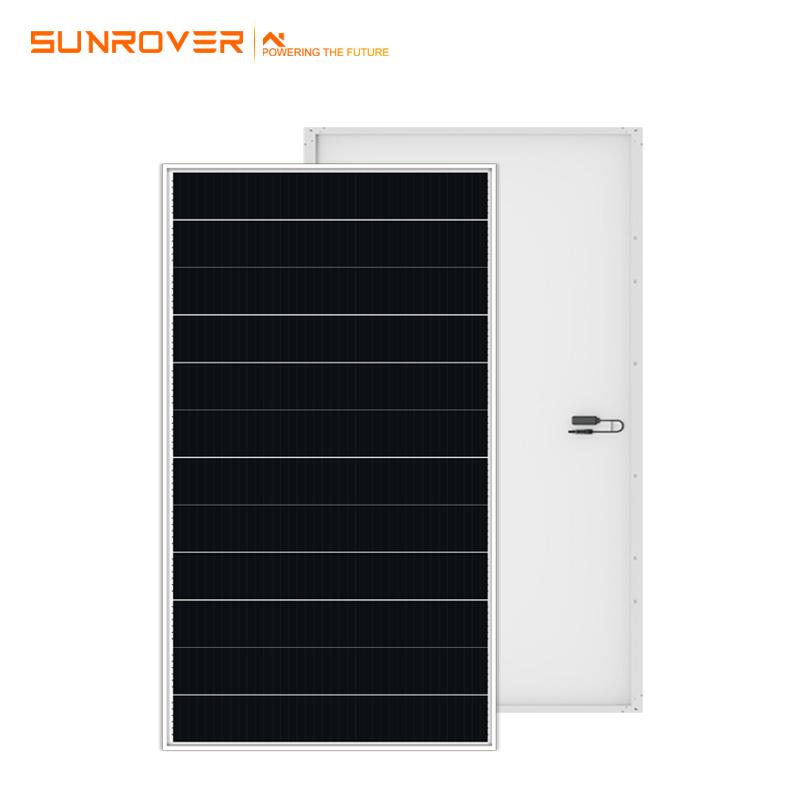

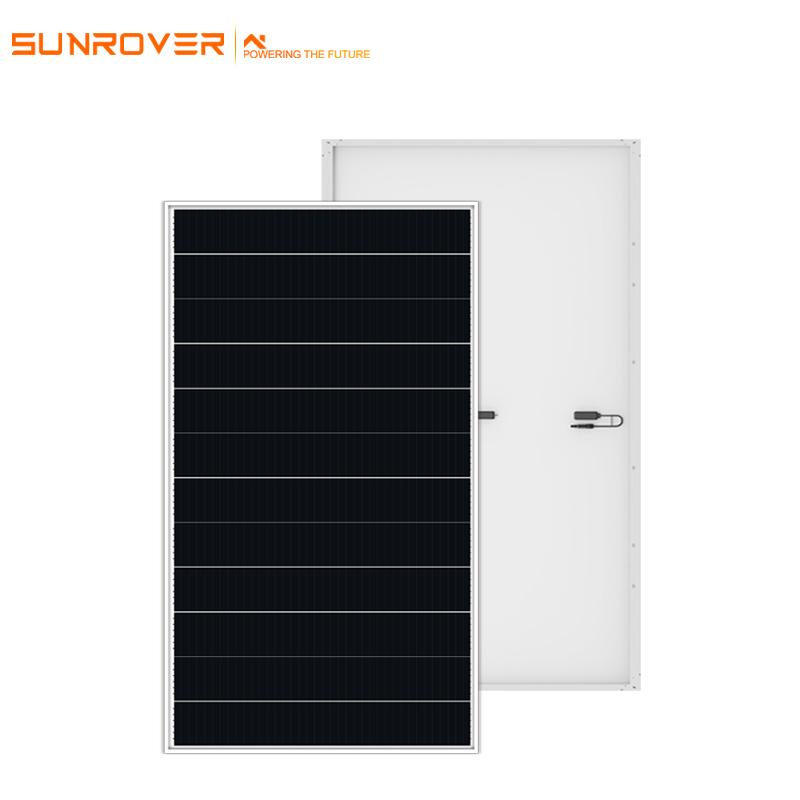

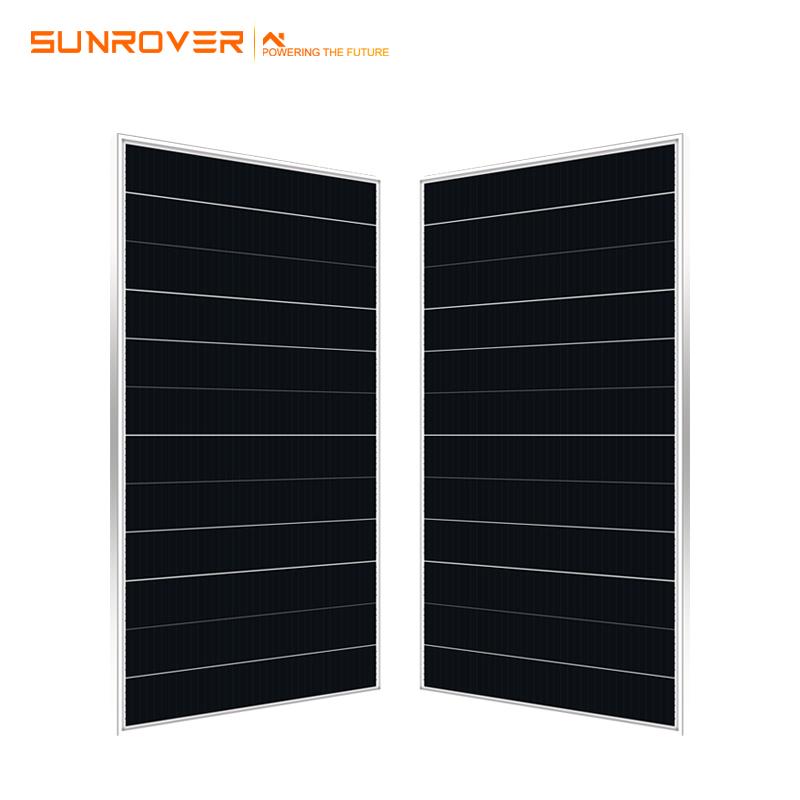

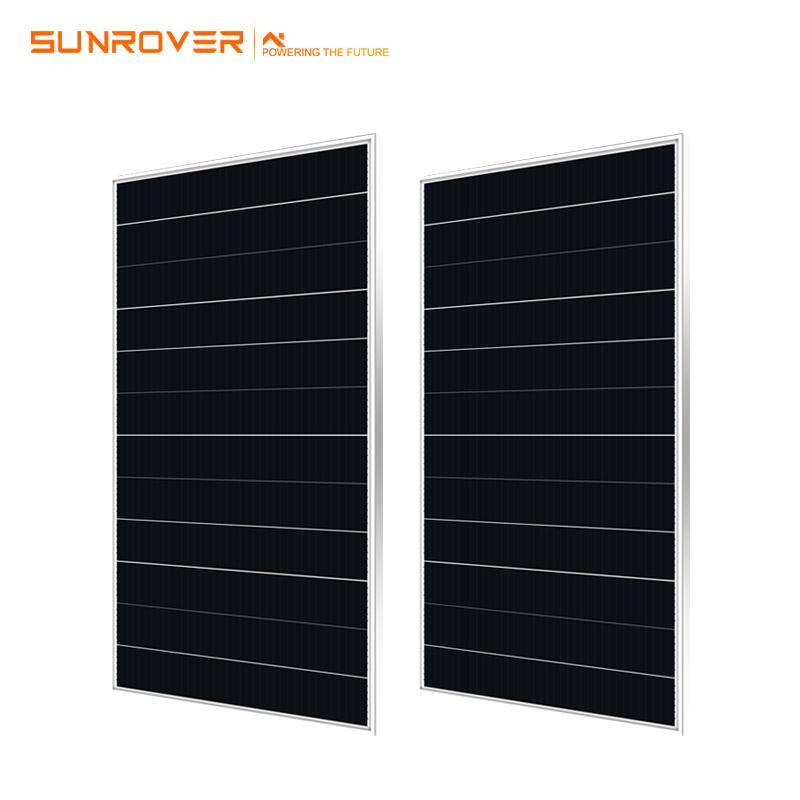

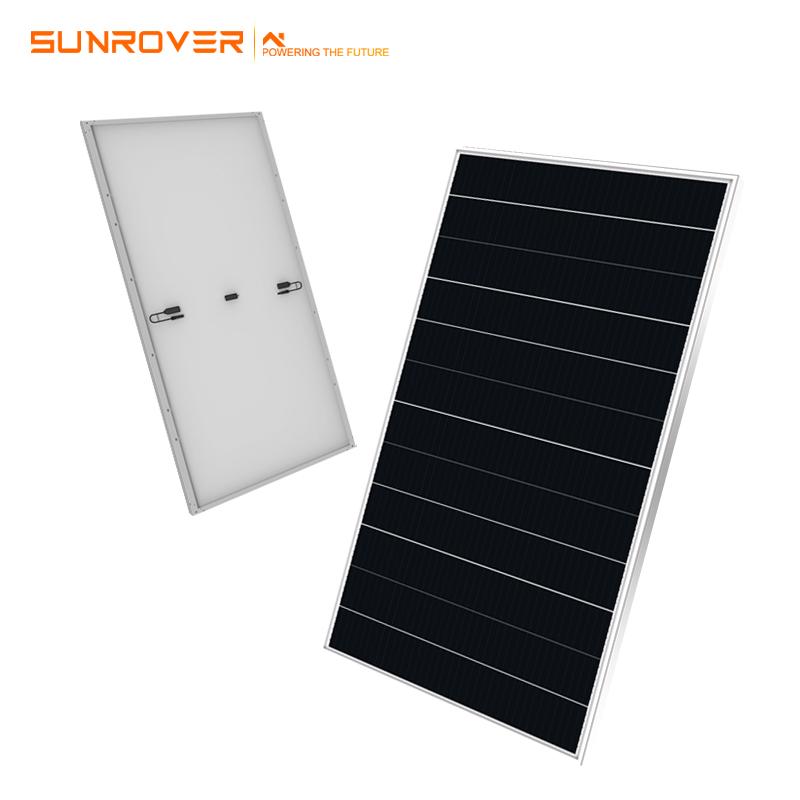

China supplier full black shingled cells with Europe warehouse from 390w to 560w.
China supplier full black shingled cells with Europe warehouse from 390w to 560w.
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
5days（1—100000w）；7days（100001 —10000000wWeight：
20kgCell Type:
Mono crystallineNo.of cells:
210mmDimensions:
390w-410w(1723×1134×35mm)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Weight:
390w-410w(20.5kg)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Certificate:
CE/TUVPayment:
T/T / L/C / Paypal / Western UnionWarranty:
25years
Features and advantages:
High conversion rate and high efficiency output;
Weak light effect;
High transmittance tempered glass is adopted;
The unique process makes the components beautiful, firm, snow resistant and easy to install;
Special technology to avoid freezing and deformation of water in the frame;
It can be specially designed and packaged separately according to customer requirements;
25 year output power guarantee
| Module | SUN390-DE21M | SUN395-DE21M | SUN400-DE21M | SUN405-DE21M | SUN410-DE21M |
| Maximum Power(Pmax) | 390W | 395W | 400W | 405W | 410W |
| Maximum Power Voltage(Vmp) | 38.40V | 38.50V | 38.60V | 38.70V | 38.80V |
| Maximum Power Current(Imp) | 10.16A | 10.26A | 10.36A | 10.47A | 10.57A |
| Open-circuit Voltage(Voc) | 46.20V | 46.30V | 46.40V | 46.50V | 46.60V |
| Short-circuit Current(Isc) | 10.87A | 10.92A | 10.97A | 11.02A | 11.07A |
| Module Efficiency STC(%) | 20.32% | 20.58% | 20.85% | 21.10% | 21.34% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1000/1500V DC(IEC) | ||||
| Maximum series fuse rating | 20A | ||||
| Power tolerance | 0-5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.270%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 42.3±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover |
| Model Number: | SUN420-60FB 420W |
| Cell size: | 182mmx182mm |
| Type: | PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel |
| Panel Dimensions: | 1719*1140*35mm |
| Panel Efficiency: | 21.10% |
| Certificate: | TUV/ETL/CE, complete international certificates |
| Warranty: | 25years |
| Product name: | TUV certified 420watt solar panel 700w for electricity |
| Solar cell: | Mono crystalline 182x182mm |
| Number of Cells: | 120cells |
| Weight: | 21kg |
| Glass: | 3.2mm white toughened safety Glass |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | IP67,Rated Current: 18A |
| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | yes |
| Supply Ability | |
| Supply Ability | 1000 Piece/Pieces per Week |
| Packaging & delivery | |
| Packaging Details | Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel |
| 1.Standard exporting Wooden and Carton Box | |
| 2.Container: 40'HQ | |
| 3. Pieces Per Container: 806 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai/Ningbo |
