Stock inverter 600w 800w 2000w mini inverter micro inverter 600w grid tie

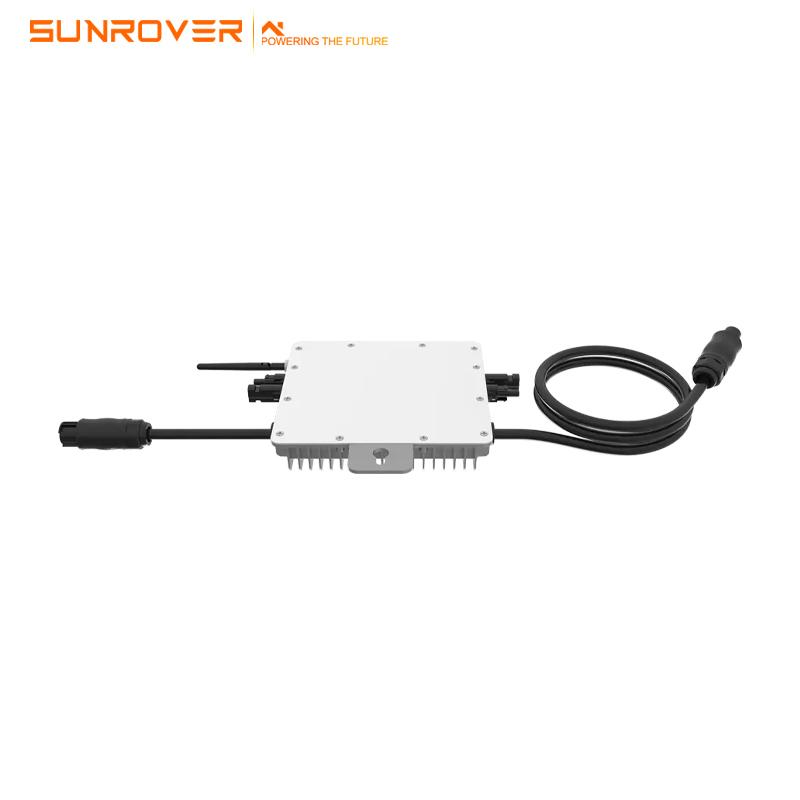

stock micro inverter 600w 800w 2000w mini inverter with wifi

  • Item NO.:

    SUN600G3-EU-230
  • Type :

    DC/AC Inverters
  • Max.Power :

    6600w
  • Output Voltage:

    220V/23V/240V
  • Payment :

    T/T, L/C, Western Union
  • Certificate:

    CE.TUV,VDE.INMETRO
  • Warranty:

    5years

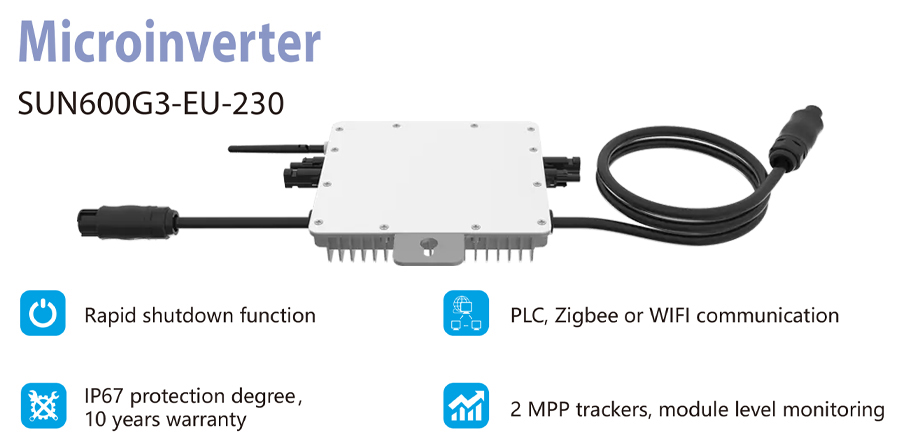

Micro inverter single phase 600w 800w 2000w 1 phase with wifi include

  • Rapid shutdown function
  • PLC,Zigbee or WIFl communication
  • lP67 protection degree,10 years warranty
  • 2 MPP trackers, module level monitoring



Product Description



Model

SUN600G3-EU-230
Input Data(DC)

Recommended input Power (STC)

210-400W(2 Piece)

Maximum input DC voltage

60V

MPPT Voltage Range

25-55V

Operating DC voltage Range

20-60V

Max. DC Short Circuit Current

16A

Max. input Current

10.5A*2
Output Data(AC)

Rated output Power

600W

Maximum output Power

660W

Maximum output Current

2.9A

Nominal Voltage / Range

230V/184-265V

Nominal Frequency /Range
50/60Hz
Extended Frequency / Range
45~55Hz/55~65Hz
Power Factor
>0.99
Maximum units per branch
8
Efficiency

CEC Weighted Efficiency

95%

Peak lnverter Efficiency

96.5%

Static MPPT Efficiency

99%

Night Time Power Consumption

50mW

Mechanical Data
Ambient Temperature Range
-40~65°C
Size (mm) 212Wx229Hx40D (Without mounting bracket and cable)
 weight (kg)  3.5
Cooling  Natural cooling
Enclosure Environmental Rating IP67

Features

Compatibility Compatible with 60~72 cell PV modules
Communication Power line / 'WIF1/ Zigbee
Certificates
EN50549、VDE0126、VDE4105、IEC62109、CE、INMETRO
Warranty 10years

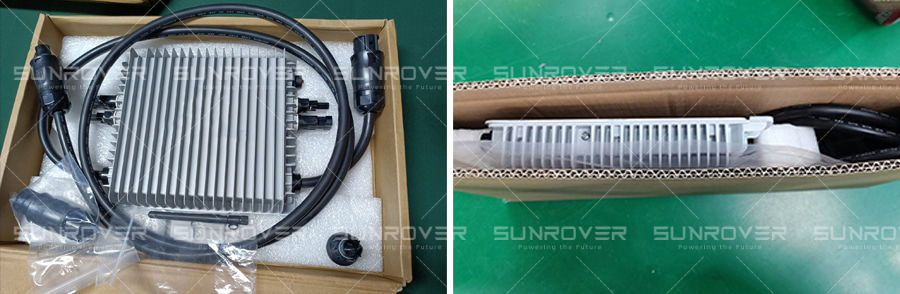

Packaging
