Brand:
Sunrover PowerMax. Power:
Certificate:
TUV/CE/CEC/INMETRO/SEC/CQC/ISO/FIDEWarranty:
25 YearsPayment:
T/T / L/C / Paypal / Western UnionLead Time:

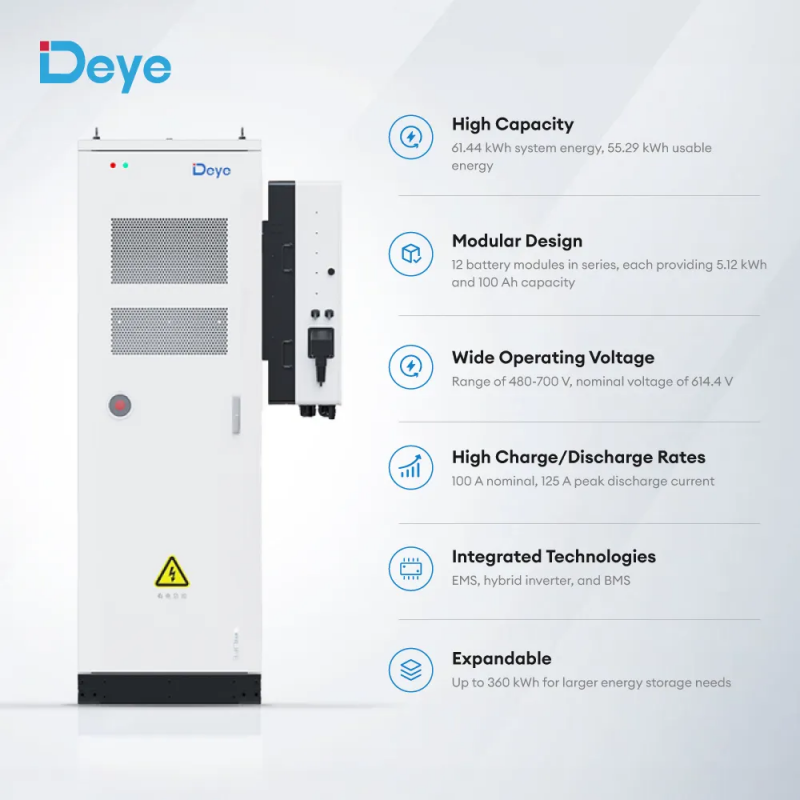

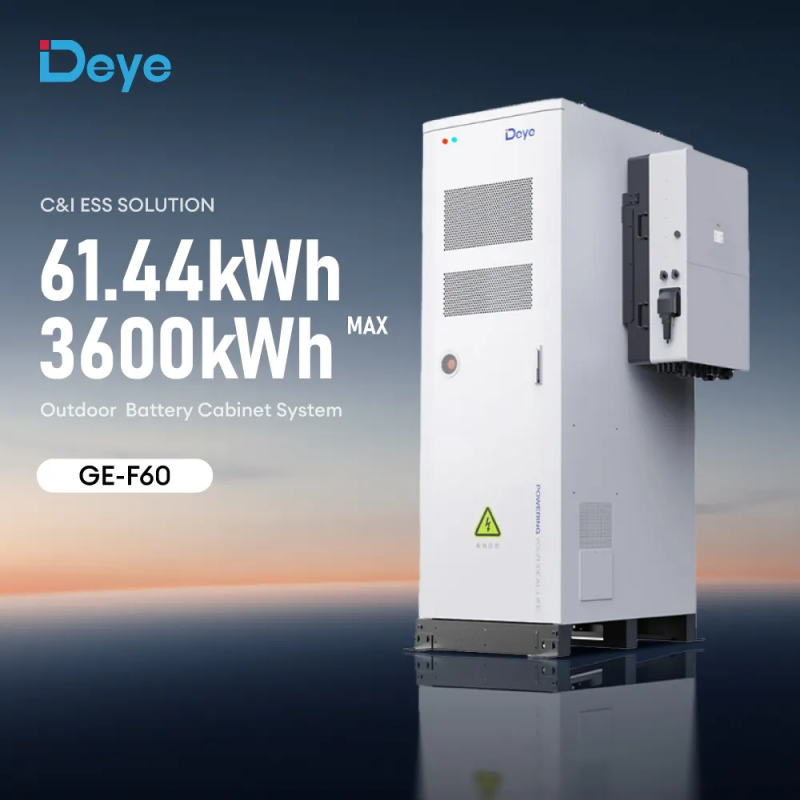

7-15 DaysThe Deye DE-F60 is a high-performance hybrid energy storage system designed for residential and commercial applications, offering seamless integration with solar power and grid connectivity. Combining advanced power conversion technology with robust battery management, it ensures reliable energy independence and cost savings.
| Model |
GE-F60 | |
| Main Parameter |
||
| Cell Chemistry |
LiFePO4 | |
| Module Energy (kWh) |
5.12 | |
| Module Nominal Voltage (V) |
51.2 | |
| Module Capacity (Ah) |
100 | |
| Battery Module Qty In Series (Optional) |
12 | |
| System Nominal Voltage (V) |
614.4 | |
| System Operating Voltage (V) |
480~700 | |
| System Energy (kWh) |
61.44 | |
| System Usable Energy (kWh) |
55.29 | |
| Rated DC Power |
61.44 | |
Charge/Discharge Current (A) |
Recommend |
50 |
| Nominal |
100 | |
| Peak Discharge (2 mins, 25℃) |
125 | |
| Working Temperature (°C) |
Charge: 0~55/Discharge: -20~55 | |
| Status Indicator |
Yellow: Battery High Voltage Power On Red: Battery System Alarm | |
| Communication Port |
CAN2.0/ RS485 | |
| Humidity |
5%~85%RH | |
| Altitude |
≤2000m | |
| IP Rating of Enclosur |
IP55 | |
| Dimension (W/D/H,mm) |
780*1056*2235 | |
| Weight Approximate (kg) |
1.2T | |
| Installation Location |
Floor-mounted | |
| Storage Temperature (°C) |
0~35 | |
| Recommend Depth of Discharge |
90% | |
| Cycle Life |
25±2°C,0.5C/0.5C, EOL70%≥6000 | |
| Warranty |
10 years | |
| Certification |
CE, IEC62619, IEC62040, UN38.3 | |
