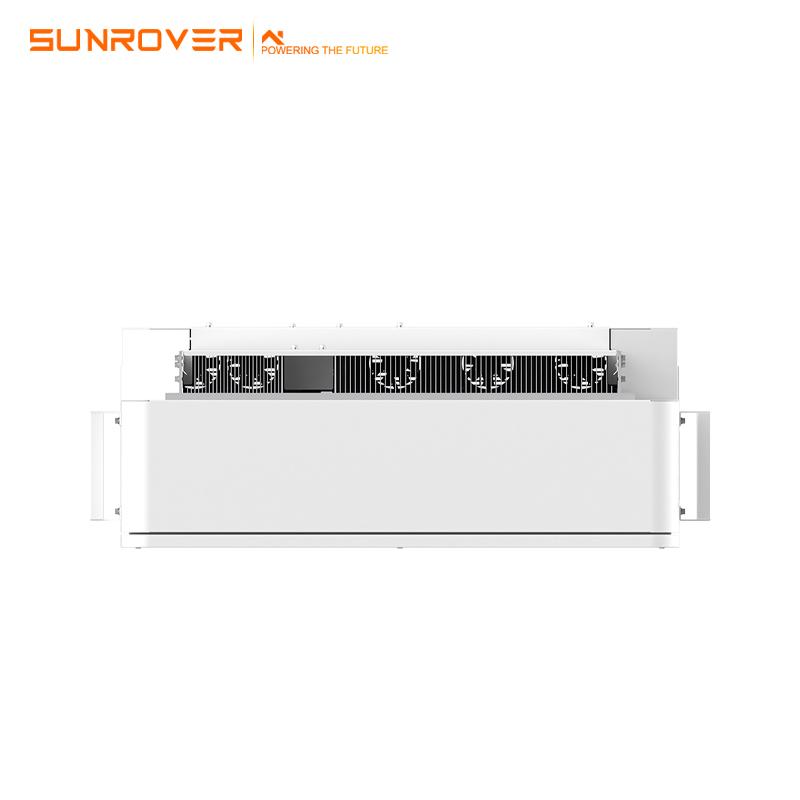

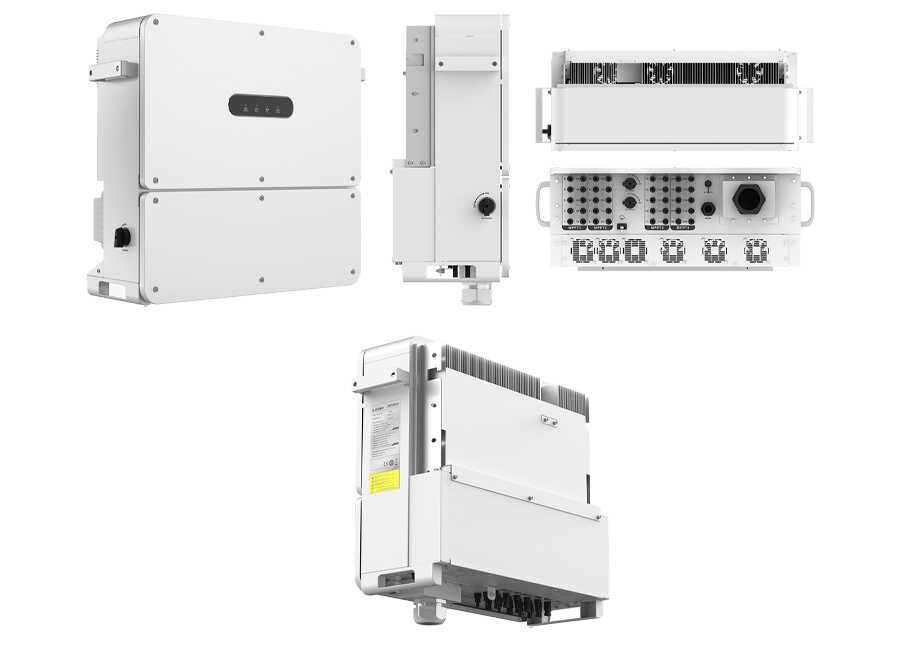

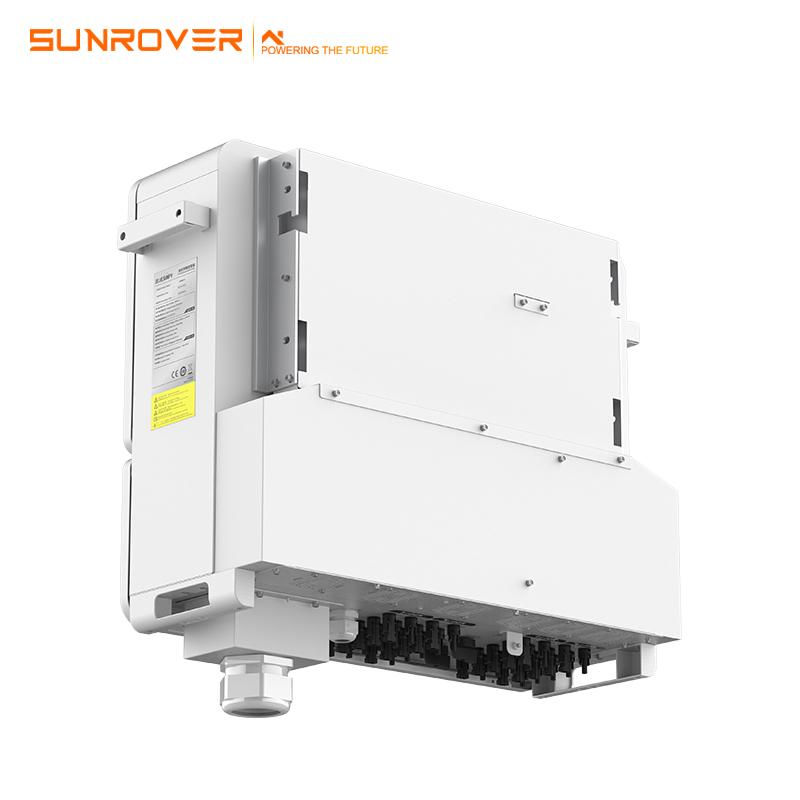

Hopewind Solar 3 Phase Hybrid Off-grid Inverter On Grid Solar Inverter Mppt For System
Hopewind Solar 3 Phase Hybrid Off-grid Inverter On Grid Solar Inverter Mppt For System
Item NO.:
SUN50KTL/SUN100KTLShipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pWeight：
52kgItem NO.:
Type:
Grid TieMax.Power:
60kwOutput Voltage:
400V 3PhasePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsHopewind Solar 3 Phase Hybrid Off-grid Inverter On Grid Solar Inverter Mppt For System
This type of inverter is well protected and easy to install.
Our company designs, develops and manufactures photovoltaic inverters, energy storage systems and intelligent energy management systems, which can provide high-quality full scene distributed energy solutions for global households, industrial and commercial users. Our inverter models and power are complete, and they have good applications in various fields. With high power generation efficiency and excellent performance, We are very good inverter brands. All aspects are guaranteed.

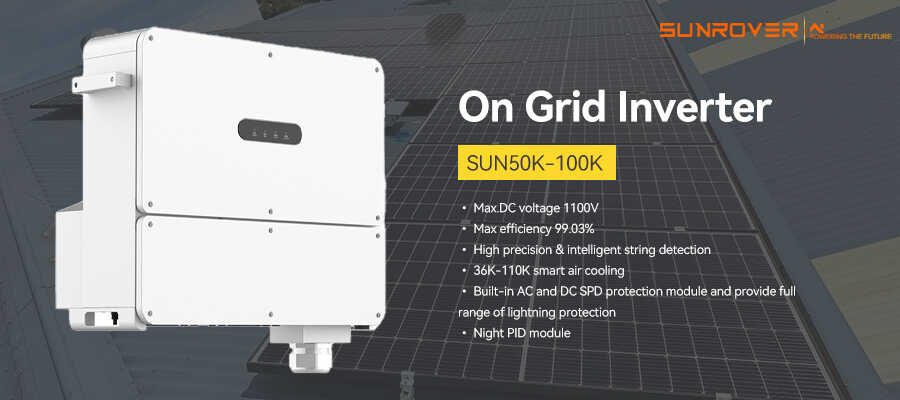

Hopewind Solar 3 Phase Hybrid Off-grid Inverter On Grid Solar Inverter Mppt For Solar System
1. Competitive factory direct price, fast delivery.
2. The company has been focusing on R & D and production for 13 years, quality assurance
2. One-stop solution to the complete solar energy system can save your time and money.
3. Professional sales team, exported to more than 80 countries.
4. For large-scale solar power station projects, engineers can provide on-site guidance and installation services.
5. OEM service is acceptable and customized LOGO can be printed on the product.
| Model | SUN50KTL | SUN100KTL |
| DC Input | ||
| Max.DC Voltage | 1100V | |
| Starting Voltage | 250V | |
| MPPT Voltage Range | 250V-1000V | |
| MPPT Range Full Load | 540V-880V | |
| Max Current/MPPT | 39A | 44A/44A/55A/55A |
| Number of DC Inputs | 9 | 18 |
| MPPT Number | 3 | 4 |
| AC Output | ||
| Rated Output Power | 50KW | 100KW |
| Max.Active Power(cosθ=1) | 55KW | 110KW |
| Rated Output Voltage | 400V (Three Phase) | |
| Operating Voltage Range | 400V±20% | |
| Rated Output Current | 72.2A | 145A |
| Max.Output Current | 79.4A | 158.8A |
| Rated Grid Frequency | 50/60Hz | |
| Power Factor | 0.8 leading-0.8 lagging | |
| THD | ﹤3% | |
| System Parameters | ||
| Max.Efficiency | 99.03% | 99.01% |
| European Efficiency | 98.51% | 98.52% |
| AC/DC SPD | Support | |
| PV String Fault Detection | Support | |
| RCD | Support | |
| AC Overcurrent Protection | Support | |
| Cooling System | Smart Air Cooling | |
| Operating Temperature | -40℃-+60℃ | |
| Protection Level | IP65 | |
| Standby Power Consumption | ﹤1W | ﹤5W |
| Topology Structure | Transformerless | |
| Operating Altitude | 5000m (Derating above 4000m) | |
| Display | LED+APP | |
| Communication | RS485/WIFI/GPRS | |
| DC Terminator | MC4 | |
| AC Terminator | OT/DT(MAX 95mm²） | OT/DT(MAX 300mm²） |
| Certification | IEC62109/IEC61000/IEC62116/IEC61727/CQC/CGC | |
| Mechanical Parameters | ||
| Dimensions(W*H*D) | 705x650x283mm | 800x672x315mm |
| Weight | ﹤75kg | ﹤85kg |

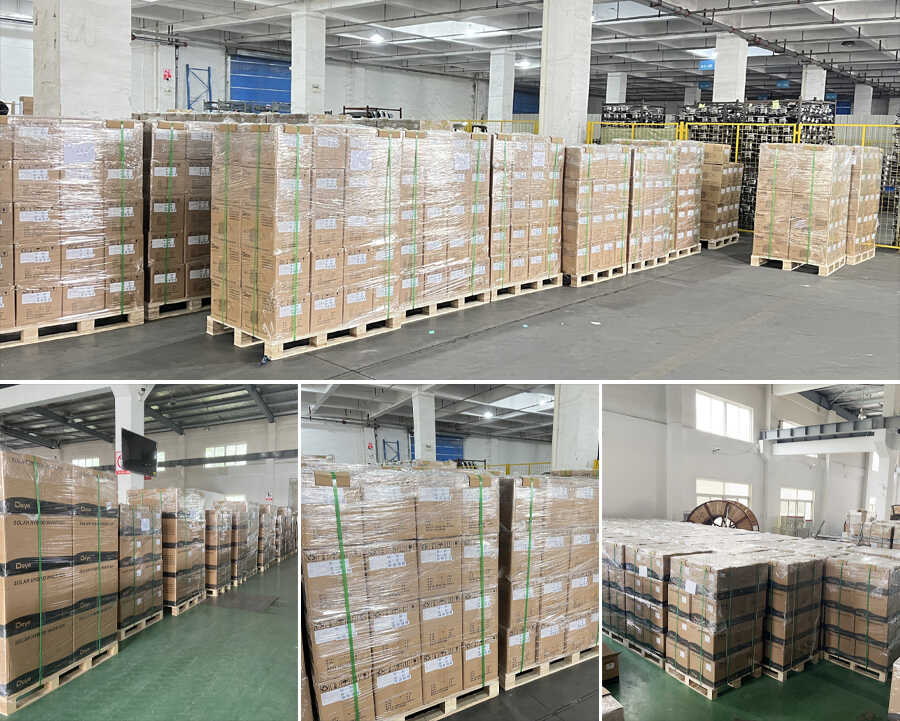

Stock

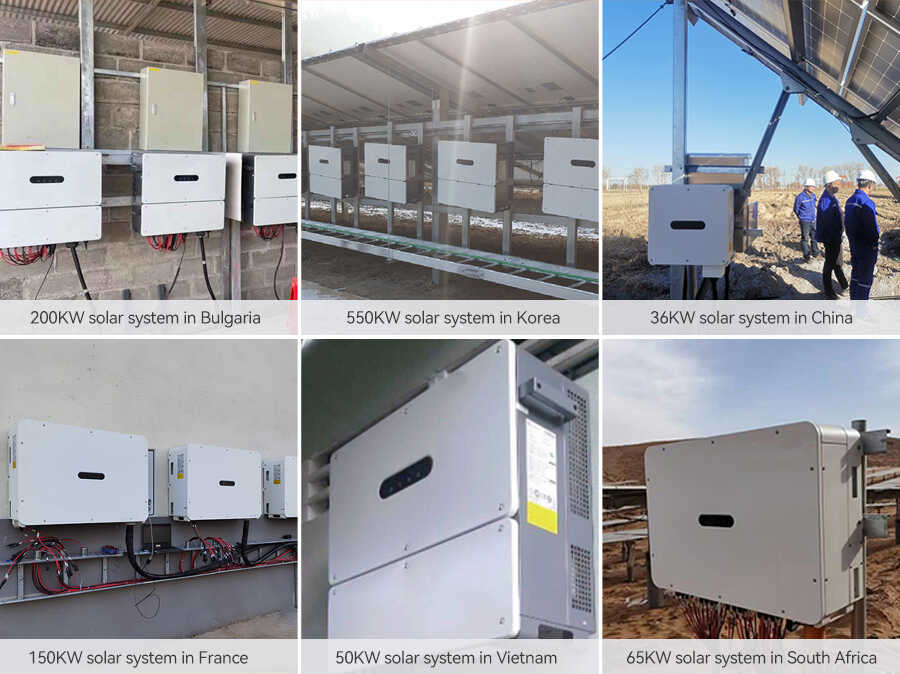

Project
Packaging
