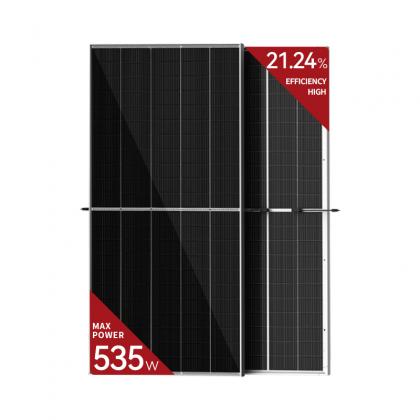

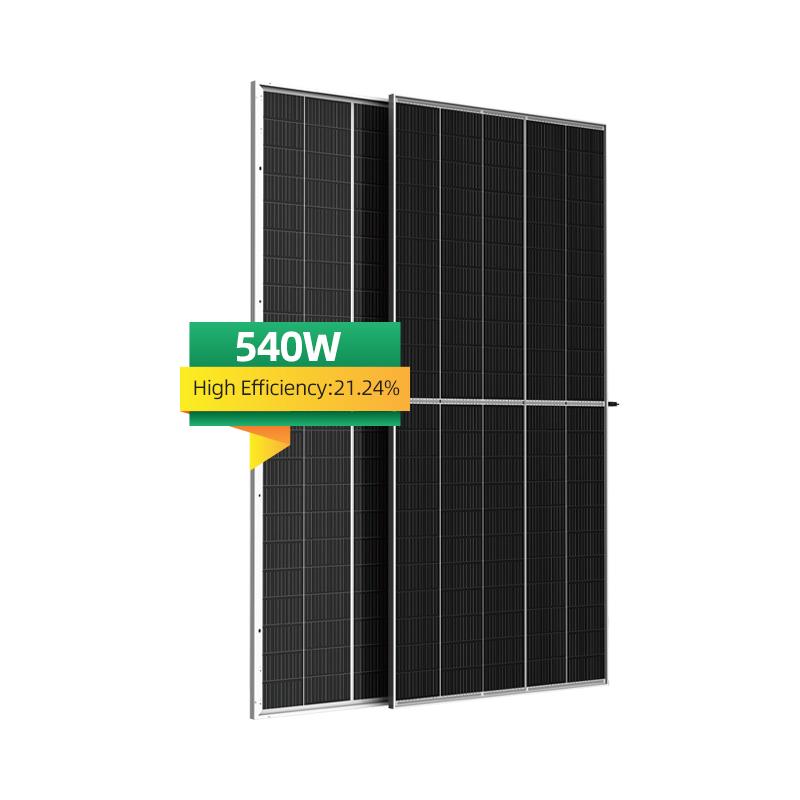

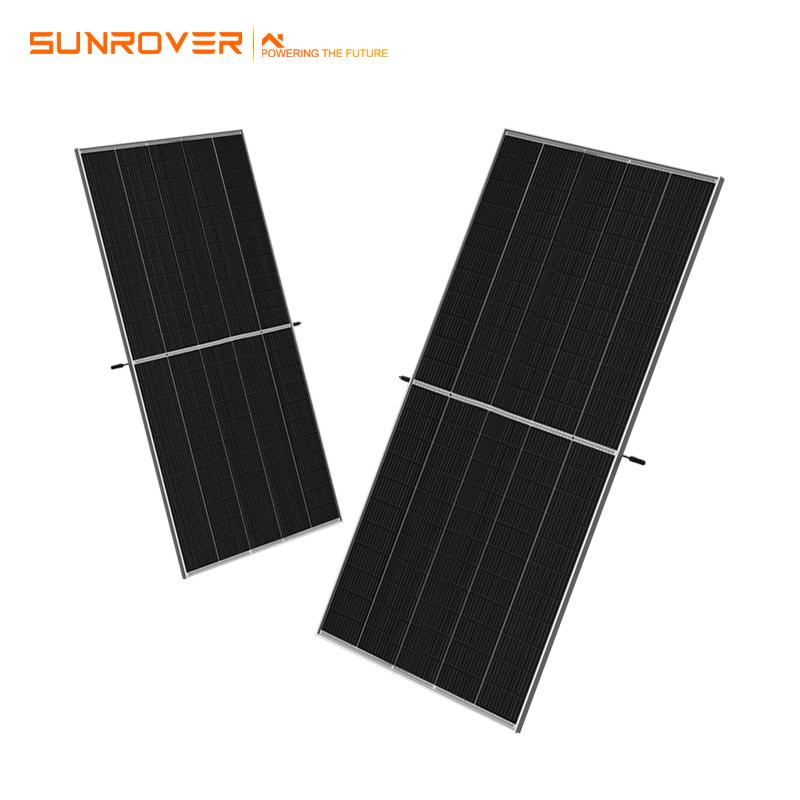

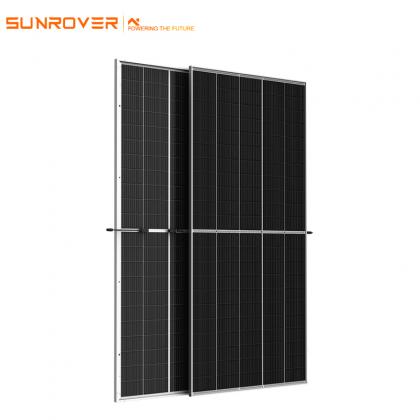

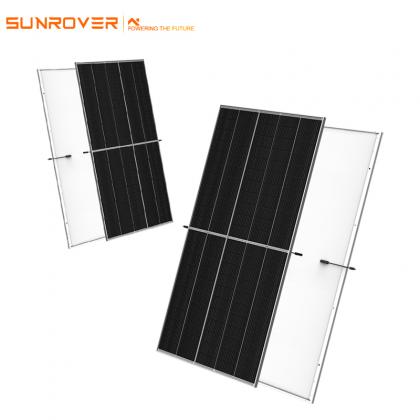

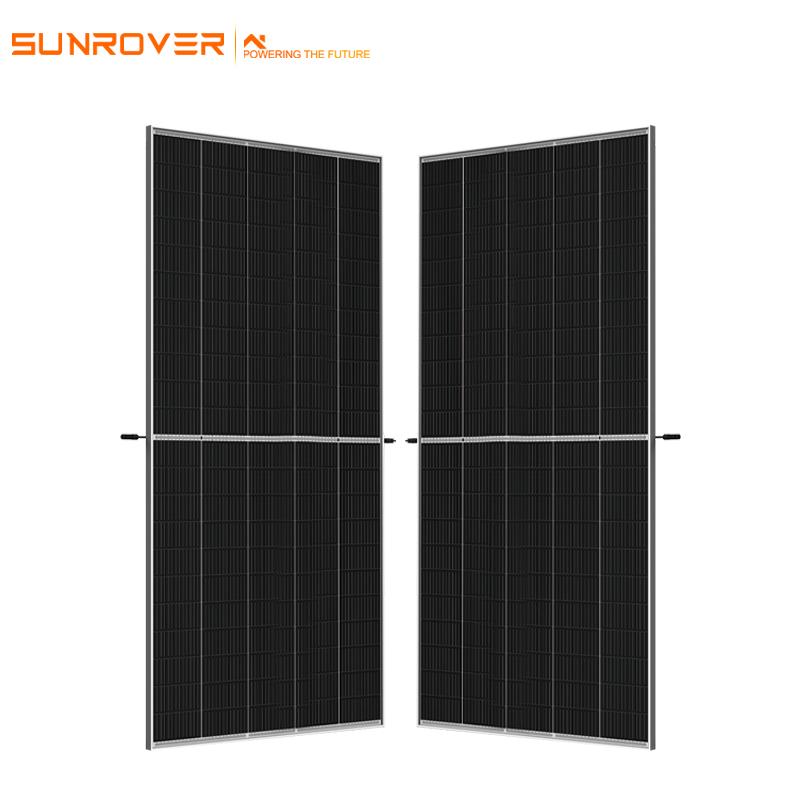

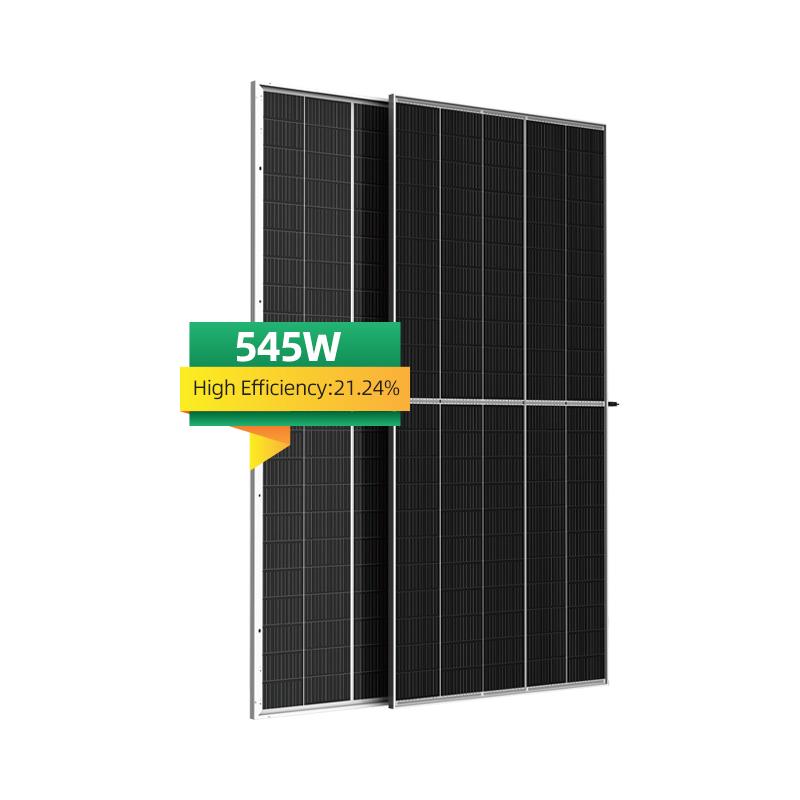

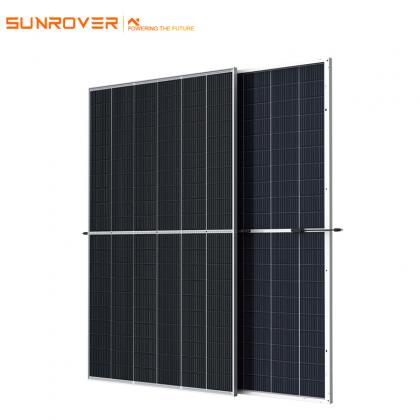

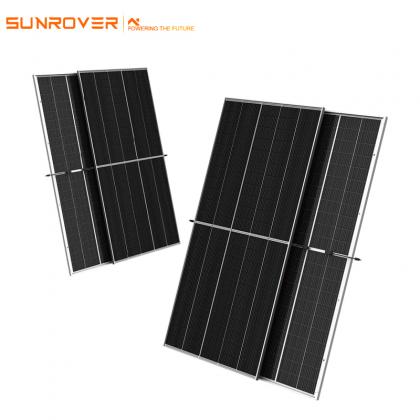

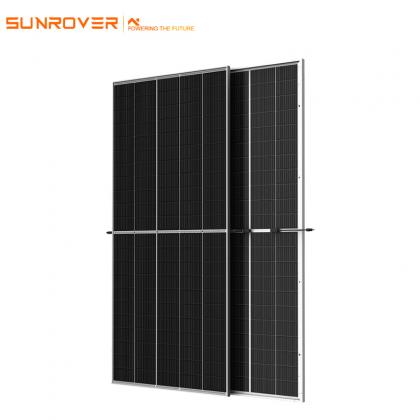

ja solar 535w bifacial mono perc half cell double glass module

Double glass transparent bifacial mono perc half cell with 12 years material warranty from 535w to 555w

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    3days(1—100000w);5days(10001 —100000w);1
  • Weight:

    21.8kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    150 cells
  • Dimensions:

    495w-515w(2187×1102×35mm);525w-545w(2384×1096×35mm);535w-555w(2384×1096×35mm);
  • Weight:

    410w-430w(26.3kg);525w-545w(28.6kg);535w-555w(32.3kg);
  • Certificate:

    CE/TUV/ISO
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    10years

Double glass transparent bifacial half cell panels with 12 years material warranty from 535w to 555w

    The advantages of the bifacial mono perc half cell, such as reducing the possibility of forming hot spots, structural advantages including more powerful component design, reducing the operating temperature, and the battery configuration of shunt current, make the upper and lower parts of the module basically work as separate components, thus reducing the impact of internal resistance and some component shadows.



Module SUN535-DE21M SUN540-DE21M SUN545-DE21M SUN550-DE21M SUN555-DE21M
Maximum Power(Pmax) 535W 540W 545W 550W 555W
Maximum Power Voltage(Vmp) 31.20V 31.40V 31.60V 31.80V 32.00V
Maximum Power Current(Imp) 17.16A 17.21A 17.24A 17.29A 17.35A
Open-circuit Voltage(Voc) 37.50V 37.70V 37.90V 38.10V 38.30V
Short-circuit Current(Isc) 18.24A 18.30A 18.35A 18.39A 18.43A
Module Efficiency STC(%) 20.50% 20.70% 20.90% 21.00% 21.24%
Operating Temperature() -40~+85
Maximum system voltage 1500V DC(IEC/UL)
Maximum series fuse rating 35A
Power tolerance 0-+5W
Temperature coefficients of Pmax -0.340%
Temperature coefficients of Voc -0.250%
Temperature coefficients of Isc 0.04%
Nominal operating cell temperature(NOCT) 43±2
Electrical Characteristics with Different Power Ranges
  SUN535-DE21M SUN540-DE21M SUN545-DE21M SUN550-DE21M SUN555-DE21M
Rated Max Power(Pmax) 573W 578W 583W 589W 594W
Open Circuit Voltage(Voc) 37.50V 37.70V 37.90V 38.10V 38.30V
Max Power Voltage(Vmp) 31.20V 31.40V 31.60V 31.80V 32.00V
Short Circuit Current(Isc) 19.52A 19.58A 19.63A 19.68A 19.73A
Max Power Current(Imp) 18.36A 18.41A 18.45A 18.50A 18.55A
Irradiance ratio(rear/front) 10%

Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover Solar
Model Number: SUN535-555 DE21M(18)-B
Type: PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel
Panel Efficiency: 19.50%, 19.70%, 19.90%, 20.20%, 20.40%
Certificate: ISO/CE/TUV/ETL
Warranty: 10YEARS
Solar cell: Monocrystalline Silicon 166*166mm
Glass: 3.2mm High Tranamission Low Iron
Frame: Anodized Aluminium Alloy
Junction Box: Split junction box (IP68, three diode)
Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: Support for solar panel 450 watt stock double glass
Supply Ability 10000 Piece/Pieces per Week solar panel 450 watt stock double glass
Packaging & delivery
Packaging Details Half cell Mono solar panel from 410w to 670w stock double glass
  1. Standard exporting Wooden and Carton Box
  2. Container: 40'HQ
  3. Pallets Per Container: 22
  4. Pieces Per Container: 660
  The packaging can be customized according to the needs of different customers
Port Shanghai , China
Quantity(watts) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Lead time (days) 3 5 10 To be negotiated
