Products

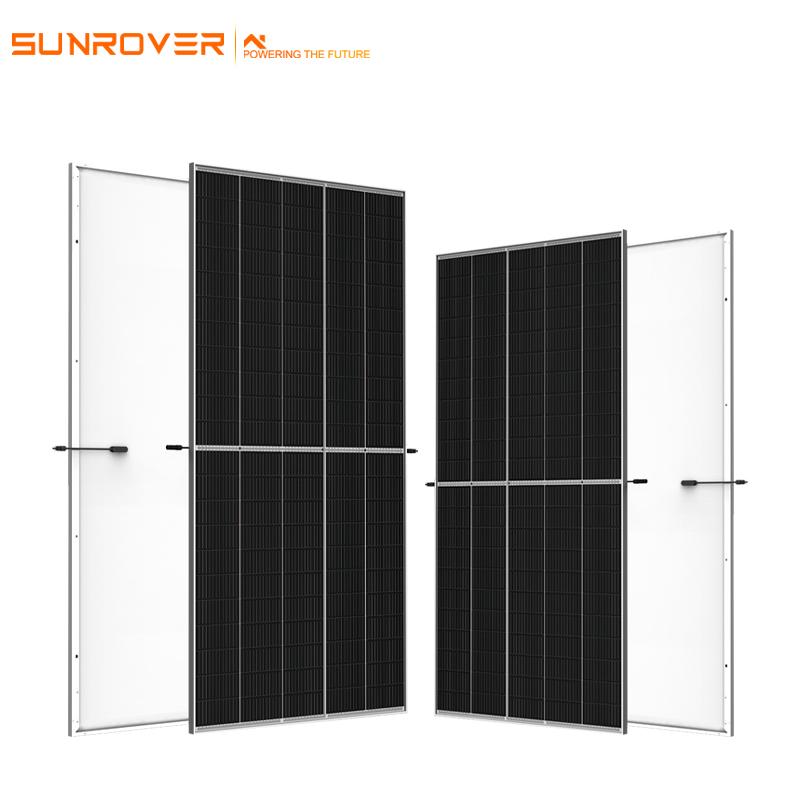

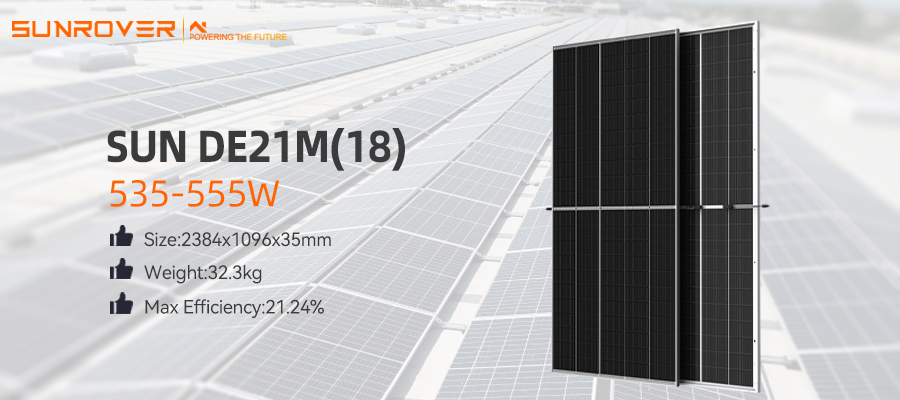

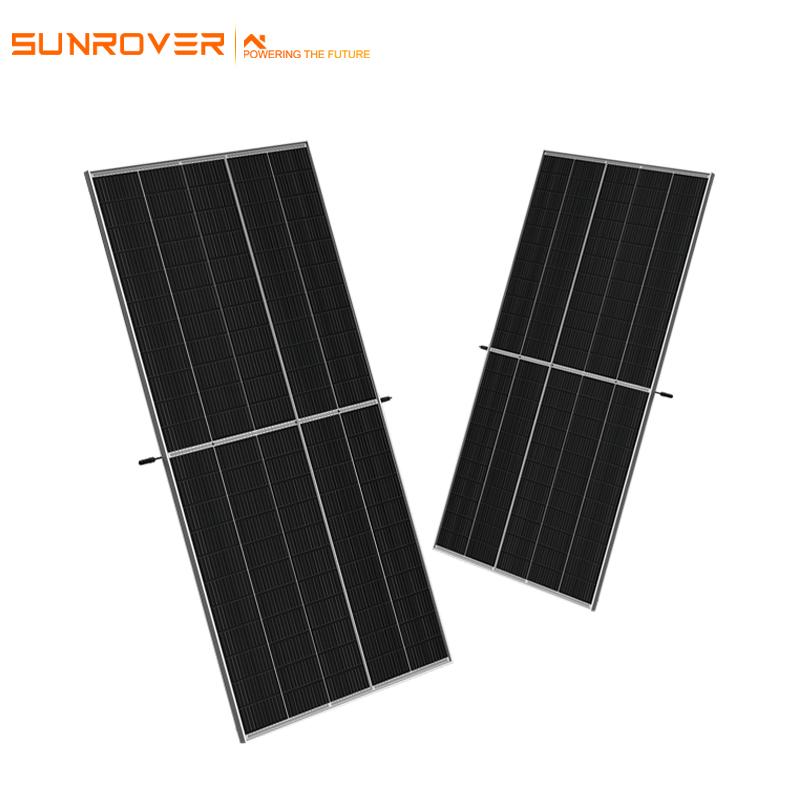

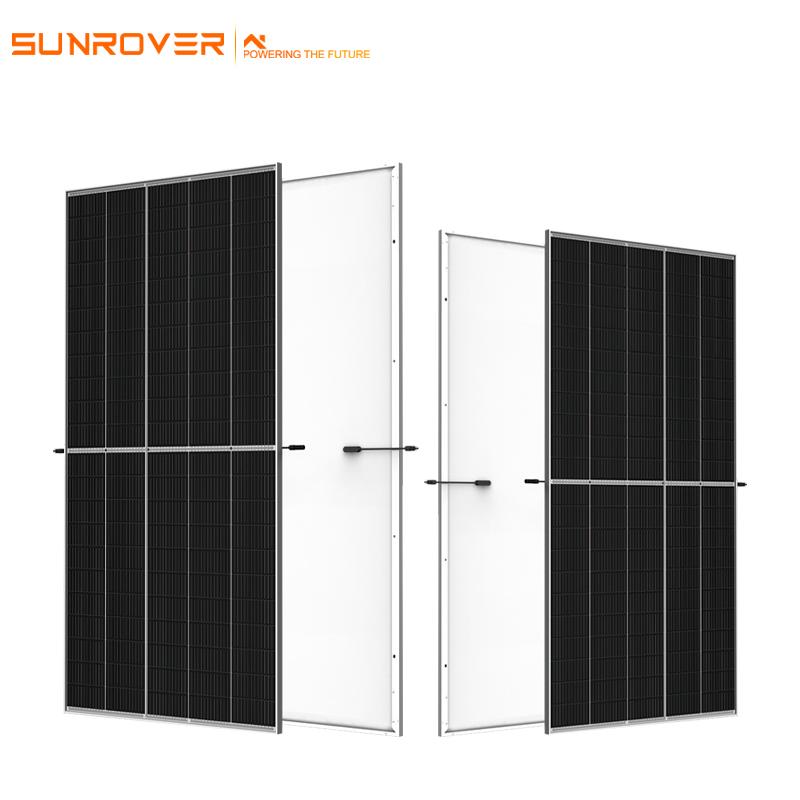

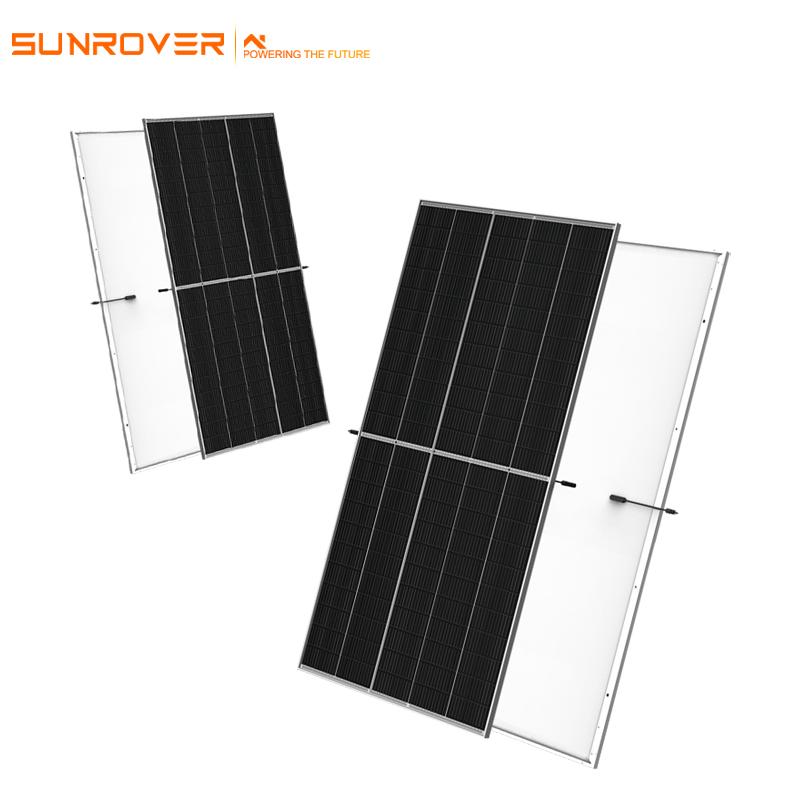

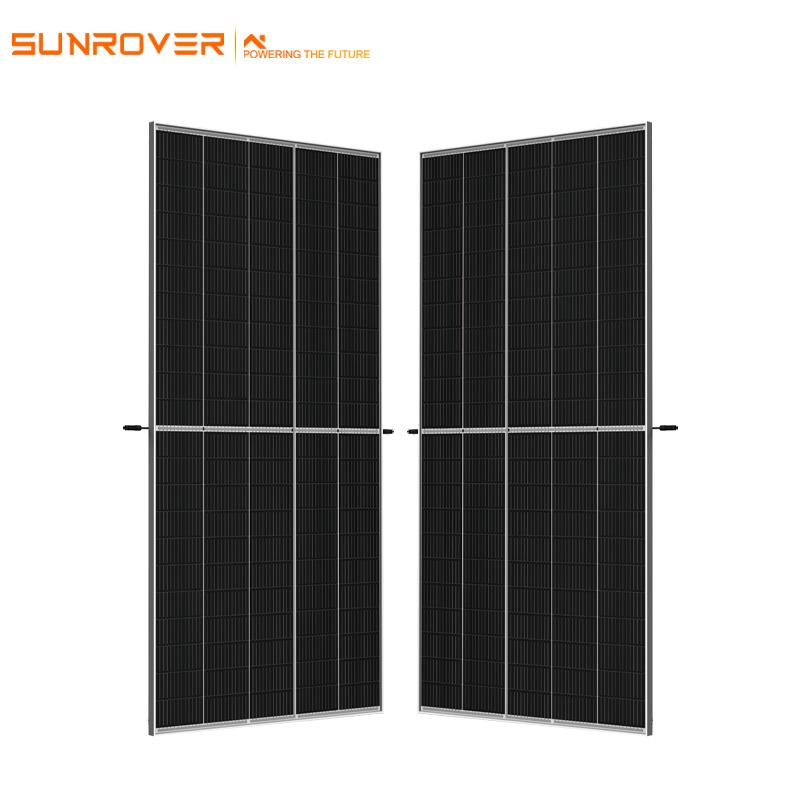

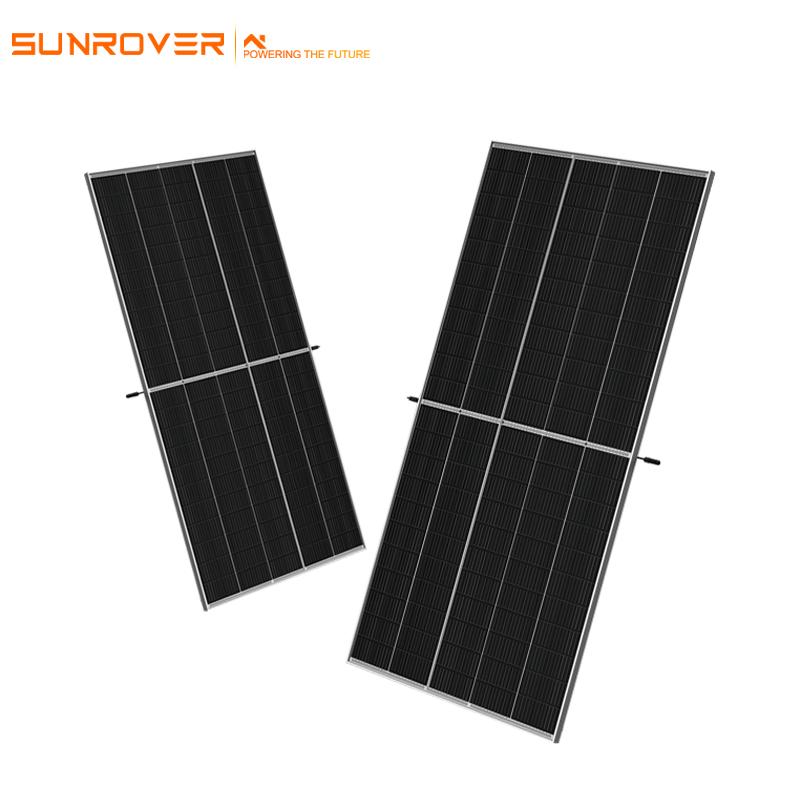

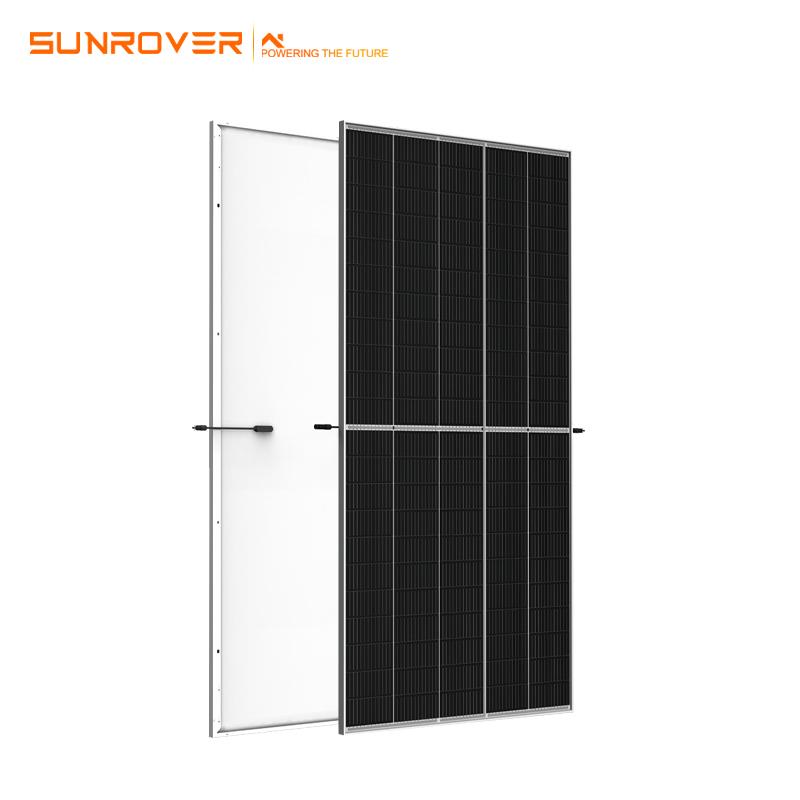

mono perc half cut bifacial solar panel

Full Black Frame mono perc half cut bifacial solar panel from 535w to 555w

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    3days(1—100000w);5days(10001 —100000w);1
  • Weight:

    21.8kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    150 cells
  • Dimensions:

    495w-515w(2187×1102×35mm);525w-545w(2384×1096×35mm);535w-555w(2384×1096×35mm);
  • Weight:

    410w-430w(26.3kg);525w-545w(28.6kg);535w-555w(32.3kg);
  • Certificate:

    CE/TUV/ISO
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    10years

High power full black frame mono perc half cut bifacial solar panel with TUV/CE certification for roof home solar energy system

    Mono half cell panels, which has high photoelectric conversion efficiency and good stability; The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, and the highest is 24%。

Module SUN495-DE21M SUN500-DE21M SUN505-DE21M SUN510-DE21M SUN515-DE21M
Maximum Power(Pmax) 495W 500W 505W 510W 515W
Maximum Power Voltage(Vmp) 42.60V 42.80V 43.00V 43.20V 43.40V
Maximum Power Current(Imp) 11.63A 11.69A 11.75A 11.81A 11.87A
Open-circuit Voltage(Voc) 51.50V 51.70V 51.90V 52.10V 52.30V
Short-circuit Current(Isc) 12.21A 12.28A 12.35A 12.42A 12.49A
Module Efficiency STC(%) 20.50% 20.70% 21.00% 21.20% 21.40%
Operating Temperature() -40~+85
Maximum system voltage 1500V DC(IEC/UL)
Maximum series fuse rating 20A
Power tolerance 0-+5W
Temperature coefficients of Pmax -0.340%
Temperature coefficients of Voc -0.250%
Temperature coefficients of Isc 0.04%
Nominal operating cell temperature(NOCT) 43±2

Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover Solar
Model Number: SUN495-515 DE21M(11)
Type: PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel
Panel Efficiency: 19.50%, 19.70%, 19.90%, 20.20%, 20.40%
Certificate: ISO/CE/TUV/ETL
Warranty: 10YEARS
Glass: 3.2mm High Tranamission Low Iron
Frame: Anodized Aluminium Alloy
Junction Box: Split junction box (IP68, three diode)
Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: Support for solar panel 450 watt stock double glass
Supply Ability 10000 Piece/Pieces per Week solar panel 450 watt stock double glass
Packaging & delivery
Packaging Details Half cell Mono solar panel from 410w to 670w stock double glass
  1. Standard exporting Wooden and Carton Box
  2. Container: 40'HQ
  3. Pallets Per Container: 22
  4. Pieces Per Container: 660
  The packaging can be customized according to the needs of different customers
Port Shanghai , China
Quantity(watts) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Lead time (days) 3 5 10 To be negotiated
