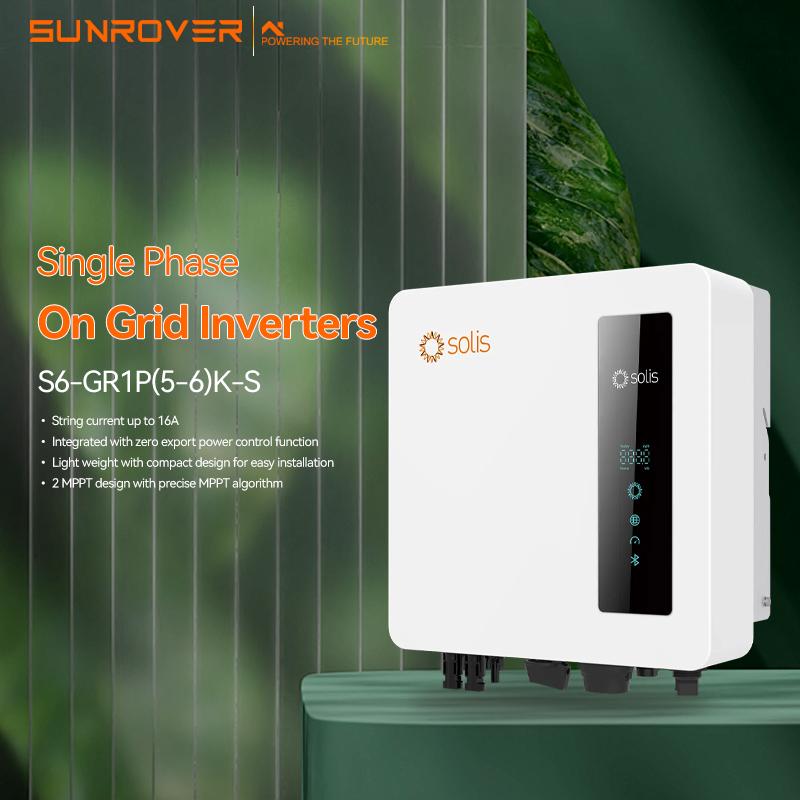

Models
|
5K
|
6K
|
Input DC
|
||
Recommended max. PV power
|
7.5 kW
|
9 kW
|
Max. input voltage
|
550 V
|
|
Rated voltage
|
330 V
|
|
Start-up voltage
|
100 V
|
|
MPPT voltage range
|
90 - 550 V
|
|
Max. input current
|
16 A / 16 A
|
|
Max. short circuit current
|
22 A / 22 A
|
|
MPPT number / Max. input strings number
|
2 / 2
|
|
Output AC
|
||
Rated output power
|
5 kW
|
6 kW
|
Max. apparent output power
|
5 kVA
|
6 kVA
|
Max. output power
|
5 kW
|
6 kW
|
Rated grid voltage
|
1/N/PE, 220 V / 230 V
|
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|
Rated grid output current
|
22.7 A / 21.7 A
|
27.3 A / 26.1 A
|
Max. output current
|
22.7 A
|
27.3 A
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
< 3%
|
|
Efficiency
|
||
Max. efficiency
|
97.7%
|
|
EU efficiency
|
97.1%
|
|
Protection
|
|
|
DC reverse-polarity protection
|
Yes
|
|
Short circuit protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
Yes
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Temperature protection
|
Yes
|
|
Multi peak scan
|
Yes
|
|
Integrated AFCI 2.0
|
Optional
|
|
Integrated DC switch
|
Yes
|
|
General Data
|
|
|
Dimensions (W × H × D)
|
330 × 371 × 161 mm
|
|
Weight
|
8.9 kg
|
9 kg
|
Topology
|
Transformerless
|
|
Self-consumption (night)
|
< 1 W
|
|
Operating ambient temperature range
|
-25 ~ +60°C
|
|
Relative humidity
|
0 - 100%
|
|
Ingress protection
|
IP66
|
|
Noise emission (typical)
|
< 20 dB(A)
|
|
Cooling concept
|
Natural cooling with internal fan
|
|
Max. operation altitude
|
4000 m
|
|
Grid connection standard
|
G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530, MEA, PEA
|
|
Safety / EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3
|
|
Features
|
|
|
DC connection
|
MC4 connector
|
|
AC connection
|
Quick connection plug
|
|
Display
|
LED digital display & Bluetooth + APP
|
|
Communication
|
RS485, USB, Optional: Wi-Fi, GPRS
|
