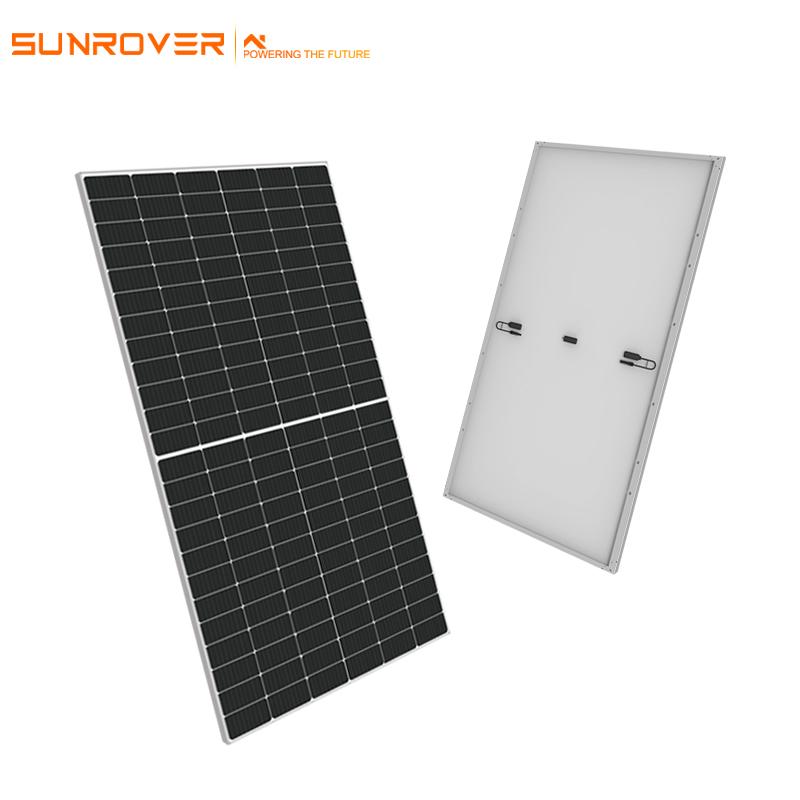

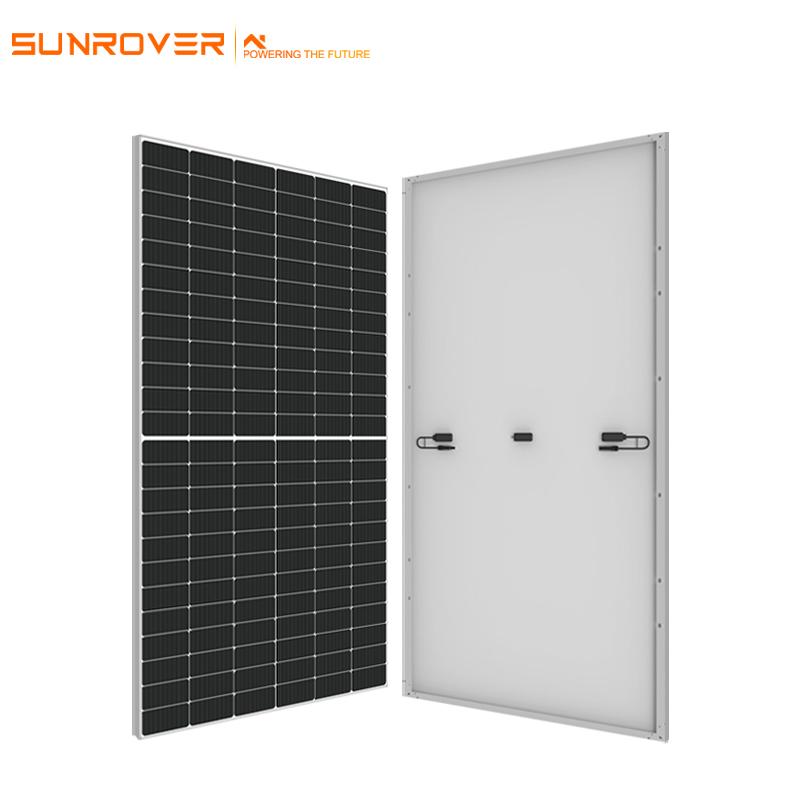

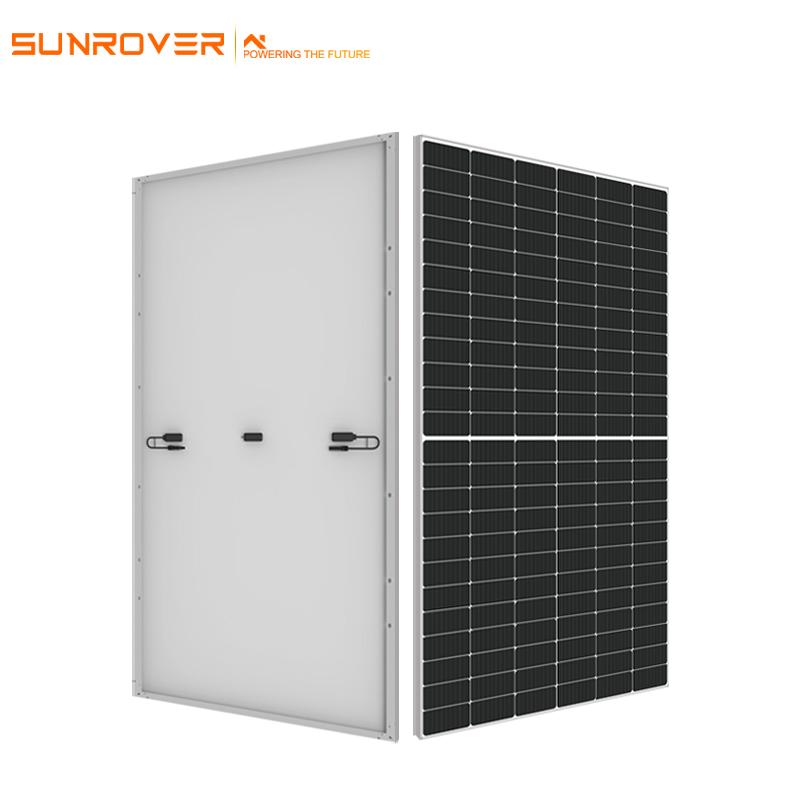

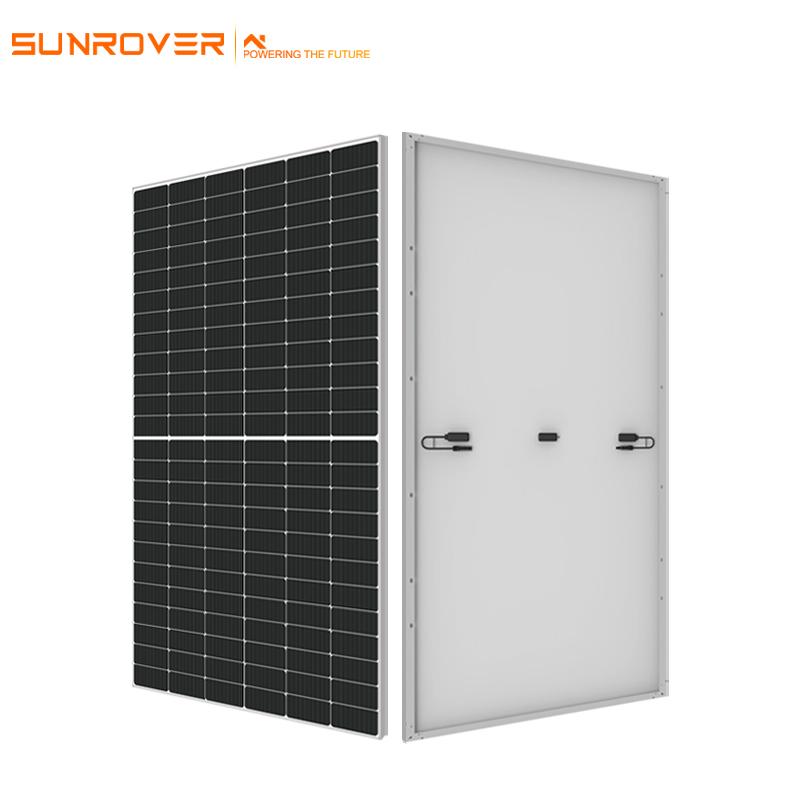

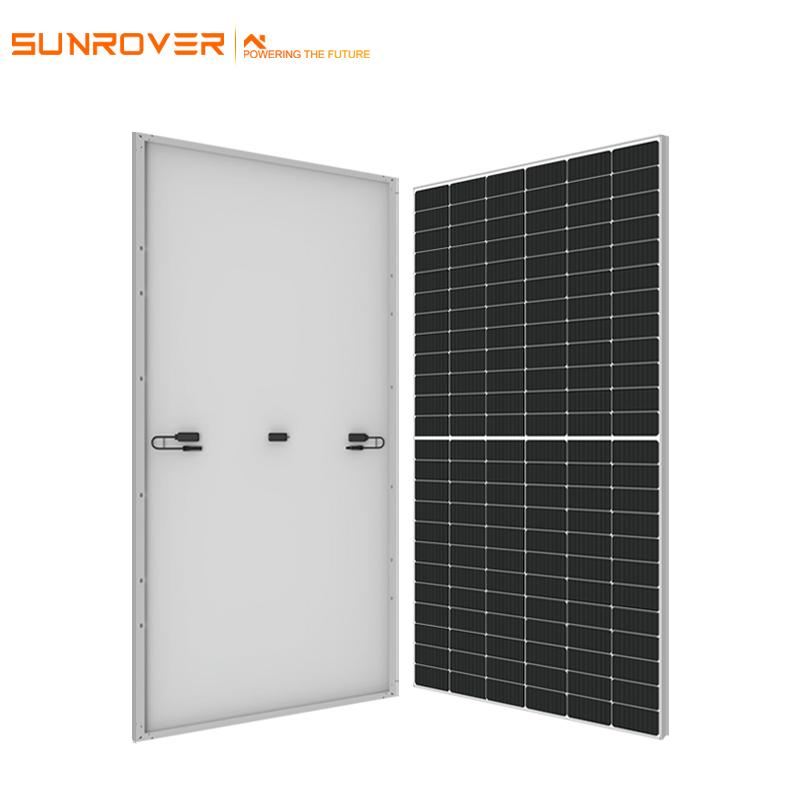

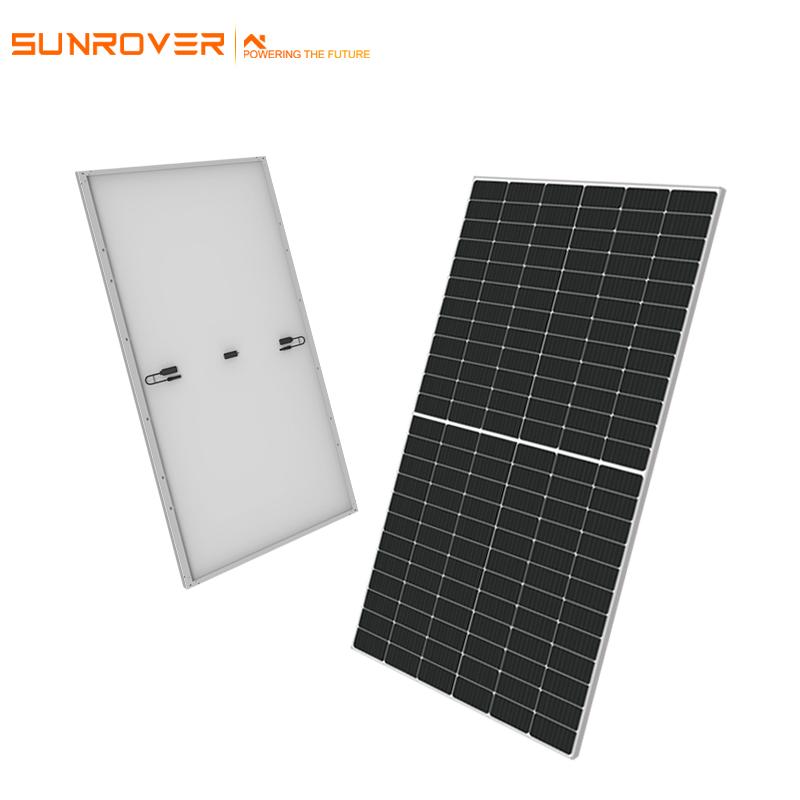

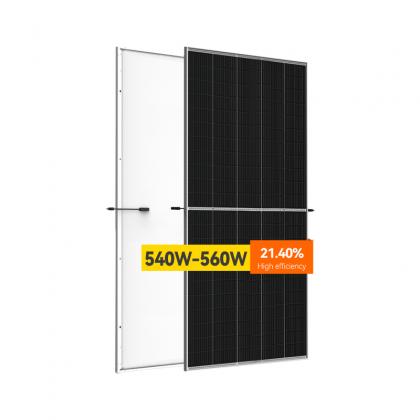

solar panel 540w half cell

Solar panel 540w half cell from 540w to 560w for commercial solar system

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    3days(1—100000w);5days(10001 —100000w);1
  • Weight:

    21.8kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    144 cells
  • Dimensions:

    540w-560w(2278×1134×35mm);585w-605w(2172×1303×35mm);640w-660w(2384×1303×35mm);650w-670w(2384×1303×35mm);
  • Weight:

    540w-560w(27.5kg);585w-605w(30.9kg);640w-660w(38.7kg);650w-670w(33.6kg);
  • Certificate:

    CE/TUV/ISO
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    10years

Commercial wholesale solar panel 540w half cell from 540w to 560w

    Since the voltage of the solar crystalline silicon cell is independent of the area, but the power is proportional to the area, the voltage of the half cell is unchanged compared with the whole cell, the power is halved, and the current is halved. Taking into account the support and land utilization, reduce the power generation loss caused by shielding. When the conventional photovoltaic modules are installed on the photovoltaic power station for module array layout, there are usually two ways: longitudinal layout and horizontal layout. The advantages of longitudinally arranged components are convenient installation, high bracket utilization, and small floor area. The disadvantages are that when shadows, dust, water stains, and snow cover in the morning and evening, the power loss of longitudinally arranged components is more than that of transverse components. With its special parallel string structure, the half piece module can improve the utilization rate of supports and land while reducing the power generation loss caused by shadow shielding.When the working temperature drops, the probability of hot spot decreases. As the internal current and internal loss are reduced, the working temperature of the module and junction box decreases, and the probability of hot spot and the risk of damage to the entire module are greatly reduced. Under the outdoor working condition of the module, the temperature of the half module is about 1.6 ℃ lower than that of the conventional whole module.

Resistance loss reduced by 75%, power increased by 5~10W

The current is halved, the resistance loss is reduced, and the power is increased by 5~10W. Cut the battery half and weld it in series, so that its current is reduced to 1/2 of the original, so its resistance loss is reduced to 25% of the original (P=I2R). Thanks to the reduction of power loss, the filling factor and conversion efficiency have been improved, which is 5-10W (+2% - 4%) higher than that of the same version of 120 chip module.

The working temperature is low, reducing the power loss caused by temperature rise. The outdoor working temperature of the half piece assembly is about 1.6 ℃ lower than that of the conventional assembly. According to the power temperature coefficient of the assembly - 0.42%/℃, the power output of the half piece assembly is 0.672% higher than that of the whole piece assembly under the same conditions (the power is increased by 1.88W based on the estimation of the power of the common assembly 280W).



Module SUN540-DE21M SUN545-DE21M SUN550-DE21M SUN555-DE21M SUN560-DE21M
Maximum Power(Pmax) 540W 545W 550W 555W 560W
Maximum Power Voltage(Vmp) 41.65V 41.80V 41.95V 42.10V 42.25V
Maximum Power Current(Imp) 12.97A 13.04A 13.12A 13.19A 13.26A
Open-circuit Voltage(Voc) 49.50V 49.65V 49.80V 49.95V 50.10V
Short-circuit Current(Isc) 13.85A 13.92A 13.98A 14.04A 14.10A
Module Efficiency STC(%) 20.90% 21.10% 21.30% 21.50% 21.70%
Operating Temperature() -40~+85
Maximum system voltage 1500V DC(IEC/UL)
Maximum series fuse rating 25A
Power tolerance 0-3%
Temperature coefficients of Pmax -0.340%
Temperature coefficients of Voc -0.265%
Temperature coefficients of Isc 0.05%
Nominal operating cell temperature(NOCT) 45±2

Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover Solar
Cell size: 166mmx166mm
Type: PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel
Panel Efficiency: 19.50%, 19.70%, 19.90%, 20.20%, 20.40%
Certificate: ISO/CE/TUV/ETL
Warranty: 10YEARS
Glass: 3.2mm High Tranamission Low Iron
Frame: Anodized Aluminium Alloy
Junction Box: Split junction box (IP68, three diode)
Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: Support for solar panel 450 watt stock double glass
Supply Ability 10000 Piece/Pieces per Week solar panel 450 watt stock double glass
Packaging & delivery
Packaging Details Half cell Mono solar panel from 410w to 670w stock double glass
  1. Standard exporting Wooden and Carton Box
  2. Container: 40'HQ
  3. Pallets Per Container: 22
  4. Pieces Per Container: 660
  The packaging can be customized according to the needs of different customers
Port Shanghai , China
Quantity(watts) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Lead time (days) 3 5 10 To be negotiated
