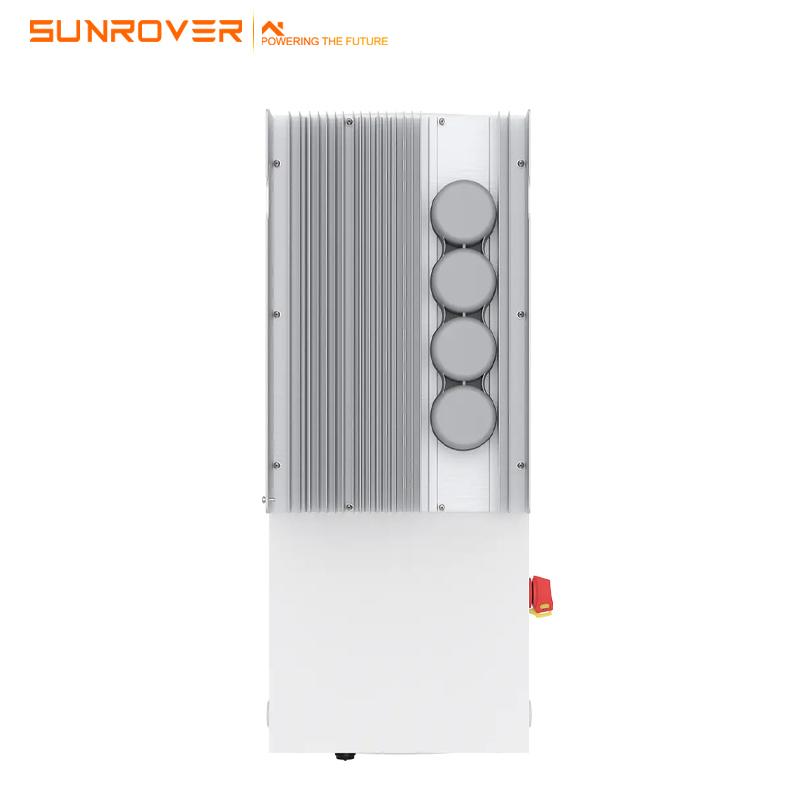

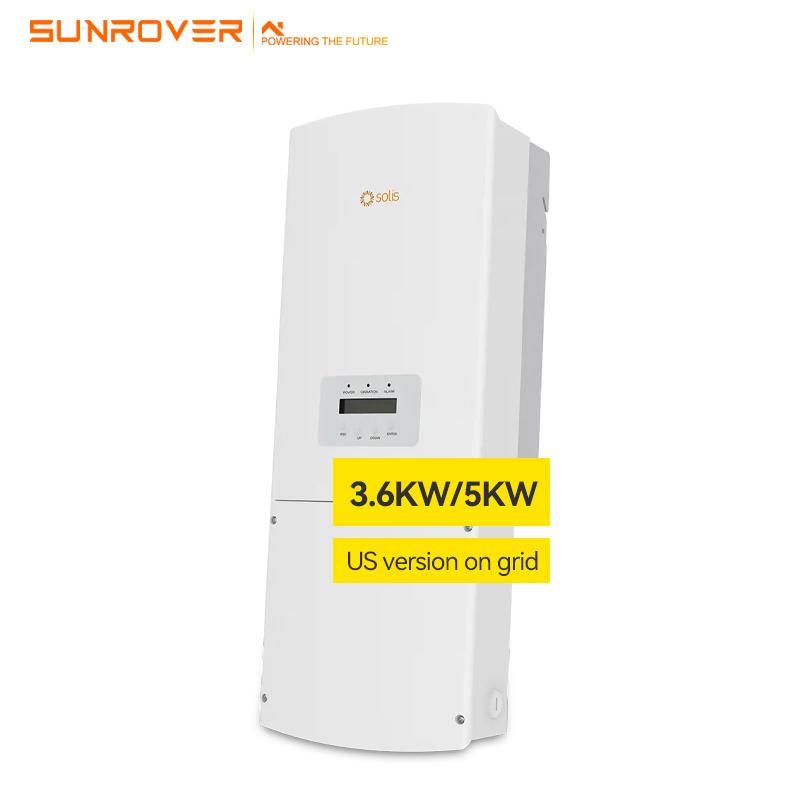

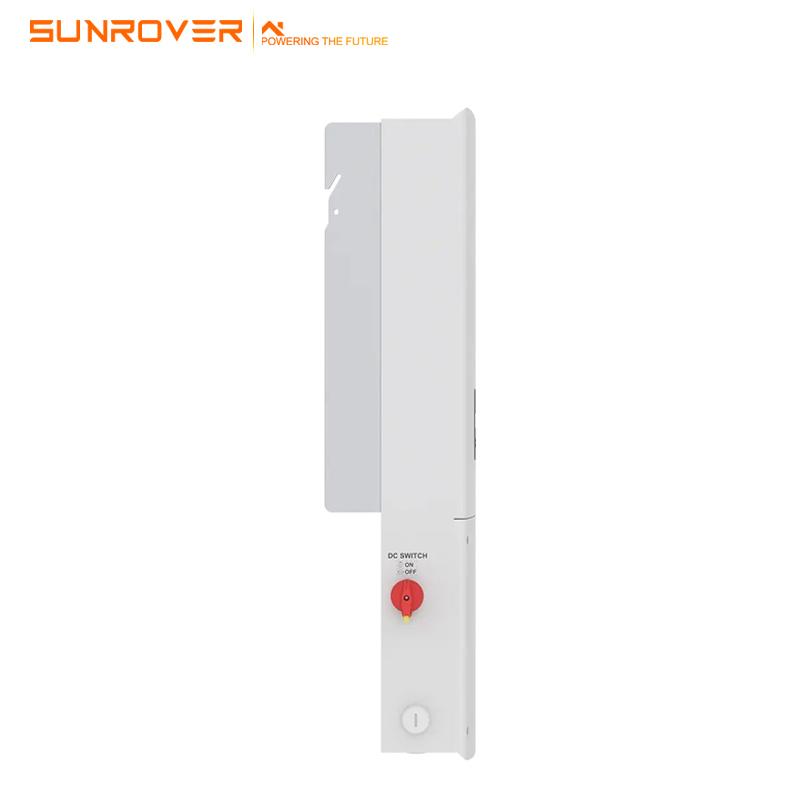

3.6KW 5KW Solis Inverter
3.6KW 5KW Solis Inverter
Item NO.:

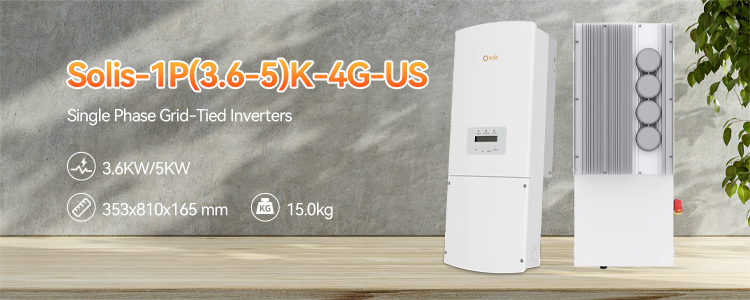

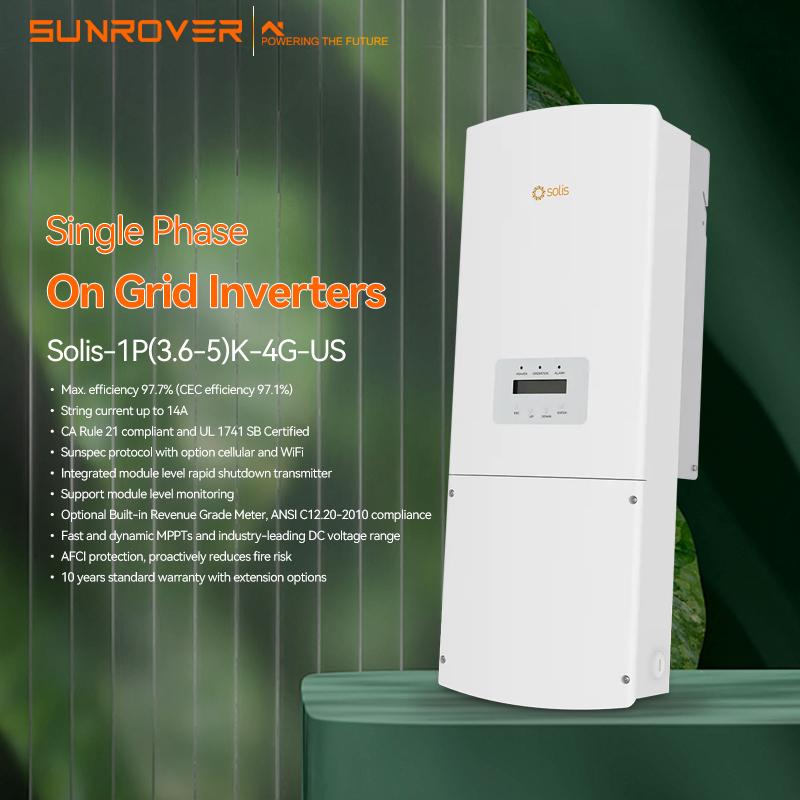

Solis-1P(3.6-5)K-4G-USType:
Grid-Tied InvertersPayment:
T/T / L/C / Paypal / Western UnionCertificate:
CE/TUVWarranty:
10 years
|
Models
|
3.6K
|
5K
|
|
Input DC
|
||
|
Max. input voltage
|
600 V
|
|
|
Rated voltage
|
330 V
|
|
|
Start-up voltage
|
120 V
|
|
|
MPPT voltage range
|
90-520 V
|
|
|
Max. input current
|
14 A / 14 A
|
|
|
Max. short circuit current
|
22 A / 22 A
|
|
|
MPPT number/Max. input strings number
|
2/2
|
|
|
Output AC
|
||
|
Rated output power
|
3.6 kW
|
5 kW
|
|
Max. apparent output power
|
3.6 kVA
|
5 kVA
|
|
Max. output power
|
3.6 kW
|
5 kW
|
|
Rated grid voltage
|
1Ф/PE, 240 V / 208 V
|
|
|
Rated grid frequency
|
60 Hz
|
|
|
Max. output current for 240V grid
|
15.0 A
|
20.8 A
|
|
Max. output current for 208V grid
|
17.3 A
|
24.0 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
|
THDi
|
<3%
|
|
|
Efficiency
|
||
|
Max. efficiency
|
97.3%
|
97.7%
|
|
CEC efficiency
|
96.6%
|
97.1%
|
|
Protection
|
||
|
DC reverse-polarity protection
|
Yes
|
|
|
Ground fault monitoring
|
Yes
|
|
|
Anti-islanding protection
|
Yes
|
|
|
Integrated AFCI
|
Yes
|
|
|
Integrated DC switch
|
Yes
|
|
|
Rapid shutdown
|
Built-In APS or Tigo Transmitter
|
|
|
Surge Protection
|
DC Type III / AC Type III
|
|
|
Compliant MLRSD Products
|
TS4-A-F/2F/O, APSmart RSD-S / RSD-D
|
|
|
General Data
|
|
|
|
Dimensions (W*H*D)
|
13.9*31.9*6.5 in (353*810*165 mm)
|
|
|
Weight
|
33.1 lbs (15 kgs)
|
|
|
Topology
|
Transformerless
|
|
|
Self-consumption (night)
|
<1 W
|
|
|
Relative humidity
|
0-100%
|
|
|
Operating ambient temperature range
|
-13°F to 140°F (-25°C to 60°C )
|
|
|
Storage environment
|
-13°F to 176°F (-25°C to 80°C)
|
|
|
Ingress protection
|
TYPE 4X
|
|
|
Noise emission (typical)
|
<30 dB(A)
|
|
|
Cooling concept
|
Natural convection
|
|
|
Max. operation altitude
|
13,120 ft (4000 m)
|
|
|
Compliance
|
UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB,
California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
|
|
|
Features
|
|
|
|

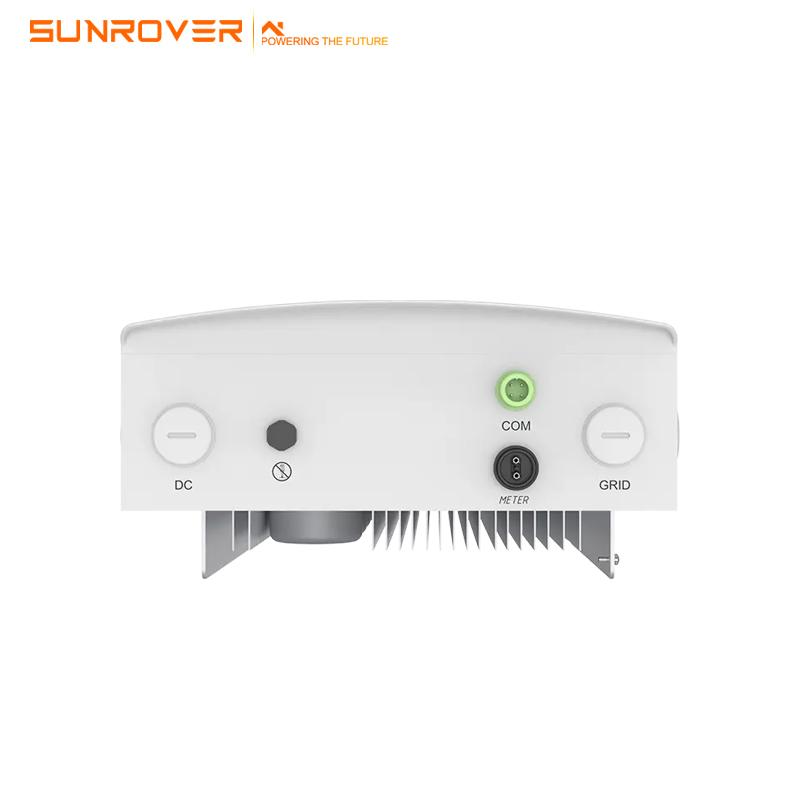

DC connection
|
1 knockout for 3/4" conduit at bottom, side and back, Screw clamp terminal
|
|
|
AC connection
|
1 knockout for 3/4" conduit at bottom, side and back, OT terminal
|
|
|
Display
|
LCD
|
|
|
Communication
|
RS485, Optional: Cellular, Wi-Fi
|
|
