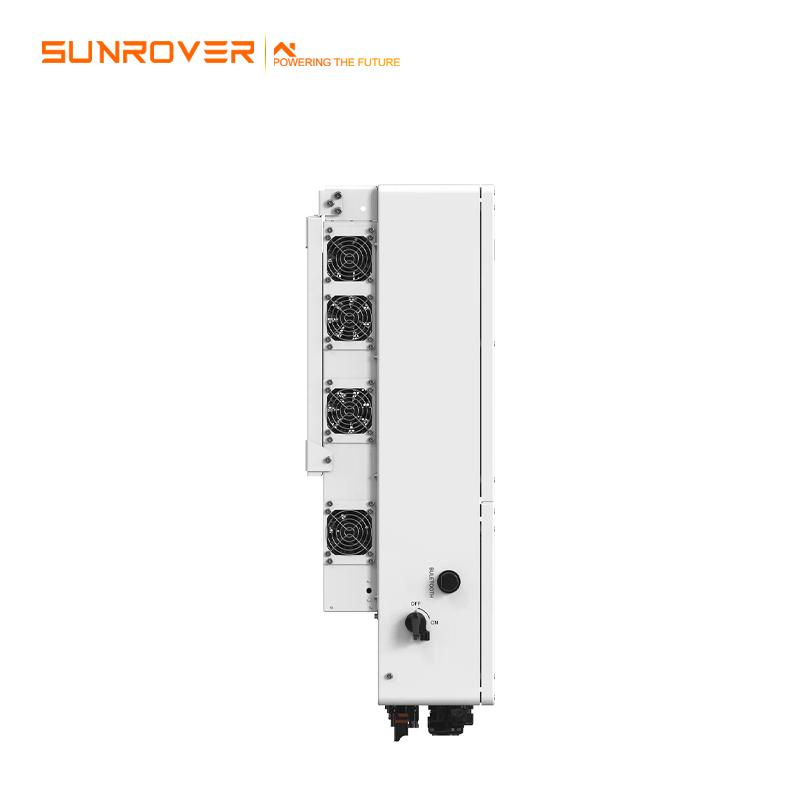

Solis Three Phase High Voltage 30KW 50KW Energy Storage Inverter

Introducing the S6-EH3P(29.9-50)K-H Series. High voltage, three-phase energy storage for

commercial applications. The inverter series, which boasts a maximum charge/discharge current

of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a

string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(29.9-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Request A Quote

Basic Parameters

SOLIS

Models	30K	50K
Input DC (PV side)
Recommended max. PV array size	60 kW	100 kW
Max. usable PV input power	60 kW	96 kW
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	150 - 850 V
Max. input current	40 A / 40 A / 40 A	4 × 40 A
Max. short circuit current	60 A / 60 A / 60 A	4 × 60 A
MPPT number / Max. input strings number	3 / 6	4 / 8
Battery
Battery type	Li-ion
Battery voltage range	150 - 800 V
Max. charge / discharge power	33 kW	55 kW
Max. charge / discharge current	70 A × 2
No. of battery inputs	2
Max. charge / discharge power of each input	33 kW	35 kW
Communication	CAN / RS485
Output AC (Grid side)
Rated output power	30 kW	50 kW
Max. apparent output power	30 kVA	50 kVA
Rated grid voltage	3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	45.6 A / 43.3 A	76 A / 72.2 A
Max. output current	45.6 A / 43.3 A	76 A / 72.2 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Max. AC passthrough current	91.2 A / 86.6 A	152 A / 144.4 A
Rated input voltage	3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Input Generator
Max. input power	30 kW	50 kW
Rated input current	45.6 A / 43.3 A	76 A / 72.2 A
Rated input voltage	3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Output AC (Back-up)
Rated output power	30 kW	50 kW
Max. apparent output power	1.6 times of rated power, 2 s
Back-up switch time	< 10 ms
Rated output voltage	3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated frequency	50 Hz / 60 Hz
Rated output current	45.6 A / 43.3 A	76 A / 72.2 A
THDv (@linear load)	< 2%
Efficiency
Max. efficiency	97.80%
EU efficiency	97.40%
BAT charged by PV max. efficiency	98.50%
BAT charged / discharged to AC max. efficiency	97.50%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
Surge protection	DC Type II / AC Type II
Integrated AFCI 2.0	Optional
General Data

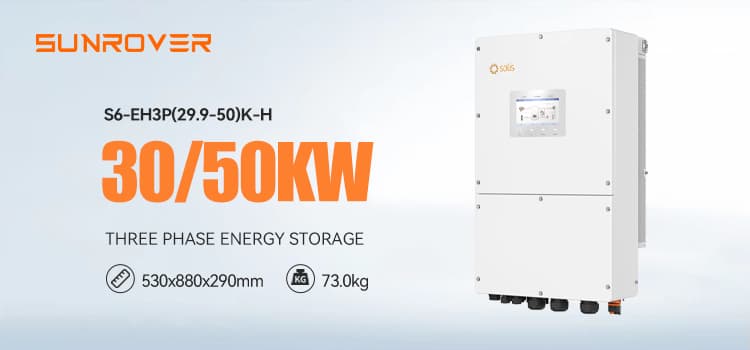

Dimensions (W × H × D)	530 × 880 × 290 mm
Weight	73 kg
Topology	Transformerless
Self-consumption (night)	< 35 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 95%
Ingress protection	IP66
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection standard	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Features

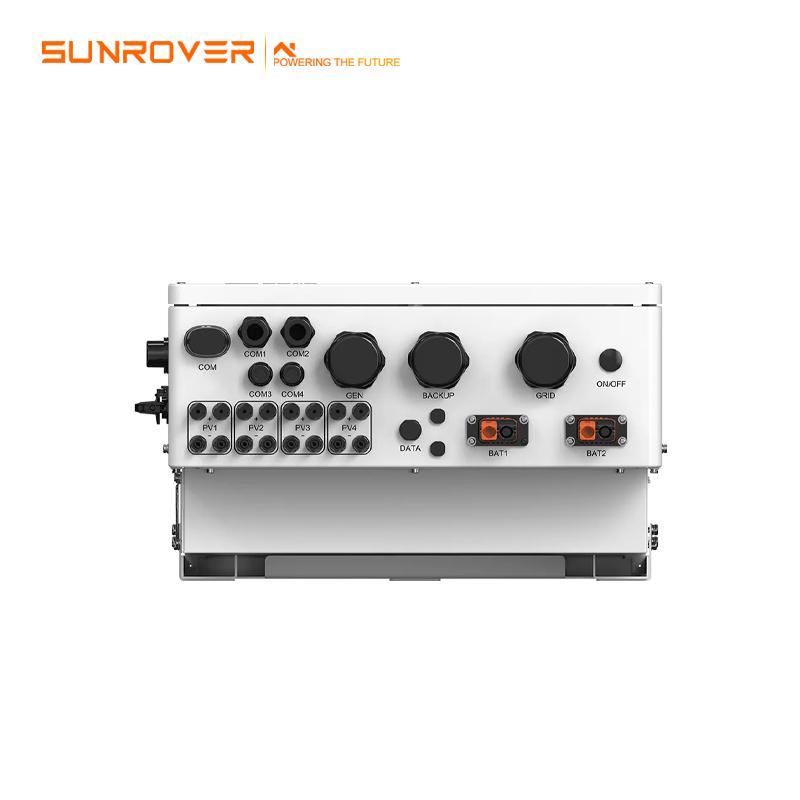

PV connection	MC4 Quick connection plug
Battery connection	Terminal connector
AC connection	Terminal Block
Display	7.0" LCD display & Bluetooth + APP
Communication	CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN

SOLIS

Three Phase High Voltage Energy Storage Inverter:

4 MPPTs, 8 strings at 20A, and up to 96kW usable PV input.
Supports 1.6 times rated output for 2 seconds on the backup port.
Multi-input generator connectivity with automatic on/off control.
140A/70A+70A max charge/discharge on two independently controlled ports.
Operates as a grid-tied inverter without batteries when on-grid.
Supports parallel operation of up to 6 units for on and off-grid use.
Supports peak shaving control in both "self-use" and "generator" mode.

Related Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related Products

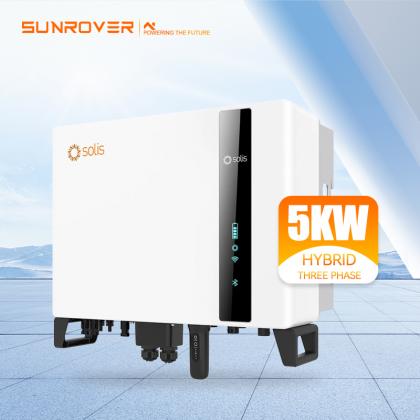

Solis Three Phase High Voltage 5kw 6kw 8kw 10kw Hybrid Solar Inverter
