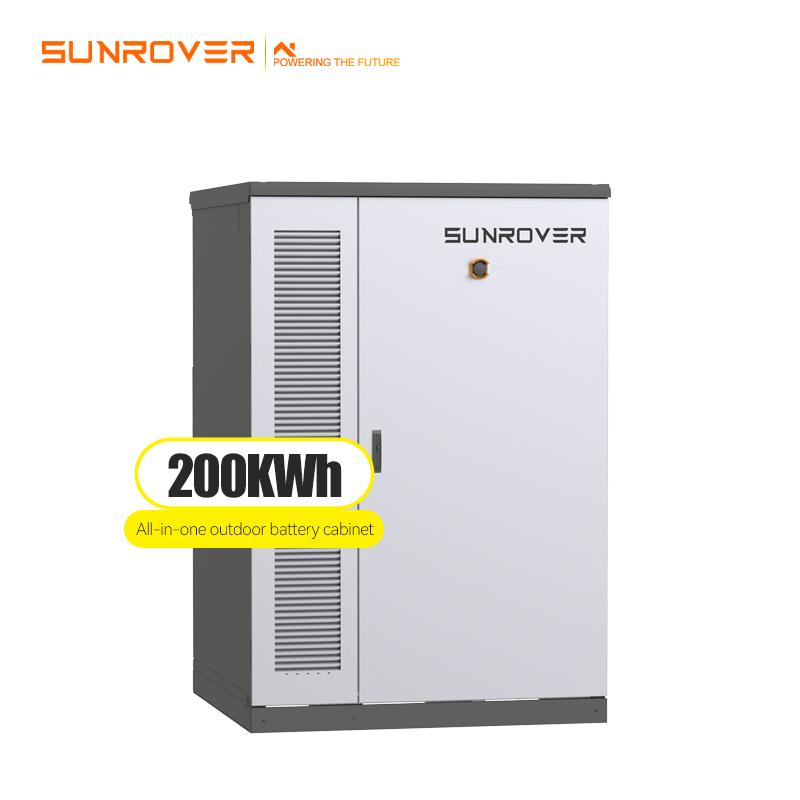

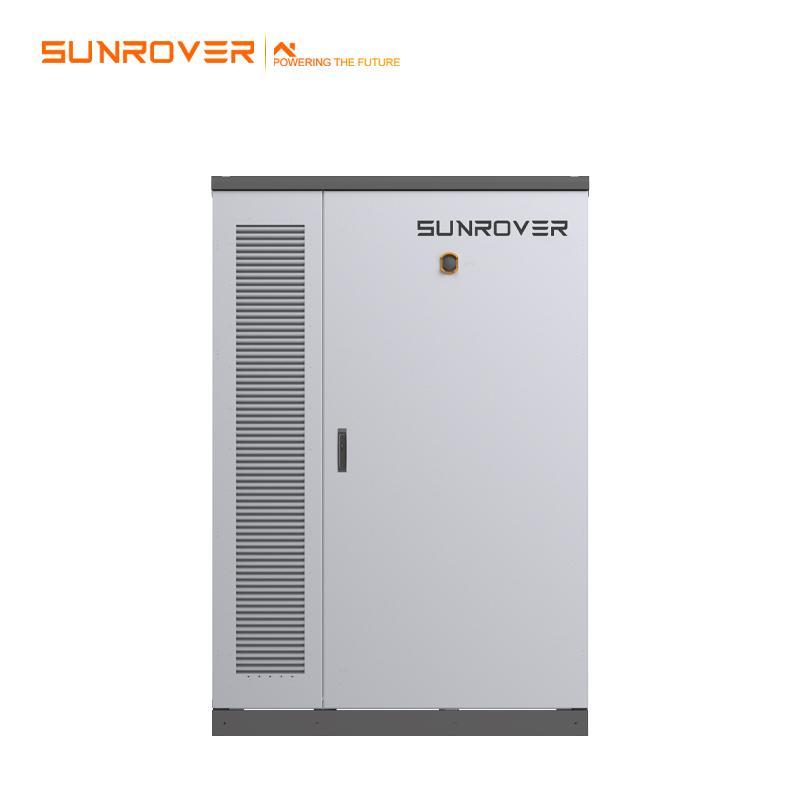

All-in-One High Pressure Energy Storage System 100kwh to 3mwh LIFEPO4 Battery Type
All-in-One High Pressure Energy Storage System 100kwh to 3mwh LIFEPO4 Battery Type
Payment:
allWarranty:
10 yearsCycle life:
>8000@25℃@0.5C| Item | Power 230 PLUS |
| Inverter | |
| Rated AC power | 100kW |
| Rated AC current | 144A |
| Rated AC voltage | 3W+PE,400Vac |
| THDI | <5%(Rated power) |
| THDU | <3%(Linear loads) |
| Battery | |
| Celltype | LiFePO4 |
| Nominal energy | 232.96kWh |
| Nominal capacity | 280Ah |
| Rated voltage | 832Vdc |
| Operating voltage range | 650Vdc~959Vdc |
| Maximum charge-discharge rate | 05P@25℃ |
| Cycle life | >8000@25℃@0.5C |
| System | |
| RS485,CAN,Ethernet | |
| Communication | |
| Cooling method | Liquid cooling |
| Firefighting | Pack+cabinet-level detection inhibition:Suppression medium:aerosol (standard)/perfluorohexanone(optional) |
| Operation Altitude | <4000m(More than 2000m derating) |
| Protection evel | IP54 |
| Dimensions(W*D*H) | |
| 1375*1350.5*2050 mm | |
| Weight | |
| =2.5T | |
| Safety Pregulation,EMC | EC62619/CE/UL1973/UL9540A/UN38.3/RoHS/IEC 61000-6-2:2019/EN IEC 61000- 6-4:2019/EN 62109-2:2011/EN 62109-1:2010/IEC 62109-2:2011/IEC 62109-1:201 |
