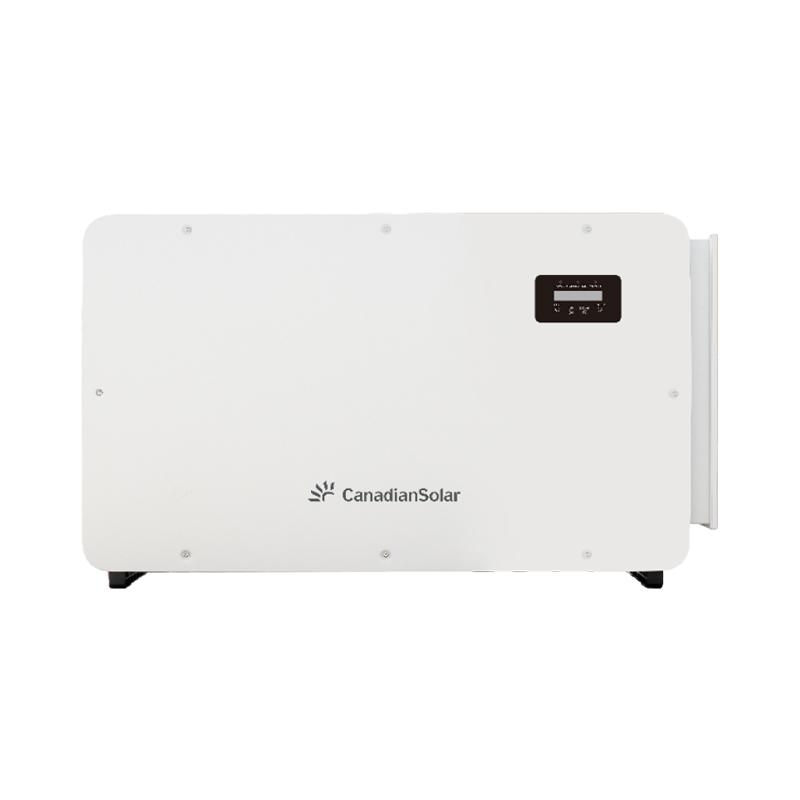

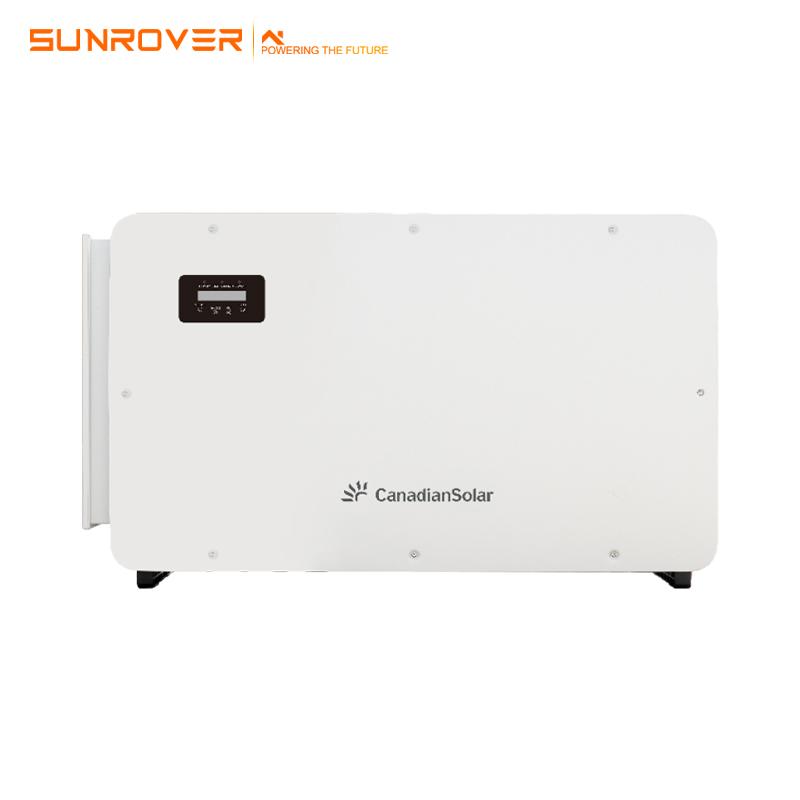

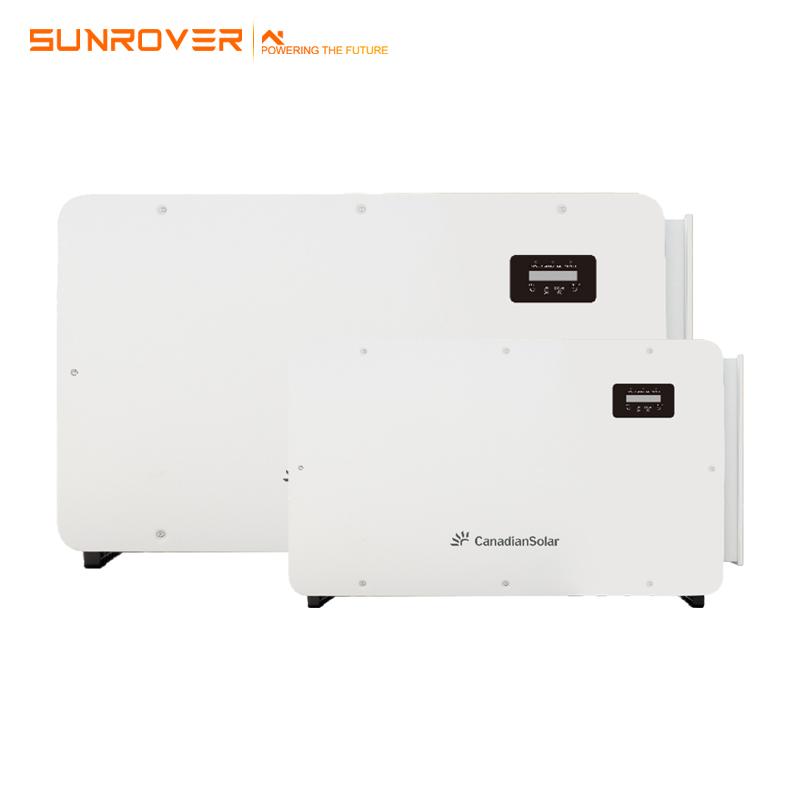

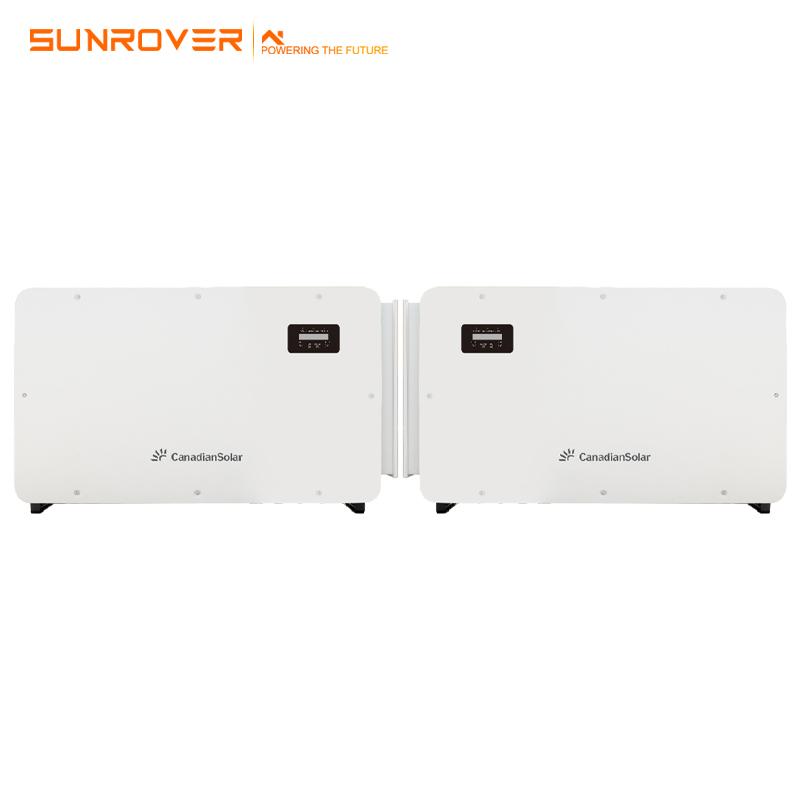

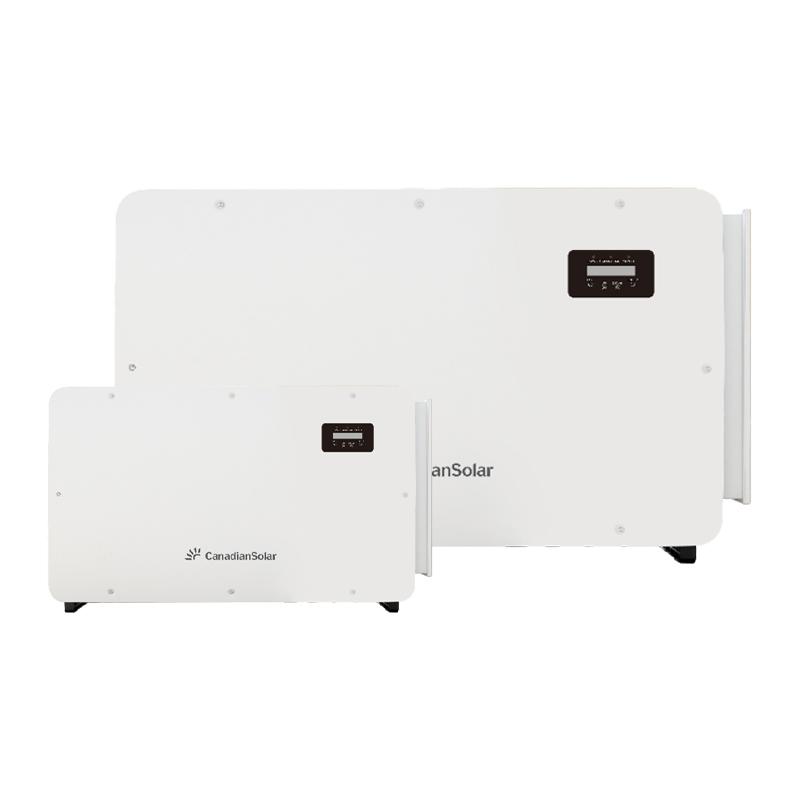

Canadian 255kw solar on grid inverter price
Canadian 255kw solar on grid inverter price
Item NO.:
CSI-255K-T800GL02-EShipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian 255kw solar on grid inverter with good price
255kW three-phase series string inverter have Maximum 28 strings input, support "Y" type connection in DC side. Maximum string input current 15A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent strings monitoring reduces fault location time.
| SYSTEM/TECHNICAL DATA | |
| MODEL NAME | CSI-255K-T800GL02-E |
| DC INPUT | |
| Max. PV Power | 255 KW |
| Max. DC Input Voltage | 1500 V DC |
| Start-up DC Input Voltage/Power | 620 V DC |
| Number of MPP Trackers | 14 |
| MPPT Voltage Range | 600 - 1500 V DC |
| Max. Input Current (Imp) | 14*26A |
| Max. Short Circuit Current (Isc) | 14*40A |
| Number of DC Inputs | 14/28 |
| DC Disconnection Type | Load rated DC switch |
| AC OUTPUT | |
| Rated AC Output Power | 255 KW |
| Max. AC Output Power | 255 KW |
| Rated Output Voltage* | 800 V AC |
| Grid Connection Type | 3W / N / PE |
| Max Output Current | 184.0 A |
| Rated Output Frequency | 50 / 60 Hz |
| Output Frequency Range* | 47 - 52 / 57 - 62 Hz |
| Power Factor | >0.99 (0.8 leading ... 0.8 lagging) |
| Current THD | < 3% |
| DC Injection Current | 0.5 % of Rated Grid Output Current |
| SYSTEM | |
| Max. Efficiency | 99.00% |
| CEC Efficiency | 98.50% |
| Night Consumption | < 2 W |
| Anti-PID Module | Optional |
| ENVIRONMENT | |
| Protection Degree | IP66 |
| Cooling | Intelligent redundant Cooling |
| Operating Temperature Range | -25 ° C to +60 ° C |
| Storage Temperature Range | -40 ° C to +80 ° C |
| Operating Humidity | 0 - 100 % condensing |
| Operating Altitude | 4000 m |
| Audible Noise | <65 dBA @ 1 m |
| DISPLAY AND COMMUNICATION | |
| Display | LCD, 2×20 Z |
| Communication | RS485, Optional:PLC |
| MECHANICAL DATA | |
| Dimensions (W / H / D) | 1170 x 770 x 384 mm |
| Weight | 113 kg |
| Installation Angle | 0~15 Degrees from Vertical |
| DC Inputs | MC4 |
| SAFETY | |
| Safety and EMC Standard | IEC 62109-1/2, IEC 61000-6-1/2/3/4 |
| Grid Standard | IEC 62116, IEC 61727 |
| *The “Rated Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard. | |
Stock

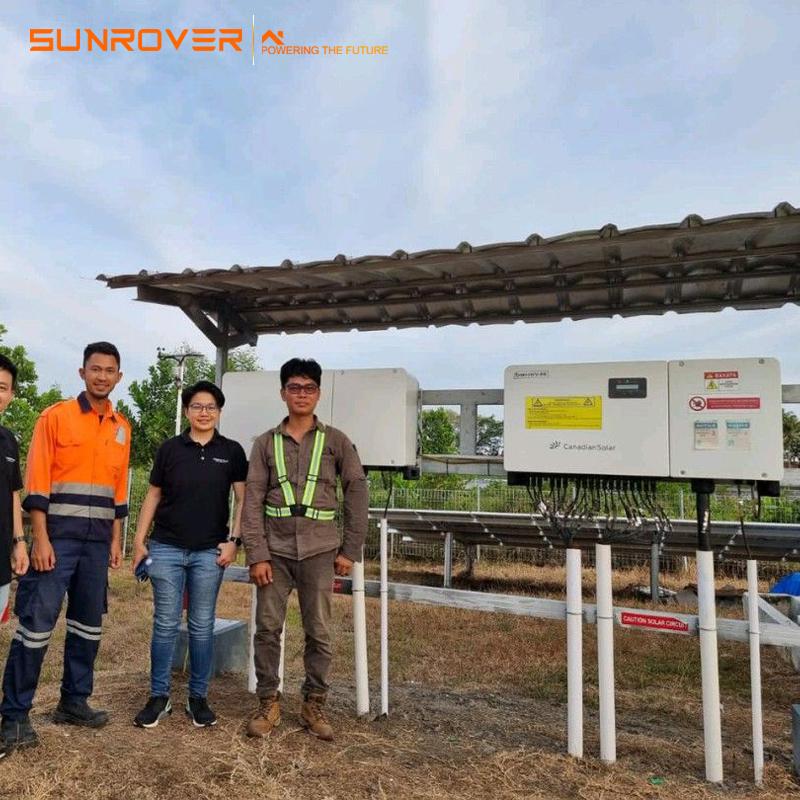

Project
