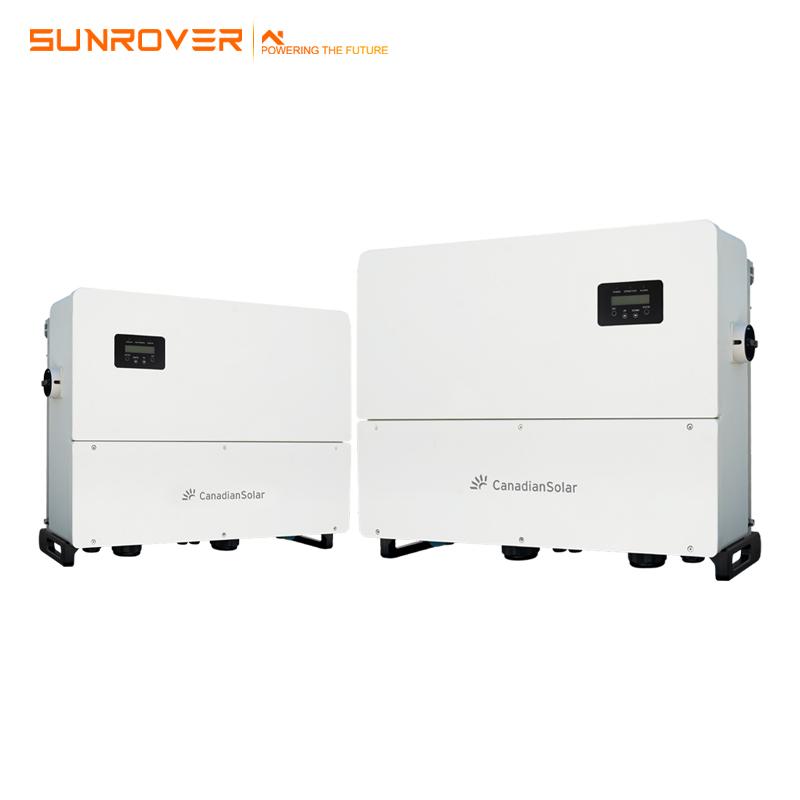

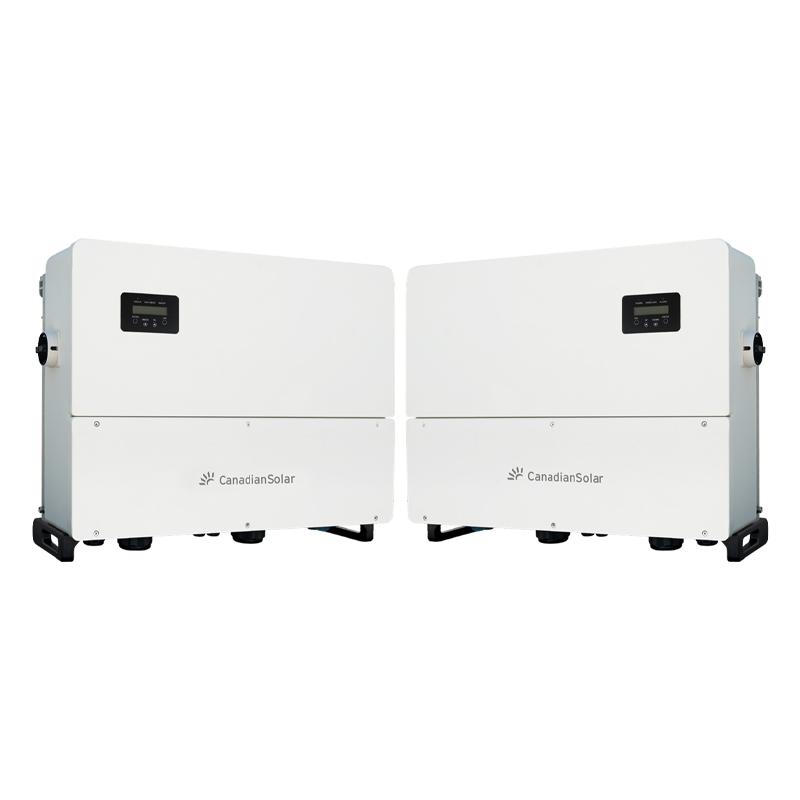

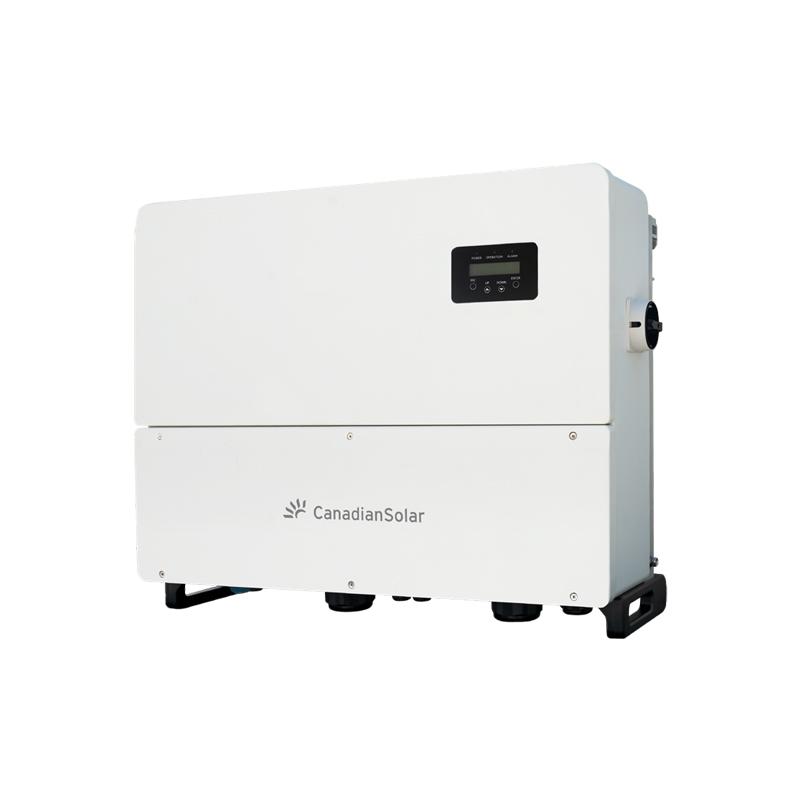

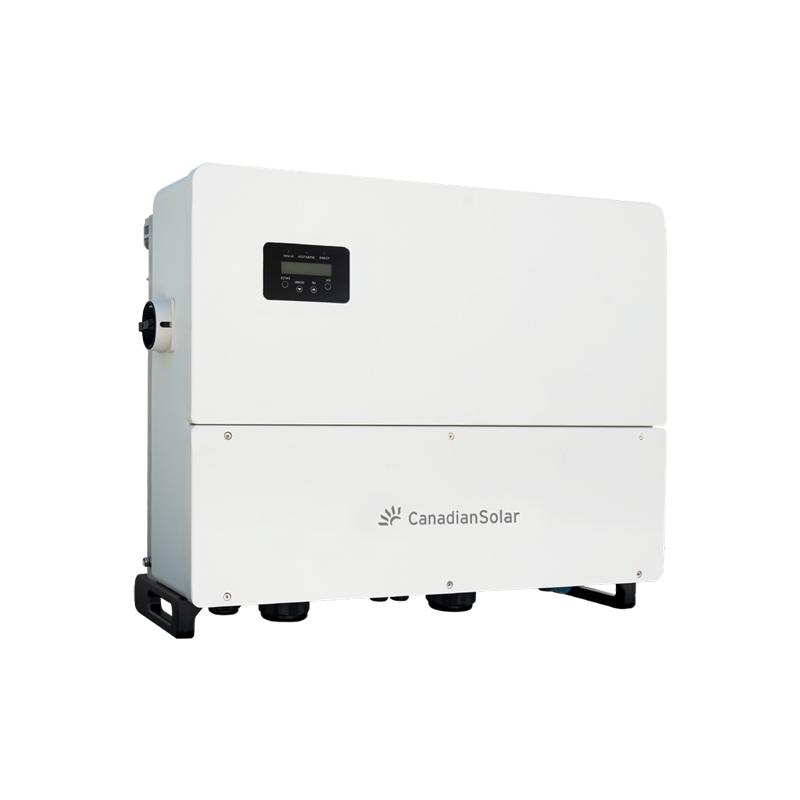

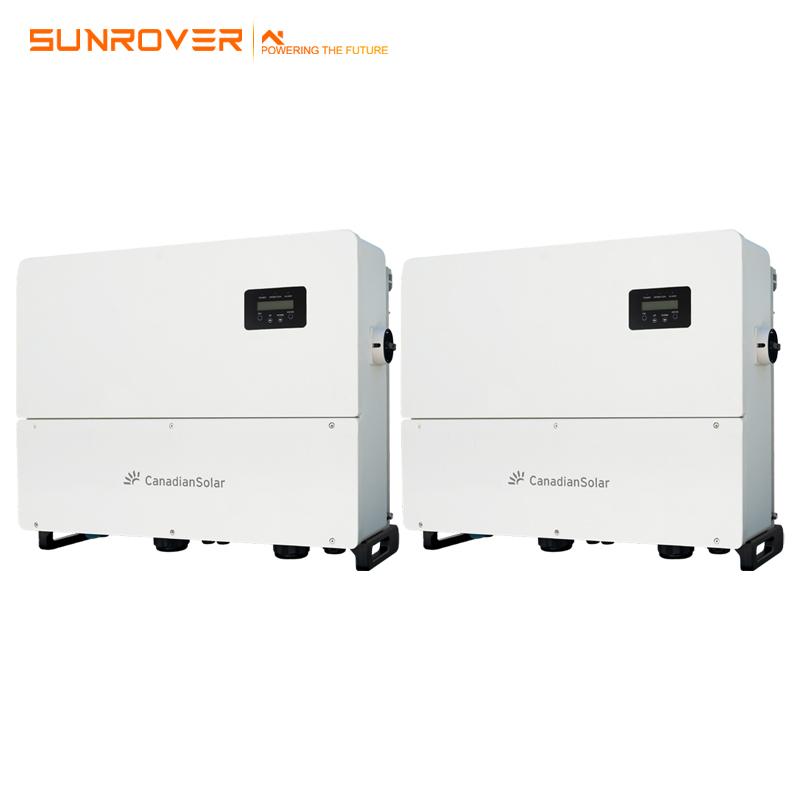

Canadian 125kw hybrid solar inverter on grid for solar system

Canadian 125kw hybrid solar inverter on grid for solar system

Good product and service

1.We can deliver the goods immediately

2. We can support you with after sales service

3.We can support you with a five years warranty(free)

SYSTEM/TECHNICAL DATA
MODEL NAME	CSI-125K-T600GL02-E
DC INPUT
Max. PV Power	187.5 kW
Max. DC Input Voltage	1500 V DC
Start-up DC Input Voltage/Power	900 V DC
Number of MPP Trackers	1
MPPT Voltage Range	860 - 1450 V DC
Max. Input Current (Imp)	150 A
Max. Short Circuit Current (Isc)	300 A
Number of DC Inputs	1
DC / AC Disconnection	Integrated
AC OUTPUT
Rated AC Output Power	125 kW
Max. AC Output Power	125 kW
Rated Output Voltage*	600 V AC
Grid Connection Type	3W / N / PE
Rated Grid Output Current	120 A
Max Output Current	120 A
Rated Output Frequency	50 / 60 Hz
Output Frequency Range*	45 - 55 / 55 - 65 Hz
Power Factor	>0.99 (0.8 leading ... 0.8 lagging)
Current THD	< 3%
DC Injection Current	< 0.5 % of Rated Grid Output Current
SYSTEM
Max. Efficiency	99.10%
EU Efficiency	98.60%
Night Consumption	< 3 W (without anti-PID)
Anti-PID Module	Optional
ENVIRONMENT
Protection Degree	IP65
Cooling	Intelligent Redundant Fan-cooling
Operating Temperature Range	-25 ° C to +60 ° C
Storage Temperature Range	-40 ° C to +70 ° C
Operating Humidity	0 - 100 % condensing
Operating Altitude	4000 m
DISPLAY AND COMMUNICATION
Display	LCD, 2×20 Z
Communication	RS485, Ethernet, Optional: PLC
MECHANICAL DATA
Dimensions (W / H / D)	942 x 733 x 311 mm
Weight	84 kg
Installation Angle	0~15 Degrees from Vertical
DC Inputs	MC4
SAFETY
Safety and EMC Standard	IEC 62109-1/2, IEC 61000-6-2/4
Grid Standard	IEC 62116, IEC 61727
*The “Rated Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard.
