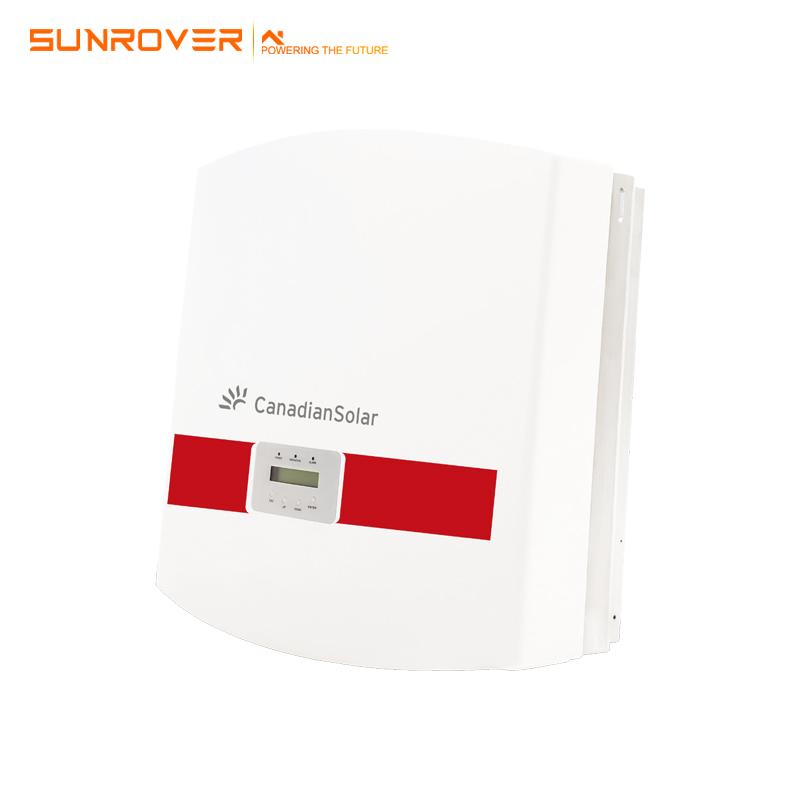

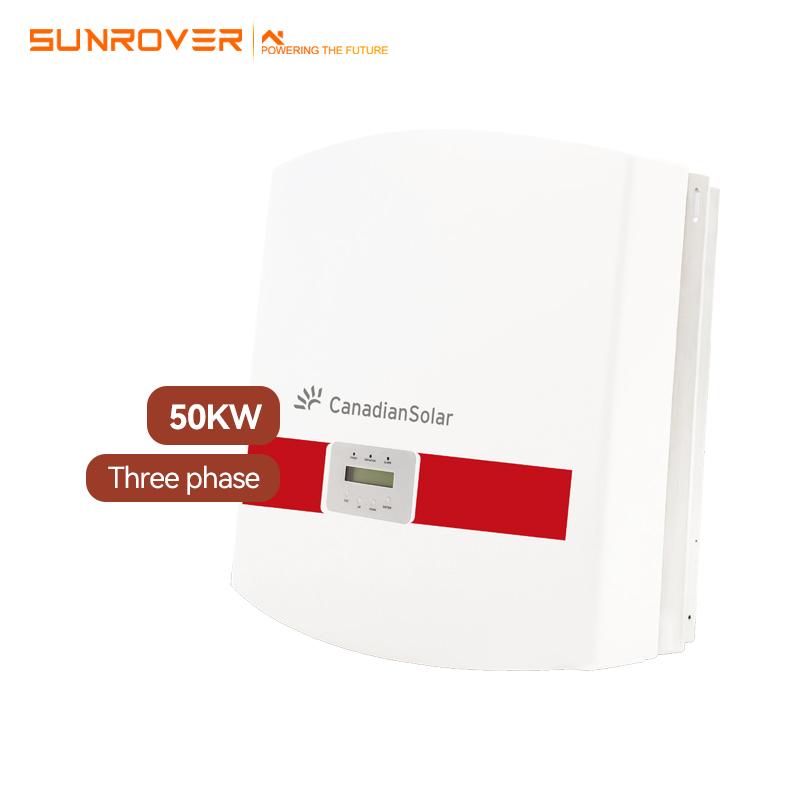

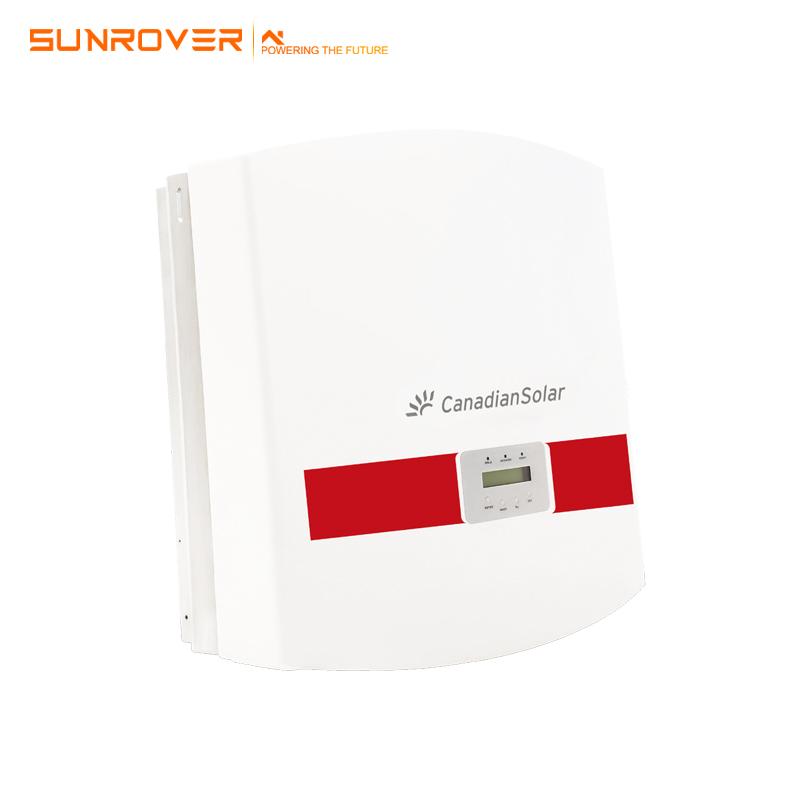

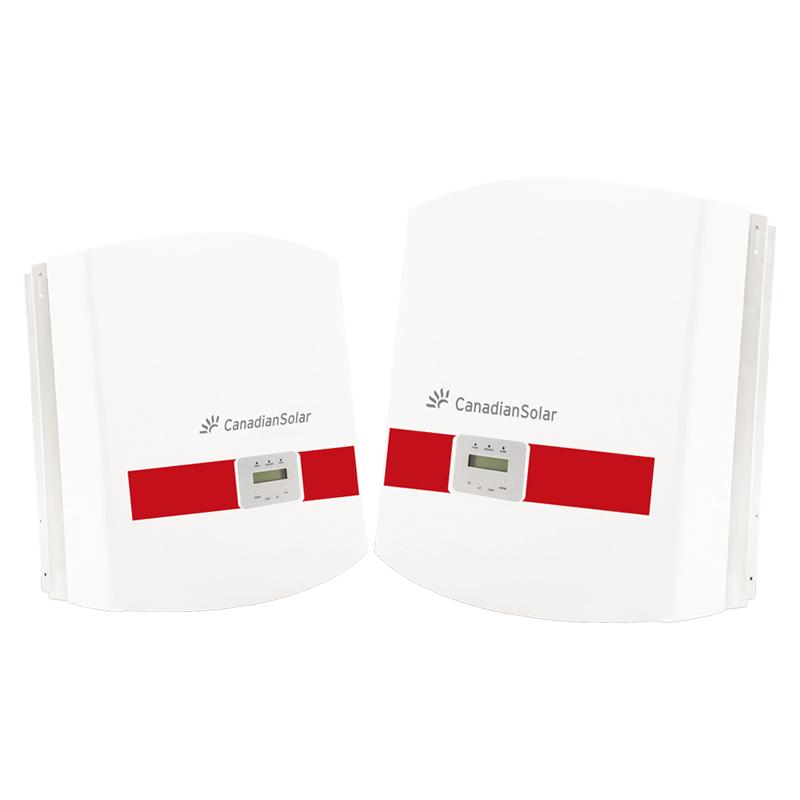

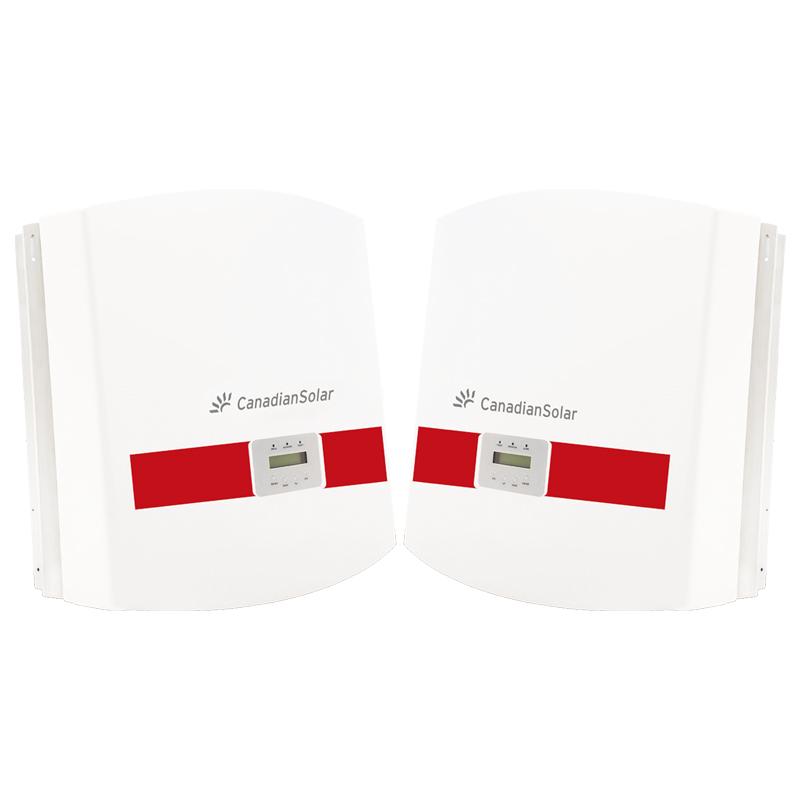

Canadian 40kw 50kw on grid off grid hybrid inverter for solar power system
Canadian 40kw 50kw on grid off grid hybrid inverter for solar power system
Item NO.:
CSI-40K-50K-T500GL02Shipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian 40kw 50kw on grid off grid hybrid inverter for solar power system
On/off hybrid Solar inverter can not only feed-in power to grid,but also store PV power to the battery, and directly power loads .Combing the funcation of the solar on-grid inverter. MPPT solar charger/controller, and battery charger to offer uniterruptible power support .Its comprehensive LCD display offers user configureable and easy accessible button operation. Such as AC/solar charging piority, battery charging current, and accecptable input voltage beased on different appications.
| SYSTEM/TECHNICAL DATA | ||
| MODEL NAME | CSI-40K-T500GL02-E | CSI-50K-T500GL02-E |
| DC INPUT | ||
| Max. PV Power | 52kW | 65kW |
| Max. DC Input Voltage | 1100 V DC | |
| Start-up DC Input Voltage/Power | 180 V DC | |
| Number of MPP Trackers | 4 | |
| MPPT Voltage Range | 200 - 1000 V DC | |
| Max. Input Current (Imp) | 104A (26A per MPPT) | |
| Max. Short Circuit Current (Isc) | 160A (40A per MPPT) | |
| Number of DC Inputs | 8 (2 per MPPT) | |
| DC Disconnection Type | Load rated DC switch | |
| AC OUTPUT | ||
| Rated AC Output Power | 40 kW | 50 kW |
| Max. AC Output Power | 44 kW | 55 kW |
| Rated Output Voltage* | 480 V AC | |
| Grid Connection Type | 3W / N / PE | |
| Rated Grid Output Current | 48.1 A | 60.1 A |
| Max Output Current | 53 A | 66.2 A |
| Rated Output Frequency | 50 / 60 Hz | |
| Output Frequency Range* | 47 - 52 / 57 - 62 Hz | |
| Power Factor | >0.99 (0.8 leading ... 0.8 lagging) | |
| Current THD | < 3% | |
| DC Injection Current | < 0.5 % of Rated Grid Output Current | |
| SYSTEM | ||
| Max. Efficiency | 98.80% | |
| EU Efficiency | 98.30% | |
| Night Consumption | < 1 W | |
| Anti-PID Module | Optional | |
| ENVIRONMENT | ||
| Protection Degree | IP65 | |
| Cooling | Natural Convection Cooling | |
| Operating Temperature Range | -25 ° C to +60 ° C | |
| Storage Temperature Range | -40 ° C to +70 ° C | |
| Operating Humidity | 0 - 100 % condensing | |
| Operating Altitude | 4000 m | |
| Audible Noise | <30 dBA @ 1 m | |
| DISPLAY AND COMMUNICATION | ||
| Display | LCD, 2×20 Z | |
| Communication | WIFI/RS485 Optional | |
| MECHANICAL DATA | ||
| Dimensions (W / H / D) | 647 x 629 x 252 mm | |
| Weight | 45 kg | |
| Installation Angle | 0~15 Degrees from Vertical | |
| DC Inputs | MC4 | |
| SAFETY | ||
| Safety and EMC Standard | IEC 62109-1/2, IEC 61000-6-1/2/3/4 | |
| Grid Standard | IEC 62116, IEC 61727 | |
| *The “Rated Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard. | ||
Stock

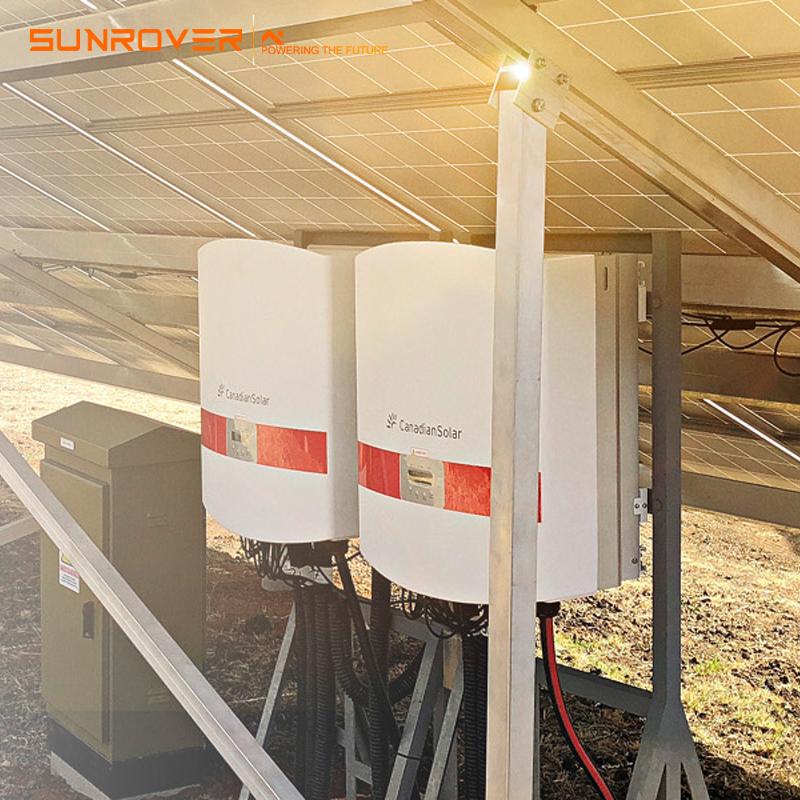

Project
