Canadian 40kw 50kw mppt on grid inverter for solar storage system

Canadian 40kw 50kw on grid off grid hybrid inverter for solar storage system

Item NO.:
CSI-40KTL-GI-FL CSI
Shipping Port:
Shanghai/Ningbo
Lead Time：
15days（1—10pieces）；To be negotiated（10p
Type:
Grid Tie
Payment:
30% deposit, balance paid before shipping
Certificate:
VDE.INMETRO
Warranty:
5years

Request A Quote

Basic Parameters

Canadian 40kw 50kw on grid off grid hybrid inverter for solar storage system

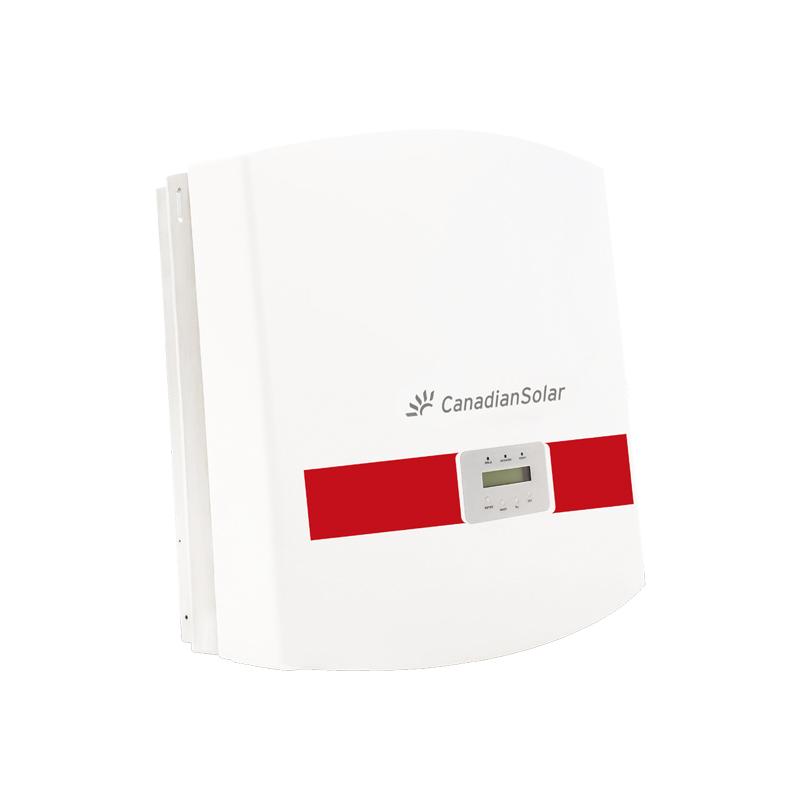

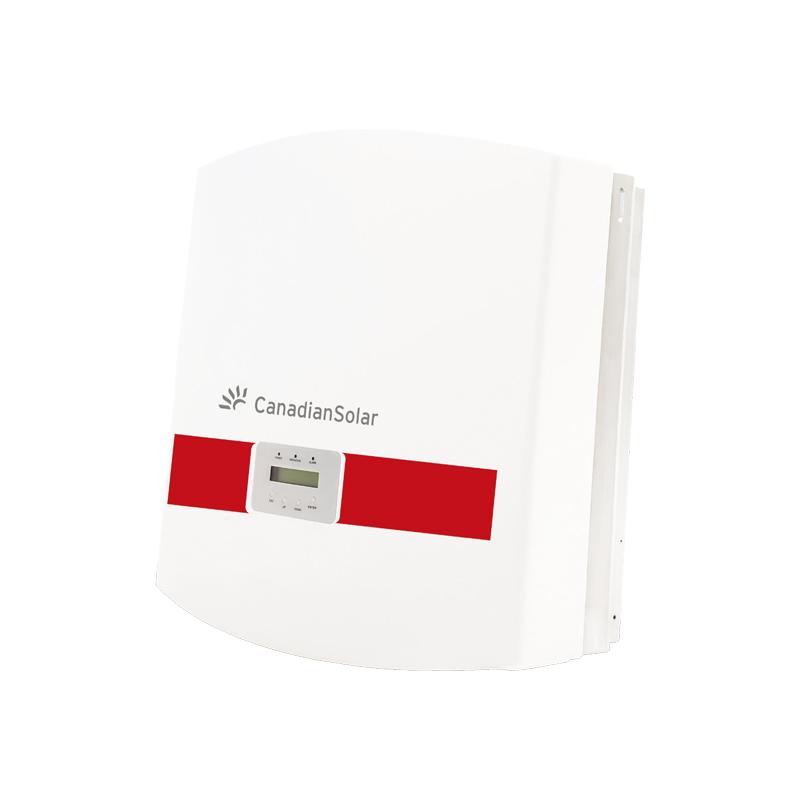

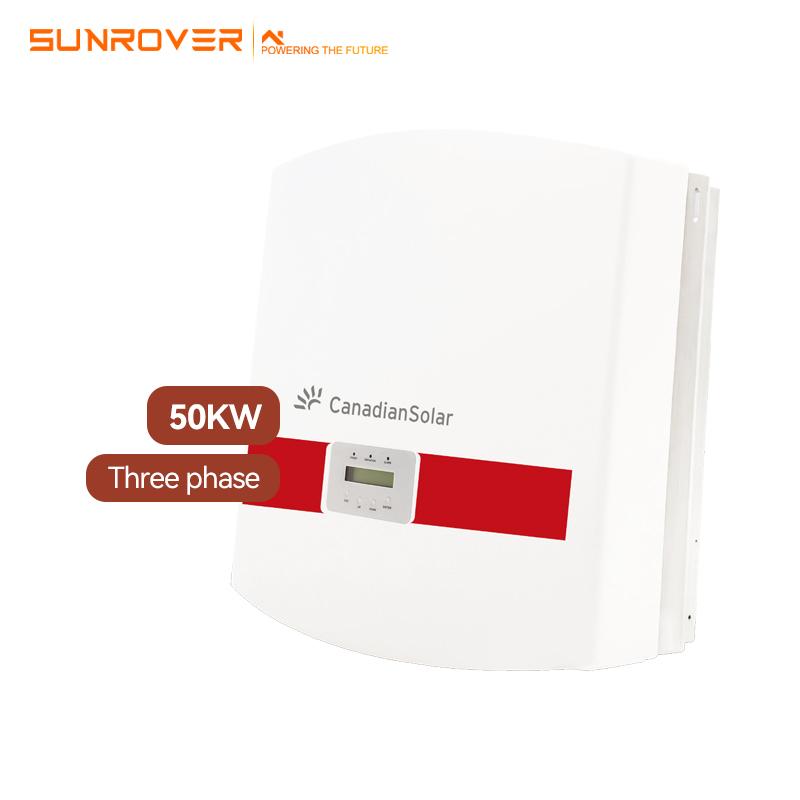

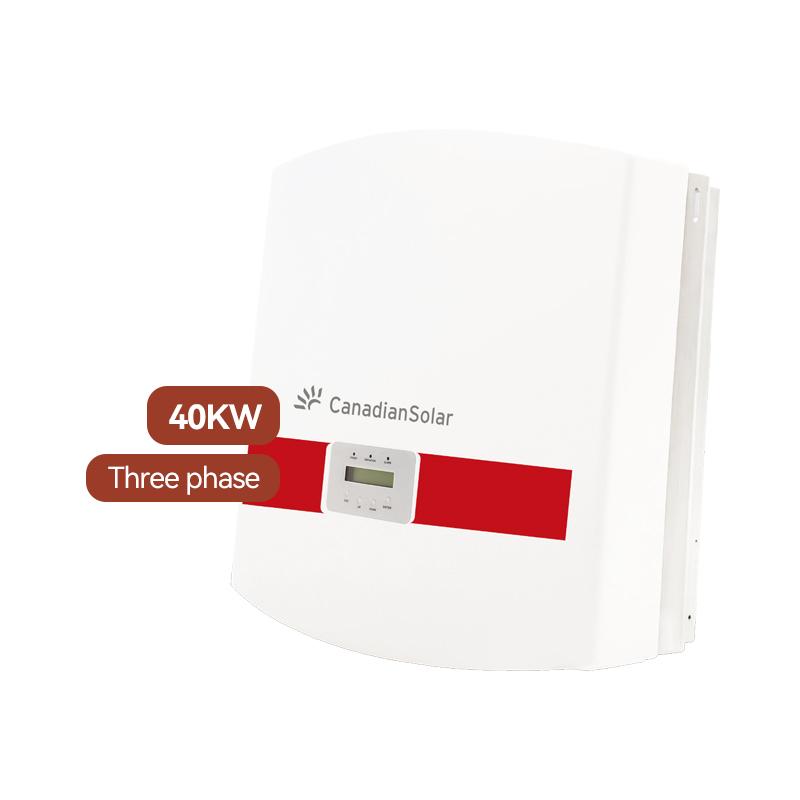

CanadianSolar Three Phase String Inverter

KEY FEATURES

· Maximum efficiency up to 98.8%, Maximum CEC efficiency up to 98.4%
· 4 MPPTs to achieve higher system efficiency
· Transformerless design
· High switching frequency and ultra fast MPPT (<5 sec.) for maximum efficiency over a wide load range
HIGH RELIABILITY
· Advanced thermal design and convection cooling
· Built in over-voltage and over-current protection
· DC reverse polarity and AC short circuit protection
BROAD ADAPTIBILITY
· IP65 rated for outdoor application
· Utility interactive controls: Active power derating, reactive power control and over frequency derating
· Supports up to 12 DC string inputs (3 per MPPT)
· Wide MPPT range for flexible string sizing

SYSTEM/TECHNICAL DATA
MODEL NAME	CSI-40KTL-GI-FL	CSI-50KTL-GI
DC INPUT
Max. PV Power	48 kW (16 kW/MPPT)	58 kW (22.5 kW/MPPT)
Max. DC Input Voltage	1100 VDC
Operating DC Input Voltage Range	200-1000 VDC
Start-up DC Input Voltage/Power	200 V
Number of MPP Trackers	4
MPPT Voltage Range	454-850 VDC	439-850 VDC
Operating Current (Imp)	88 A (22 A per MPPT)	114 A (28.5 A per MPPT)
Max. Input Current (Isc)	137.2 A (34.3 A per MPPT)	178 A (44.5 A per MPPT)
Number of DC Imputs	8 (2 per MPPT)	12 (3 per MPPT)
DC Disconnection Type	Load rated DC switch
AC OUTPUT
Rated AC Output Power	40 kW	50 kW
Max. AC Output Power	44 kW	55 kW
Rated Output Voltage	380/400 VAC
Output Voltage Range*	304-460 VAC
Grid Connection Type	3 Φ/PE
Nominal AC Output Current @480 Vac	60.8/58 A	76/72.2 A
Rated Output Frequency	50/60 Hz
Output Frequency Range*	47-52/57-62 Hz
Power Factor	1 default (±0.8 adjustable)
Current THD	< 3 %
SYSTEM
Topology	Transformerless
Max. Efficiency	98.80%	98.80%
CEC Efficiency	98.40%	98.40%
Night Consumption	< 1 W
ENVIRONMENT
Protection Degree	IP65
Cooling	Natural Convection Cooling	Intelligent Redundant Cooling
Operating Temperature Range	-25 ° C to +60 ° C
Storage Temperature Range	-40 ° C to +70 ° C
Operating Humidity	0 - 100 % condensing
Operating Altitude	4000 m
Audible Noise	<60 dBA @ 1 m
DISPLAY AND COMMUNICATION
Display	LCD + LED
Communication	Standard: RS485 (Modbus)
MECHANICAL DATA
Dimensions (W / H / D)	630 x 700 x 357 mm
Weight	61 kg	63 kg
Installation Angle	90 degrees from horizontal
DC Inputs	MC4 compatible
SAFETY
Safety and EMC Standard	IEC62109-1/-2, AS3100, EN61000-6-1, EN61000-6-3, NB/T 32004
Grid Standard	EN50438, G59/3, AS4777, VDE0126-1-1, IEC61727
Smart-Grid Features	Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-Watt, Volt-Watt
*The “Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard.
