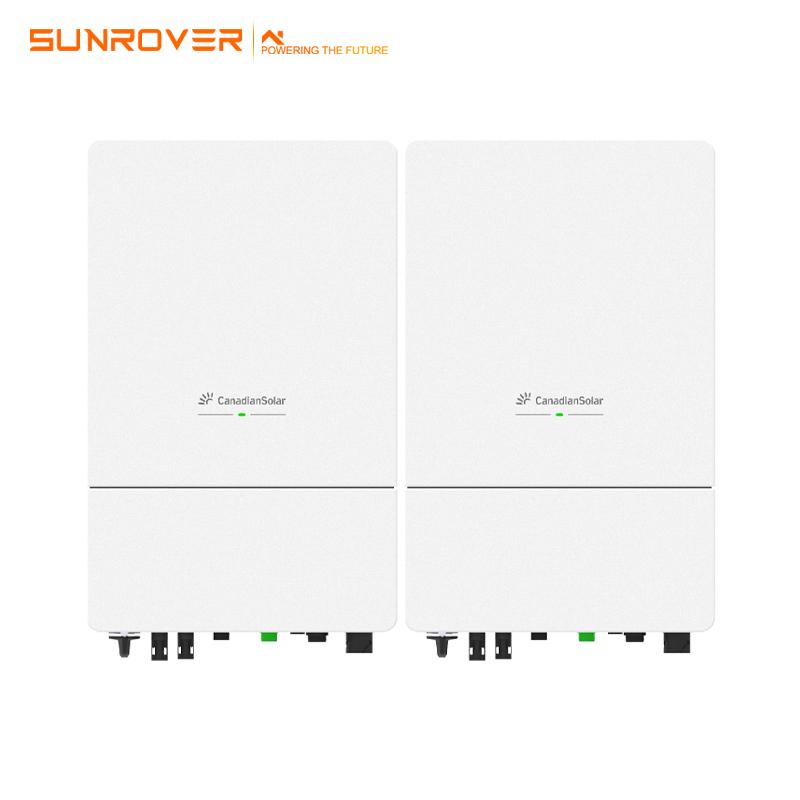

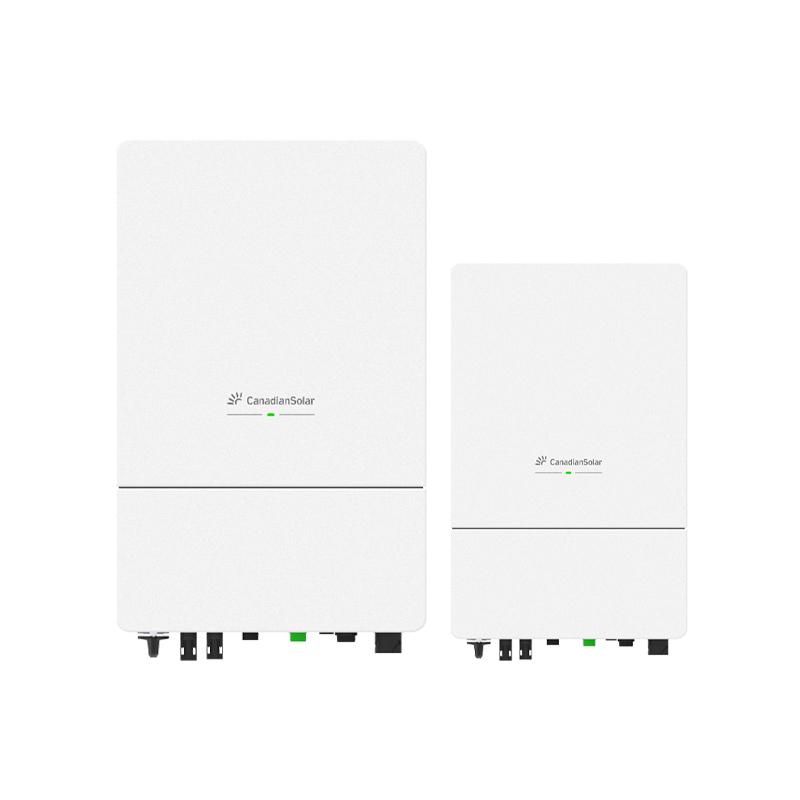

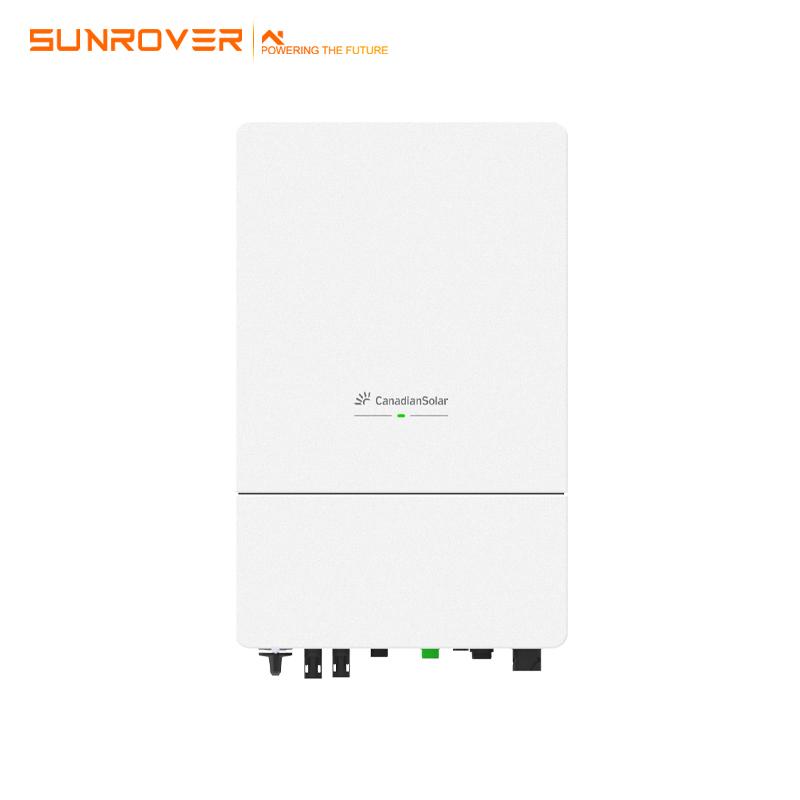

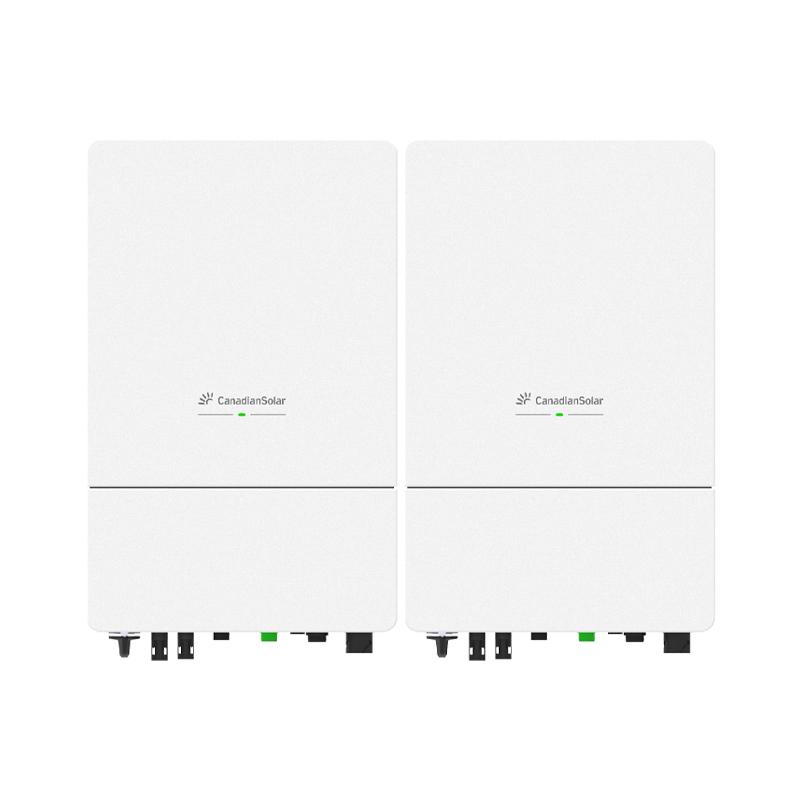

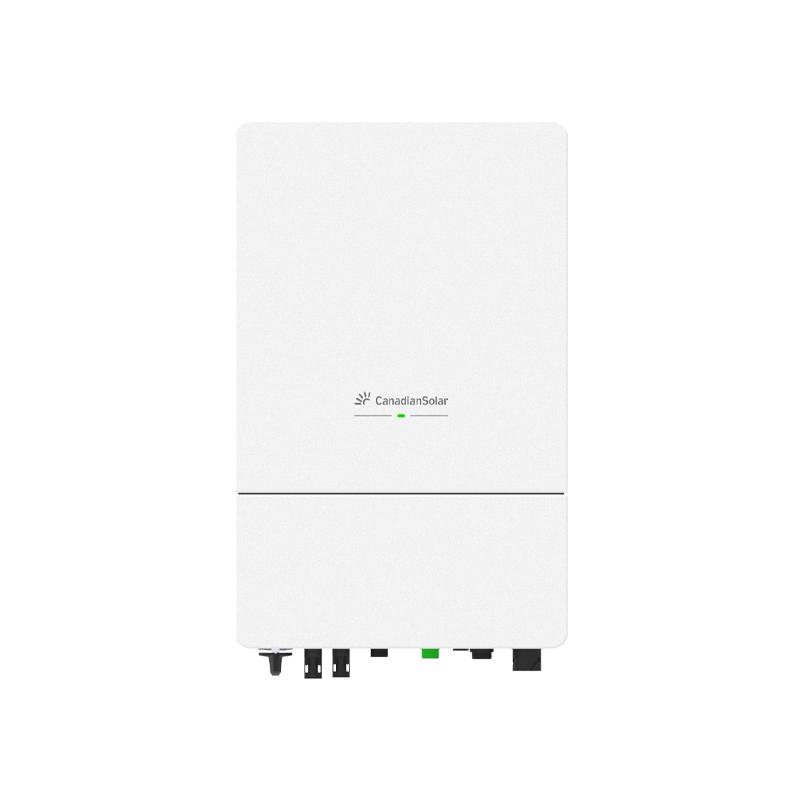

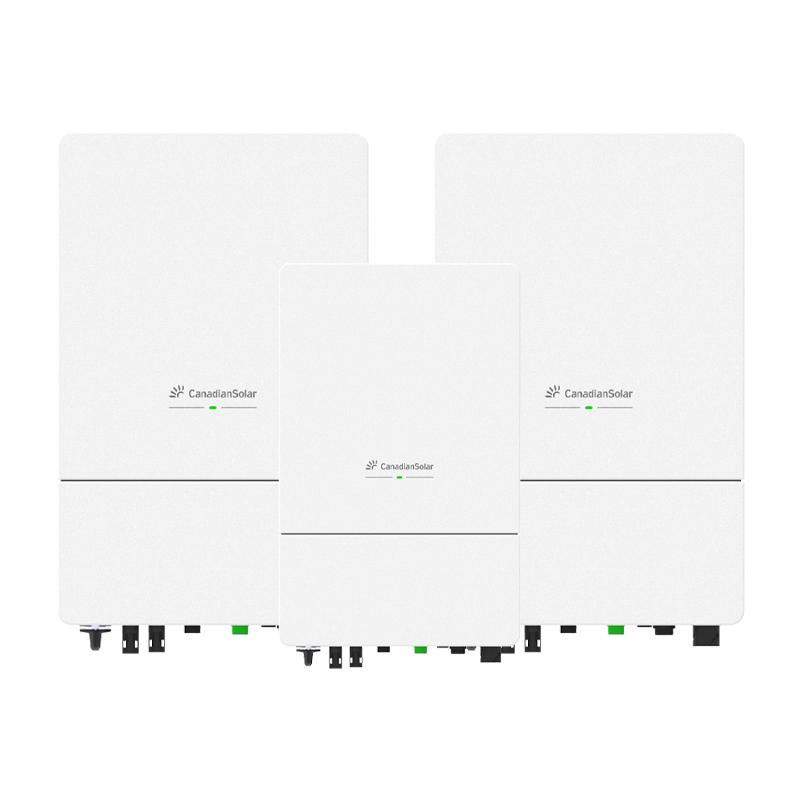

Canadian single phase 3 kw on grid solar inverter for solar system
Canadian single phase 3 kw on grid solar inverter for solar system
Item NO.:
CSI-3-5K-S22002-EDShipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian single phase 3 kw on grid solar inverter for solar system
SINGLE PHASE STRING INVERTER
Fuse free design to ensure the system safetyWide MPPT range and low start-up voltageAdvanced thermal design and convection coolingCanadian Solar Web/ APP Monitoring Portal
| SYSTEM TECHNICAL DATA | ||
| MODEL NAME | CSI-3K-S22002-ED | CSI-5K-S22002-ED |
| DC INPUT | ||
| Max. PV Power (W) | 4080 | 6500 |
| Max. DC Input Voltage (V) | 600 | 600 |
| Start-up DC Input Voltage (V) | 60 | 110 |
| MPPT Operating Voltage Range (V) | 60-500 | 100~550 |
| Rated Input Voltage (V) | 360 | 360 |
| Max. Input Current (A) | 12 | 12//12 |
| Max. Short-Circuit Current (A) | 15 | 15//15 |
| Number of MPP Trackers | 1 | 2 |
| Number of DC Inputs | 1 | 1//1 |
| AC OUTPUT | ||
| Rated Output Power (W) | 3000 | 5000 |
| Max. Output Power (W) | 3000 | 5500 |
| AC Grid Connection Type | L/N/PE | |
| AC Nominal Votage And Range (V) | 220/230/240 (180~280) | |
| AC Nominal Frequency And Range (Hz) | 50/60 (±5) | |
| Max. Output Current (A) | 13.6 | 25 |
| Power Factor (@Rated Output Power) | >0.99 | |
| Displacement Power Factor | 0.8 leading to 0.8 lagging | |
| Total Harmonic Distortion (THDi) | ＜3% | |
| EFFICIENCY | ||
| Max. Efficiency | 97.80% | 98.00% |
| European Efficiency | 97.10% | 97.50% |
| MPPT Efficiency | 99.90% | 99.90% |
| SAFETY &PROTECTION | ||
| DC SPD | Integrated | |
| DC Switch | Integrated | |
| Anti-Islanding Protection | Integrated | |
| DC Reverse-Polarity Protection | Integrated | |
| Insulation Monitoring | Integrated | |
| AC Over Voltage Protection | Integrated | |
| AC Over Current Protection | Integrated | |
| AC Short-Circuit Protection | Integrated | |
| Residual Current Protection | Integrated | |
| Overvoltage Class | II(DC), III(AC) | |
| GENERAL PARAMETERS | ||
| Dimensions (W*H*D, mm) | 312*517*156 | 355*572*158 |
| Net Weight (kg) | 10 | 15 |
| Installation Method | Wall-mounted | |
| DC Connection Type | MC4/H4 | |
| AC Connection Type | Connector | |
| Communication Interfaces | M16（WIFI/RS485/GPRS Optional） | |
| Display | LED Indicator | |
| Cooling | Natural Convection | |
| Protection Degree | IP65 | |
| Operating Ambient Temperature Range (℃) | -25~60 (＞45, derating operation) | |
| Relative Humidity (Non-Condensing) | 0% ~ 100% | |
| Max. Operating Altitude (m) | 4000 (＞3000, derating operation) | |
| Acoustic Noise Emission Level (dBA) | ＜25 | |
| Topology | Transformerless | |
| Night Power Consumption (W) | ＜1 | |
| Safety and EMC | IEC 62109-1/2, IEC 61000-6-1, IEC 61000-6-3 | |
| Grid Connection Standard | ABNT NBR 16149/16150:2013, IEC 61727, IEC 62116 | |
