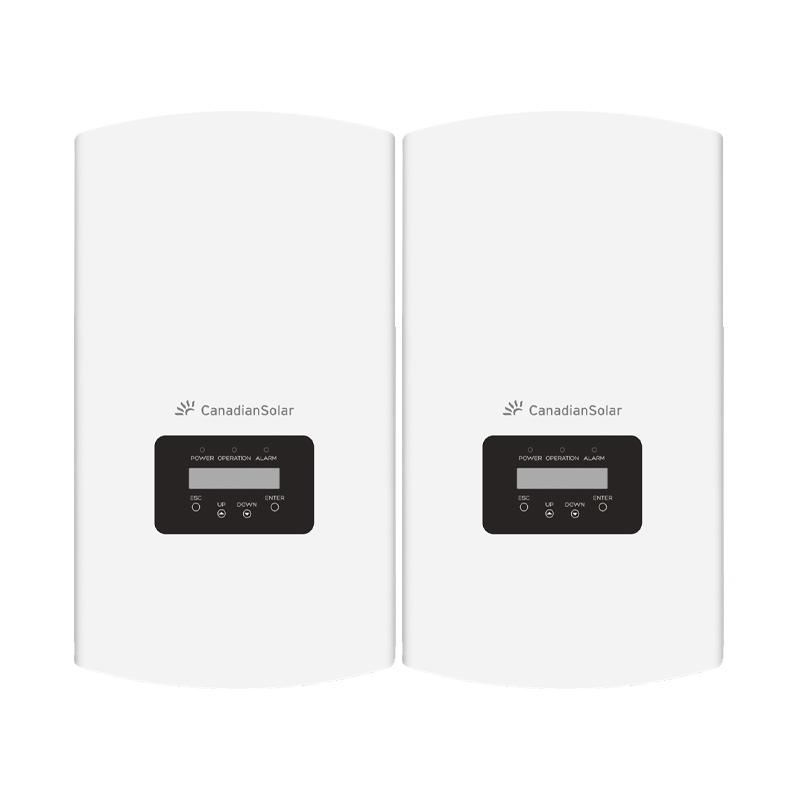

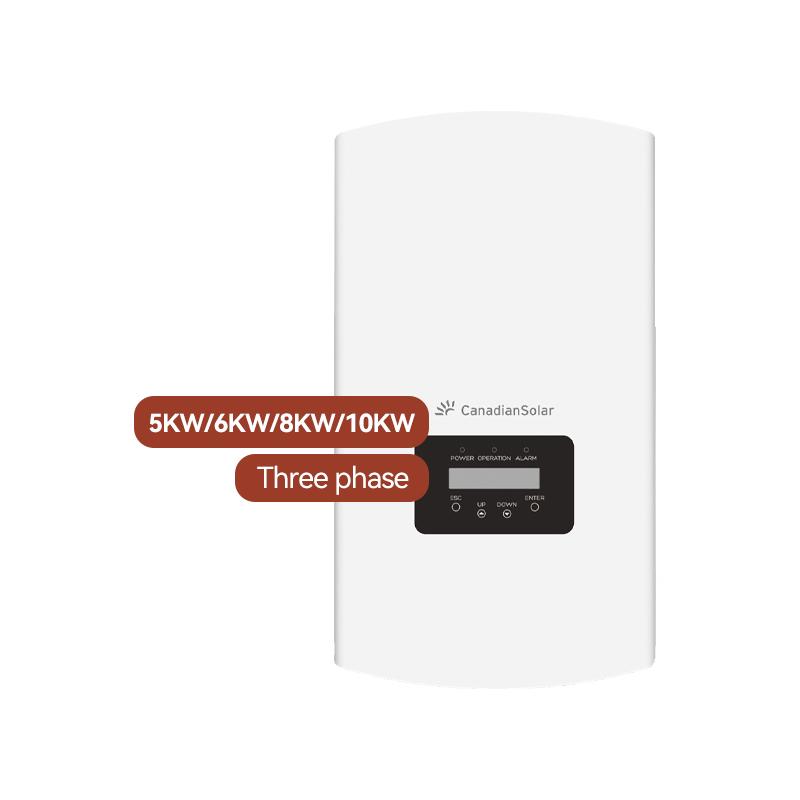

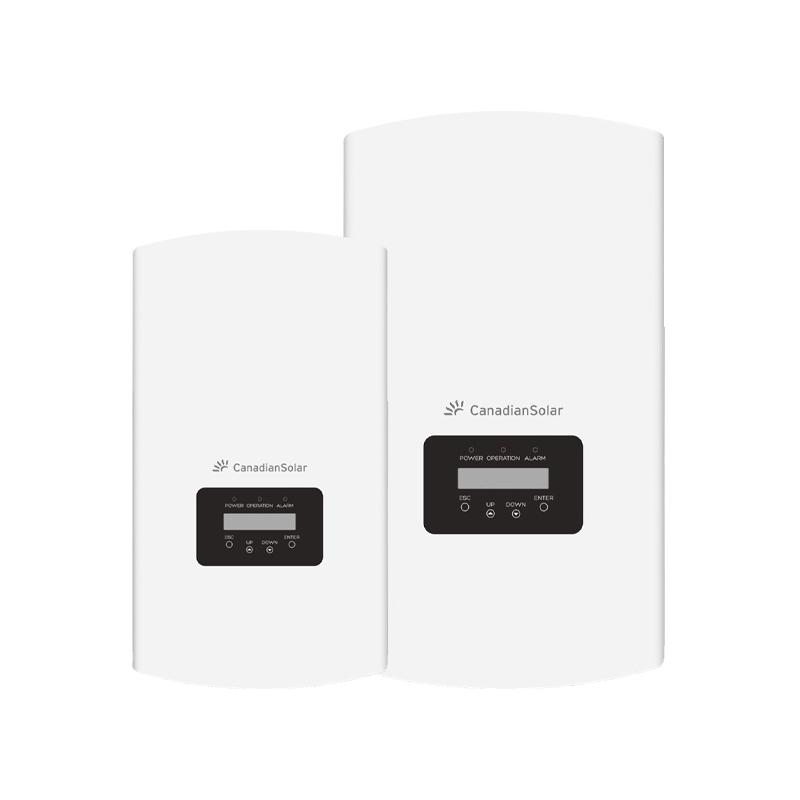

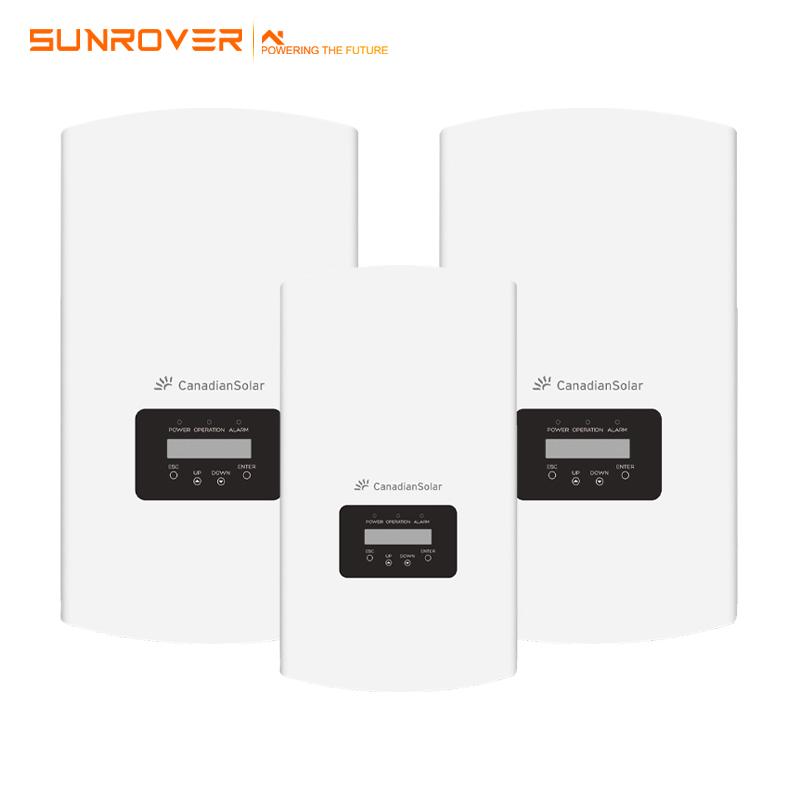

Canadian 6kw 8kw 10kw three phase inverter on grid 5kw for solar energy system
Canadian 6kw 8kw 10kw three phase inverter on grid 5kw for solar energy system
Item NO.:
CSI-5K-6K-8K-10KW-T4Shipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian 6kw 8kw 10kw three phase inverter on grid 5kw for solar energy system
Wide input voltage, DC input voltage up to 1000V
Maximum efficiency of 98.5%
| SYSTEM TECHNICAL DATA | ||||
| MODEL NAME | CSI-5K-T400GL01-E | CSI-6K-T400GL01-E | CSI-8K-T400GL01-E | CSI-10K-T400GL01-E |
| DC INPUT | ||||
| Max. DC Power | 6 kW | 7.2 kW | 9.6 kW | 12 kW |
| Max. DC Input Voltage | 1000 V DC | |||
| Start-up DC Input Voltage/Power | 180 V DC | |||
| Number of MPP Trackers | 2 | |||
| MPPT Voltage Range | 160 - 850V DC | |||
| Max. Input Current (Imp) | 11A /11A | |||
| Max. Short Circuit Current (Isc) | 17.2A /17.2A | |||
| Number of DC Inputs | 2//2 | |||
| DC Disconnection Type | Load rated DC switch | |||
| AC OUTPUT | ||||
| Rated AC Output Power | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. AC Output Power | 5.5 kW | 6.6 kW | 8.8 kW | 11 kW |
| Rated Output Voltage* | 220/380 VAC, 230/400 V AC | |||
| Grid Connection Type | 3 W / N / PE | |||
| Rated Grid Output Current | 7.6A / 7.2 A | 9.1A / 8.7A | 12.2A / 11.5 A | 15.2A / 14.4 A |
| Max Output Current | 7.9 A | 9.5 A | 12.7 A | 15.9 A |
| Rated Output Frequency | 50/60 Hz | |||
| Output Frequency Range* | 45-55 Hz/55-65 Hz | |||
| Power Factor | >0.99 (0.8 leading ... 0.8 lagging) | |||
| Current THD | < 1.5 % | |||
| DC Injection Current | < 0.5 % of Rated Grid Output Current | |||
| SYSTEM | ||||
| Max. Efficiency | 98.30% | 98.70% | ||
| EU Efficiency | 97.80% | 98.10% | ||
| Night Consumption | < 1 W | |||
| ENVIRONMENT | ||||
| Protection Degree | IP65 | |||
| Cooling | Natural Convection Cooling | |||
| Operating Temperature Range | -25 ° C to +60 ° C | |||
| Storage Temperature Range | -40 ° C to +70 ° C | |||
| Operating Humidity | 0 - 100 % Condensing | |||
| Operating Altitude | 4000 m | |||
| Audible Noise | <30 dBA @ 1 m | |||
| DISPLAY AND COMMUNICATION | ||||
| Display | LCD, 2×20 Z | |||
| Communication | WIFI/RS485 Optional | |||
| MECHANICAL DATA | ||||
| Dimensions (W / H / D) | 563 x 310 x 219 mm | |||
| Weight | 17.3 kg | 18 kg | ||
| Installation Angle | 0~15 Degrees from Vertical | |||
| DC Inputs | MC4 | |||
| SAFETY | ||||
| Safety and EMC Standard | IEC62109-1/-2, EN61000-6-2, EN61000-6-3 | |||
| Grid Standard | IEC61727, AS777 | |||
| *The “Rated Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard. | ||||
Stock

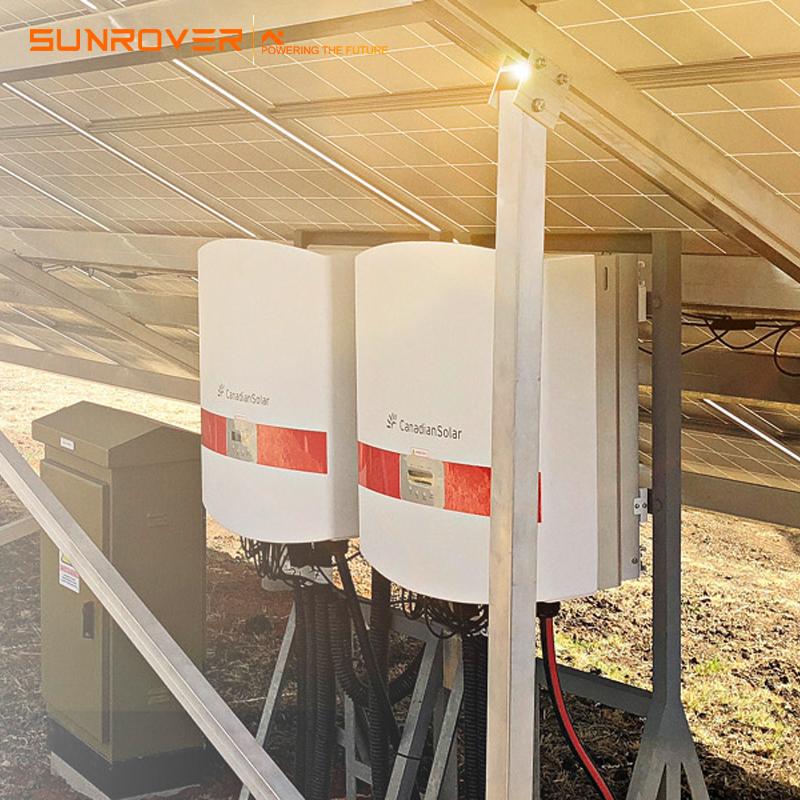

Project
