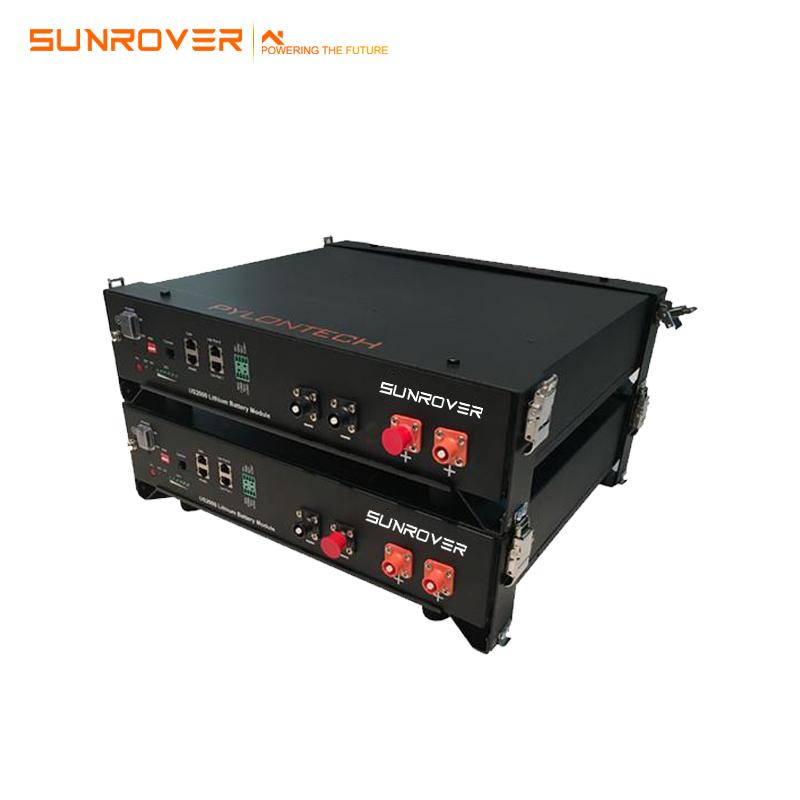

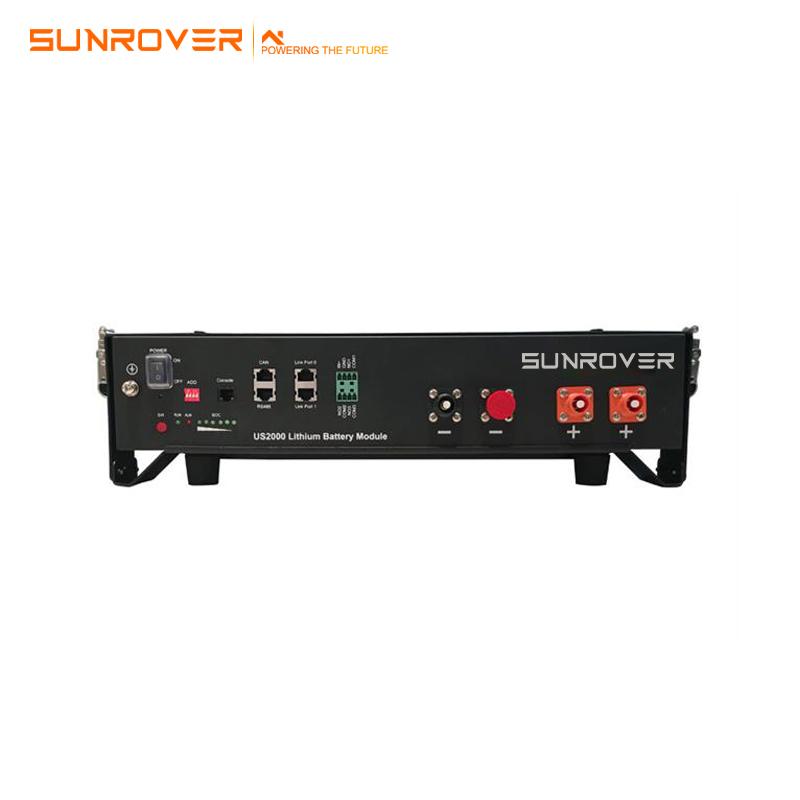

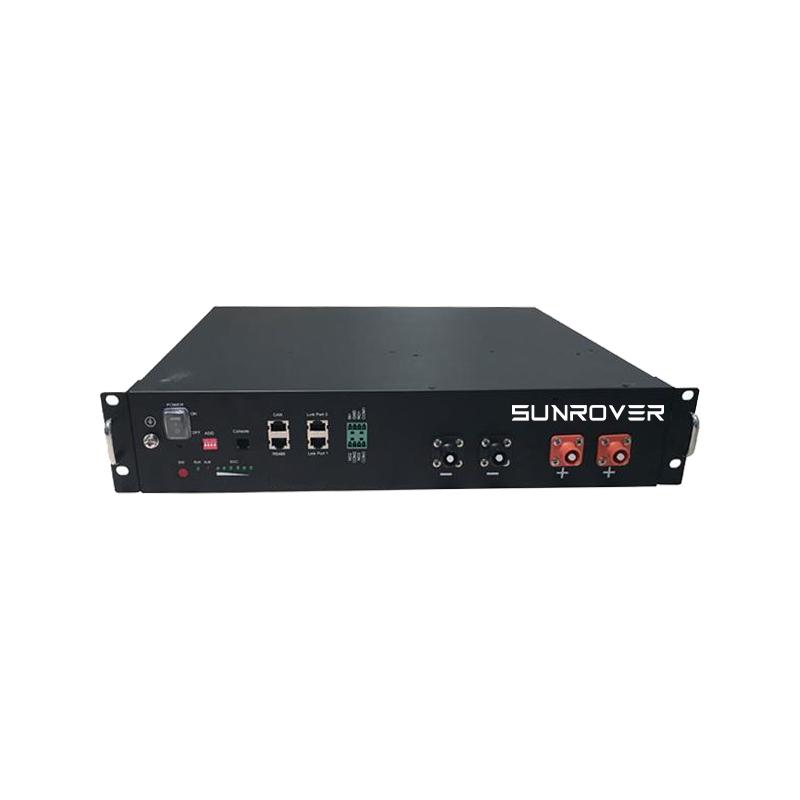

CATL Cell 48v 100Ah Rack mounted lithium battery

Easy installation CATL Cell 48v 100Ah Rack mounted lithium battery

  • Item NO.:

    48v 100Ah Rack mount
  • Lead Time:

    7-15 Days
  • Payment:

    30% deposit, balance paid before shipping
  • Warranty:

    10years
  • Cycle life:

    8500

CATL Cell 48v 100Ah Rack mounted lithium battery



Our Advantages:

Long life and safety

Vertical industry integration ensures more than 6ooo cycleswith 80% DoD.

Safe Lithium iron phosphate battery cell.

lntelligent

Each battery with independent BMS system manages poweroutput smartly and effectively.

Modularization

Modular design gives the end customers the power ofchoice of capacity Deliver up to 14oKW with single maxmodule (10.24KWh) at 14pcs parallel connection.

Easy to install and use

Just plug and play to minimize the installation time and cost.

Compact and fashionable design fits in your sweet homeenvironment.

Compatiblity

Compatible with most of the available Hybrid inverters.

Safety Cert

UL1642, IEC62619,CE. UN38.3,MSDS.

Basic Parameters Numerical
Nominal Voltage(V) 51.2V
Nominal Capacity(WH) 5120WH
Usable Capacity(WH) 4600WH
Discharge Voltage(V) 40V
Charge Voltage(V) 58.4V
Recommend Charge/Discharge Current(A) 50A
Max.Charge/Discharge Current(A) 100A
Communication RS485/RS232/CAN
Working Temperature 0-50 Charge;-10-50 Discharge
Shelf Temperature -20-60
Certification CE/IEC/UL/UN38.3/MSDS
Design Life 10 years+
Cycle Life 6000

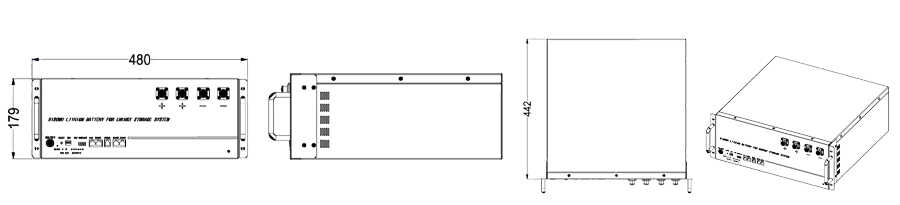

Product Nominal Voltage Nominal Capacity Dimension Weight
51.2V100AH DC 51.2V 100AH 440x442x179mm 50kg

Long life and safety

Vertical industry integration ensures more than 6ooo cycleswith 8o% DoD.

  • Safe Lithium iron phosphate battery celL.lntelligent

Each battery with independent BMS system manages poweroutput smartly and effectively.

  • Modularization

Modular design gives the end customers the power ofchoice of capacity Deliver up to 163KW with single maxmodule (1o.24KWh) at 16pcs parallel connection.

  • Easy to install and use

Just plug and play to minimize the installation time and cost.Compact and fashionable design fits in your sweet homeenvironment.

  • Compatiblity

Compatible with most of the available Hybrid inverters.Safety Cert
