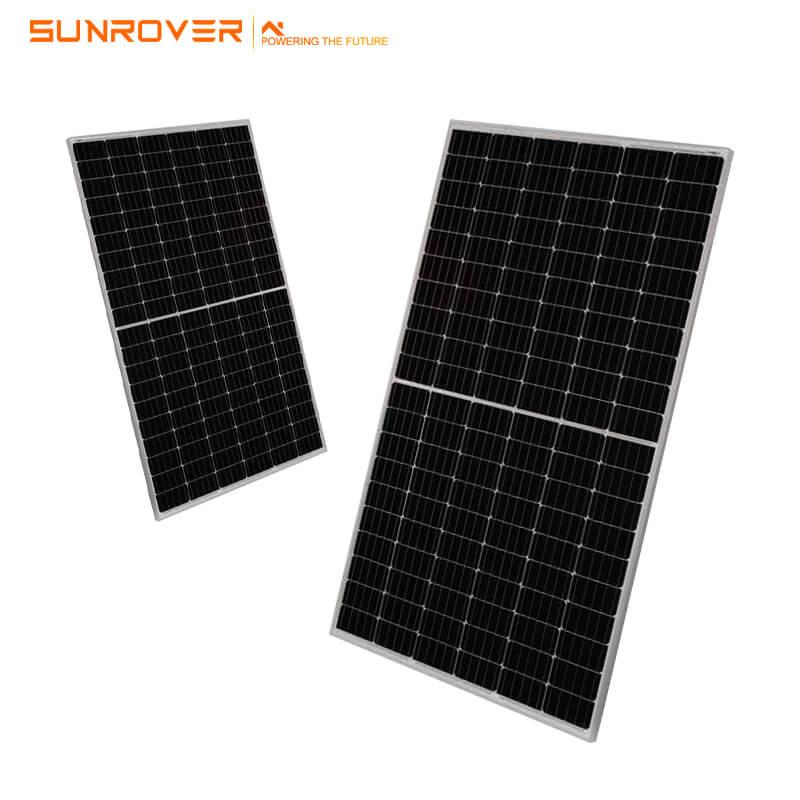

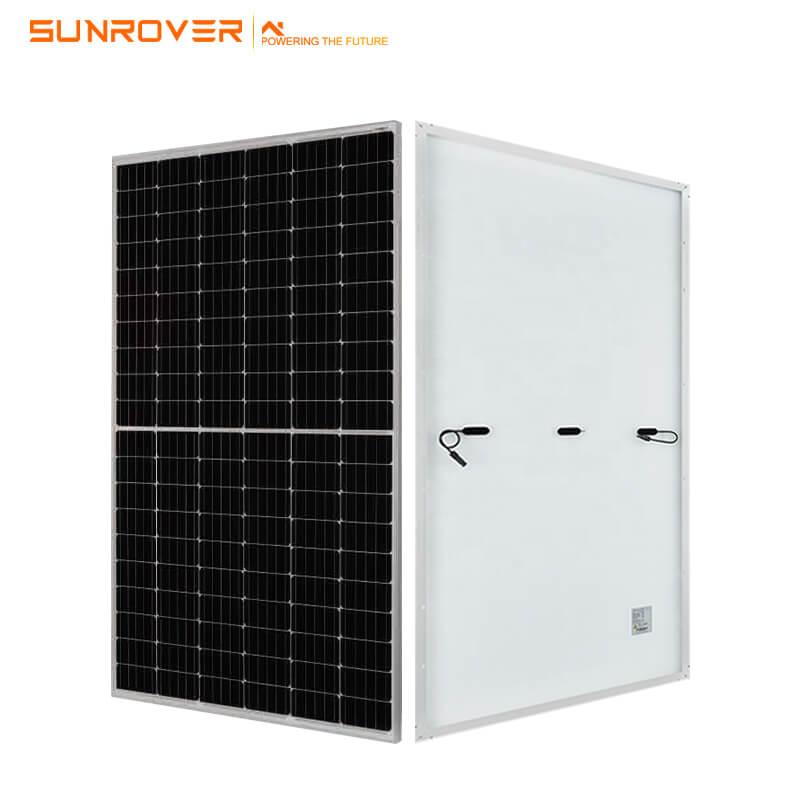

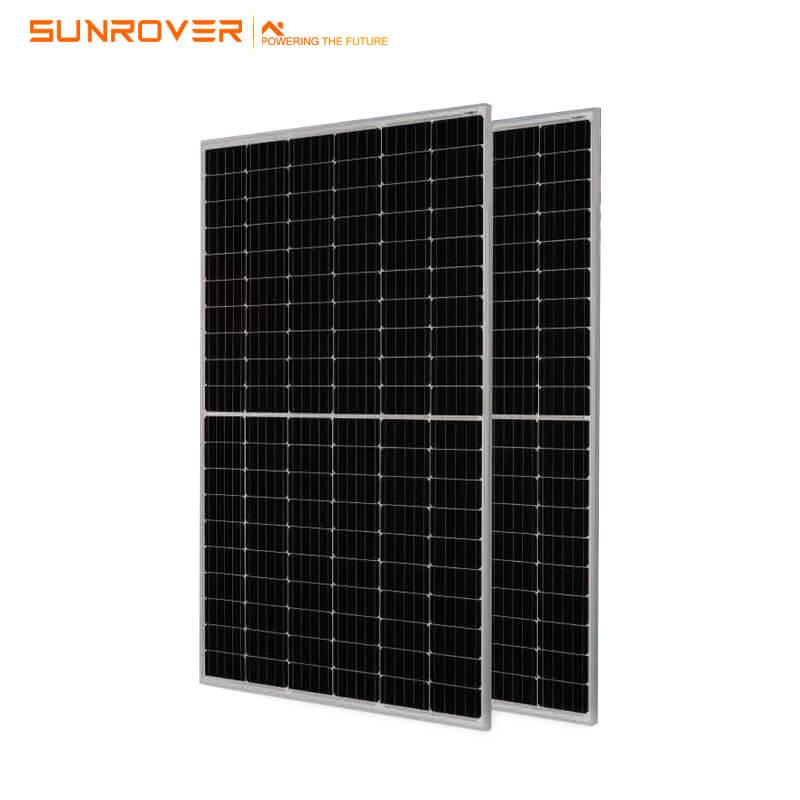

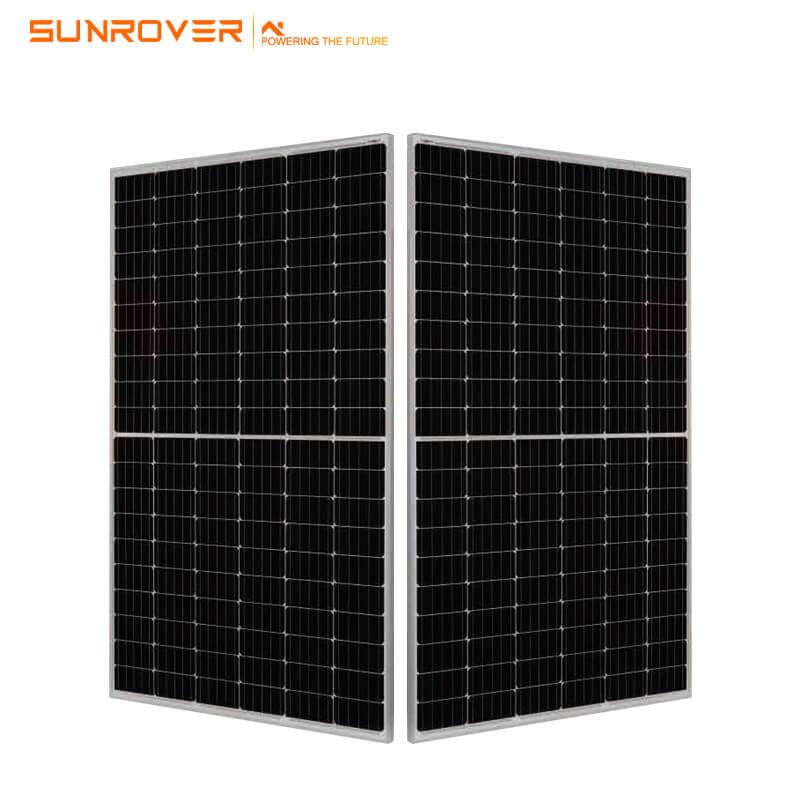

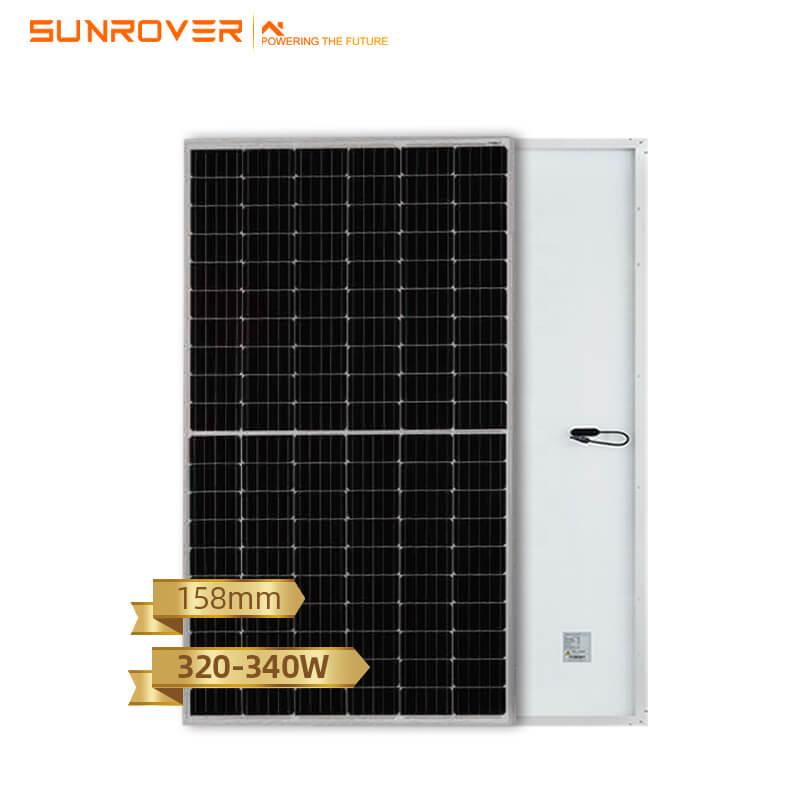

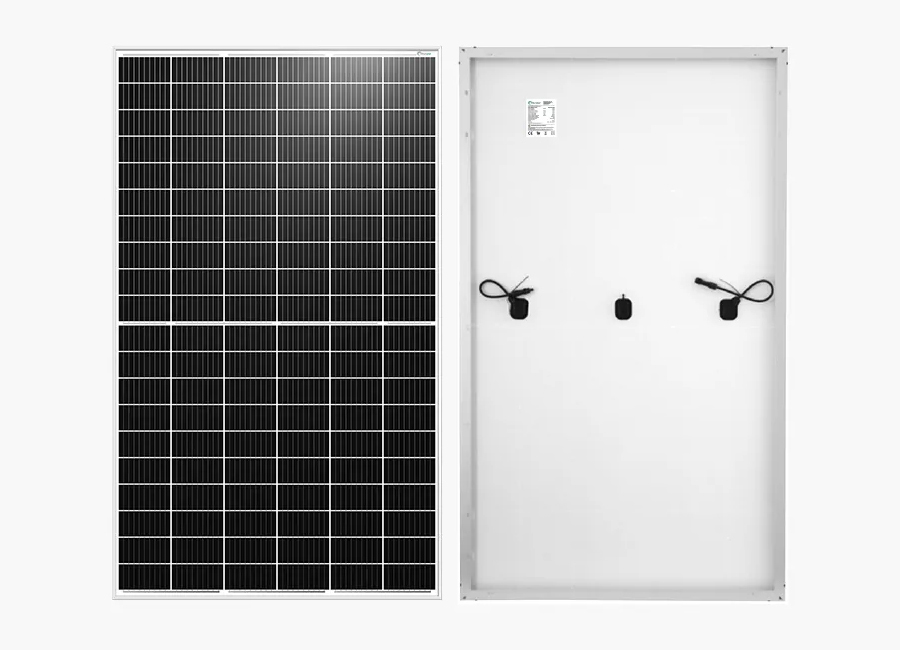

Half Cell 320W 325W 330W 335W 340W Solar Panel solar module price for system use

stock cheap 320w 330w 345w 340w solar cell solar panel for 100kw grid tie system

  • Lead Time:

    10 Days
  • Cell Type:

    Mono crystalline
  • No.of cells:

    120cell
  • Dimensions:

    1689x996x35mm
  • Weight:

    18.7KG
  • Certificate:

    CE.TUV
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Warranty:

    25Years

Products Discription


Sunrover's high-efficiency PV modules are widely used all over the world, from alpine grasslands to desert wastelands, and from ponds and vegetable beds to household dwellings. Sunrover's ultra-high-value PV module products continue to benefit customers and local economy with its advantages of "higher power, lower degradation and higher reliability".

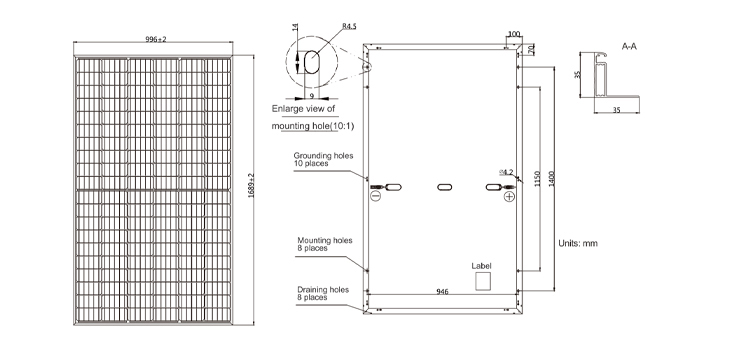

Mechanical Characteristics

Cell Type

Mono crystalline

No.of cells

120 (6x20)

Dimensions

1689x996x35mm

Weight

18.7kg

Glass

Single glass,3.2mmm coated tempered glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68,three diodes

Output Cables

Protrait:300mm(+)/400mm(-)

Landscape: 1000mm(+)/1000mm(-)



Module Type

SUN320-60HPH

SUN325-60HPH

SUN330-60HPH

SUN335-60HPH

SUN340-60HPH



STC

NOCT

STC

NOCT

STC

NOCT

STC

NOCT

STC

NOCT

Maximum Power (Pmax)

320Wp

237Wp

325Wp

241 Wp

330Wp

244Wp

335Wp

248Wp

340Wp

252Wp

Maximum Power Voltage (Vmp)

33.62V

33.31V

33.87V

33.54V

34.13V

33.82V

34.36V

34.10V

34.63V

34.38V

Maximum Power Current (Imp)

9.52A

7.11 A

9.60A

7.17A

9.67A

7.22A

9.75A

7.27A

9.82A

7.32A

Open-circuit Voltage (Voc)

40.27V

37.15V

40.56V

37.38V

40.84V

37.65V

41.12V

37.93V

41.36V

38.18V

Short-circuit Current (Isc)

10.16A

8.14A

10.23A

8.20A

10.30A

8.25A

10.38A

830A

10.46A

8.36A

Module Efficiency STC (%)

19.00%

19.30%

19.60%

19.90%

20.20%

Operating Temperature (°C)









-40°C~+85°C











Maximum system voltage









1000V/1500V DC











Maximum series fuse rating









20A











Power tolerance









0-+5W

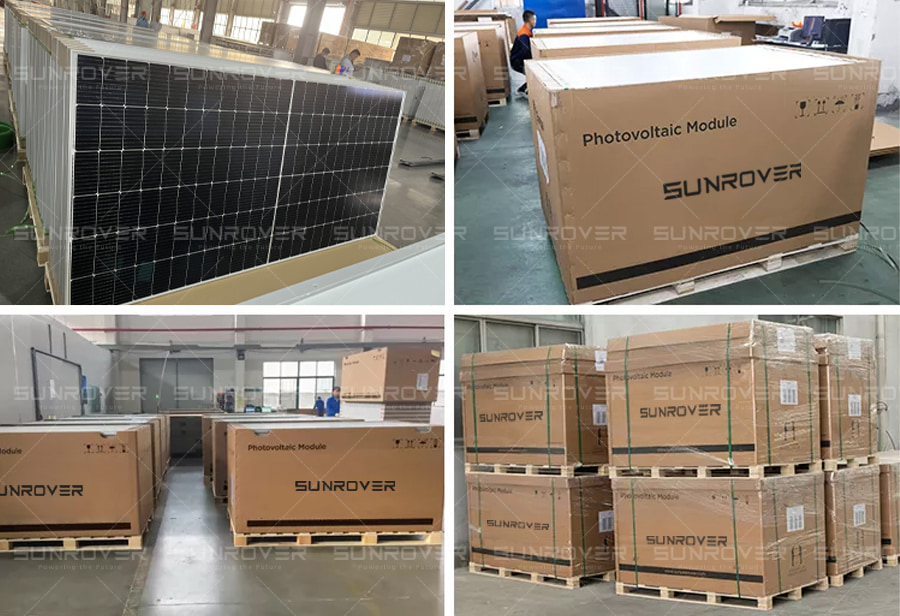

Packing Details
                                 Type SUN320-340 60HPH
                                 Pallet 31PCS/Pallet
                                 40HQ 682Pcs

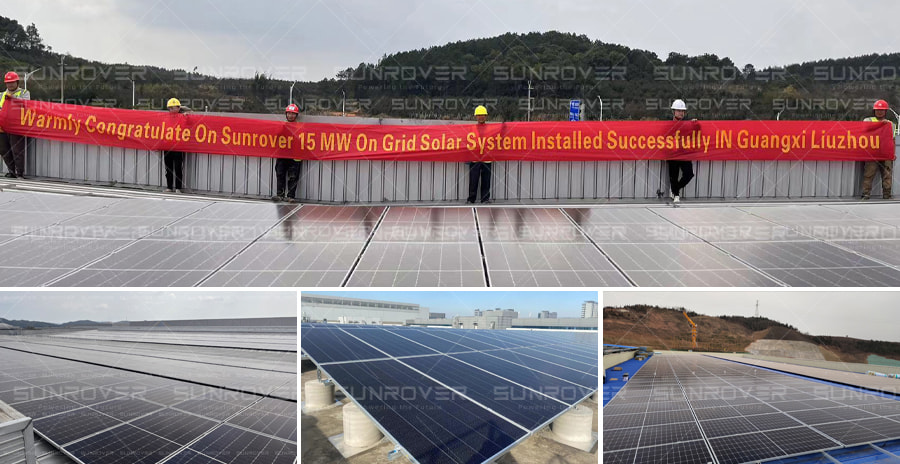

 Project
