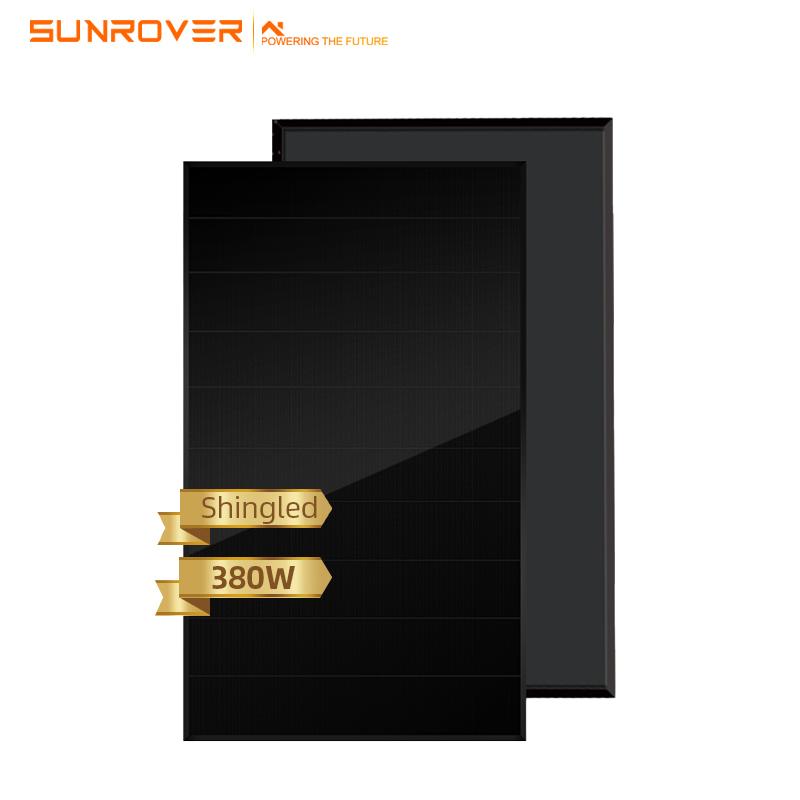

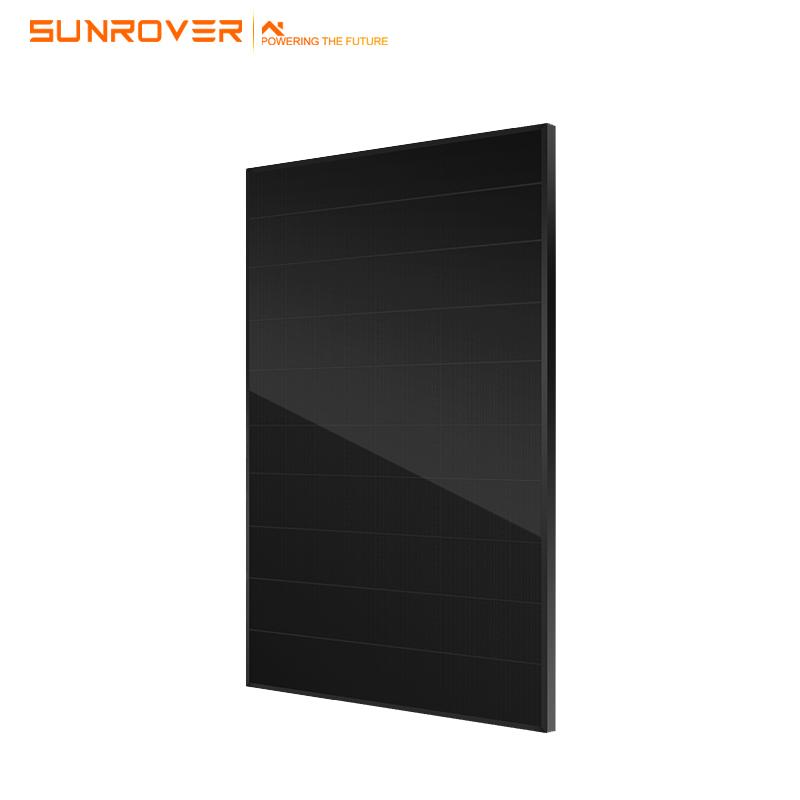

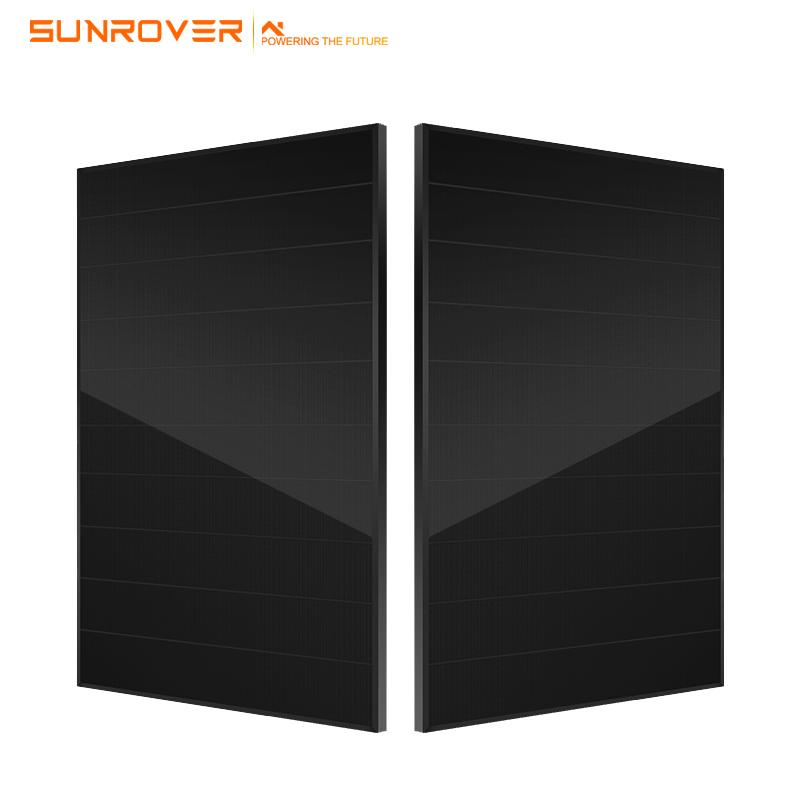

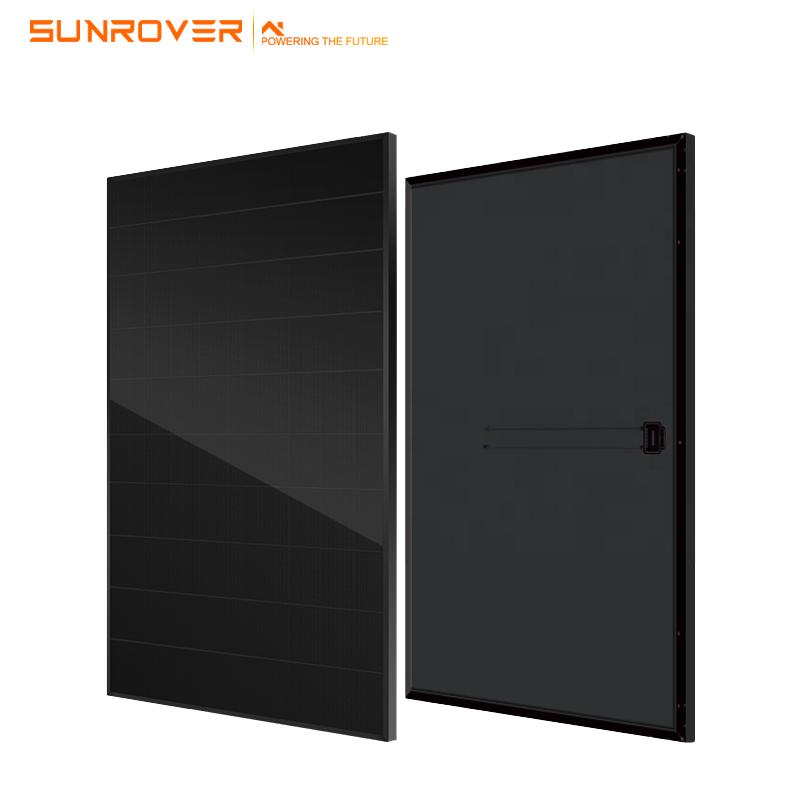

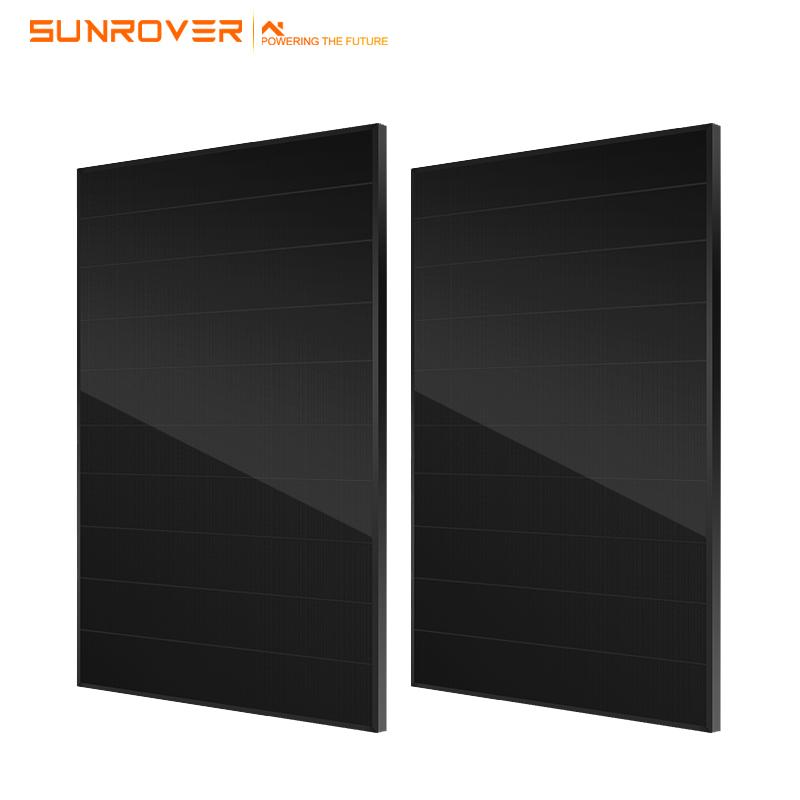

Teir 1 Supply PV Module Full Black 375w 380w 410W 415w Shingled Solar Panels

Full Black Shingled Solar Panel 470W 480W 490W 500W Monocrystalline Overlap PV Module

  • Item NO.:

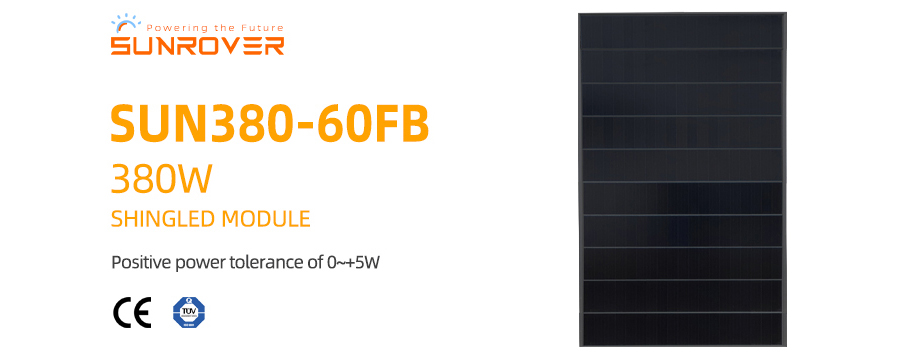

    SUN380 -60FB
  • Cell Type:

    Mono crystalline
  • No.of cells:

    60
  • Dimensions:

    1640*992*35
  • Weight:

    18.5kg
  • Certificate:

    CE.TUV
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Warranty:

    30years

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module,
whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering, also higher efficiecny

Product Description

Electrical Characteristics

Model

SUN375 -60FB

BSM380-60FB

BSM390 -60FB

BSM400-60FB

BSM410-60FB

BSM415-60FB

        Max Power(Pmax)     [W]

  375

380

390

400

410

415

Open Circuit Voltage(Voc) [V]

41.10

41.30

41.6

46.4

46.6

46.7

Short Circuit Current(lsc) [A]

11.60

11.69

11.80

10.97

11.07

11.12

Max Power Vdtage(Vmp) [V]

34.60

34.8

35.5

38.6

38.8

38.9

Max Power Currentflmp) [A]

10.84

10.92

10.99

10.36

10.57

10.67

Module Efficiency [%]

21.43

21.43

21.43

21.6

21.8

22.2

Power Tolerance

0~5W

Max System Voltage

1000V/1500V/DC(IEC)

Max Series Fuse Rating

20A

Operating Temperature

-40 °C to + 85 °C

STC

Irradiance 1000W/m2, cell temperature 25 °C, AM1.5



Packaging

Project Review

Other Advantage of Shingled panels

1,Vertical installation,shingled modulecells series and parallel structure,assoon as the snow on one string ofcells melts,the module is ready to work.    Normal module,it can only melt snownaturally under environmental conditions.

2,Smaller size, but higher efficiency. to save more cost of brackets
