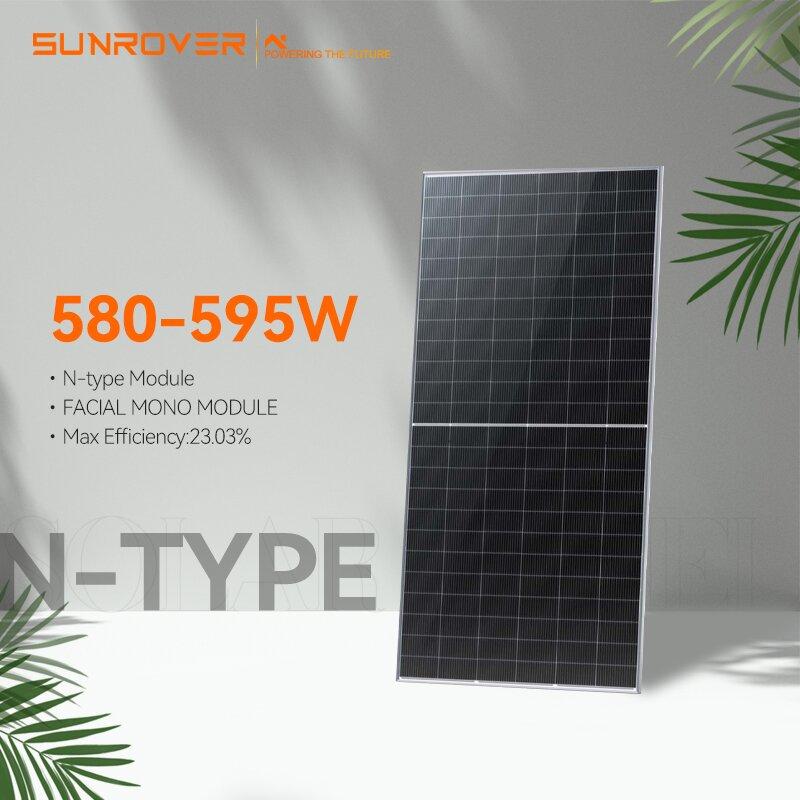

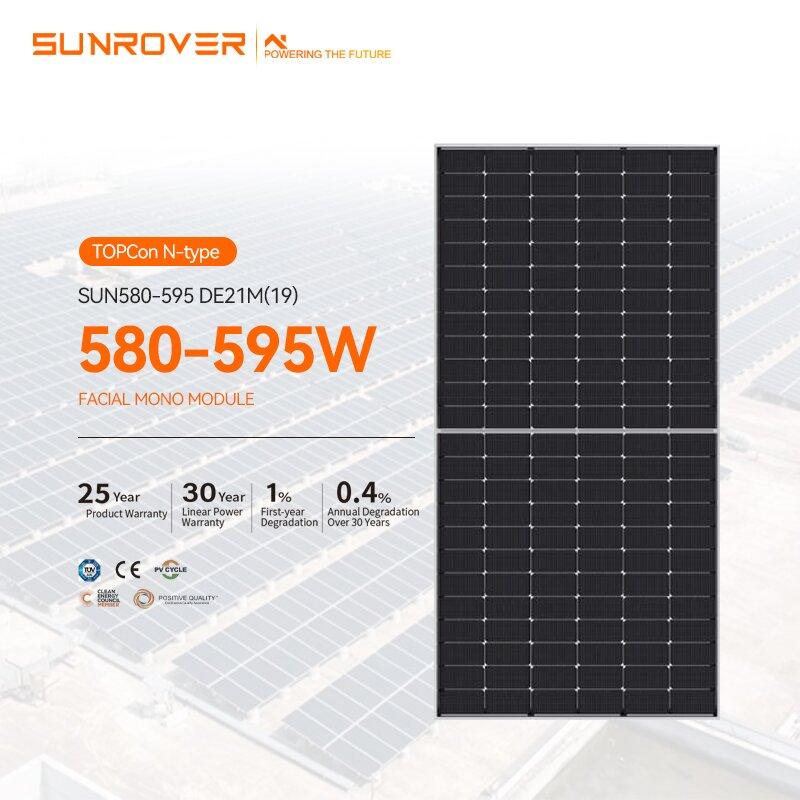

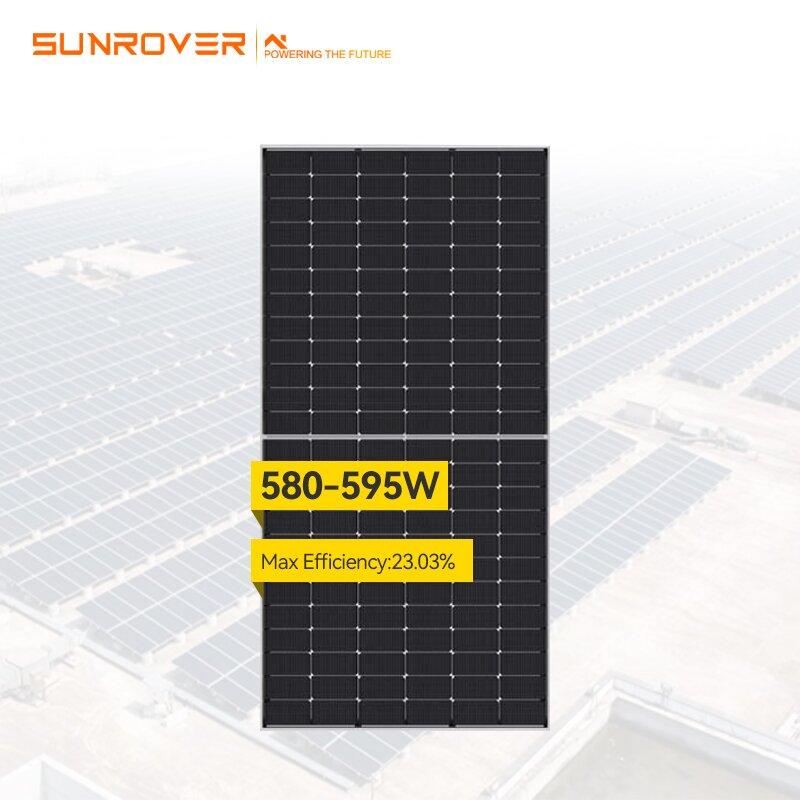

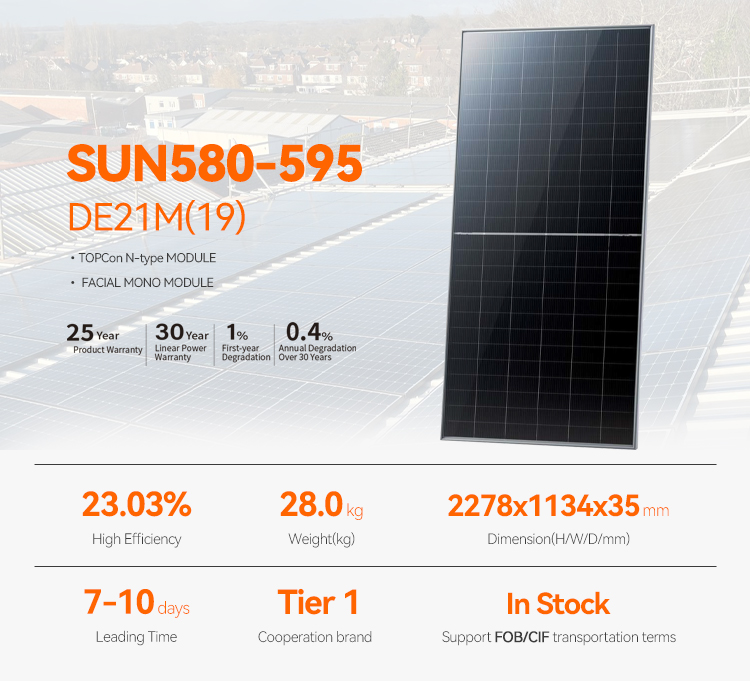

Solar Panel N Type 580W 595W Photovoltaic Panels PV Power Module

N Type mono crystalline solar modules 580W 595W high power solar panels

  • Brand:

    Sunrover
  • No.of cells:

    144
  • Dimensions:

    2278*1134*30mm
  • Weight:

    28kg
  • Certificate:

    CE/TUV
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    25 Years

TopCon N Type 580w  595w Solar Paneln type photovoltaic solar panels

N type topcon cells make extremely low power losses and prevent phenomena LID&LETID.

Excellent low-light power generation effect, ensuring continuous output in cloudy, shading conditions.

Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead.

Minimized micro-cracks with innovative non-destructive cutting Technology.

Selection of packaging materials with excellent sealing.

More advanced cell processing technology to reduce doping to ensure highly PID resistance.

Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments.

Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load.

Cell Orientation 144 (6x24)
Dimension 2278x1134x35mm
Weight 28kg
Glass 3.2mm,Anti-Relfection Coating,High Transmission,
Low Iron,Tempered Glass
Frame  Anodized aluminum alloy frame
Junction Box  IP68,3 diodes
Output Cable TUV 1x400mm,(+):400mm,(-):200mm
Customized Length
Packaging 31pcs/pallet,620pcs/40'HQ
Maximum Power(Pmax) 580W 585W 590W 595W
Maximum Power Voltage(Vmp)  42.37V 42.52V 42.67V 42.82V
Maximum Power Current(Imp)  13.69A 13.76A 13.83A 13.9A
Open-circuit Voltage(Voc)  14.80A 11.53A 14.89A 11.61A
Short-circuit Current(lsc) 47.90V 46.60V 48.00V 45.70V
Module Efficiency(%) 22.45%  22.65% 22.84% 23.03%
Maximum Power (Pamx) 436w 440w 444w 448w
Maximum Power Voltage(Vmp) 36.69v 39.81v 39.93v 40.05v
Maximum Power Current (Imp) 10.99A  11.05A 11.11A 11.17A
Open-circuit Voltage(Voc) 48.46V 48.6V 48.74V 48.88V
Short-circuit Current(Isc) 11.68A 11.75A 11.82A 11.89A
Module Efficiency(%) 22.45%  22.65% 22.84% 23.03%

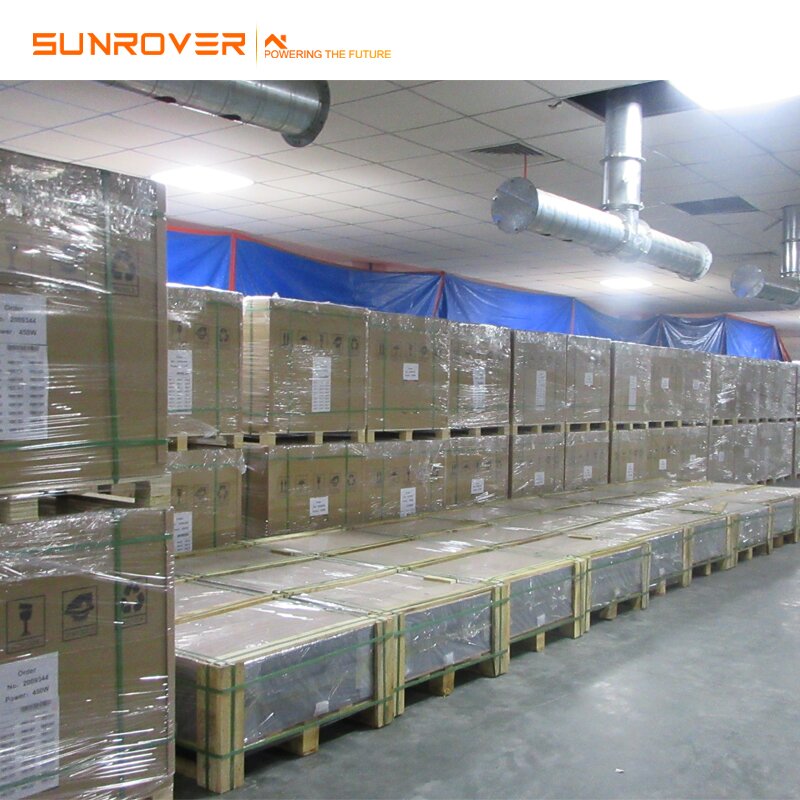

Sunrover Warehouse packaging

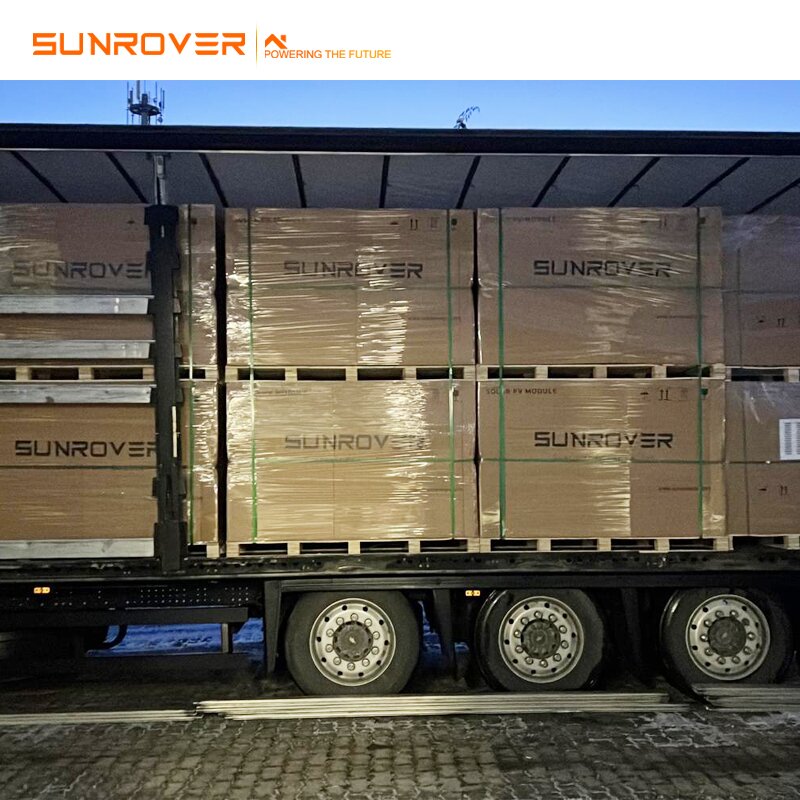

Sunrover delivery

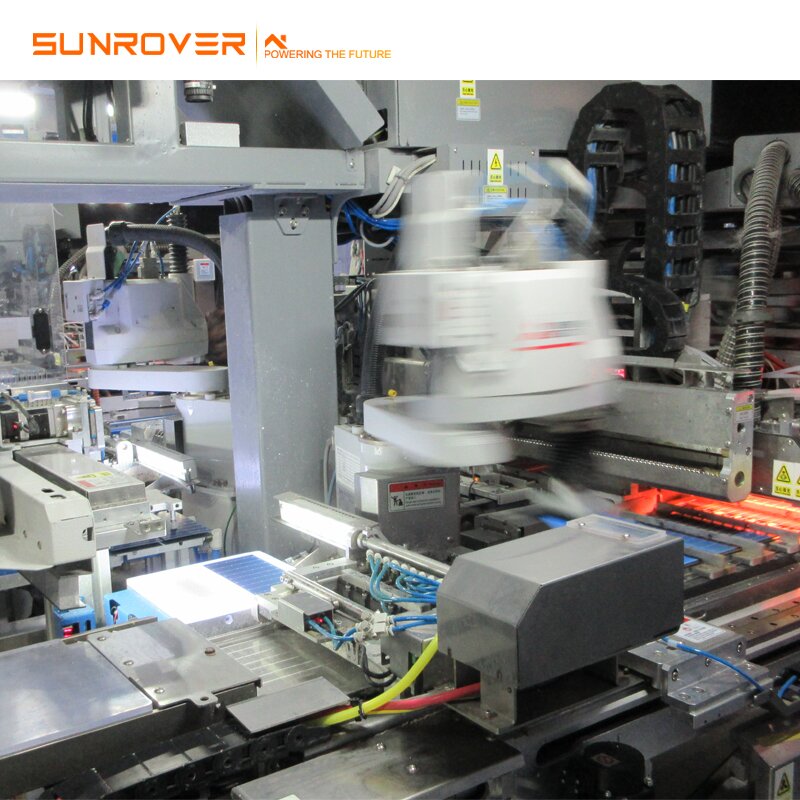

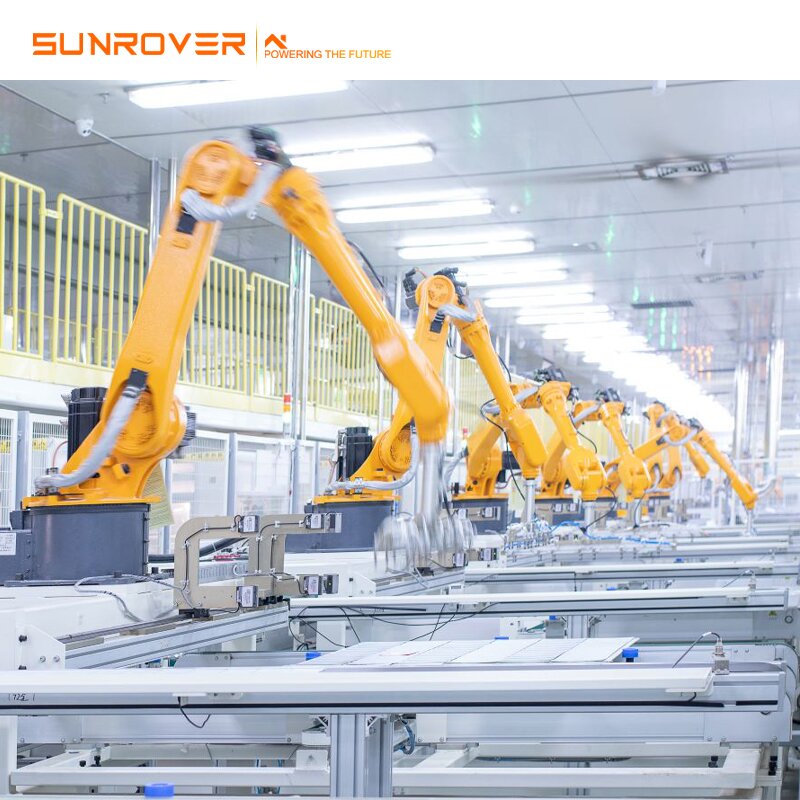

Sunrover factory

Sunrover factory
