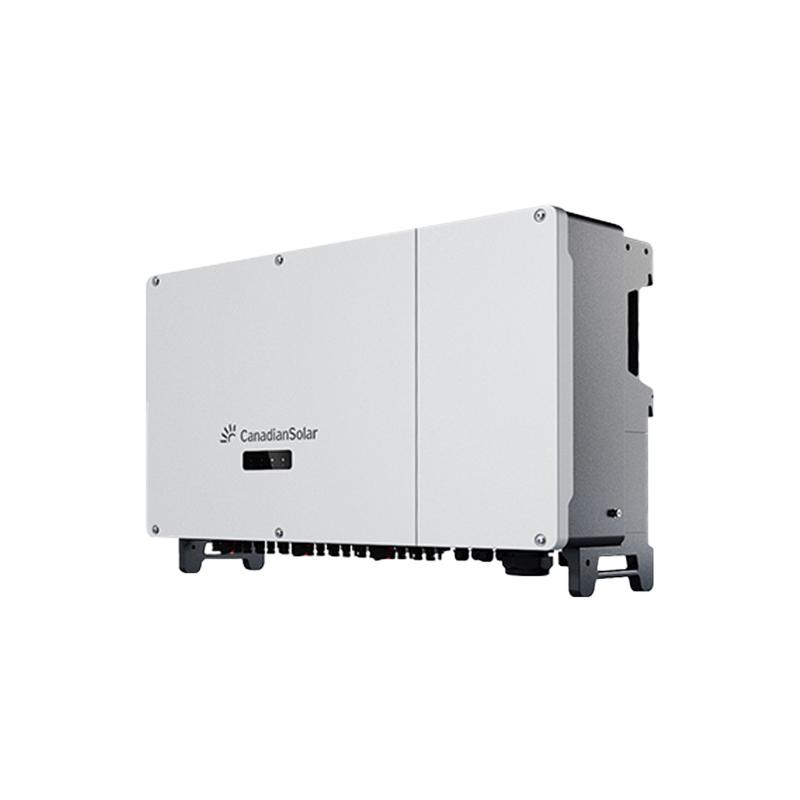

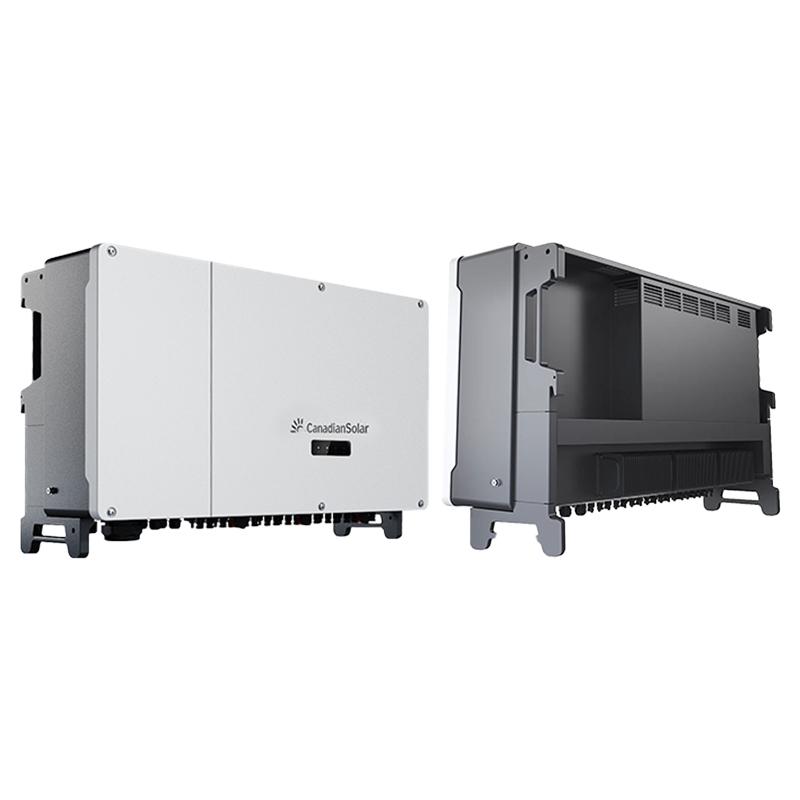

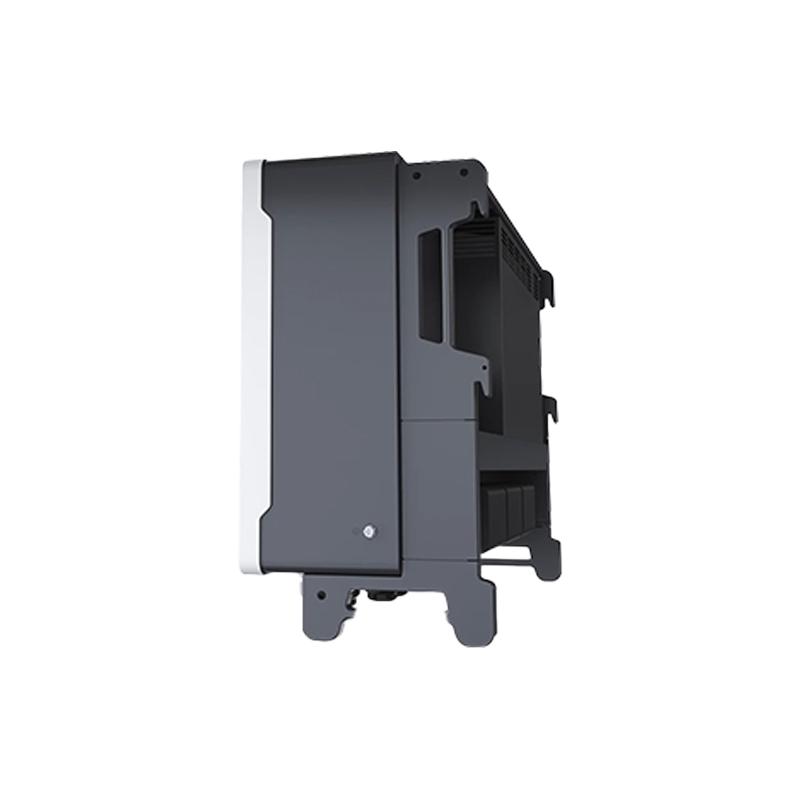

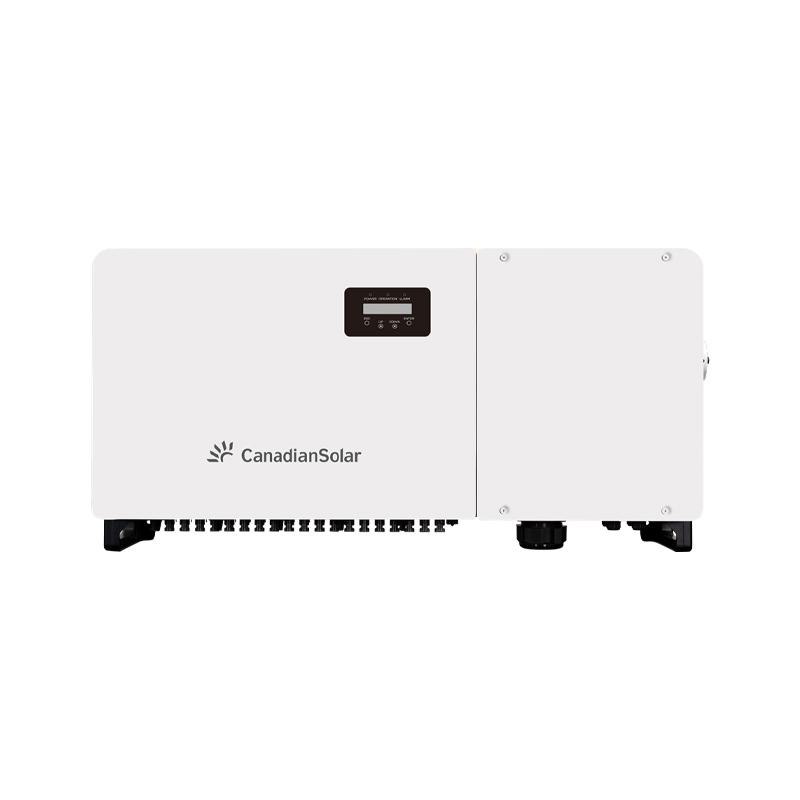

Canadian 100kw 110kw on grid hybrid wechselrichter for solar power storage system

Item NO.:
CSI-100K-110K-T400GL
Shipping Port:
Shanghai/Ningbo
Lead Time：
15days（1—10pieces）；To be negotiated（10p
Type:
Grid Tie
Payment:
30% deposit, balance paid before shipping
Certificate:
VDE.INMETRO
Warranty:
5years

Request A Quote

Basic Parameters

Canadian 100kw 110kw on grid hybrid wechselrichter for solar power storage system

1. Powerful brand influence, US + China dual-listed company,with a market value of 30 billion US dollars.

2. Canadian Solar is the only manufacturer that manufactures both modules and inverters in the world,
which makes it have a keen insight into the future trend of modules.

and can arrange R&D of the inverter in advance to obtain opportunities for R&D,

manufacturing, testing and demonstration.

3. A reliable global service network ensures a complete after-sales warranty

SYSTEM/TECHNICAL DATA
MODEL NAME	CSI-100K-T400GL02-E	CSI-110K-T400GL02-E
DC INPUT
Max. PV Power	140 kW	140 kW
Max. DC Input Voltage	1100 V DC
Start-up DC Input Voltage/Power	195 V DC
Number of MPP Trackers	10
MPPT Voltage Range	180 - 1000 V DC
Max. Input Current (Imp)	260 A (26 A per MPPT)
Max. Short Circuit Current (Isc)	400 A (40 A per MPPT)
Number of DC Inputs	20 (2 per MPPT)
DC Switch	Integrated
AC OUTPUT
Rated AC Output Power	100 kW	110 kW
Max. AC Output Power	110 kW	121 kW
Rated Output Voltage*	220 / 380 V AC, 230 / 380 V AC
Grid Connection Type	3W / N / PE
Rated Grid Output Current	152.0 A	167.1 A
Max Output Current	167.1 A	183.8 A
Rated Output Frequency	50 / 60 Hz
Output Frequency Range*	47 - 52 / 57 - 62 Hz
Power Factor	> 0.99 (0.8 leading ... 0.8 lagging)
Current THD	< 3 %
DC Injection Current	< 0.5 % of Rated Grid Output Current
SYSTEM
Max. Efficiency	98.70%
EU Efficiency	98.30%
Night Consumption	< 2 W
Anti-PID Module	Optional
ENVIRONMENT
Protection Degree	IP66
Cooling	Intelligent Redundant Cooling
Operating Temperature Range	-25 °C to +60 °C
Storage Temperature Range	-40 °C to +70 °C
Operating Humidity	0 - 100 % condensing
Operating Altitude	4000 m
Audible Noise	< 65 dBA @ 1 m
DISPLAY AND COMMUNICATION
Display	LCD, 2 × 20 Z
Communication	RS485 / WiFi Optional
MECHANICAL DATA
Dimensions (W / H / D)	1065 x 567 x 344.5 mm
Weight	84 kg
Installation Angle	0~15 Degrees from Vertical
DC Inputs	MC4
SAFETY
Safety and EMC Standard	IEC 62109-1/2, IEC 61000-6-2/4
Grid Standard	IEC 62116, IEC 61727, EN 50549-1
*The “Rated Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard.
