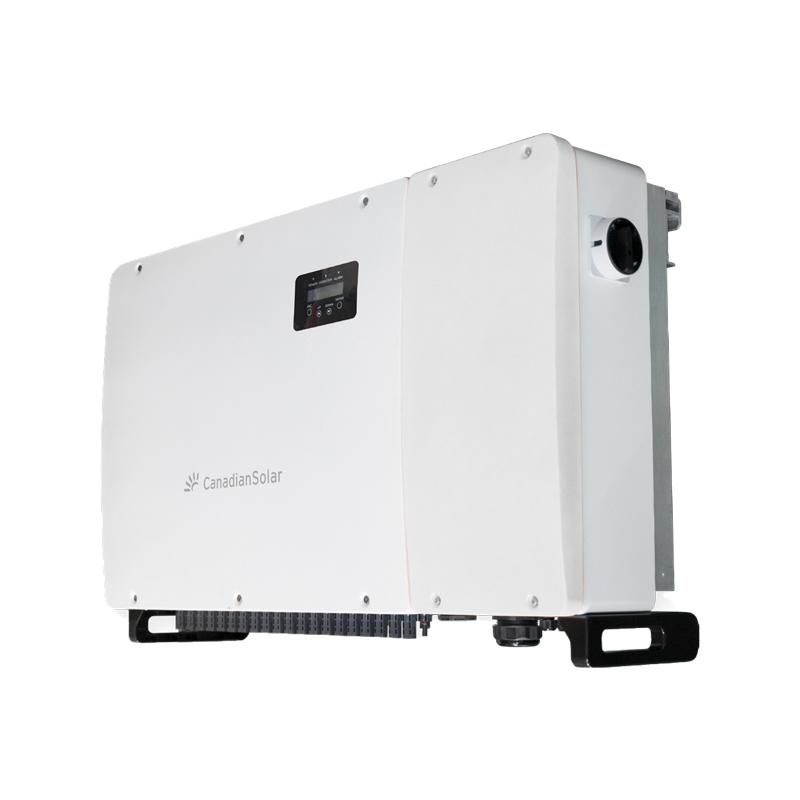

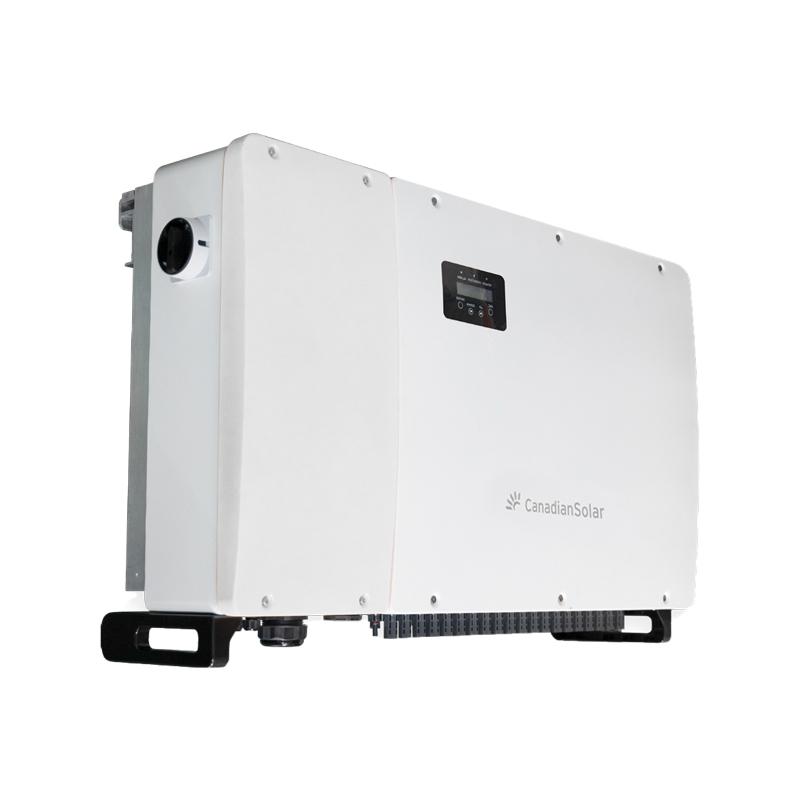

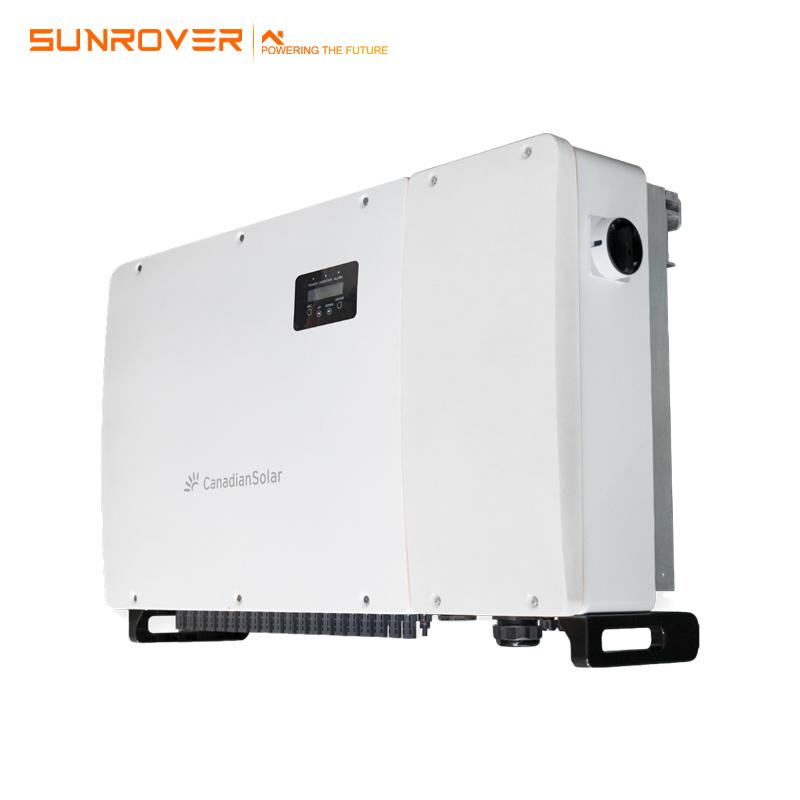

Canadian 125kw solar on grid inverter for solar power storage system
Canadian 125kw solar on grid inverter for solar power storage system
Item NO.:
CSI-125KTL-GI-EShipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian 125kw solar on grid inverter for solar power storage system
| Warranty: | 5 Years |
|---|---|
| Application: | Home, Commercial |
| Condition: | New |
| Certification: | VDE/CE |
| Material: | Monocrystalline/Polycrystalline Silicon |
Canadian inverters AWARDS
· No. 1 Top Bankable Manufacturer Rated by BloombergNEF in 2020* · Tier 1 Solar Company by BloombergNEF 2017-2020
· Leading company in PHOTON PV TRIATHALON 2017
· No. 1 Module Supplier for Quality and Performance/Price Ratio in IHS Module Customer Insight Survey in 2016
· The Best PV Module Manufacturer Award in Brazil by Smart Energy 2016
· No. 1 Silicon module solar plant developer by Greentech Media Research in 2017
· Best Structured Project Bond Award by Environmental Finance
· 2017 TWO DEAL OF THE YEAR AWARDS FROM POWER FINANCE & RISK in 2018
· Intersolar North America 2012 Solar Project Award Finalist
*100% of respondents surveyed by BloombergNEF considered Canadian Solar's modules bankable. Note that it is the respondents considering this, not BNEF.
| SYSTEM/TECHNICAL DATA | |
| MODEL NAME | CSI-125KTL-GI-E |
| DC INPUT | |
| Max. PV Power | 187.5 kW |
| Max. DC Input Voltage | 1500 VDC |
| Operating DC Input Voltage Range | 860-1450 VDC |
| Start-up DC Input Voltage/Power | 900 VDC |
| Number of MPP Trackers | 1 |
| Full Power MPPT Voltage Range | 860-1300 VDC |
| Operating Current (Imp) | 150 A |
| Max. Input Current (Isc) | 300 A |
| Number of DC Imputs | 20 |
| DC Disconnection Type | Load rated DC switch |
| AC OUTPUT | |
| Rated AC Output Power | 125 kW |
| Max. AC Output Power | 125 kW |
| Rated Output Voltage | 600 VAC |
| Operating Voltage Range* | 528 - 660 VAC |
| Grid Connection Type | 3 Φ/PE |
| Nominal AC Output Current @600 Vac | 120 A |
| Rated Output Frequency | 50/60 Hz |
| Output Frequency Range* | 47 - 62 Hz |
| Power Factor | 1 default （±0.8 adjustable) |
| Current THD | < 3 % |
| AC Disconnection Type | Load rated AC switch |
| SYSTEM | |
| Topology | Transformerless |
| Max. Efficiency | 99.10% |
| CEC Efficiency | 98.60% |
| Night Consumption | < 2 W |
| ENVIRONMENT | |
| Protection Degree | NEMA 4X (IP65) |
| Cooling | Intelligent Redundant Cooling |
| Operating Temperature Range | (-13°F to + 140°F / -25°C to +60°C) |
| Storage Temperature Range | (-40°F to + 158°F / -40°C to +70°C) |
| Operating Humidity | 0 - 100 % |
| Operating Altitude | 13,123.4 ft / 4000 m |
| Audible Noise | <55 dBA @ 1 m |
| DISPLAY AND COMMUNICATION | |
| Display | LED |
| Communication | Standard: RS485 (Modbus RTU), AND either MODBUS over ETHERNET |
| MECHANICAL DATA | |
| Dimensions (W / H / D) | 46.3 x 28.1 x 12.4in / 1176 x 713.5 x 315mm |
| Weight | 185lbs (84kg) |
| Installation Angle | Back tilt up to 15 degrees |
| DC Fuse Rating | 20 A standard |
| SAFETY | |
| Safety and EMC Standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4 |
| Grid Standard | VDE0126-1-1, IEC61683 or EN50530 |
| Smart-Grid Features | Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-Watt, Volt-Watt |
| *The “Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard. |
|
