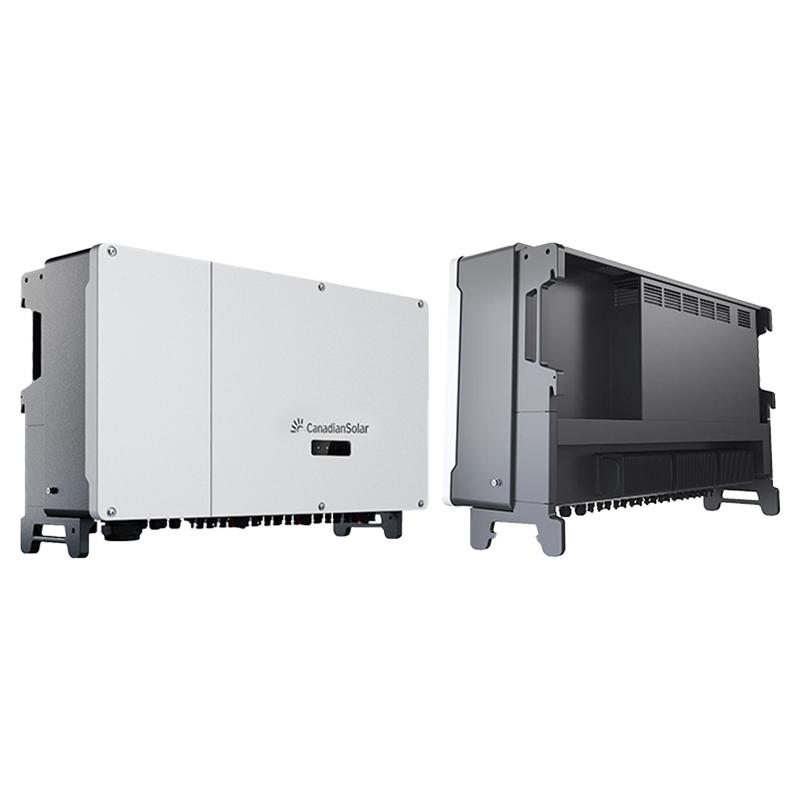

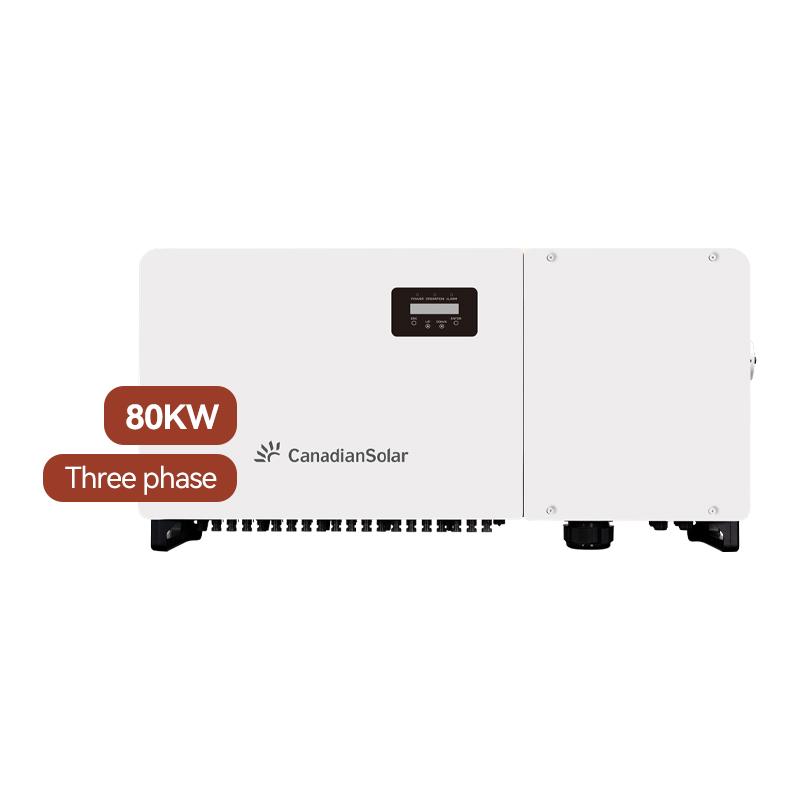

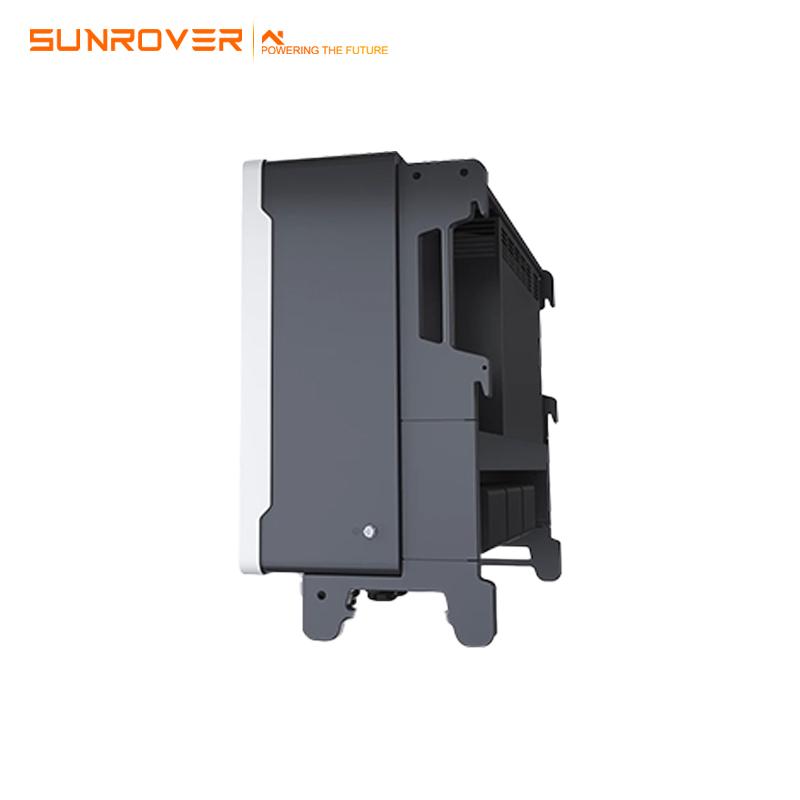

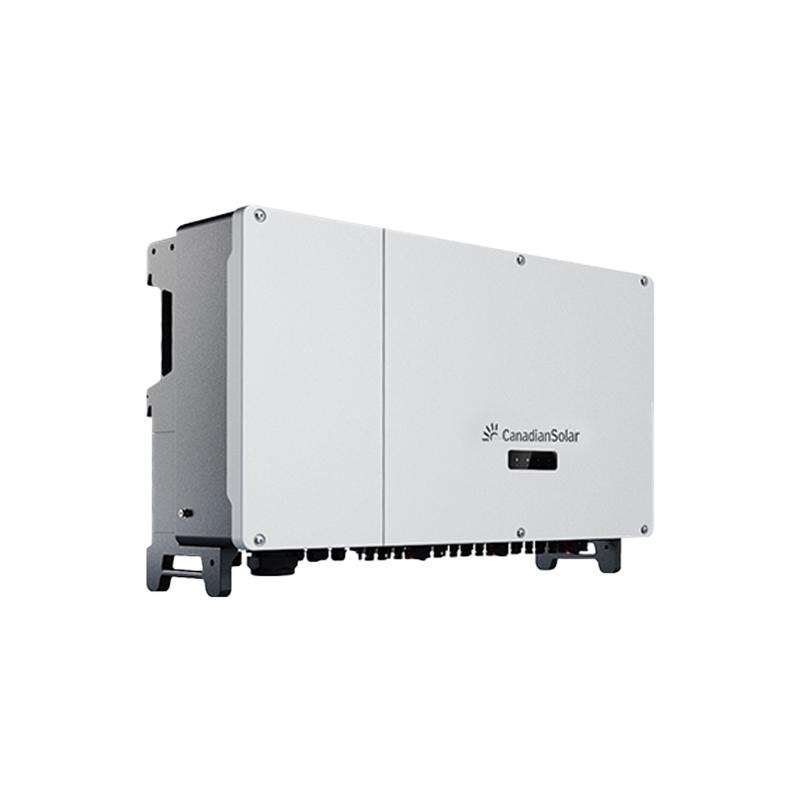

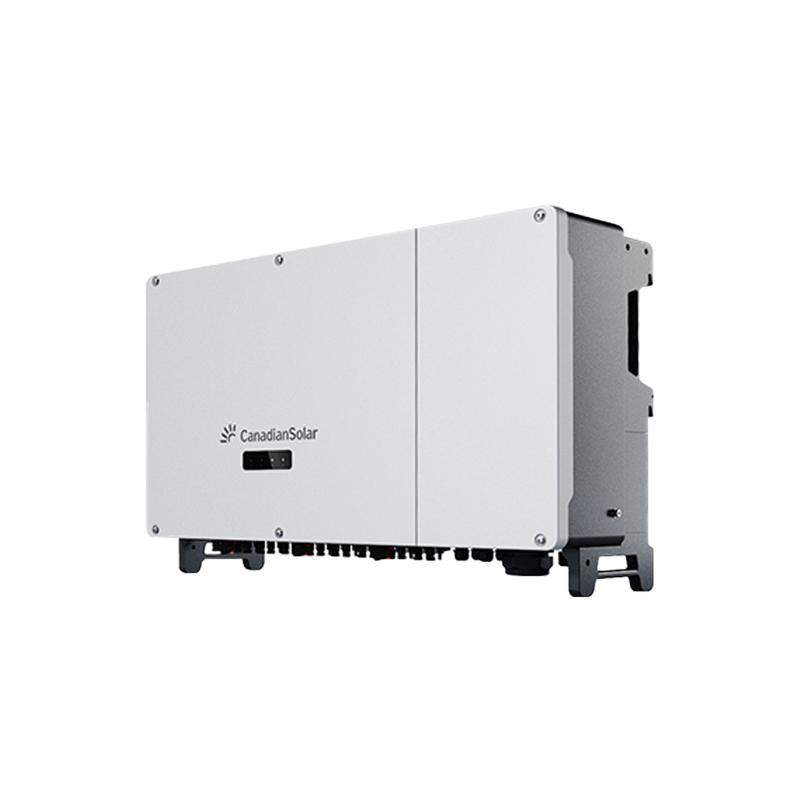

Canadian 80kw on grid inverter without grid for solar storage system
Canadian 80kw on grid inverter without grid for solar storage system
Item NO.:
CSI-80K-T400GL02-EShipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian 80kw on grid inverter without grid for solar storage system
Product Features:
*Can be used in high-altitude, alpine areas
*Power frequency topology, industrial design
*AC and DC dual power backup, ensure the power supply of the control system
*High power density, Max. efficiency up to 97.6%
*High-performance DSP, optimized control circuit design, better performance
*Wide DC input voltage range design, compatible with various batteries
*Functions of grid connected charging & discharging and off-grid independent inverter
*Reactive power and active power are adjustable
*Support diesel generator access, seamless switching between on-grid and off-grid (optional)
*Cold start with load, Three-phase 100% unbalanced load, strong load adaptability
*Friendly grid adaptability, accept power grid dispatch
*Intelligent management control strategy, multiple working modes, online or remote switching
| SYSTEM/TECHNICAL DATA | |
| MODEL NAME | CSI-80K-T400GL02-E |
| DC INPUT | |
| Max. PV Power | 126 KW |
| Max. DC Input Voltage | 1100 V DC |
| Start-up DC Input Voltage/Power | 195 V DC |
| Number of MPP Trackers | 9 |
| MPPT Voltage Range | 180 - 1000 V DC |
| Max. Input Current (Imp) | 234 A (26 A per MPPT) |
| Max. Short Circuit Current (Isc) | 360 A (40 A per MPPT) |
| Number of DC Inputs | 18 (2 per MPPT) |
| DC Disconnection Type | Load rated DC switch |
| AC OUTPUT | |
| Rated AC Output Power | 80 KW |
| Max. AC Output Power | 88 KW |
| Rated Output Voltage* | 220/380 V AC |
| Grid Connection Type | 3W / N / PE |
| Rated Grid Output Current | 121.6 A |
| Max Output Current | 133.7 A |
| Rated Output Frequency | 50 / 60 Hz |
| Output Frequency Range* | 47 - 52 / 57 - 62 Hz |
| Power Factor | > 0.99 (0.8 leading ... 0.8 lagging) |
| Current THD | < 3 % |
| DC Injection Current | < 0.5 % of Rated Grid Output Current |
| SYSTEM | |
| Max. Efficiency | 98.70% |
| EU Efficiency | 98.30% |
| Night Consumption | < 2 W |
| Anti-PID Module | Optional |
| ENVIRONMENT | |
| Protection Degree | IP66 |
| Cooling | Intelligent Redundant Cooling |
| Operating Temperature Range | -25 °C to +60 °C |
| Storage Temperature Range | -40 °C to +70 °C |
| Operating Humidity | 0 - 100 % condensing |
| Operating Altitude | 4000 m |
| Audible Noise | < 65 dBA @ 1 m |
| DISPLAY AND COMMUNICATION | |
| Display | LCD, 2 × 20 Z |
| Communication | RS485 / WiFi Optional |
| MECHANICAL DATA | |
| Dimensions (W / H / D) | 1050 x 567 x 314.5 mm |
| Weight | 82 kg |
| Installation Angle | 0~15 Degrees from Vertical |
| DC Inputs | MC4 |
| SAFETY | |
| Safety and EMC Standard | IEC 62109-1/2, IEC 61000-6-1/2/3/4 |
| Grid Standard | IEC 62116, IEC 61727 |
| *The “Rated Output Voltage Range” and “Output Frequency Range” may differ according to specific grid standard. | |

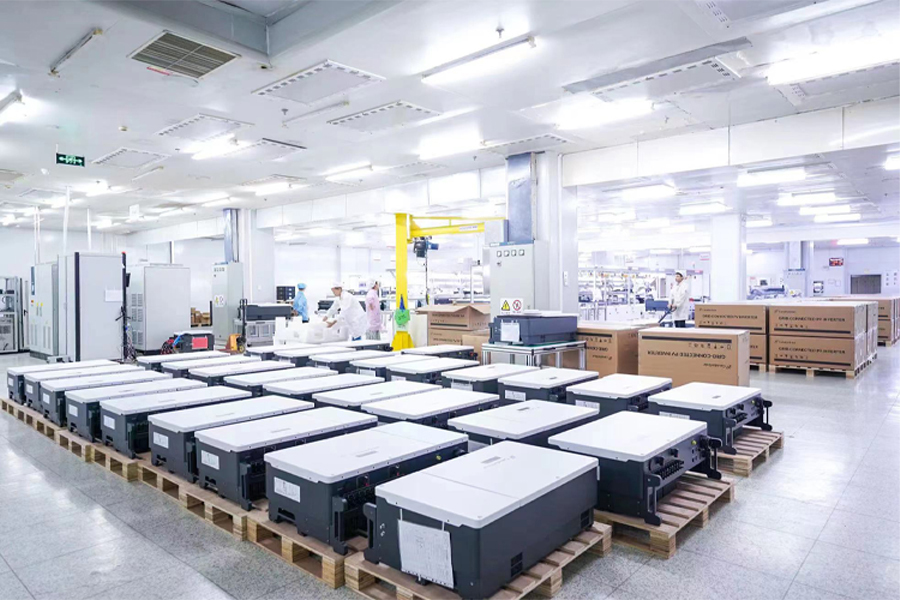

Stock

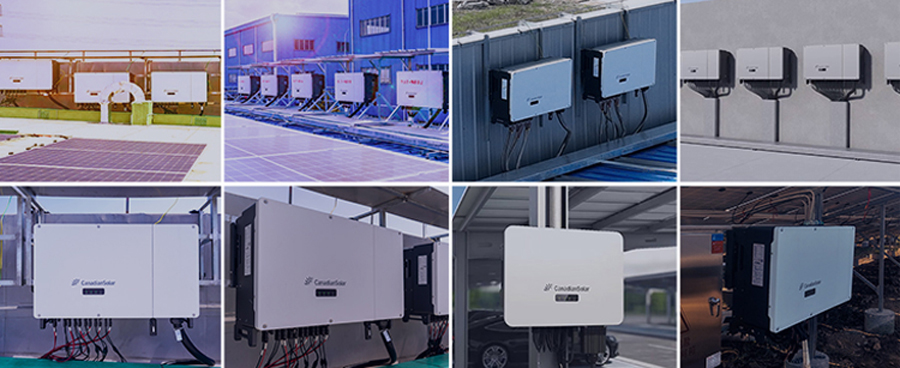

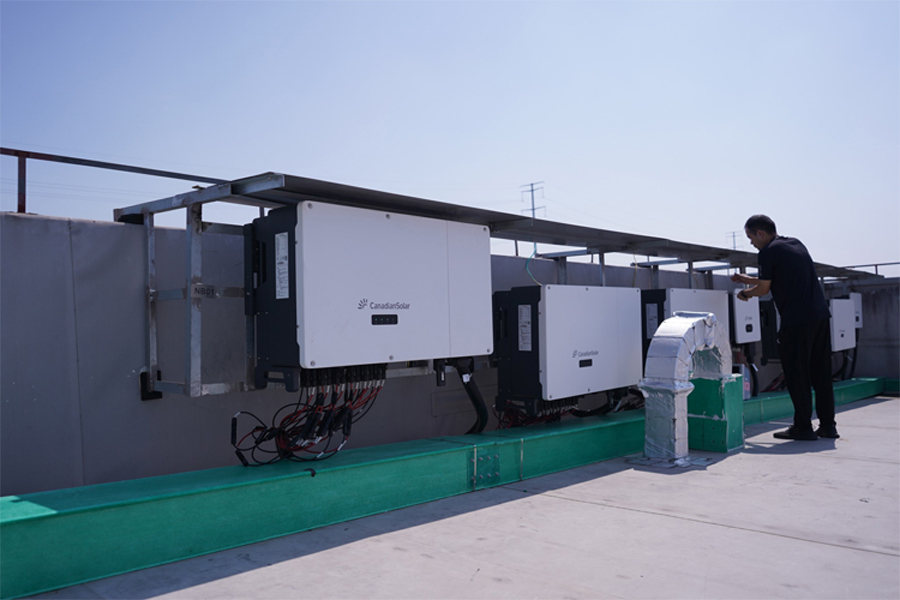

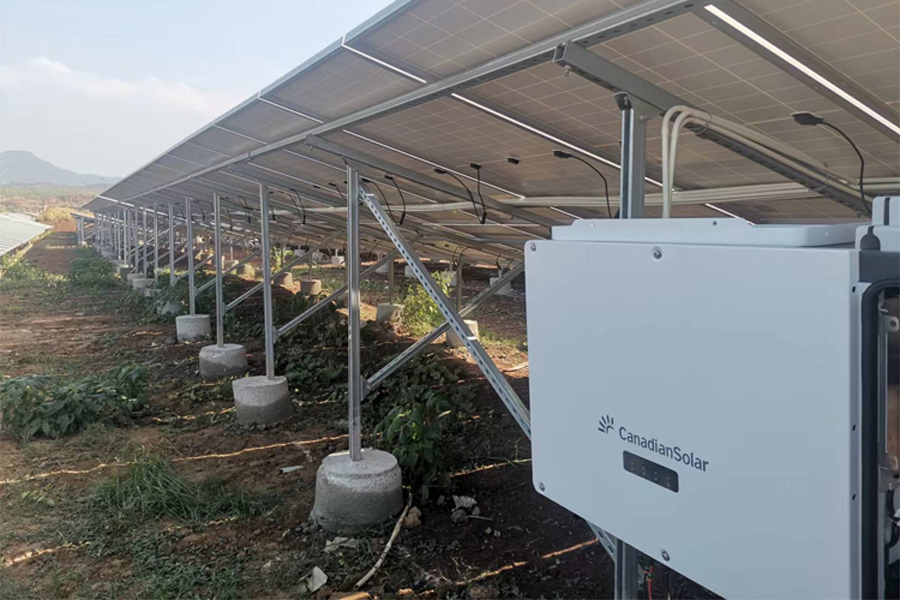

Project
