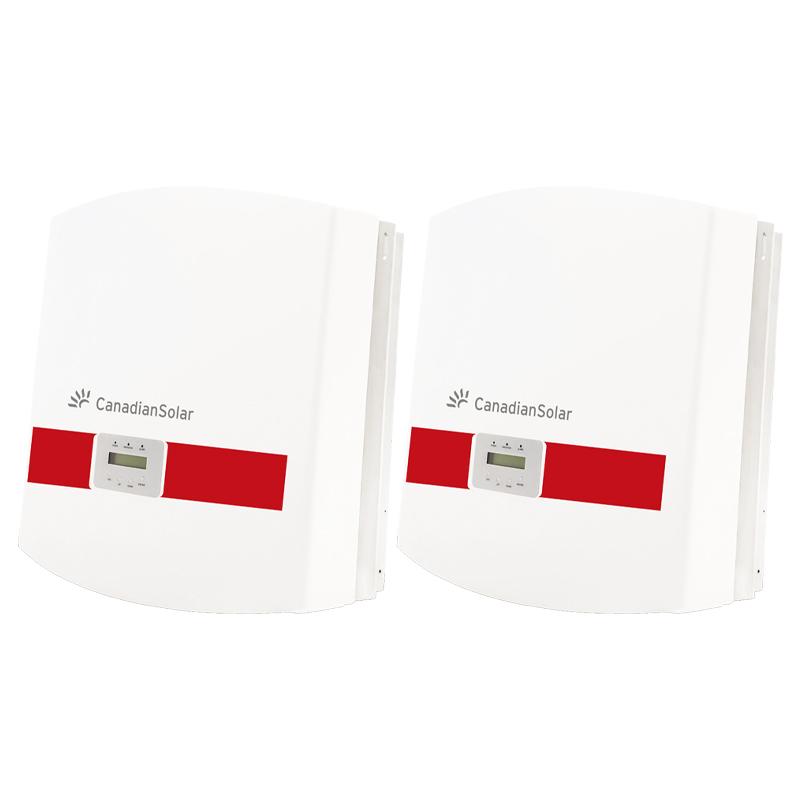

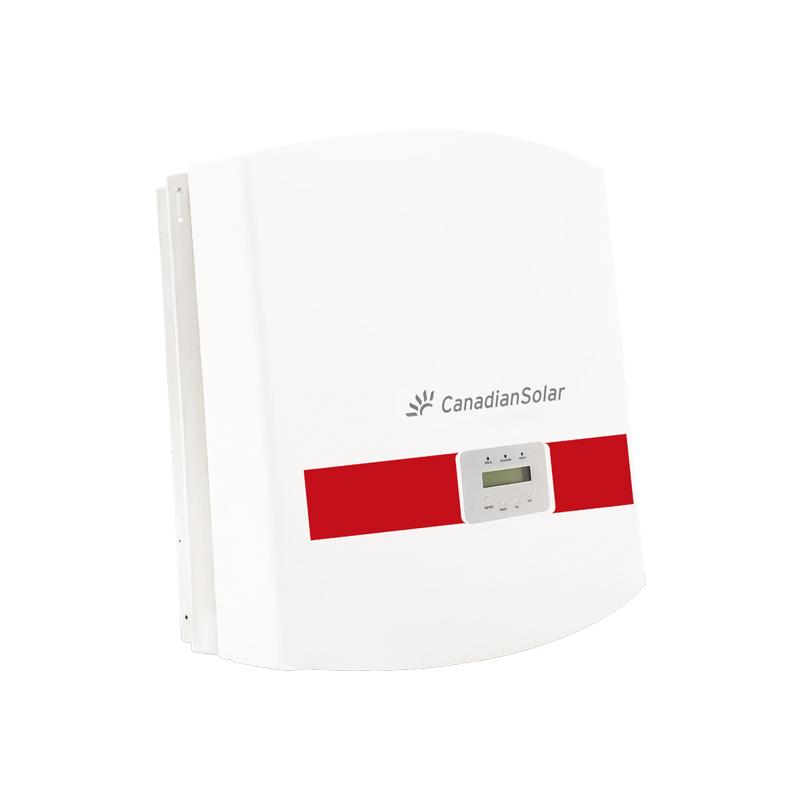

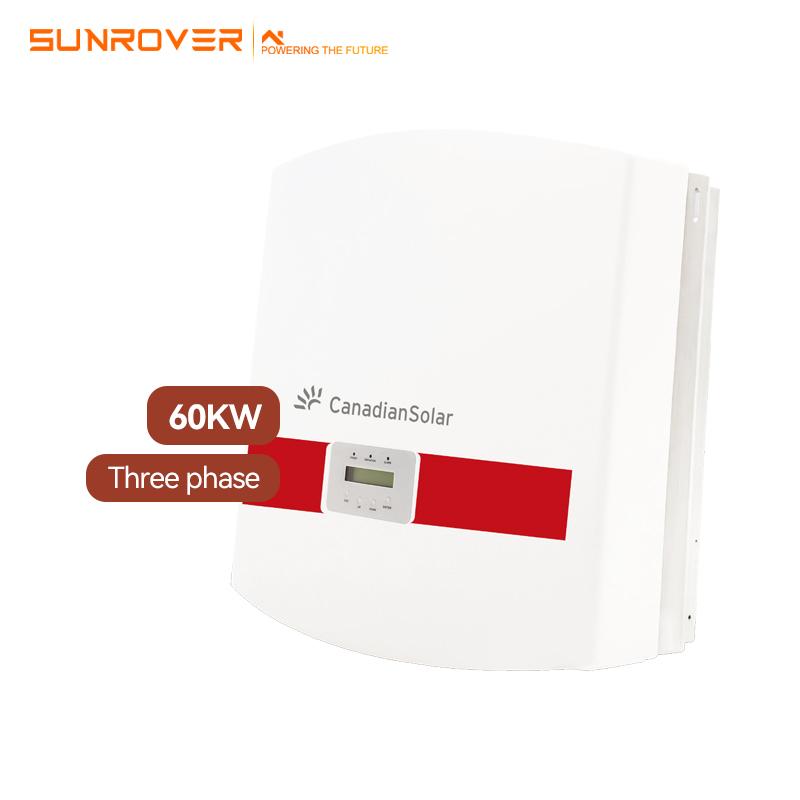

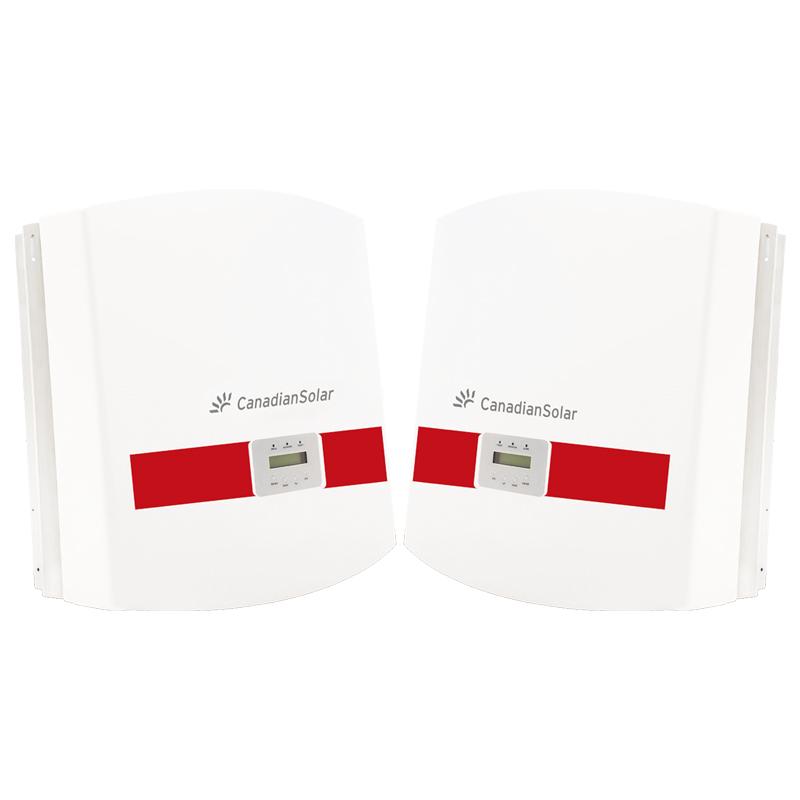

Canadian 60kw on grid power inverter for solar storage system

Canadian 60kw on grid power inverter for solar storage system

Humanized Function:

1 Sound And Light Alarm Function

2 Grid Automatic Identificatior

3 Remote Software Upgrade

4 Remote Monitoring

5 Plug And Play TerminaBlocks

6 Self-Help Troubleshooting

7 Various Monitoring Modes

Intelligent Management Function:

1) Active And Reactive Power Adiustable Function

2 With Low Voltage Ride Through Function

3 Grid Over-Frequency. Automatic Load ReductionFunction

4 Automatic Switch Machine

5 Remote Power On And Off

6 Remote Active And ReactivePower Management

7 IV Curve Scanning Function

8 Nighttime SVG Function

Built-In Protection：

1 Overvoltage. Undervoltage Protection

2 Over Frequency, Under Frequency Protection

3 Overcurrent, OverloadProtection

4 Lightning Protection

5 Anti-lslanding Protection

6 Leakage Current Protection

7PID Protection And Repair(Optional)

8 AFCI Pr otection (Optional)

9 Insulation Resistance Protection

SYSTEM/TECHNICAL DATA
MODEL NAME	CSI-60KTL-GI
DC INPUT
Max. PV Power	72kW
Max. DC Input Voltage	1100 VDC
Operating DC Input Voltage Range	200-1000 VDC
Start-up DC Input Voltage	200 V
Number of MPP Trackers	4
MPPT Full Power Voltage Range	526-850 VDC
Operating Current (Imp)	114 A (28.5 A per MPPT)
Max. Input Current (Isc)	178 A (44.5 A per MPPT)
Number of DC Imputs	8 (2 per MPPT)
DC Disconnection Type	Load rated DC switch
AC OUTPUT
Rated AC Output Power	60 kW
Max. AC Output Power	66 kW
Rated Output Voltage	400 VAC
Output Voltage Range*	304-460 VAC
Grid Connection Type	3/N/PE
Nominal AC Output Current	86.6 A
Rated Output Frequency	50/60 Hz
Output Frequency Range*	47-52/57-62 Hz
Power Factor	1 default (±0.8 adjustable)
Current THD	< 3 %
SYSTEM
Topology	Transformerless
Max. Efficiency	98.80%
CEC Efficiency	98.40%
Night Consumption	< 1 W
ENVIRONMENT
Protection Degree	IP65
Cooling	Intelligent Redundant Cooling
Operating Temperature Range	-25 ° C to +60 ° C
Storage Temperature Range	-40 ° C to +70 ° C
Operating Humidity	0 - 100 %
Operating Altitude	4000 m
Audible Noise	<60 dBA @ 1 m
DISPLAY AND COMMUNICATION
Display	LCD, 2*20
Communication	WiFi or GPRS
MECHANICAL DATA
Dimensions (W / H / D)	630 x 700 x 357 mm
Weight	63 kg
Installation Angle	90 degrees from horizontal
DC Inputs	MC4
SAFETY
Safety and EMC Standard	IEC62109-1/-2
Grid Standard	AS4777.2:2015, VDE0126-1-1, IEC61727, VDE4105, EN50438,
Smart-Grid Features	Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-Watt, Volt-Watt
