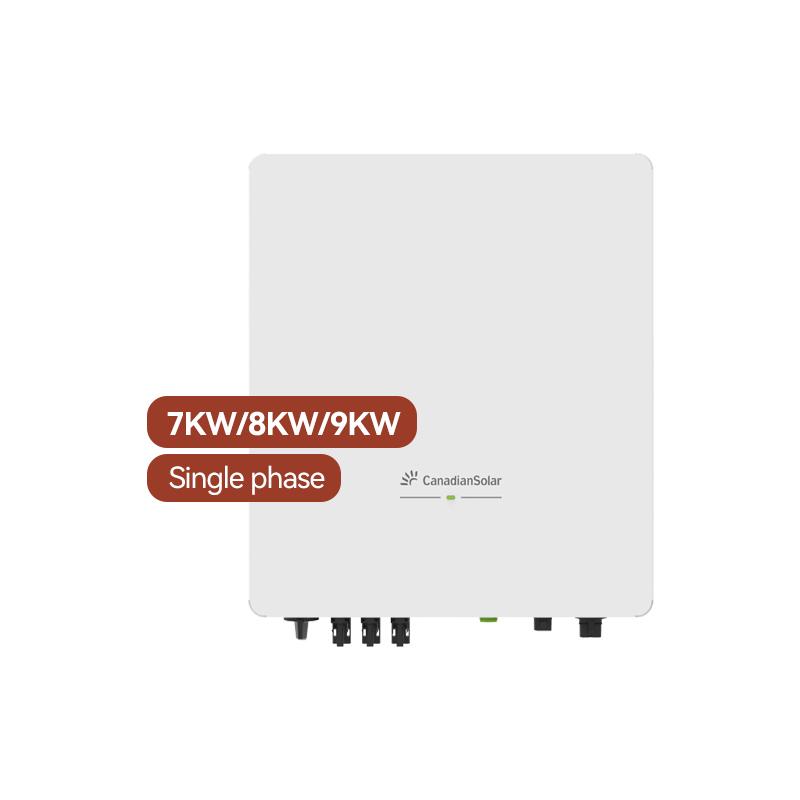

Canadian 7kw 8kw 9kw on grid inverter with battery backup

Item NO.:
CSI-7K-9K-S22002-E
Shipping Port:
Shanghai/Ningbo
Lead Time：
15days（1—10pieces）；To be negotiated（10p
Type:
Grid Tie
Payment:
30% deposit, balance paid before shipping
Certificate:
VDE.INMETRO
Warranty:
5years

Request A Quote

Basic Parameters

Canadian 7kw 8kw 9kw on grid inverter with battery backup

CanadianSolar 7kw 8kw 9kw 10kw Generator Commercial Rooftop 230V Single Phase Solar Inverters.

Q1: Can the product be shipped to my area?

A1: We export to most area of Southeast Asia, USA/Canada, Europe, Brazil/Caribbean/Central America, We will check and confirm for you after you provide the region.

Q3: What about the lead time?
A3: 7-15 days for ＜500 sets requirements, we need to negotiate if your needs ≥500 sets.

Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment.

Q4: What is the mode of transport?

A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.

Q5: What’s the warranty?
A5: Standard Warranty is 5 years/ 10 years in most region.

SYSTEM TECHNICAL DATA
MODEL NAME	CSI-7K-S22002-E	CSI-8K-S22002-E	CSI-9K-S22002-E
DC INPUT
Max. PV Power (W)	9100	10400	11700
Max. DC Input Voltage (V)	600	600	600
Start-up DC Input Voltage (V)	120	120	120
MPPT Operating Voltage Range (V)	100 - 500	100 - 500	100 - 500
Rated Input Voltage (V)	360	360	360
Max. Input Current (A)	12.5 / 25	12.5 / 25	12.5 / 25
Max. Short-Circuit Current (A)	15 / 30	15 / 30	15 / 30
Number of MPP Trackers	2	2	2
Number of DC Inputs	1//2	1//2	1//2
AC OUTPUT
Rated Output Power (W)	7000	8000	9000
Max. Output Power (W)	7700	8000	9000
AC Grid Connection Type	L / N / PE
AC Nominal Votage And Range (V)	220 / 230 / 240 (180 ~ 280)
AC Nominal Frequency And Range (Hz)	50 / 60 (±5)
Max. Output Current (A)	35	36.4	40.9
Power Factor (@Rated Output Power)	> 0.99
Displacement Power Factor	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THDi)	< 3%
EFFICIENCY
Max. Efficiency	98.10%	98.10%	98.10%
European Efficiency	97.50%	97.50%	97.50%
MPPT Efficiency	99.90%	99.90%	99.90%
SAFETY &PROTECTION
DC Switch	Integrated
Anti-Islanding Protection	Integrated
DC Reverse-Polarity Protection	Integrated
Insulation Monitoring	Integrated
AC Over Voltage Protection	Integrated
AC Over Current Protection	Integrated
AC Short-Circuit Protection	Integrated
Residual Current Protection	Integrated
Overvoltage Class	II (DC), III (AC)
GENERAL PARAMETERS
Dimensions (WHD, mm)	399 * 446* 192
Net Weight (kg)	18.1
Installation Method	Wall - mounted
DC Connection Type	MC4 / H4
AC Connection Type	Connector
Communication Interfaces	RS485 / WiFi
Display	LED Indicator
Cooling	Natural Convection
Protection Degree	IP65
Operating Ambient Temperature Range (℃)	- 25 ~ 60 °C (> 45 °C, derating operation)
Relative Humidity (Non-Condensing)	0% ~ 100%
Max. Operating Altitude (m)	4000 m (> 3000 m, derating operation)
Acoustic Noise Emission Level (dBA)	< 25
Topology	Transformerless
Night Power Consumption (W)	< 1
Safety and EMC	IEC 62109-1/2, IEC 61000-6-1, IEC 61000-6-3
Grid Connection Standard	IEC61727, IEC62116
