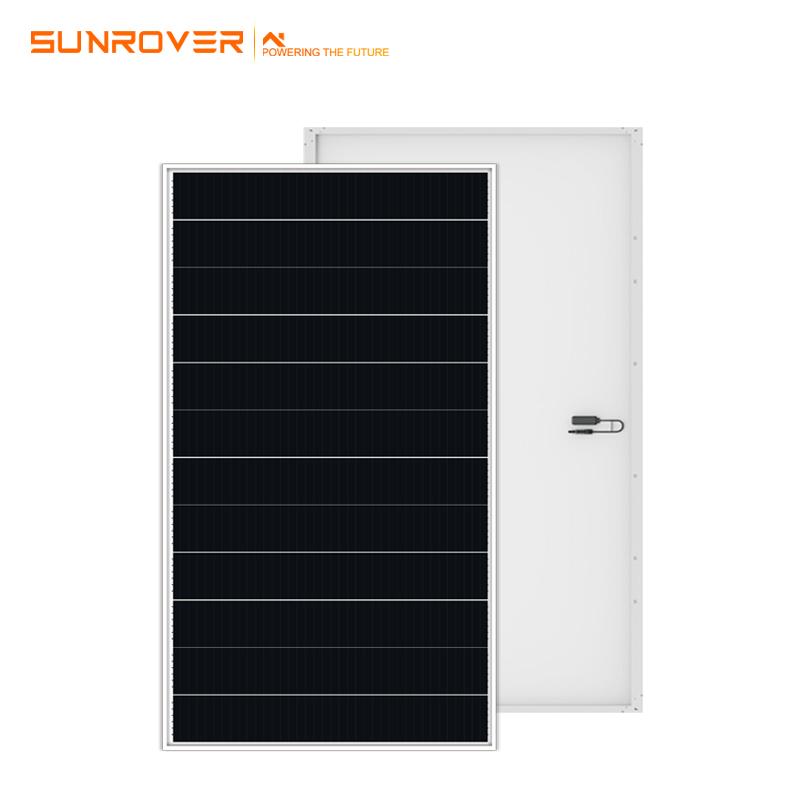

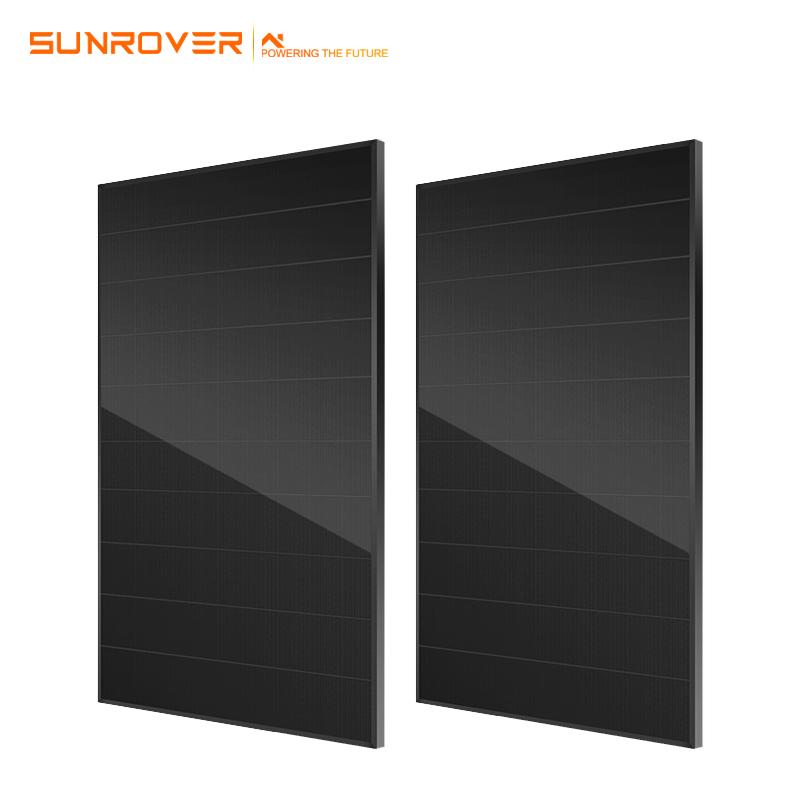

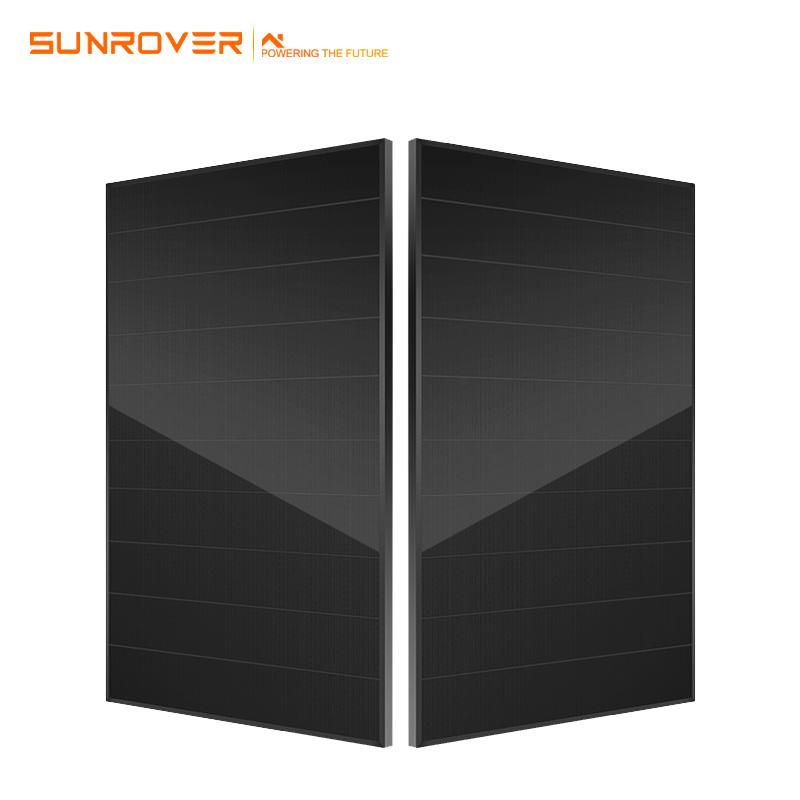

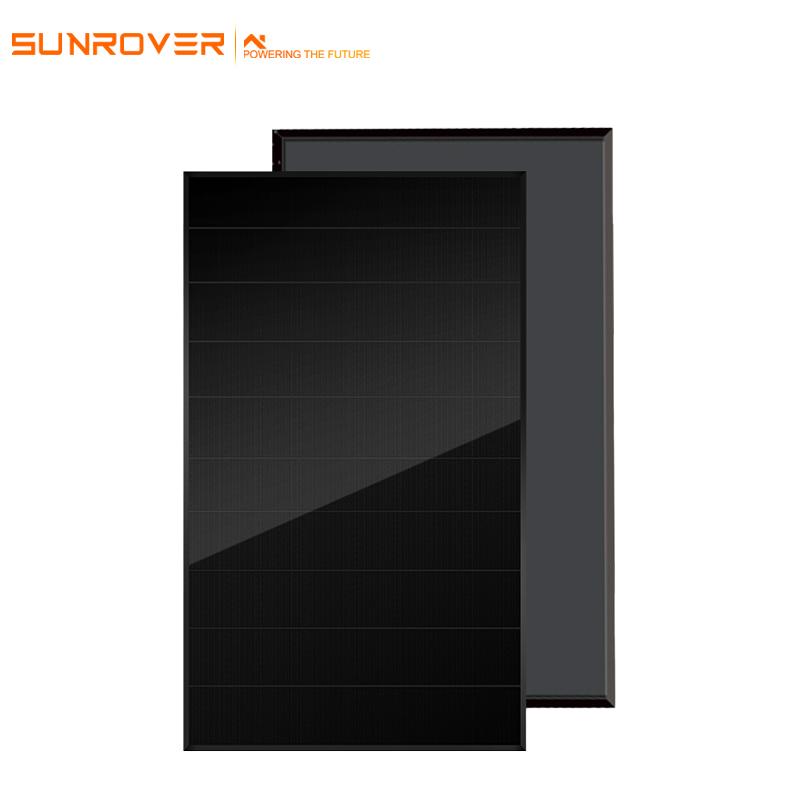

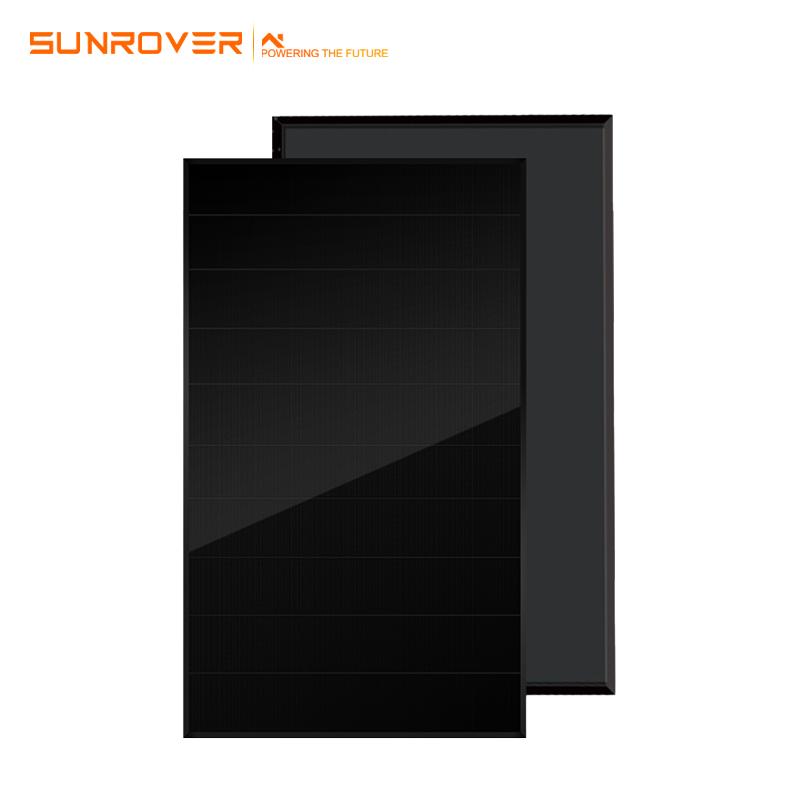

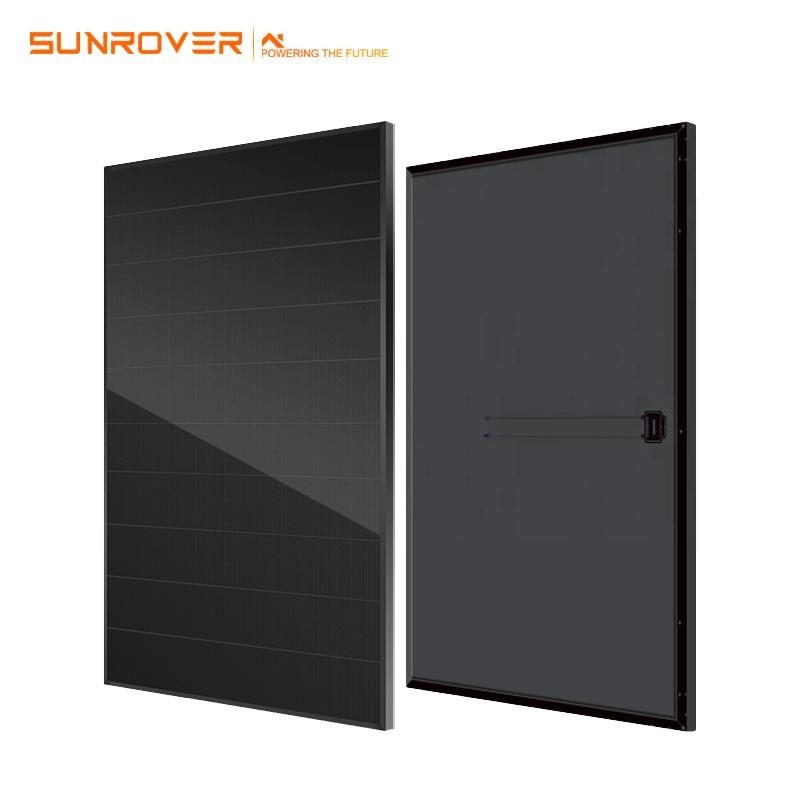

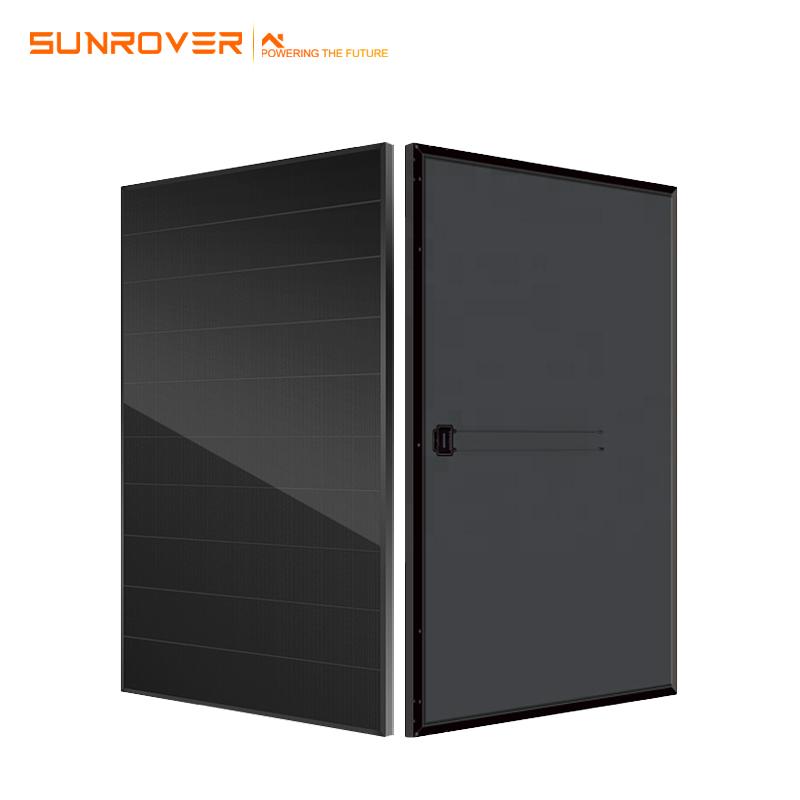

Manufacturers full black shingled module with high quality

Manufacturers full black shingled module with high quality from 390w to 560w.

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    5days(1—100000w);7days(100001 —10000000w
  • Weight:

    20kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    210mm
  • Dimensions:

    390w-410w(1723×1134×35mm);410w-430w(1723×1134×35mm);540w-560w(2158×1236×35mm);
  • Weight:

    390w-410w(20.5kg);410w-430w(1723×1134×35mm);540w-560w(2158×1236×35mm);
  • Certificate:

    CE/TUV
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    25years

Manufacturers full black shingled module with high quality



The photoelectric conversion efficiency of monocrystalline silicon solar panels is about 20%, reaching 23%, which is the photoelectric conversion efficiency of all kinds of solar panels at present, but the production cost is so high that it cannot be widely and widely used. Monocrystalline silicon is generally packaged with tempered glass and waterproof resin, so it is sturdy and durable, with a service life of 15 years or 25 years.





Module SUN390-DE21M SUN395-DE21M SUN400-DE21M SUN405-DE21M SUN410-DE21M
Maximum Power(Pmax) 390W 395W 400W 405W 410W
Maximum Power Voltage(Vmp) 38.40V 38.50V 38.60V 38.70V 38.80V
Maximum Power Current(Imp) 10.16A 10.26A 10.36A 10.47A 10.57A
Open-circuit Voltage(Voc) 46.20V 46.30V 46.40V 46.50V 46.60V
Short-circuit Current(Isc) 10.87A 10.92A 10.97A 11.02A 11.07A
Module Efficiency STC(%) 20.32% 20.58% 20.85% 21.10% 21.34%
Operating Temperature() -40~+85
Maximum system voltage 1000/1500V DC(IEC)
Maximum series fuse rating 20A
Power tolerance 0-5W
Temperature coefficients of Pmax -0.340%
Temperature coefficients of Voc -0.270%
Temperature coefficients of Isc 0.04%
Nominal operating cell temperature(NOCT) 42.3±2



Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover
Model Number: SUN420-60FB 420W
Cell size: 182mmx182mm
Type: PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel
Panel Dimensions: 1719*1140*35mm
Panel Efficiency: 21.10%
Certificate: TUV/ETL/CE, complete international certificates
Warranty: 25years
Product name: TUV certified 420watt solar panel 700w for electricity
Solar cell: Mono crystalline 182x182mm
Number of Cells: 120cells
Weight: 21kg
Glass: 3.2mm white toughened safety Glass
Frame: Anodized Aluminium Alloy
Junction Box: IP67,Rated Current: 18A
Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: yes
Supply Ability
Supply Ability 1000 Piece/Pieces per Week
Packaging & delivery
Packaging Details Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel
  1.Standard exporting Wooden and Carton Box
  2.Container: 40'HQ
  3. Pieces Per Container: 806
  The packaging can be customized according to the needs of different customers
Port Shanghai/Ningbo
