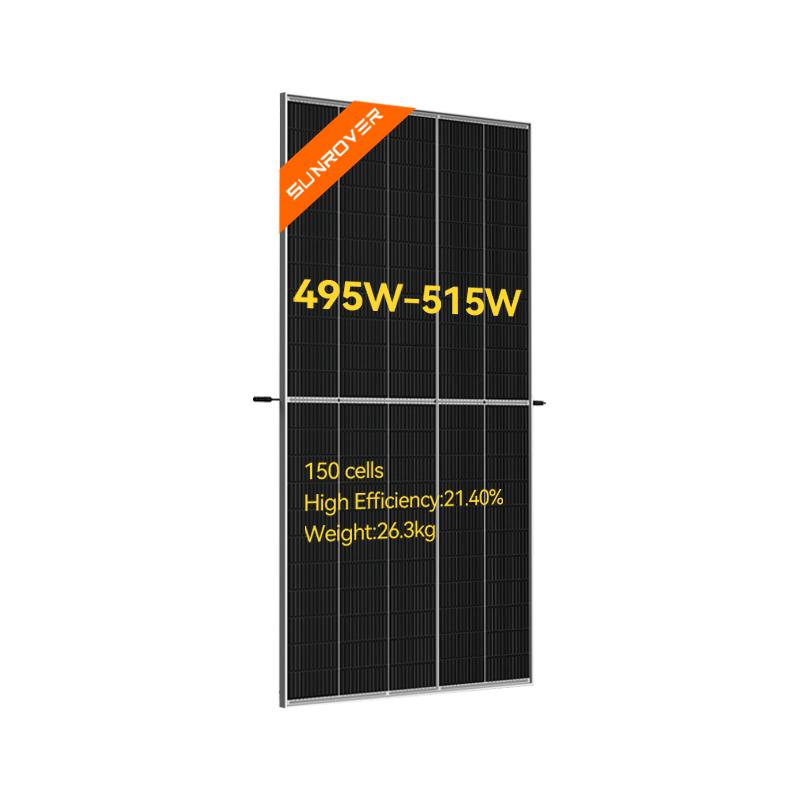

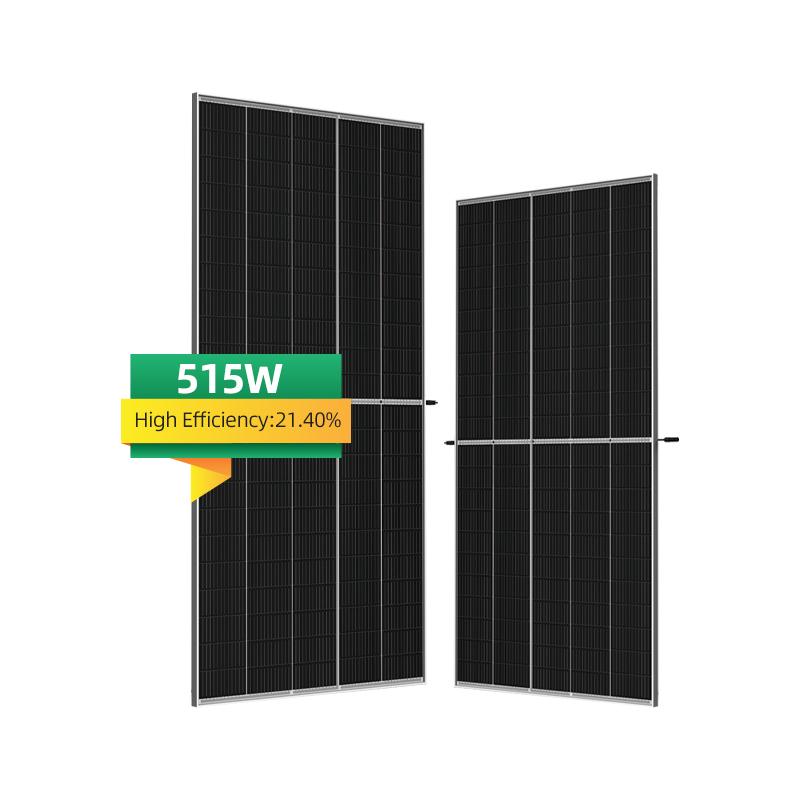

panel 495w 500w 505w 510w 515w best perc solar panel

Hot Sale panel 495w 500w 505w 510w 515w best perc solar panel with high module quality

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    3days(1—100000w);5days(10001 —100000w);1
  • Weight:

    21.8kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    150 cells
  • Dimensions:

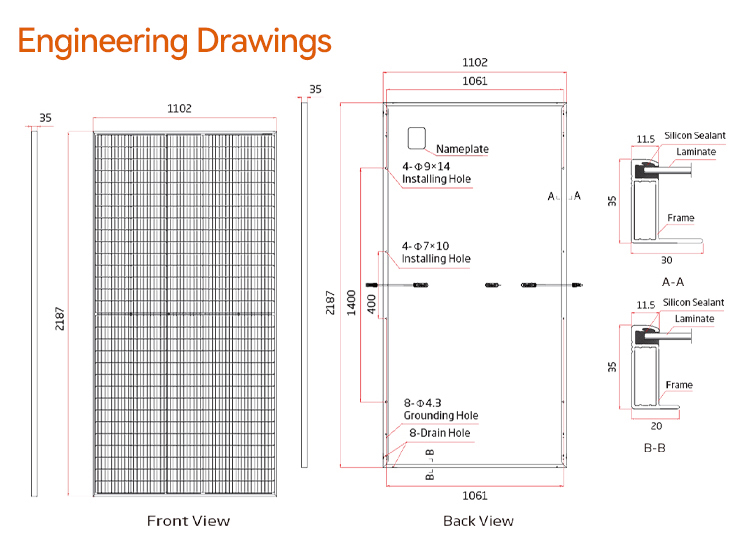

    495w-515w(2187×1102×35mm);525w-545w(2384×1096×35mm);535w-555w(2384×1096×35mm);
  • Weight:

    410w-430w(26.3kg);525w-545w(28.6kg);535w-555w(32.3kg);
  • Certificate:

    CE/TUV/ISO
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    10years

Hot Sale panel 495w 500w 505w 510w 515w best perc solar panel with high module quality

    Go for efficient and robust solar panel from china price for both residential and commercial uses.

Mono half cell panels, which has high photoelectric conversion efficiency and good stability; The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, and the highest is 24%。

Module SUN495-DE21M SUN500-DE21M SUN505-DE21M SUN510-DE21M SUN515-DE21M
Maximum Power(Pmax) 495W 500W 505W 510W 515W
Maximum Power Voltage(Vmp) 42.60V 42.80V 43.00V 43.20V 43.40V
Maximum Power Current(Imp) 11.63A 11.69A 11.75A 11.81A 11.87A
Open-circuit Voltage(Voc) 51.50V 51.70V 51.90V 52.10V 52.30V
Short-circuit Current(Isc) 12.21A 12.28A 12.35A 12.42A 12.49A
Module Efficiency STC(%) 20.50% 20.70% 21.00% 21.20% 21.40%
Operating Temperature() -40~+85
Maximum system voltage 1500V DC(IEC/UL)
Maximum series fuse rating 20A
Power tolerance 0-+5W
Temperature coefficients of Pmax -0.340%
Temperature coefficients of Voc -0.250%
Temperature coefficients of Isc 0.04%
Nominal operating cell temperature(NOCT) 43±2

Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover Solar

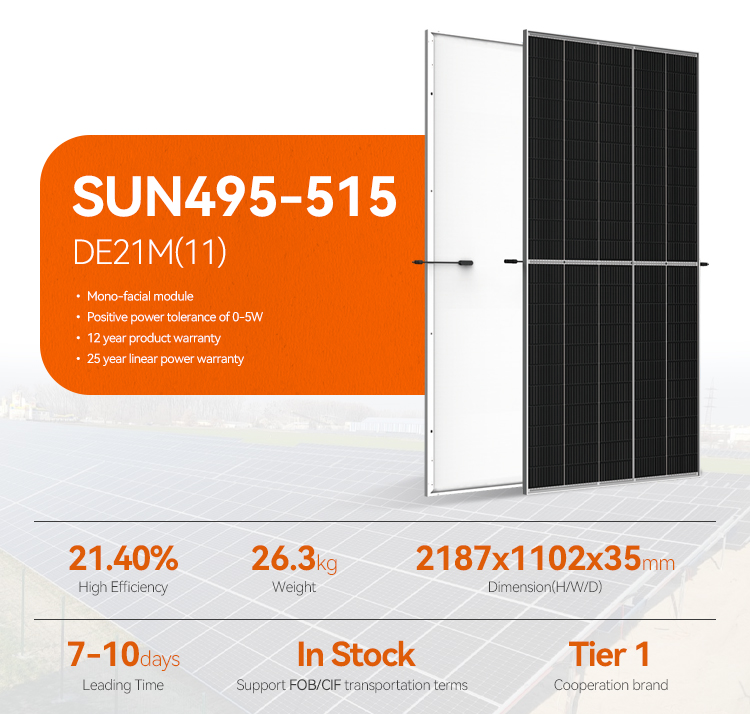

Model Number: SUN495-515 DE21M(11)
Type: PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel
Panel Efficiency: 19.50%, 19.70%, 19.90%, 20.20%, 20.40%
Certificate: ISO/CE/TUV/ETL
Warranty: 10YEARS
Glass: 3.2mm High Tranamission Low Iron
Frame: Anodized Aluminium Alloy
Junction Box: Split junction box (IP68, three diode)

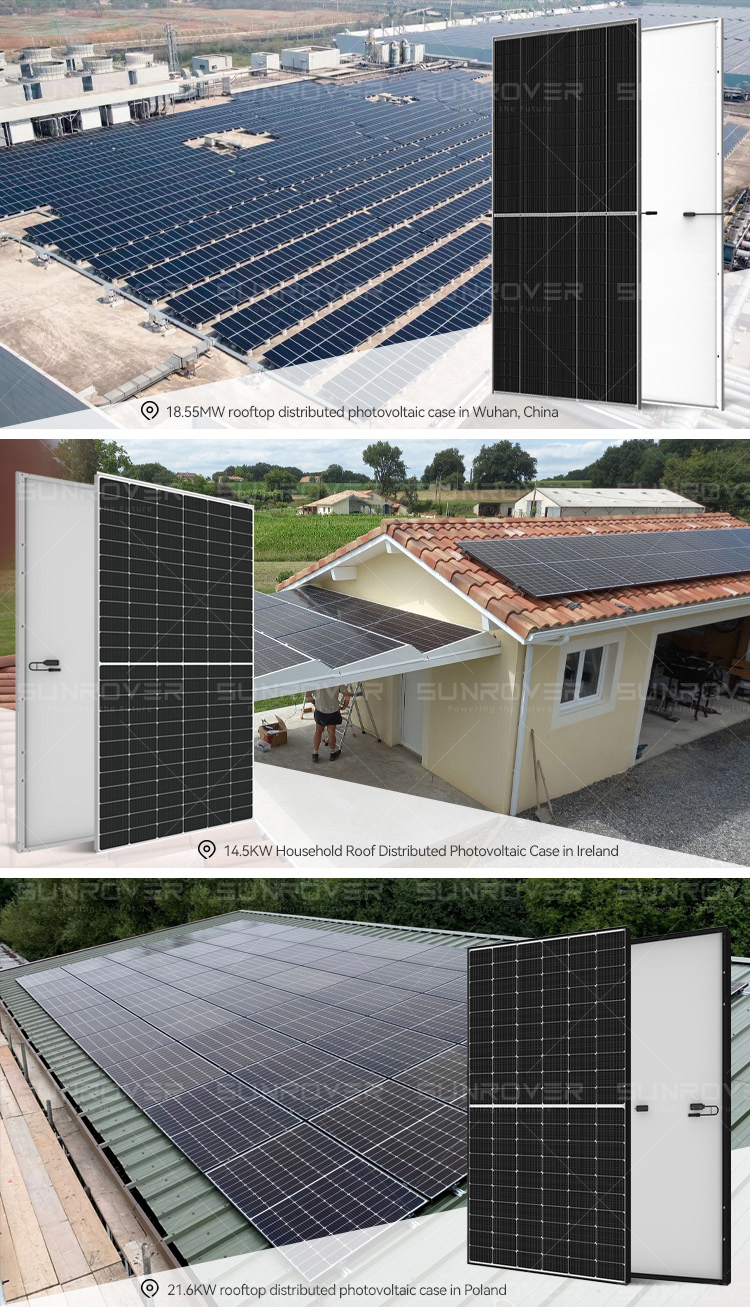

Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: Support for solar panel 450 watt stock double glass
Supply Ability 10000 Piece/Pieces per Week solar panel 450 watt stock double glass

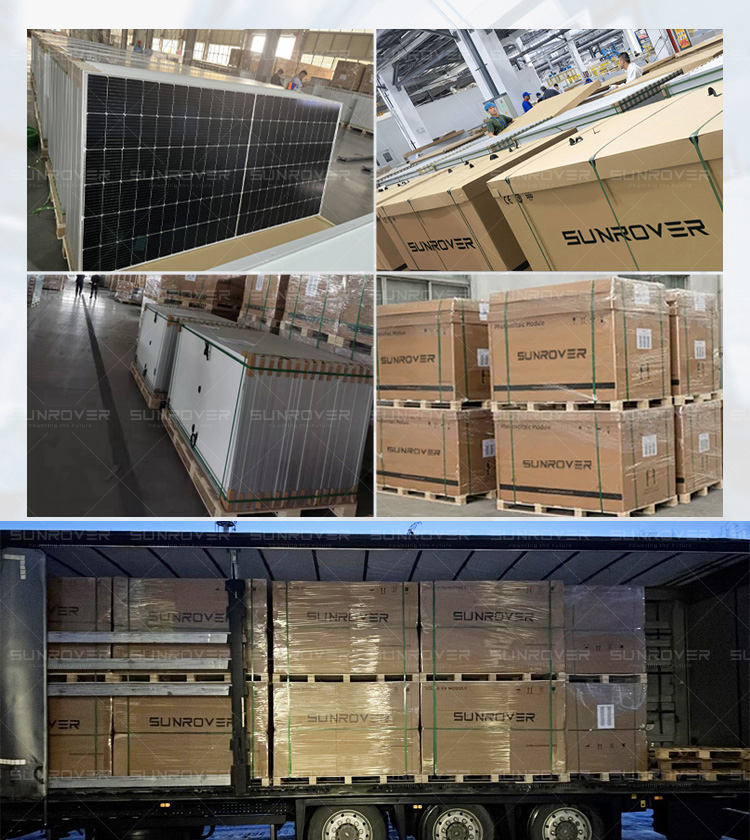

Packaging & delivery
Packaging Details Half cell Mono solar panel from 410w to 670w stock double glass
  1. Standard exporting Wooden and Carton Box
  2. Container: 40'HQ
  3. Pallets Per Container: 22
  4. Pieces Per Container: 660
  The packaging can be customized according to the needs of different customers
Port Shanghai , China
Quantity(watts) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Lead time (days) 3 5 10 To be negotiated
