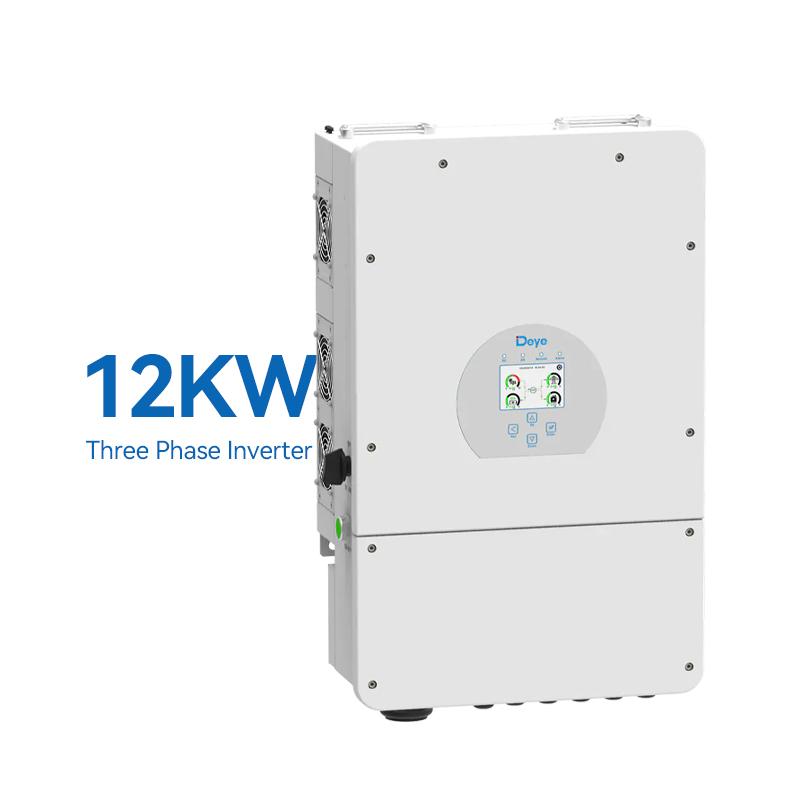

12kw hybrid inverter

Original factory supply Deye 12kw hybrid inverter SUN-8-10-12-SG04LP3-EU

  • Item NO.:

    SUN-8-10-12-SG04LP3-
  • Order(MOQ):

    10
  • Shipping Port:

    Shanghai/Ningbo
  • Item NO.:

  • Type:

    DC/AC Inverters
  • Max.Power:

    5500kw
  • Output Voltage:

    220V/23V/240V
  • Payment:

    T/T, L/C, Western Union
  • Certificate:

    VDE.INMETRO
  • Warranty:

    5years

Original factory supply Deye 12kw hybrid inverter SUN-8-10-12-SG04LP3-EU

Sunrover is an emerging brand in the photovoltaic industry. Sunrover's customers are located on all continents. We provide the highest quality products and the most professional services. We provide different design solutions for large, medium and small customers. We continue to develop and improve technology to bring better experience to our users.

Product Description

Model SUN-8K-SG04LP3-EU SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type Lead-acid or Li-Ion
Battery Voltage Range(V) 40-60V
Max.Charging Current(A) 190A 210A 240A
Max.Discharging Current(A) 190A 210A 240A
External Temperature Sensor Yes
Charging Curve 3 Stages/Equalization
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max.DC Input Power(W) 10400W 13000W 15600W
Rated PV Input Voltage(V) 550V(160-800V)
Start-up Voltage(V) 160V
MPPT Voltage Range(V) 200-650V
Full Load DC Voltage Range(V) 350-650V
PV Input Current(A) 13+13 26+13
Max.PV Isc(A) 17+17 34+17
No.of MPPT Trackers 2
No.of Strings per MPP Tracker 1 2+1
AC Output Data
Rated AC Output and UPS Power(W) 8000W 10000W 12000W
Max.AC Output Power(W) 8800W 11000W 13200W
AC Output Rated Current(A) 12.1/11.6A 15.2/14.5A 18.2/17.4A
Max.AC Current(A) 18.2/17.4A 22.7/21.7A 27.3/26.1A
Max.Continuous AC Passthrough(A) 45A
Peak Power(off grid) 2 time of rated power,10S
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz;3L/N/PE,220/380,230/400Vac
Grid Type Three Phase
DC injection current(mA) THD﹤3%(Linear load﹤1.5%)
Efficiency
Max.Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated PV Input Lighting Protection,Anti-islanding Protection,PV String
Input Revers Polarity Protection,Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,Output Shorted Protection,Surge Protection
Output Over Voltage Protection DC Type II/AC Type III
Certifications and Standards
Grid Regulation CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range(℃) -40℃-60℃,﹥45℃ derating
Cooling Smart cooling
Noise(dB) 45 dB
Communication with BMS RS485;CAN
Weight(kg) 33.6kg
Size(mm) 422Wx699.3Hx279D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years





Essential details
Place of Origin: Anhui, China
Brand Name: Deye
Model Number: SUN-8K-SG01LP1-EU
Input Voltage: 370V(100-500V)
Output Voltage: 120/240Vac,208Vac,230Vac
Output Current: 20.8-35A
Output Frequency: 50-60Hz
Output Type: Single, Triple
Size: 420*670*233mm
Type: DC/AC Inverters
Inverter Efficiency: 97.60%
Certificate: CE/TUV
Warranty: 5 Years
Weight: 32kg
Product name: 5KW 6KW 7.6KW 8KW deye hybrid inverter
Application: Grid Tie Solar Power System
Inverter type: Hybrid Inverter
Cooling: Smart Air Cooling
Communication: RS485, CAN
Topology: Transformerlerless
Noise: <30dB
Protection: IP65
DC switch: Yes
Keyword: Inverter Solar
Supply Ability
Supply Ability 10000 Piece/Pieces per Week Solar Inverter
Packaging & delivery Packaging Details
Deye Hybrid Inverter 3600W 5000W 6000W 7600W 8000W Solar Inverter
1. Individual box packaging
2. Large quantities can be packed in wooden pallets or cartons
3. Packaging can be customized according to customer needs
Port Shanghai, China
