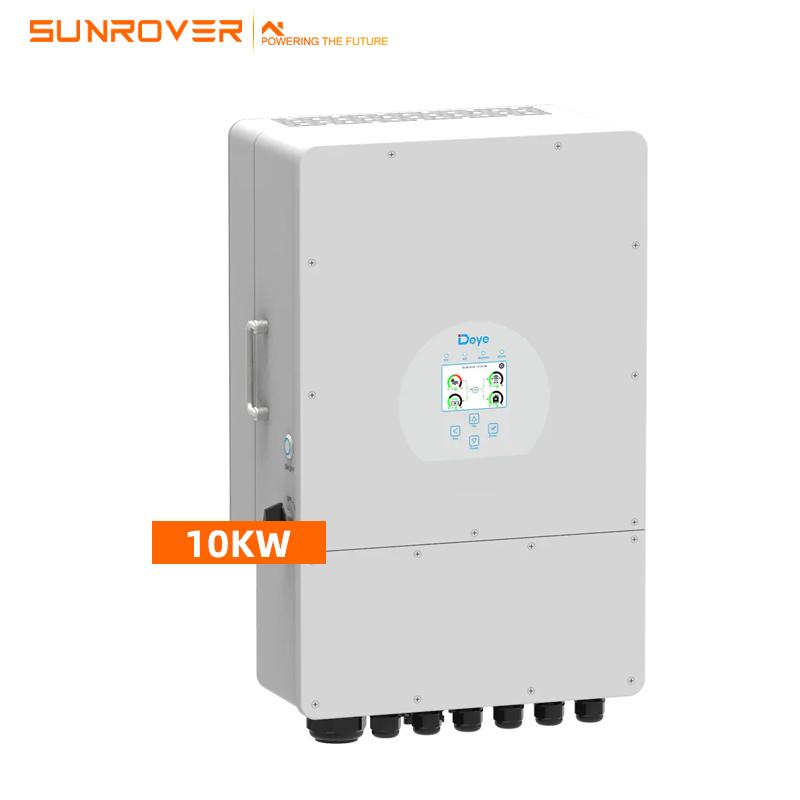

Deye 3 phase 10kw hybrid inverter with wifi include

10kw hybrid inverter deye brand  hybrid inverter 10000w with wifi and stock

  • Item NO.:

    SUN-10K-SG01LP3
  • Type :

    DC/AC Inverters
  • Max.Power :

    13kw
  • Output Voltage:

    230/400Vac (Three phase)
  • Payment :

    T/T, L/C, Western Union
  • Certificate:

    CE.TUV,VDE.INMETRO
  • Warranty:

    5years
- 230V/400V Three phase Pure sine wave inverter.
- Self-consumption and feed-in to the grid.
- Auto restart while AC is recovering.
- Programmable supply priority for battery or grid.
- Programmable mutiple operation modes: On grid, off grid and UPS.
- Confifigurable battery charging current/voltage based on applications by LCD setting.
- Confifigurable AC/Solar/Generator Charger priority by LCD setting.
- Compatible with mains voltage or generator power.
- Overload/over temperature/short circuit protection.
- Smart battery charger design for optimized battery performance
- With limit function, prevent excess power overflflow to the grid.
- Supporting WIFI monitoring and build-in 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker.
- Smart settable three stages MPPT charging for optimized battery performance.
- Time of use function.
- Smart Load Function.

Product Description



Model

SUN-8K-SG01LP3
SUN-10K-SG01LP3 SUN-12K-SG01LP3

DC input

Max. input power

10.4KW

13KW

15.6KW

Max. PV voltage

800V

MPPT range

140-700V

Max. input current

12.5A+12.5A

25A+12.5A

25A+25A

MPPT tracker/strings

2/1

2/1

2/1

AC output

Max. output power

8.8KVA

11KVA

13.2KVA

Max. output current

12.8A

18A

19.1A

Max. input power

17.6KVA

22KVA

26.4KVA

Max.input current

25.4A

31.8A

38.1A

Nominal voltage/range

50/60Hz; 230/400Vac (Three phase)

Frequency

50 /60Hz

PF

1(0.8lagging-0.8leading)

THDI

<3%

Current Harmonic Distortion
 THD<3% (Linear load<1.5%)

Battery

Battery voltage range

40-60V

Charge/discharge current

190A

210A

240A

Charging Curve
3 Stages / Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS

Protection
PV Input Lightning Protection
Integrated
Anti-islanding Protection
Integrated
PV String Input Reverse
Integrated
Polarity Protection
Integrated
Insulation Resistor Detection
Integrated
Residual Current Monitoring Unit
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection
Integrated
Output Over Voltage Protection
Integrated
Surge protection
DC Type II / AC Type II

General data

DC max. efficiency

97.6%

Euro efficiency

97%

MPPT efficiency

99%

Protection class

IP65

Noise emission (typical)

<30dB

Operation temperature

-25~60, >45 Derating

Cooling

Smart cooling
Communication with BMS
RS485; CAN

Altitude

2000m

Dimensions (WXDXH)

420W×656H×281D

Weight

45kg

Installation Style
Wall-mounted

Warranty

5years

Features

Grid Regulation
UL1741, IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727
Safety Regulation



IEC62109-1, IEC62109-2
EMC
EN61000-6-1, EN61000-6-3, FCC 15 class B

Packaging

Projects

Deye brand hybrid inverter Stock Infomation:

5kw 8kw hybrid single phase

10kw 12kw 3 phase hybrid inverter with stock
