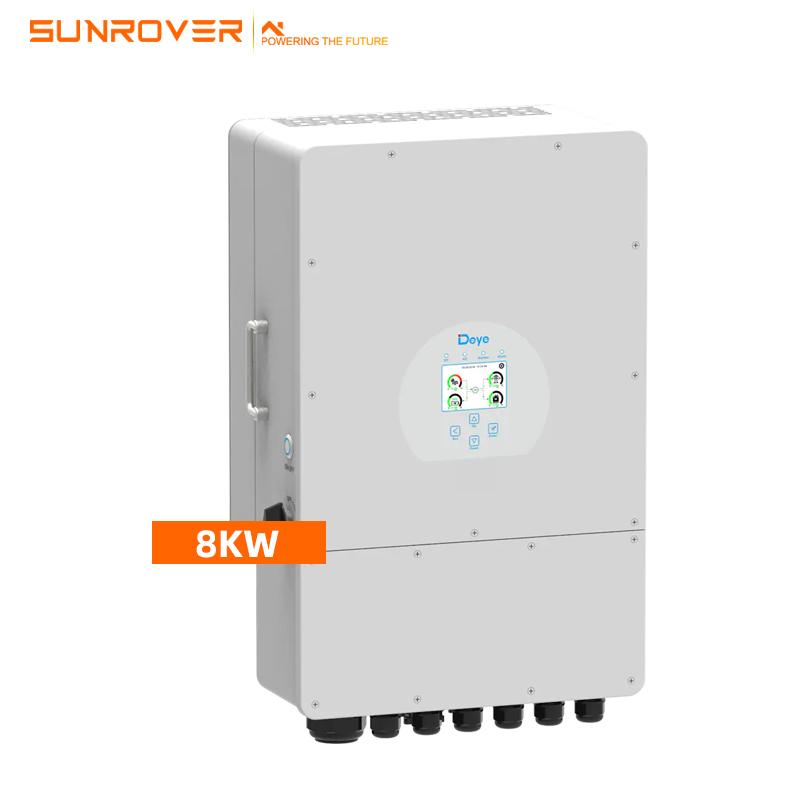

Deye 8kw inverter 8000w 10kw 12kw hybrid inverter solar power system

Deye hybrid inverter  8kw 10kw 12kw  3phase with wifi include

  • Item NO.:

    SUN-8K-SG01LP1-EU
  • Type:

    DC/AC Inverters
  • Max.Power:

    8800kw
  • Output Voltage:

    220V/23V/240V
  • Payment:

    T/T, L/C, Western Union
  • Certificate:

    VDE.INMETRO
  • Warranty:

    5years

Deye hybrid inverter single phase 8kw 10kw 12kw  3phase with wifi include

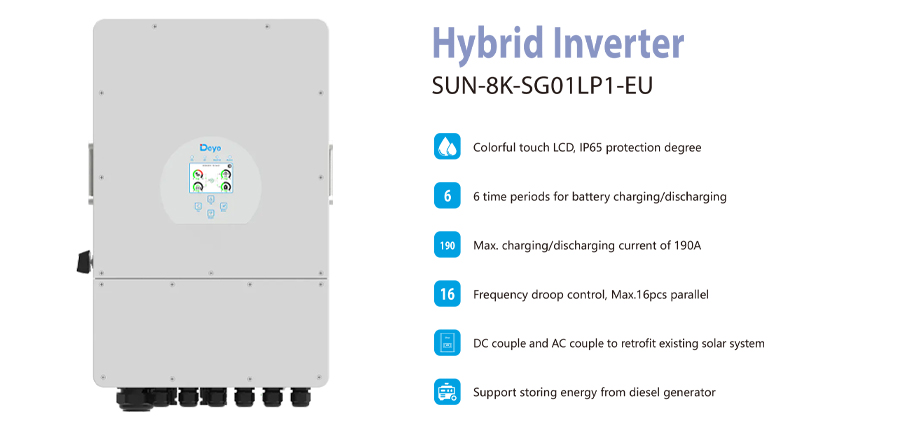

Product Description

Model

SUN-8K-SG01LP1-EU
PV String Input Data

Max. Input Power

8800W

Start-up voltage

150V

Max. PV voltage

500V

MPPT range

125V-425V

PV input current

22A+22A

MPPT tracker/strings

2+2
AC Output Data

Rated power w/va

8000W

Max. output current

38.5A

Nominal voltage/range

220V /230/240Vac

Frequency

50 /60Hz

Max. Continuous AC Passthrough (A)
50A
Current Harmonic Distortion
 THD<3% (Linear load<1.5%)
Peak Power (off grid)
2 times of rated power, 10 S
Battery Input Data

Battery voltage range

40~60V

Max.charging voltage

60V

Charge/discharge current

190 A

Battery type

lithium /Lead-acid

Charging Strategy for Li-Ion Battery
Self-adaption to BMS
Protection
PV Input Lightning Protection
Integrated
Anti-islanding Protection
Integrated
PV String Input Reverse Polarity Protection
Integrated
Insulation Resistor Detection
Integrated
Residual Current Monitoring Unit
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection
Integrated
Output Over Voltage Protection
Integrated
Surge protection
DC Type II / AC Type II

General Data

Operating Temperature Range ()
-25~60, >45 Derating
Cooling
Smart cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
32
Size (mm)
420W×670H×233D
Protection Degree
IP65
Installation Style
Wall-mounted
Certififications and Standards
Grid Connection Standard
EN50549-1, CEI 0-21, IEC61727, IEC62116, IEC60068, IEC61683, ABNT NBR 16149, ABNT NBR 16150,
AS4777.2, VDE 4105, XP C15-712-3, RD1699, UNE 206006 IN, UNE 206007-1 IN
Safety EMC / Standard
IEC62040-1,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11, IEC61000-3-12,
IEC61000-4-16,IEC61000-4-18,IEC61000-4-29

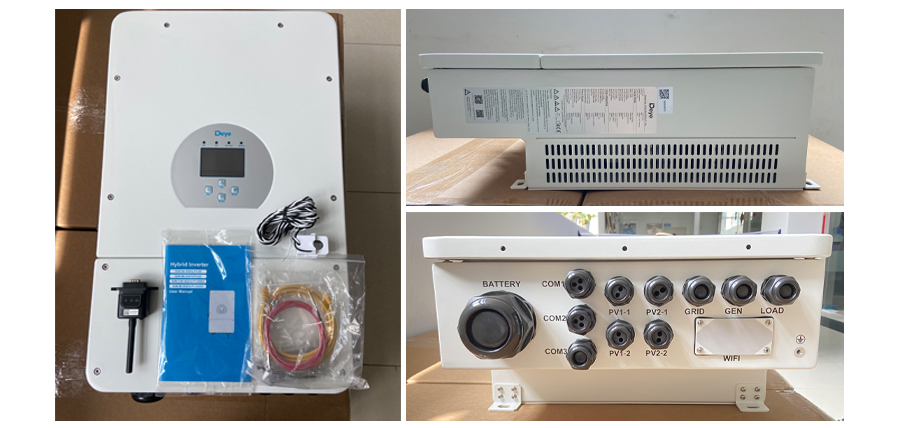

Packaging
