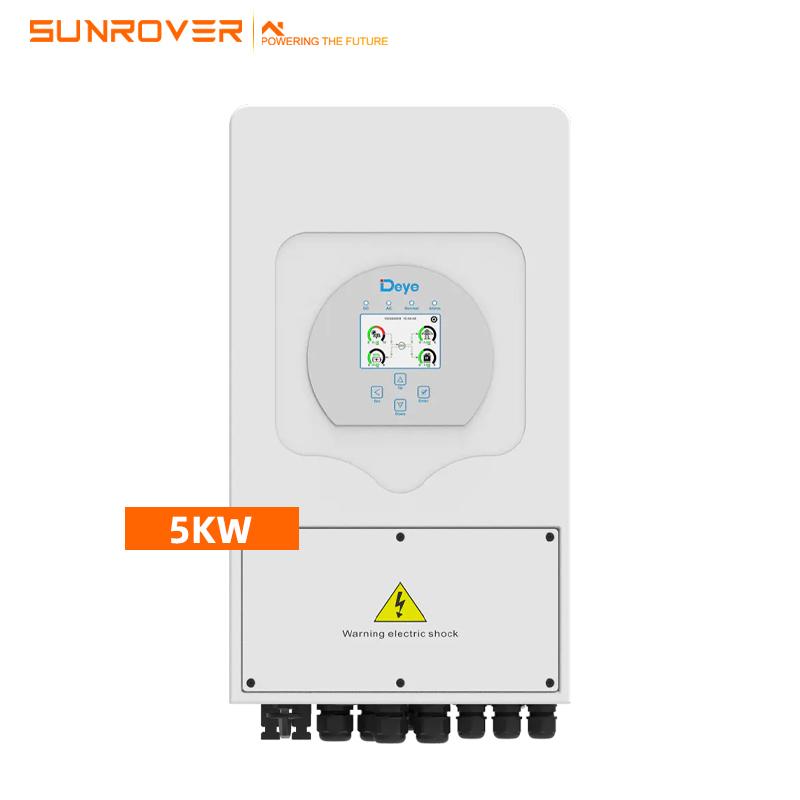

Deye 5kw inverter 8kw 10kw 12kw hybrid inverter for storage battery system

Stock ready to ship 5kw deye hybrid inverter  8kw 10kw 12kw  3phase with wifi include

  • Item NO.:

    SUN-5K-SG01/03LP1-EU
  • Type :

    DC/AC Inverters
  • Max.Power :

    5500kw
  • Output Voltage:

    220V/23V/240V
  • Payment :

    T/T, L/C, Western Union
  • Certificate:

    CE.TUV,VDE.INMETRO
  • Warranty:

    5years

Product Description

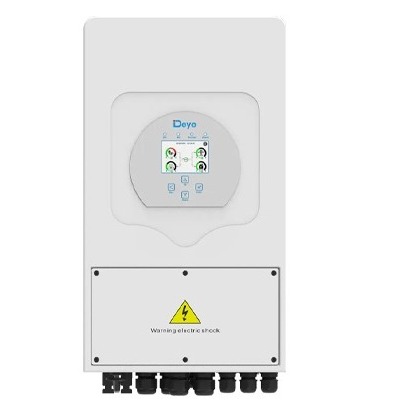

Hybrid Inverter

SUN-3.6/5K-SG01/03LP1-EU

Colorful touch LCD,IP65 protection degree

6 time periods for battery charging/discharging

Max. charging/discharging current of 120A

Frequency droop control,Max.16pcs parallel

DC couple and AC couple to retrofit existing solar system

Support storing energy from diesel generator

Model

SUN-5K-SG01/03LP1-EU
PV String Input Data

Max. Input Power

5500W

Start-up voltage

150V

Max. PV voltage

500V

MPPT range

125V-425V

PV input current

13A+13A

MPPT tracker/strings

1+1
AC Output Data

Rated power w/va

5000W

Max. output current

25A

Nominal voltage/range

220V /230/240Vac

Frequency

50 /60Hz

PF

0.8lagging-0.8leading

Current Harmonic Distortion
 THD<3% (Linear load<1.5%)
Peak Power (off grid)
2 times of rated power, 10 S
Battery Input Data

Battery voltage range

40~60V

Max.charging voltage

60V

Charge/discharge current

120 A

Battery type

lithium /Lead-acid

Charging Strategy for Li-Ion Battery
Self-adaption to BMS
Protection
PV Input Lightning Protection
Integrated
Anti-islanding Protection
Integrated
PV String Input Reverse Polarity Protection
Integrated
Insulation Resistor Detection
Integrated
Residual Current Monitoring Unit
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection



Integrated
Output Over Voltage Protection



Integrated
Surge protection



DC Type II / AC Type II

General Data

Operating Temperature Range ()
-25~60, >45 Derating
Cooling
Natural cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
20.5
Size (mm)
330W×580H×232D
Protection Degree
IP65
Installation Style
Wall-mounted
Certififications and Standards
Grid Connection Standard
EN50549-1, CEI 0-21, IEC61727, IEC62116, IEC60068, IEC61683, ABNT NBR 16149, ABNT NBR 16150,
AS4777.2, VDE 4105, XP C15-712-3, RD1699, UNE 206006 IN, UNE 206007-1 IN
Safety EMC / Standard
IEC62040-1,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11, IEC61000-3-12,
IEC61000-4-16,IEC61000-4-18,IEC61000-4-29

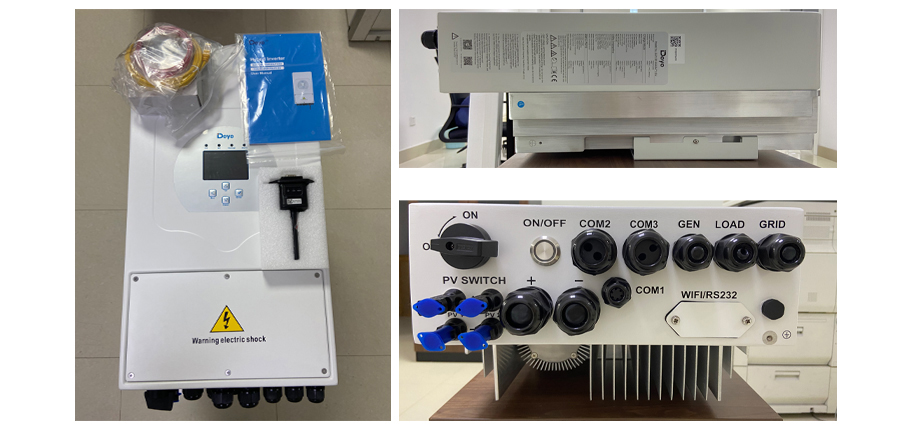

Packaging
