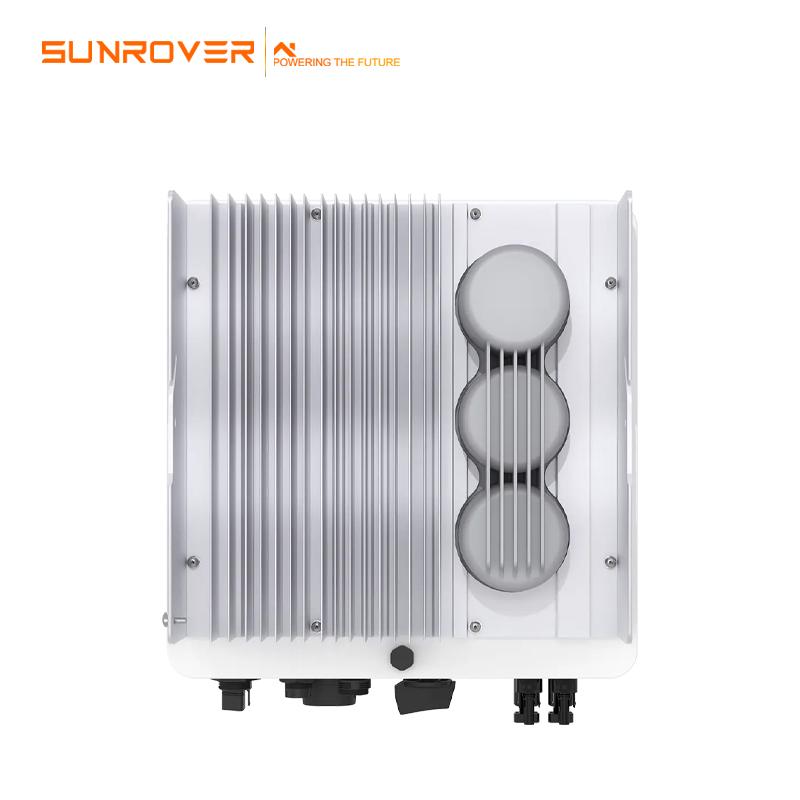

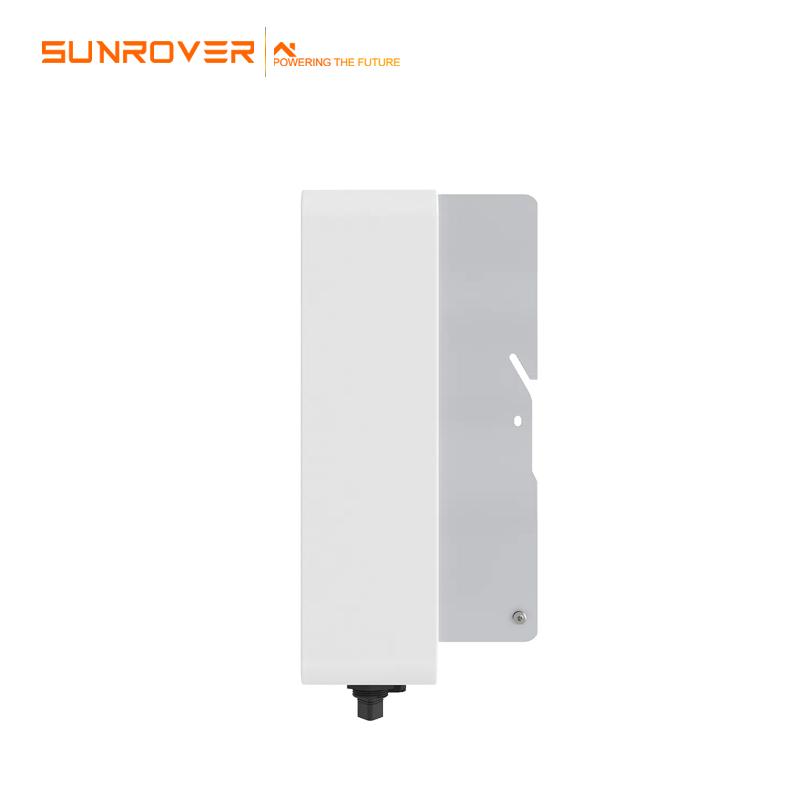

Solis 5KW 6KW Single Phase Grid-Tied Inverter

High Switch frequency, Wifi and GPRS Monitoring

Item NO.:
S6-GR1P 5K-S
Type:
on grid
Max.Power:
7.5 kW
Output Voltage:
220V
Payment:
all
Certificate:
inquiry
Warranty:
10 years

Request A Quote

Basic Parameters

S6-GR1P(5-6)K-S series is a single-phase string solar inverter, which is suitable for home solar panel energy systems and small industrial and commercial solar power systems. Built-in MPPT solar charge controller, which can continuously track the maximum power point of photovoltaic power generation, thereby achieving high conversion efficiency. It can work with single high-efficiency solar panel and bifacial solar panels.

In addition, the inverter also has IP66 multiple protection mechanisms to ensure that the solar inverter can provide safe power, allowing your solar power system to gain greater benefits.

DATASHEET	S6-GR1P(2.5-6)K-S
Models	5K
Input DC
Recommended max. PV power	7.5 kW
Max. input voltage	550 V
Rated voltage	330 V
Start-up voltage	100 V
MPPT voltage range	90 - 550 V
Max. input current	16 A / 16 A
Max. short circuit current	22 A / 22 A
MPPT number / Max. input strings number	2 / 2
Output AC
Rated output power	5 kW
Max. apparent output power	5 kVA
Max. output power	5 kW
Rated grid voltage	1/N/PE, 220 V / 230 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	22.7 A / 21.7 A
Max. output current	22.7 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Efficiency
Max. efficiency	97.70%
EU efficiency	97.10%
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Surge protection	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Temperature protection	Yes
Multi peak scan	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
General Data
Dimensions (W × H × D)	330 × 371 × 161 mm
Weight	8.9 kg
Topology	Transformerless
Self-consumption (night)	<1W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 20 dB(A)
Cooling concept	Natural cooling with internal fan
Max. operation altitude	4000 m
Grid connection standard	G98 or G99, VDE-AR-N 4105/VDEV 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530, MEA, PEA
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3

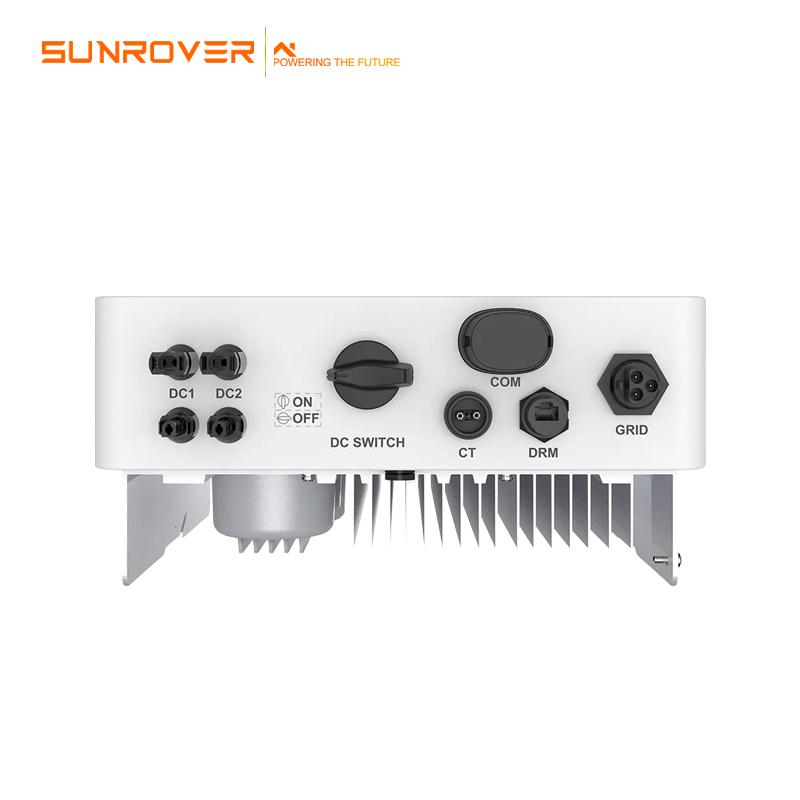

Features
DC connection	MC4 connector
AC connection	Quick connection plug
Display	LED digital display & Bluetooth + APP
Communication	RS485, USB, Optional: Wi-Fi, GPRS
